X905
SiRON
8538900000
About selection

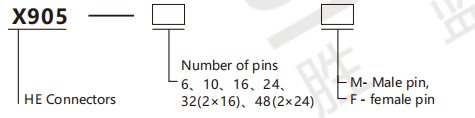

Note: Model X905-6M is a HE type connector with 6 pins and male pins.
Technical Features
| Inserts | |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Pollution degree 2 also | 16A 400/690V 6KV 2 |
| Rated voltage acc.to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃.….+125℃ |
| Flammability acc.to UL94 | OV |
| Mechanical working life | ≥500 |
| Contacts | |
| Material | aluminum alloy |
| Surface treatment | Silver plating/gold plating |
| Contact resistance | ≤1mΩ |
| Wrie gauge | 0.14-2.5mm² |
| AWG | 26-14 |
| Sripping lenght | 7-9mm |
Type selection reference
| Model | Pin(Male insert) | X905-6M | X905-10M | X905-16M | X905-24M | X905-32M | X905-48M |
| Jack(Female insert) | X905-6F | X905-10F | X905-16F | X905-24F | X905-32F | X905-48F | |

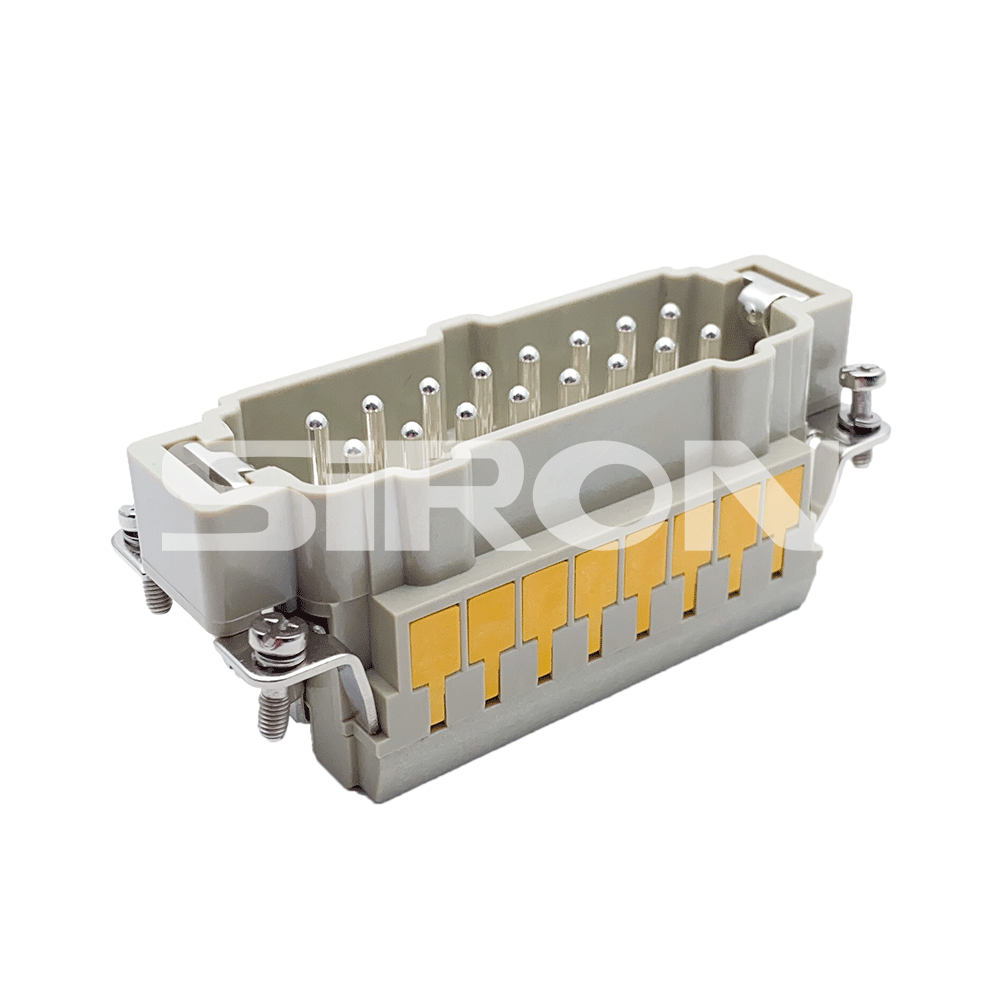

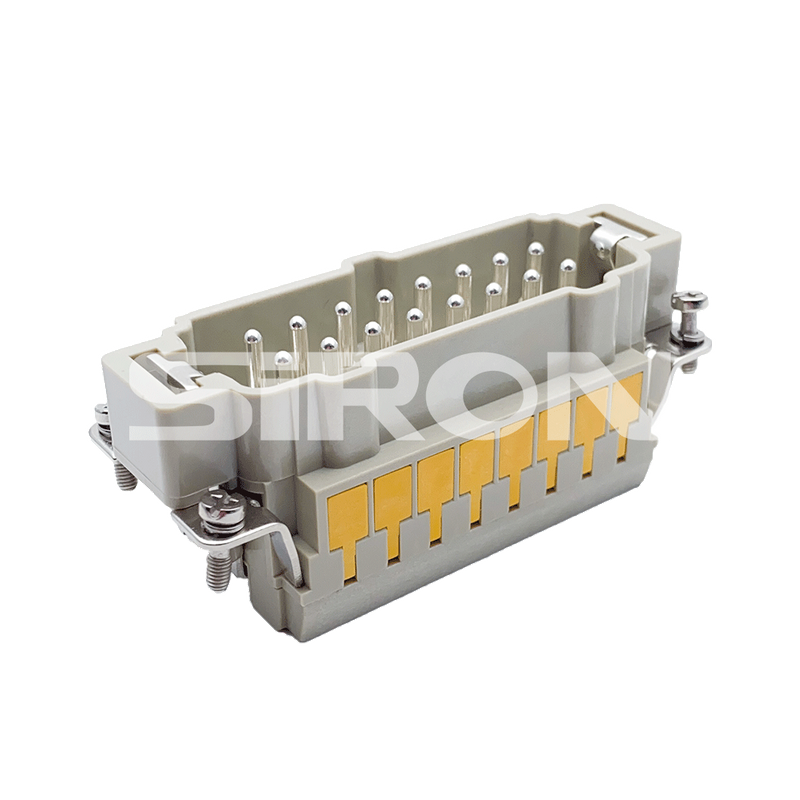

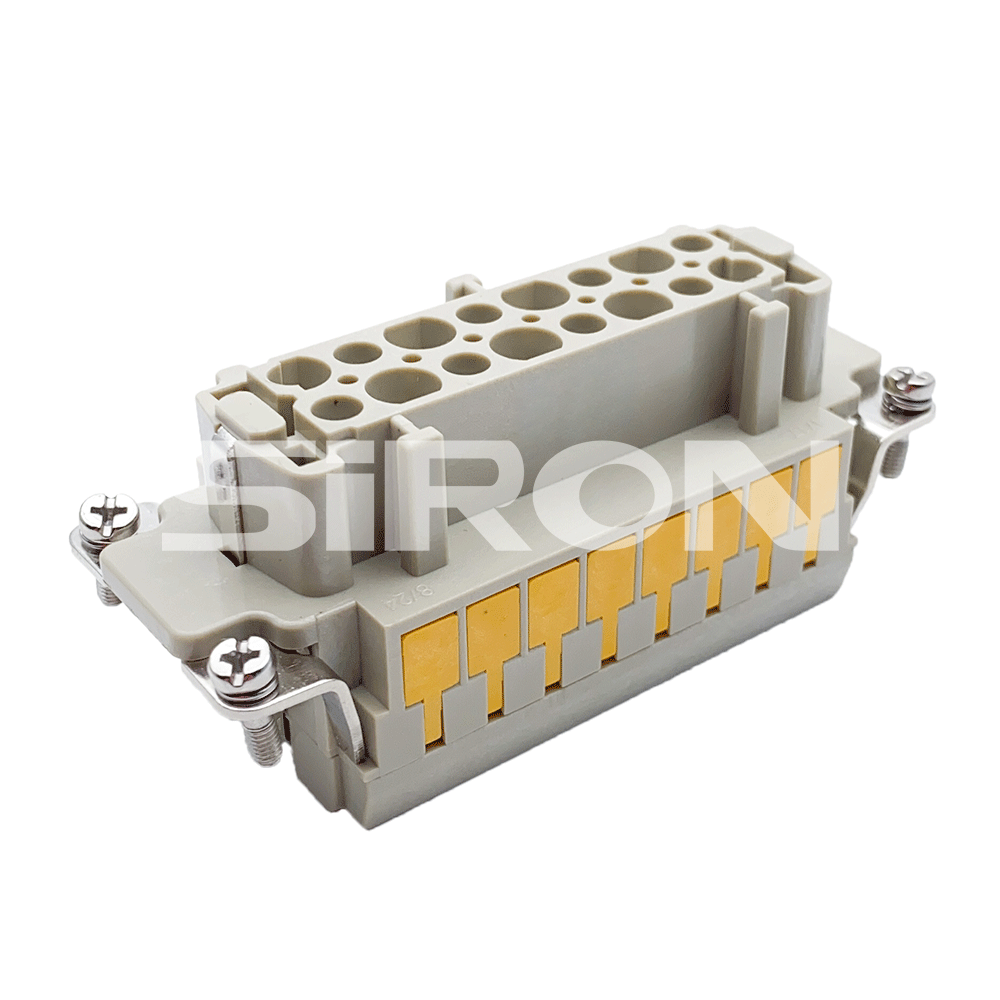

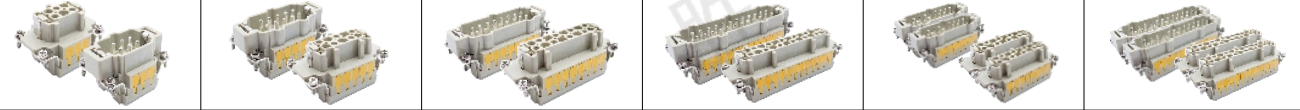

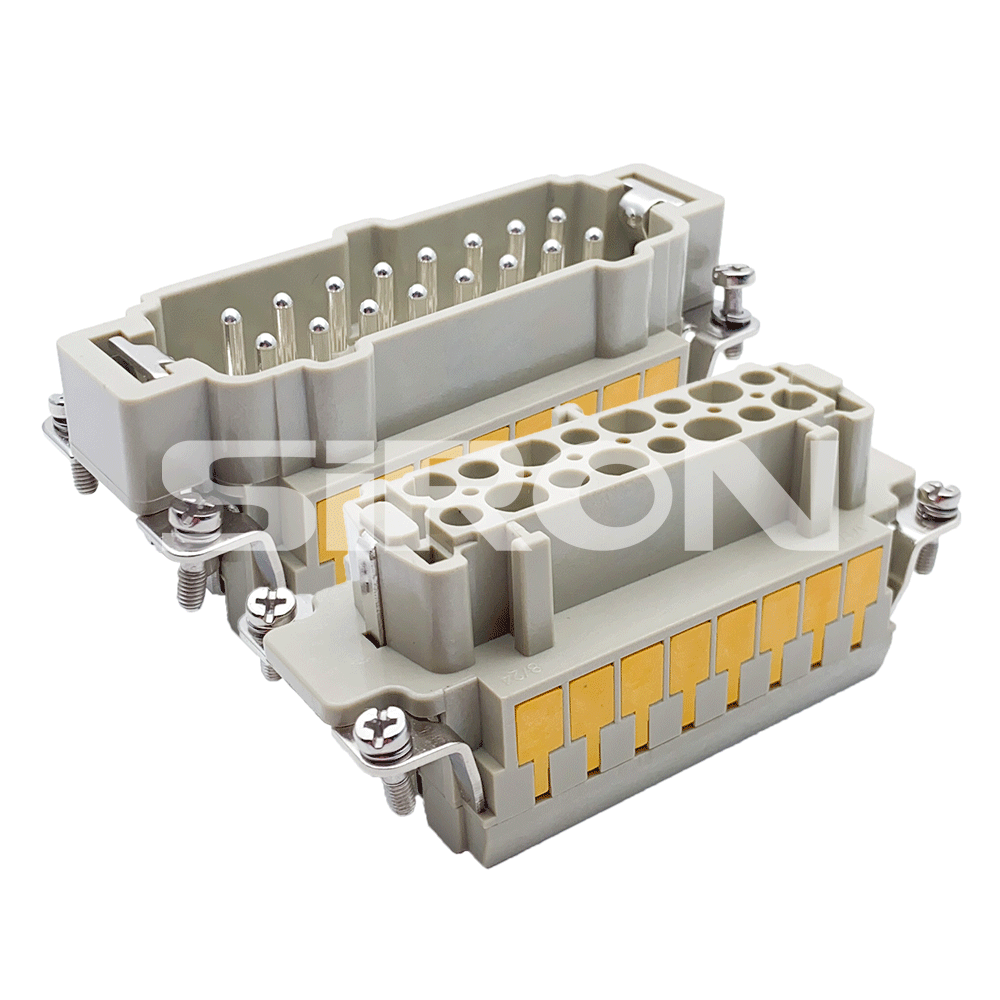

| Appearance |  | ||||||
| Connector core number | 6 | 10 | 16 | 24 | 32(2×16) | 48(2×24) | |
| Working current | 16A | ||||||
| Working voltage | 500V | ||||||
| Apply lid(Upper cover) | X930series ▶P.031 | X931series ▶P.031 | X932series ▶P.031 | X933series ▶P.031 | X934series ▶P.031 | X935series ▶P.031 | |
| Apply the base(lower cover) | |||||||
Note: The 32-needle and 48-needle models are respectively two 16-needle and 24-needle products
