X901/X937
SiRON
8538900000
About selection
Plug the needle
| Material | Cuprum | Connection form | Cold pressing and crimping |
| Surface treatment | Silver plating/gold plating | Working current | 10A |
| Contact resistance | ≤3mΩ | Moment of screw tightening | 0.25Nm(3core/4core)0.5Nm(10core/16core) |
Crimp needle
| Crimp needle | Model(male) | Model (female) | Wire gauge | D | Stripping length | |
| X937-1M | X937-1F | 0.14-0.37mm² | AWG 26-22 | 0.9 | 8mm |
| X937-2M | X937-2F | 0.5mm² | AWG 20 | 1.1 | 8mm | |
| X937-3M | X937-3F | 0.75mm² | AWG 18 | 1.3 | 8mm | |
| X937-4M | X937-4F | 1.0mm² | AWG 18 | 1.45 | 8mm | |
| X937-5M | X937-5F | 1.5mm² | AWG 16 | 1.75 | 8mm | |
| X937-6M | X937-6F | 2.5mm² | AWG 14 | 2.25 | 6mm | |
10 pcs/ pack

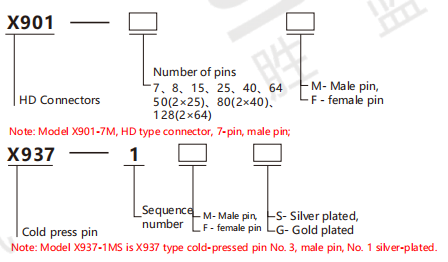

Note: The cold-pressing needle needs to be ordered separately. For silver-plated models, add 'S'; for gold-plated models, add 'G'.
Type selection reference

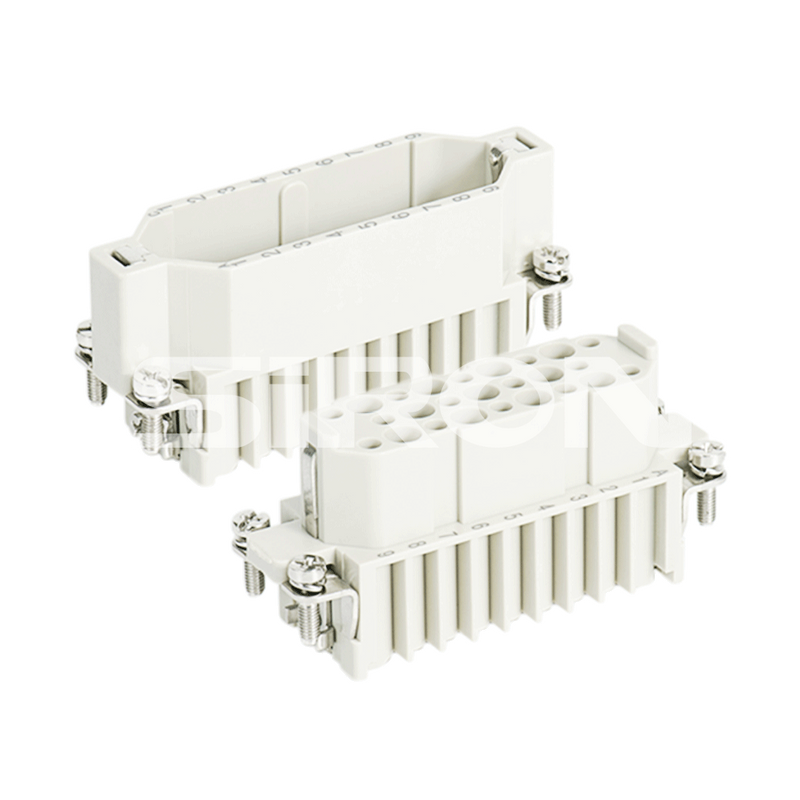

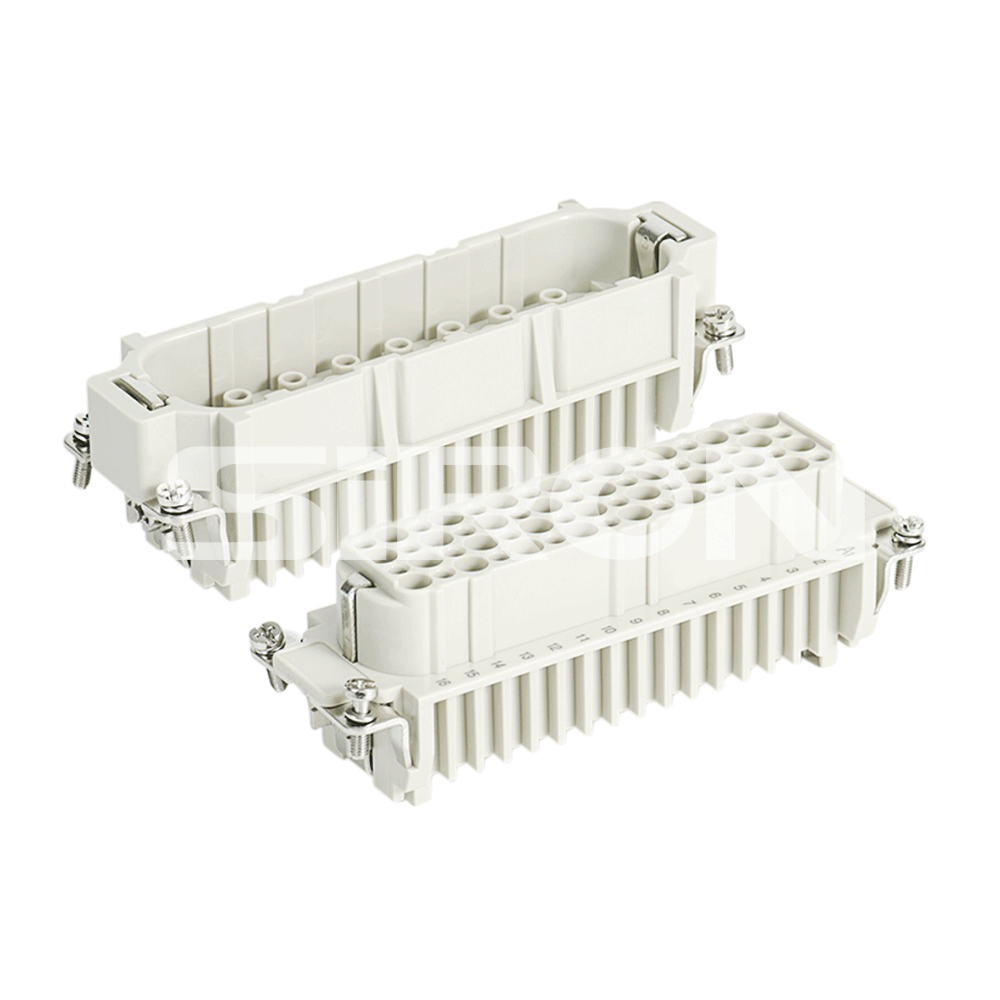

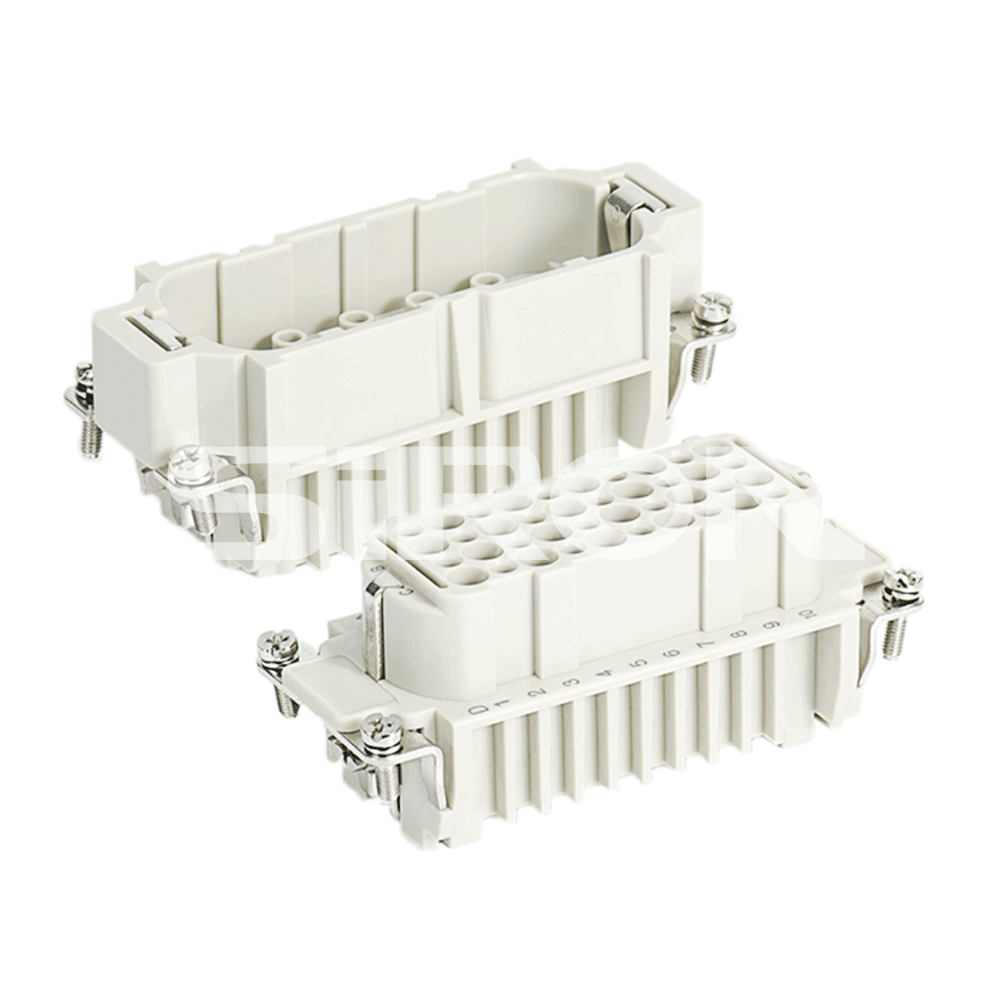

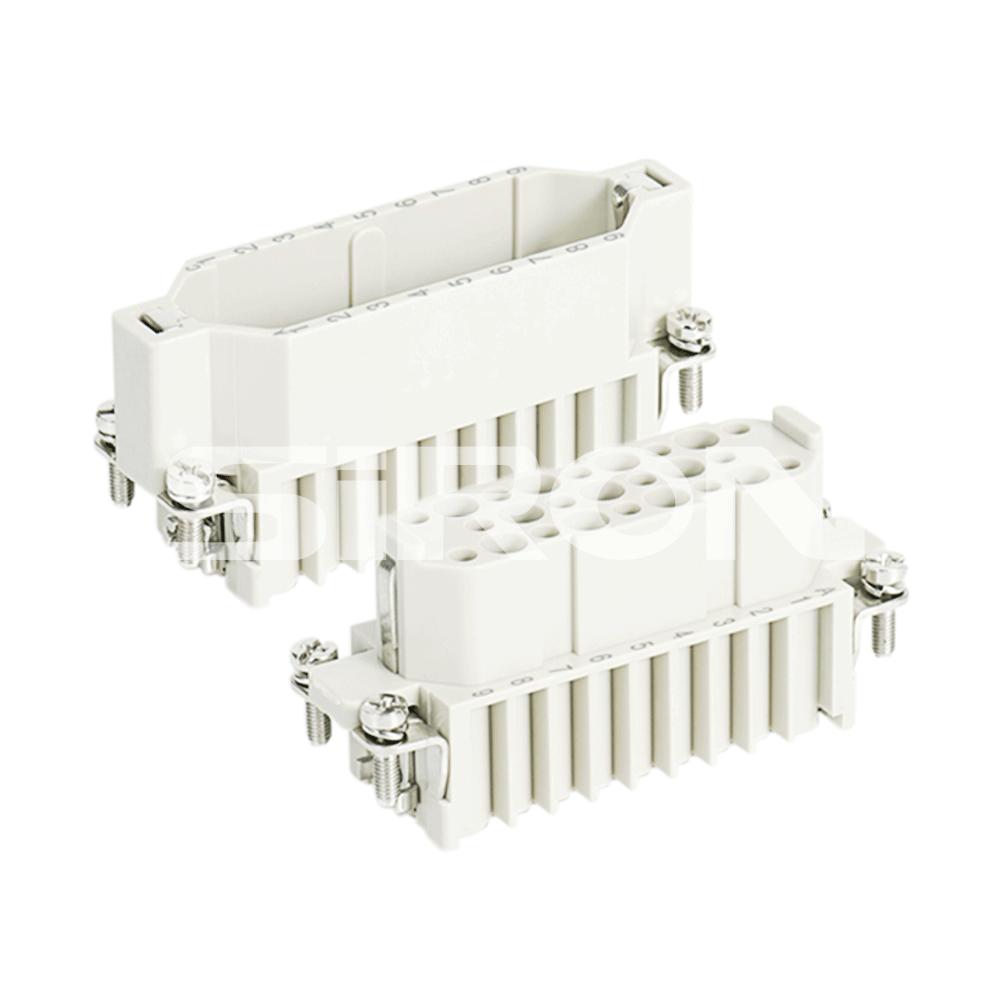

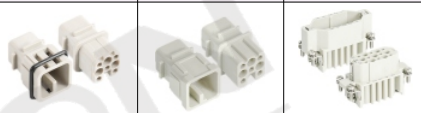

| Model | Pin(Male insert) | X901-7M | X901-8M | X901-15M | X901-25M | X901-40M | X901-64M | X901-50M | X901-80M | X901-128M |
| Jack(Female insert) | X901-7F | X901-8F | X901-15F | X901-25F | X901-40F | X901-64F | X901-50F | X901-80F | X901-128F | |
| Appearance |  |  | ||||||||
| Connectorcore number | 7 | 8 | 15 | 25 | 40 | 64 | 50(2×25) | 80(2×40) | 128(2×64) | |
| Working current | 10A | |||||||||
| Working voltage | 250V | |||||||||
| Applylid(Upper cover) | X920series ▶P.028 | X921series ▶P.028 | X922series ▶P.028 | X932series ▶P.031 | X933series ▶P.031 | X923series ▶P.031 | X934series ▶P.031 | X935series ▶P.031 | ||
| Applythe base(lower cover) | ||||||||||
| Ratedimpulse voltage | 4KV | |||||||||
| Pollution degree | 3,When the pollution level=2(10A 230/400V 4KV 2) | |||||||||
| Insulation resistance | ≥10⊃1;Ω | |||||||||
| Flammability acc.to(UL94) | VO | |||||||||
| Limiting temperatures | -40℃~+125℃ | |||||||||
| Mechanical working life | ≥500 | |||||||||
