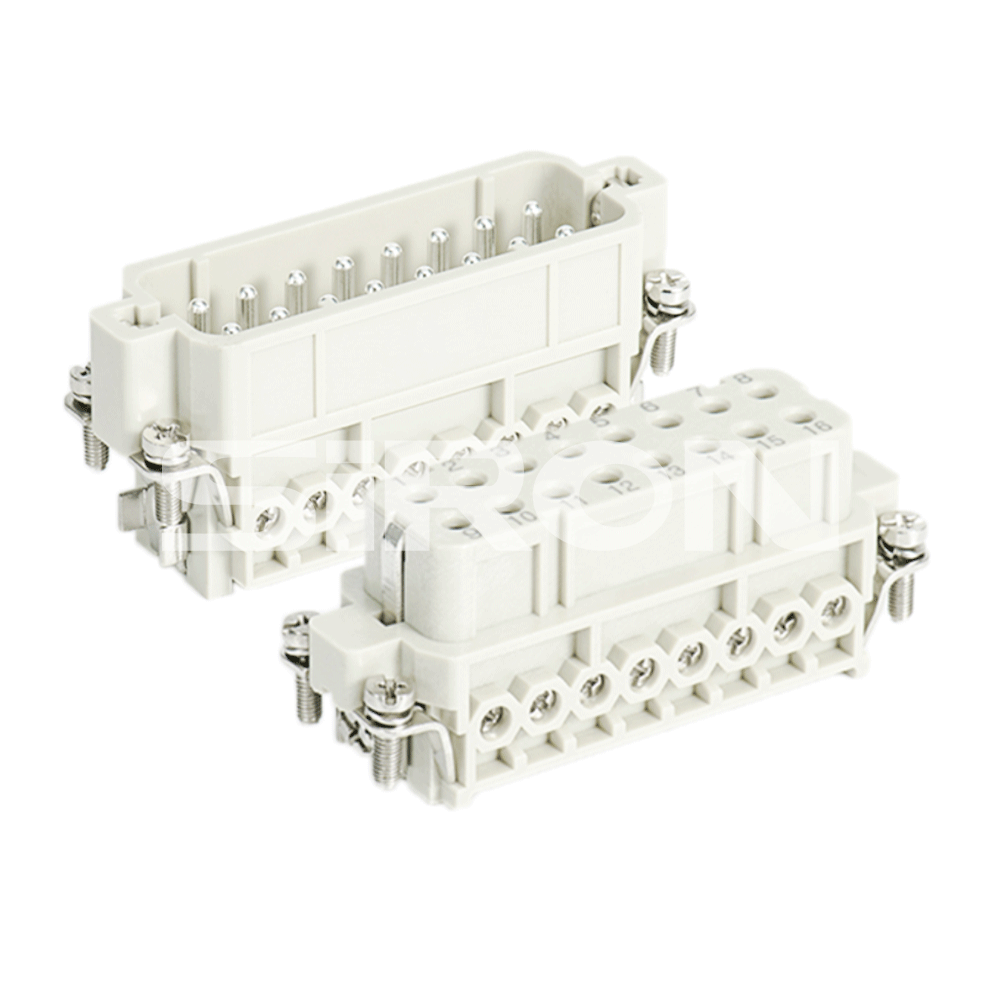

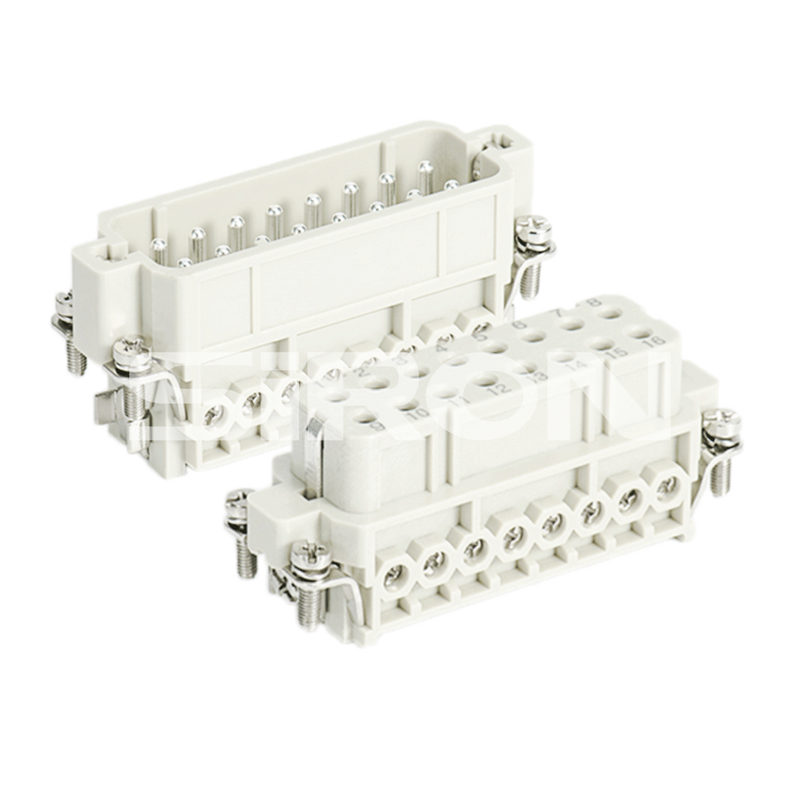

X900
SiRON
8538900000

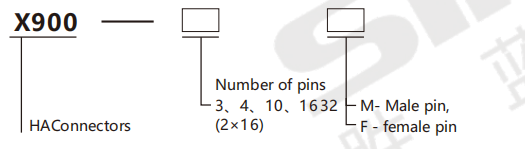

About selection

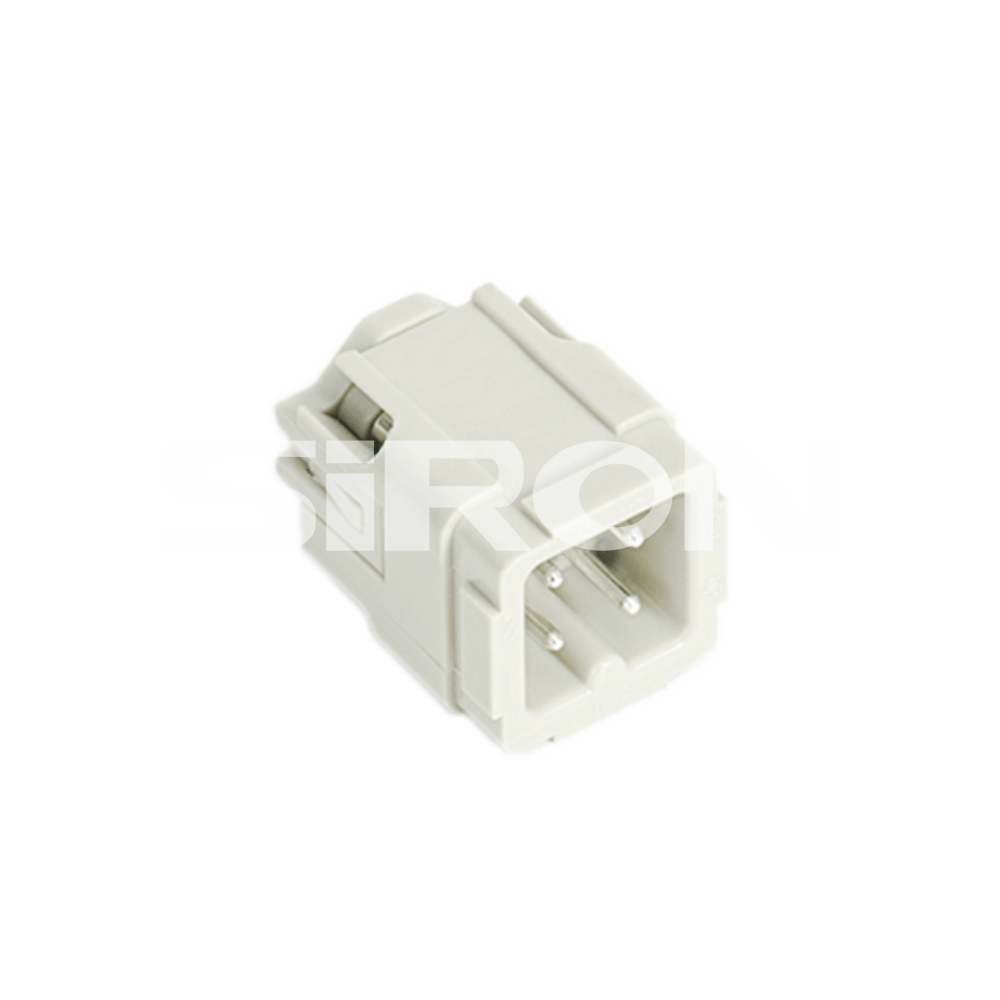

Note: Model X900-3M, HA type connector, 3-pin, male pin;
Plug the needle
| Material | Cuprum | Connection form | Screws connections |
| Surface treatment | Silver plating | Wire specifications | 1.0-2.5mm²(AWG18-14) |
| Contact resistance | ≤1mΩ | Moment of screw tightening | 0.25Nm(3core/4core)0.5Nm(10core/16core) |
Type selection reference

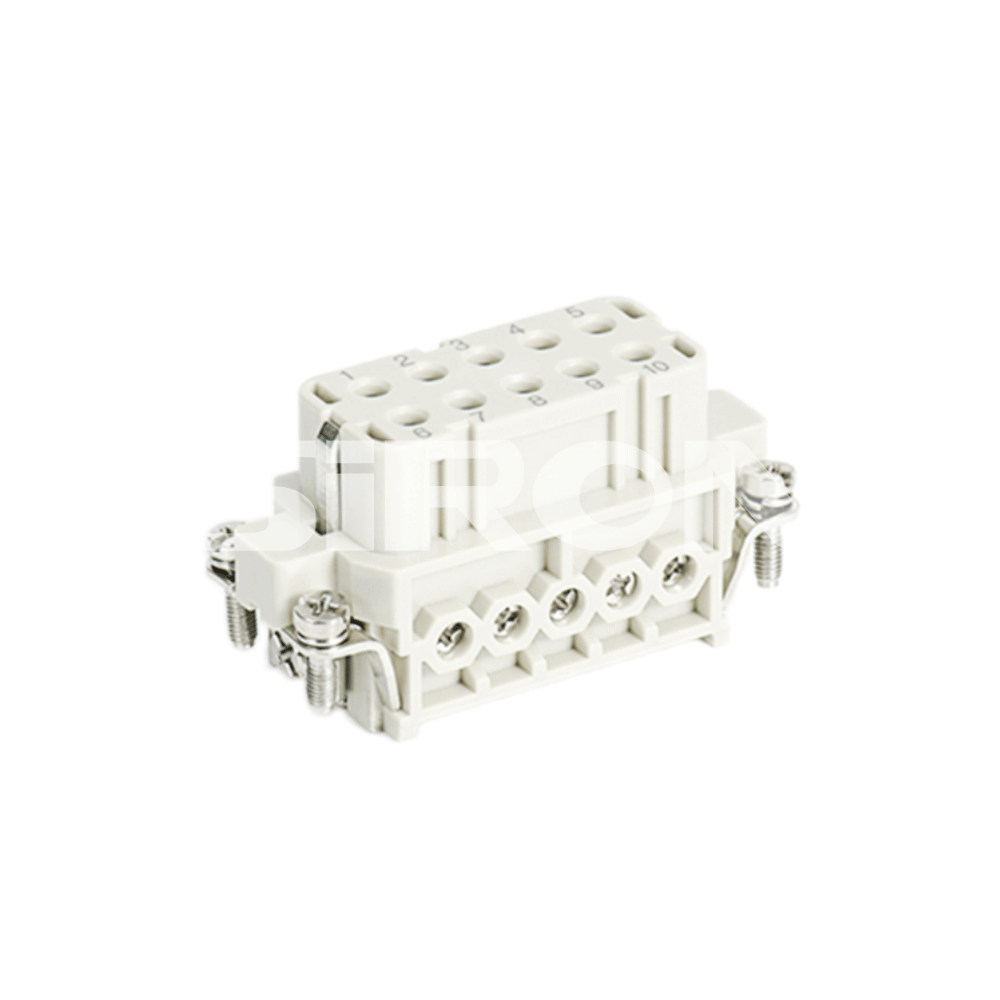

| Model | Pin(Male insert) | X900-3M | X900-4M | X900-10M | X900-16M | X900-32M |

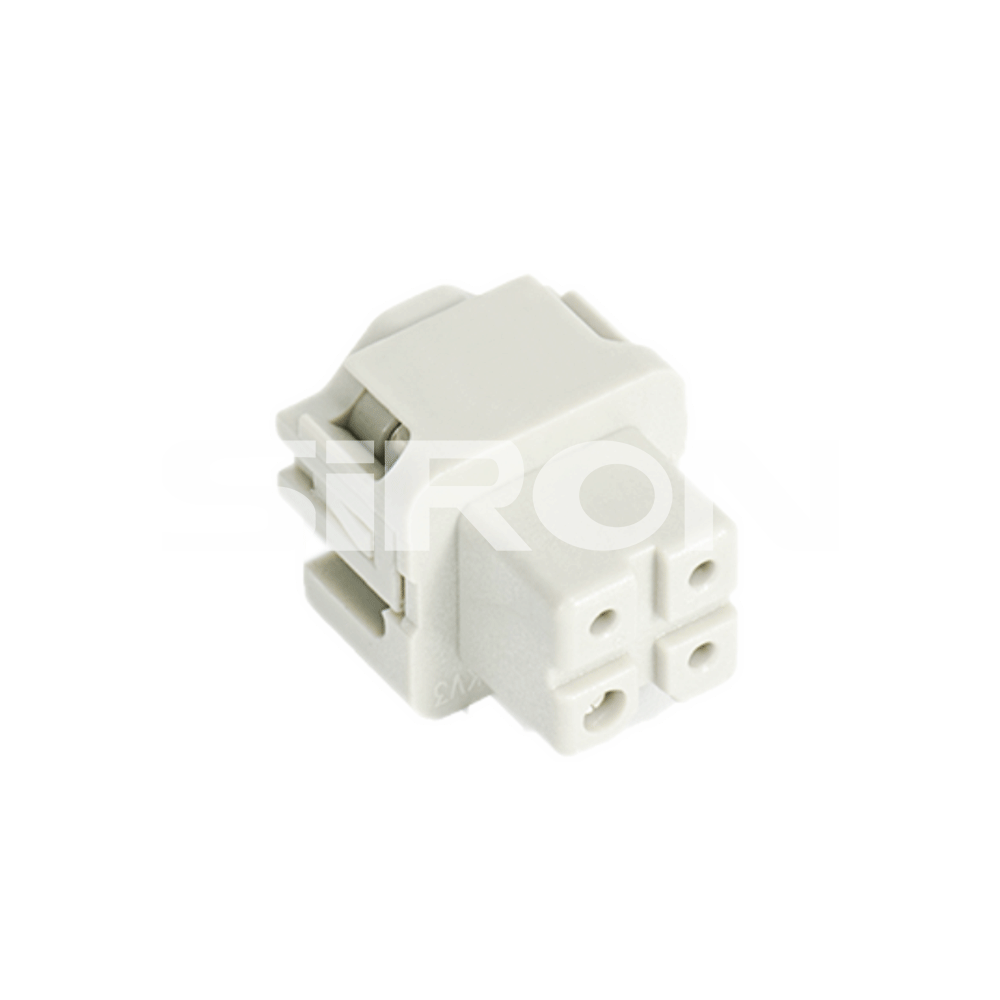

| Jack(Female insert) | X900-3F | X900-4F | X900-10F | X900-16F | X900-32F | |

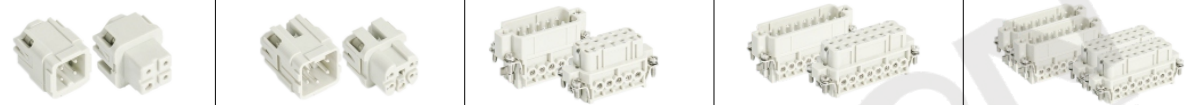

| Appearance |  | |||||
| Connector core number | 3 | 4 | 10 | 16 | 32(2×16) | |
| Working current | 10A | 16A | ||||
| Working voltage | 230/240V | 250V | ||||
| Apply lid(Upper cover) | X920series ▶P.028 | X921系列 ▶P.028 | X922系列 ▶P.028 | X923系列 ▶P.028 | ||
| Apply the base(lower cover) | ||||||
| Rated impulse voltage | 4KV | |||||
| Pollution degree | 3 | |||||
| Insulation resistance | 10⊃1;Ω | |||||
| Flammability acc.to(UL94) | V0 | |||||
| Limiting temperatures | -40℃~+125℃ | |||||
| Mechanical working life | ≥500 | |||||
| Working voltage acc.to UL/CSA | 600V | |||||
