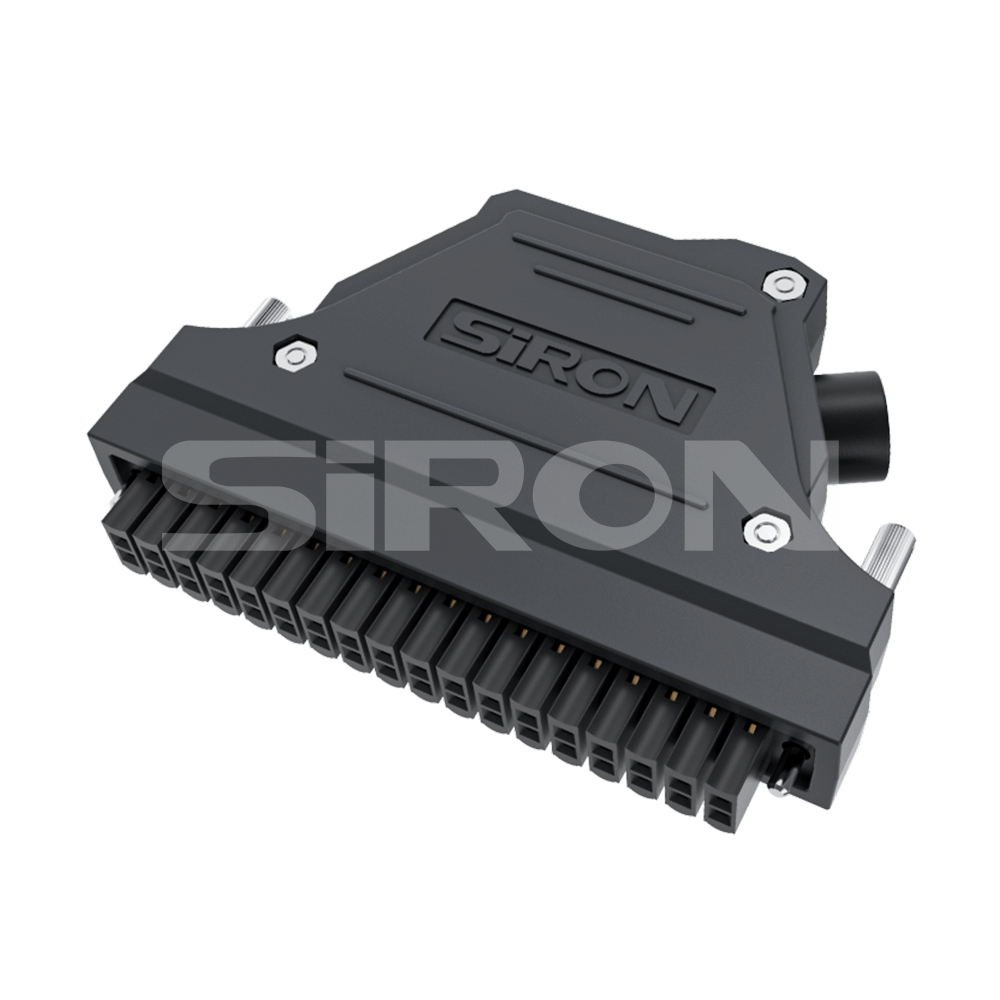

SiRON X850 Series Inovance Module Connector

Features
  • Impact and vibration resistance, high sturdiness and durability;
  • There are 36P 18P plugs for option;
  • The corresponding P number of plugs can be used with the socket of the MlL connector.36P is connected by crimping method, 18P is connected by wire bonding;
  • The 36P outlet is equipped with a tail card for 0.1 square cable, and 18P is used for 0.2 square cable

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X850

  • SiRON

  • 8538900000

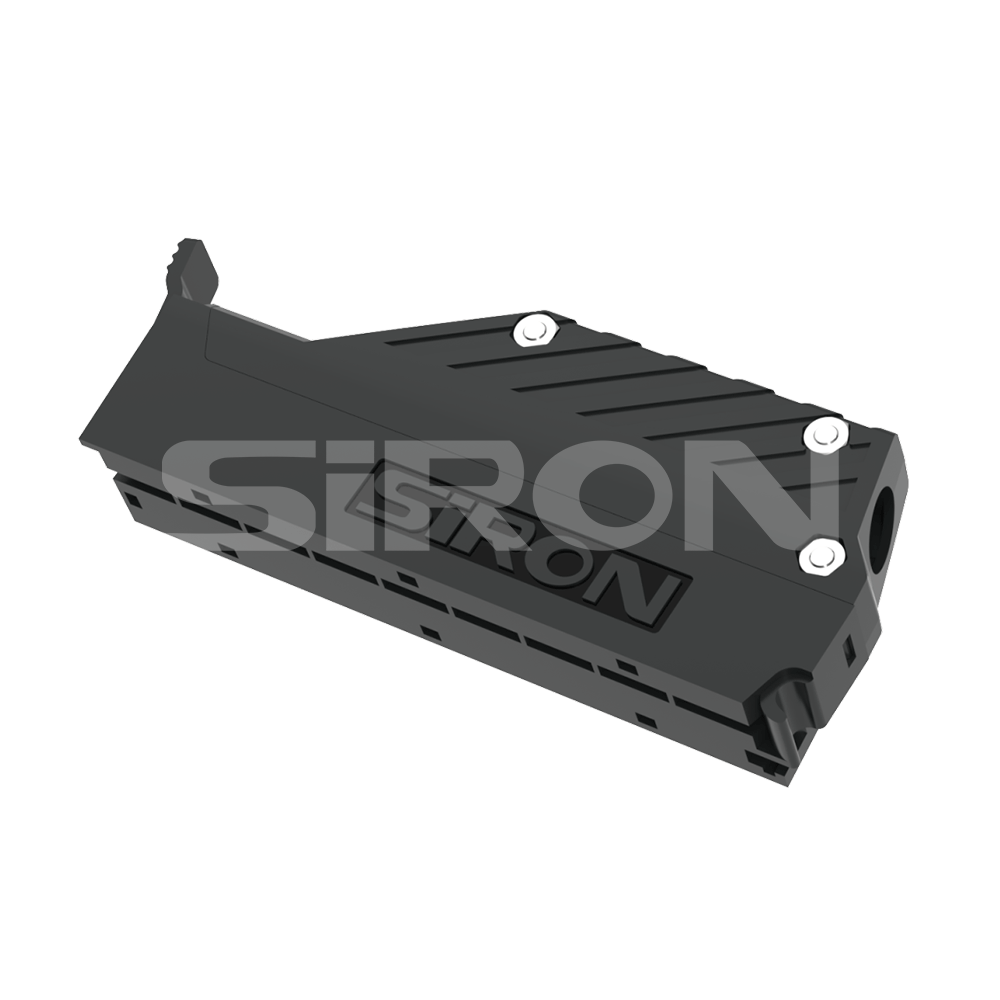

X850 Protecting Cover X850 Series Inovance module connector X850 Series Connector Cover X850 Series M2.6/M2 Nut connector Cover
Product Description

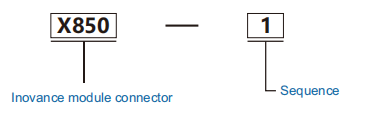

Order

X850

Product Attributes

Model X850-1 X850-2
Name Cover Cover
Pins 36 18
Appearance 99be6c02-f61a-41c3-9baa-0e7d54fc94f9
Material PA66、UL94HB PA66
Inflammability UL94V-0 UL94V-0
Fixing Material S45c Nickel plating on the surface
S45c surface nickel plated		 S45c Nickel plating on the surface
S45c surface nickel plated
Fixing Screw&Nut M2 .6/M2 nut M2 .6/M2 Nut No
Screw for Protecting Cover M2×0.4 M2×0.4
