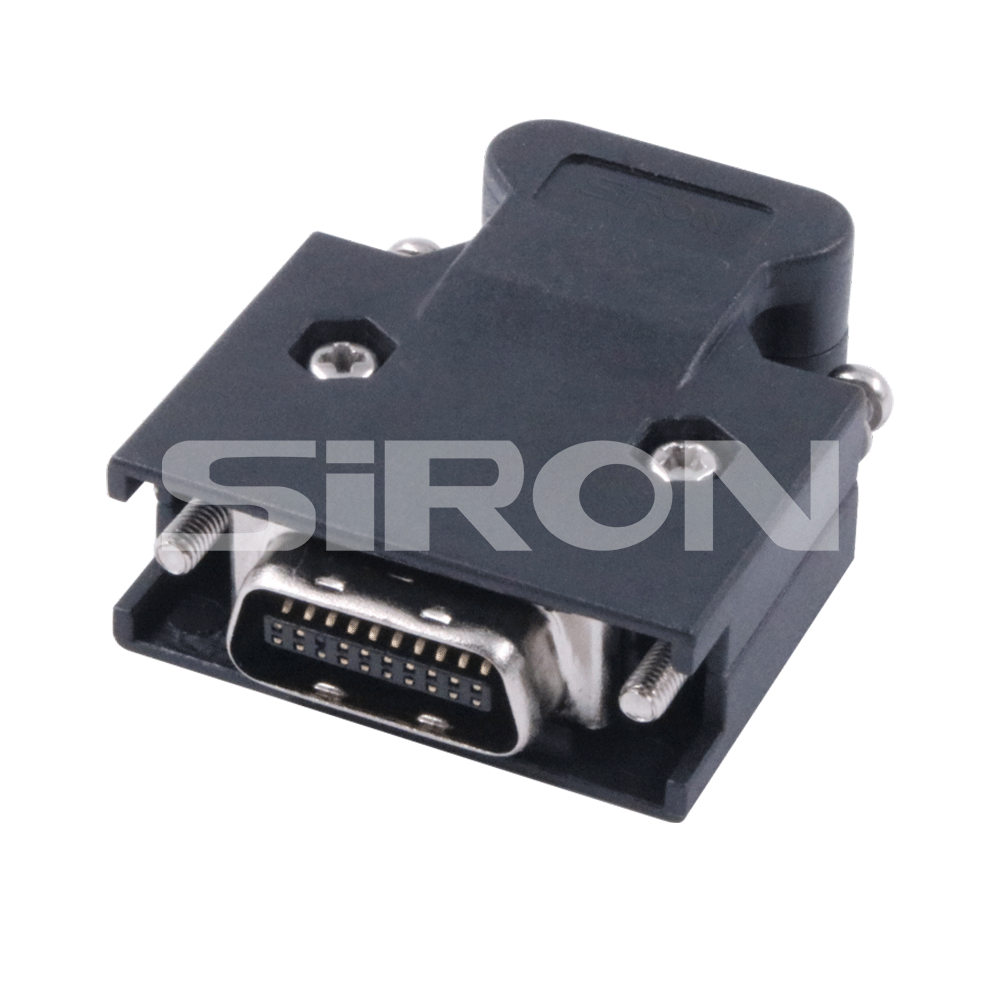

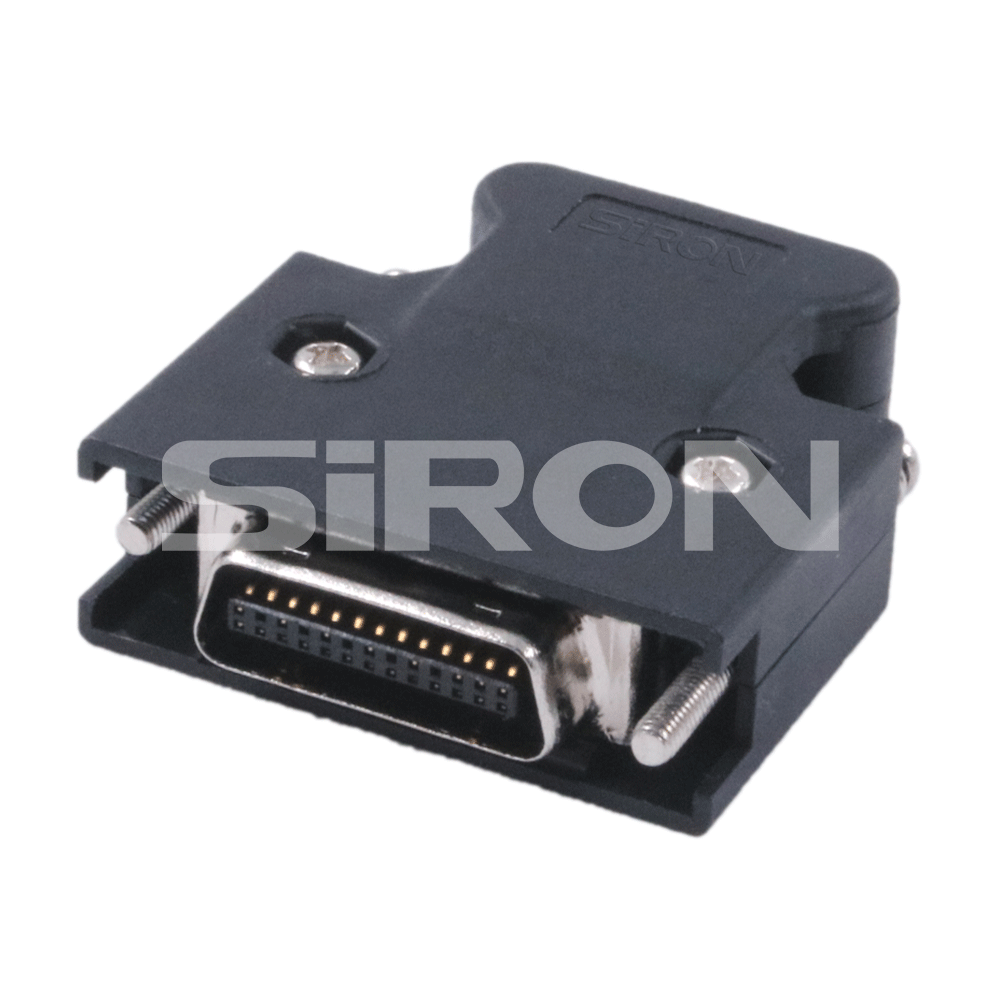

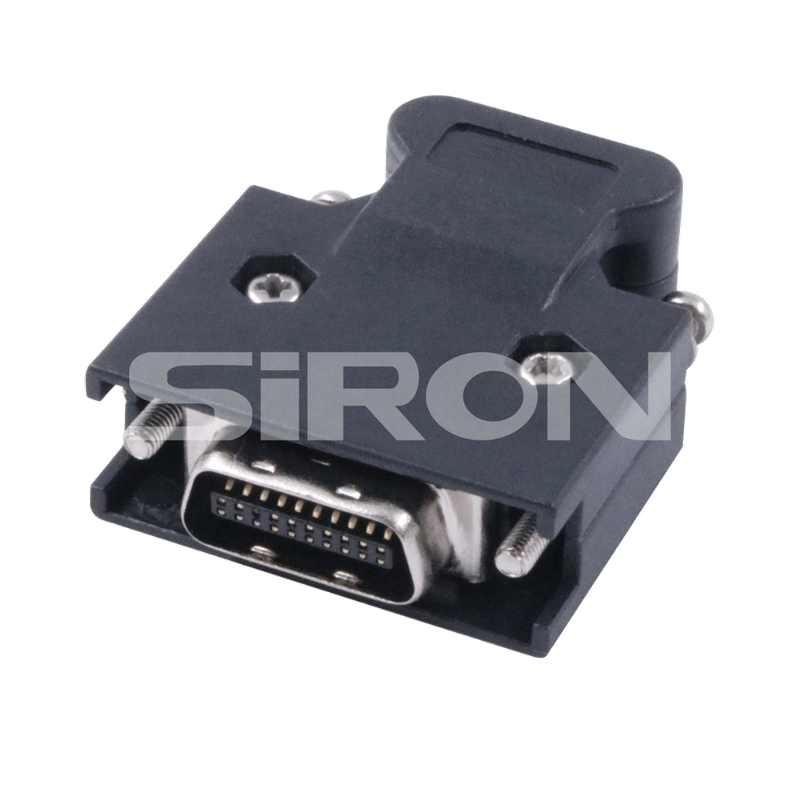

SiRON X833 Series M2 Screws IEEE1284MDR Connector

Name: SiRON X833 Series M2 Screws IEEE1284MDR Connector
Brand: SiRON
Rating: 5.0 (57 reviews)

Features

Mini, skillful product design, EM/ESD countermeasure;
The protecting cover is fixed with M2 screws to ensure crimping force to cables;
The connection between the plug and the socket with screws ensures tight contact even in vibration

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

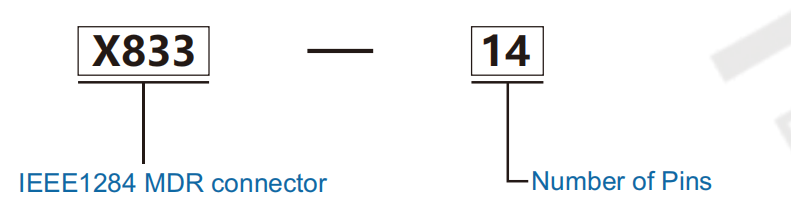

Order

X833

Product Attributes

Model	X833 series
Name	IEEE1284 MDR connector
Pins	14	20	26	36	50
Appearance
Matenial &Color	PA66.UL94HB Black
Inflammability	UL94V-0
Screw Matenial	S45c surface nickelplated
Fxing Screw	M2.7
For Protecting Cover Screw	Raised Head M2x10
Fxing Nut	HexM2Nut
Wire Pressing Screw	Raised Head M2x10
Plug parameters
Matenial	Nickel Plated Steel
Insulator (inside)	Black Glass Filled Polyester
Iniflammability	UL 94V-0
Contact Material	Copper Alloy Contact machined with the solid bar mill
Contact Area Electroplated	0.7μm Gold，0.76μm Nickel
Embedment Pressure	4.3Kg max
Connection Method	Welded Type
Rating Current	1A
Insulation Resistance	5X108Ω 500VDC
With slanding Voltage	500KV / 1 Minute
Rating Temperature	- 20℃~+85℃
Suitable Cable	AWG20~28
