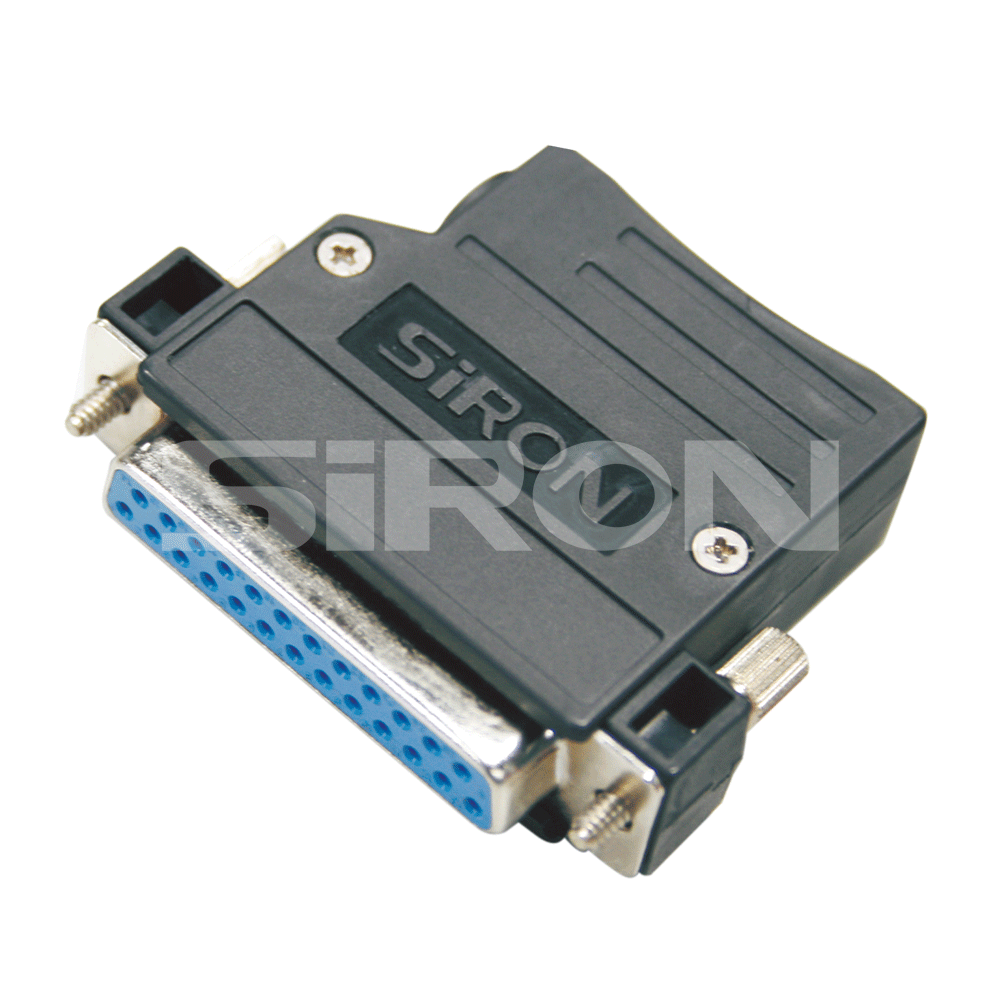

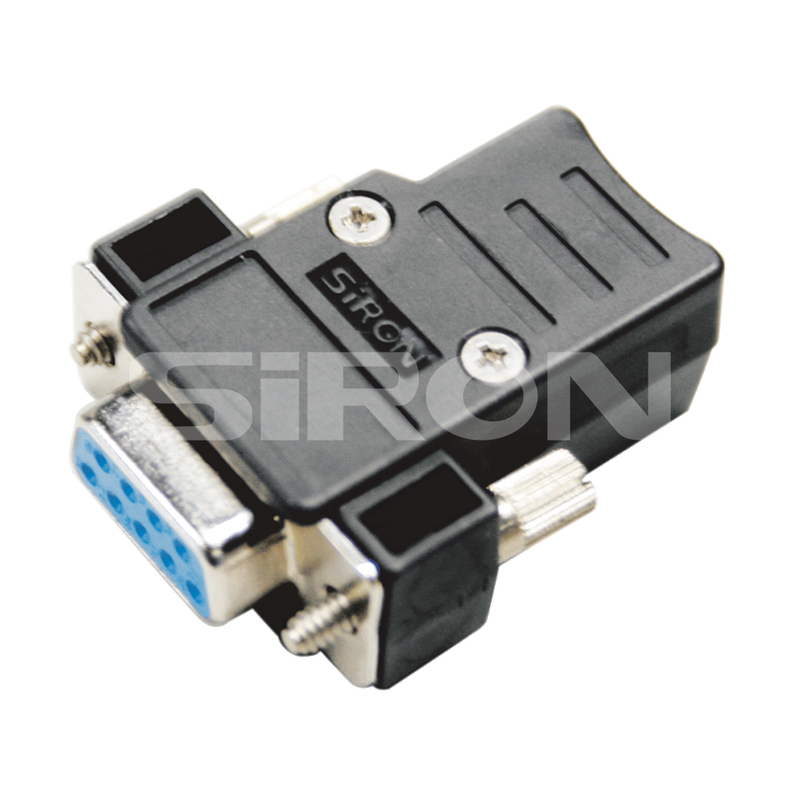

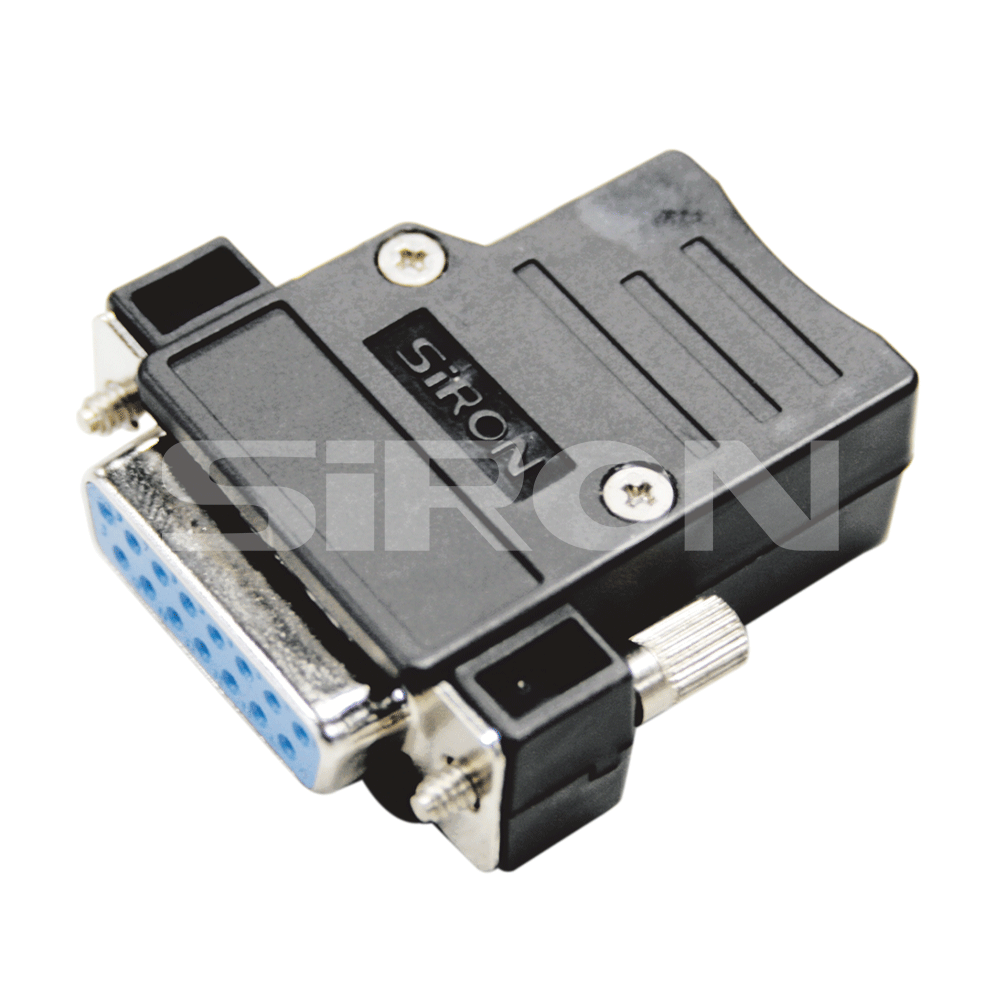

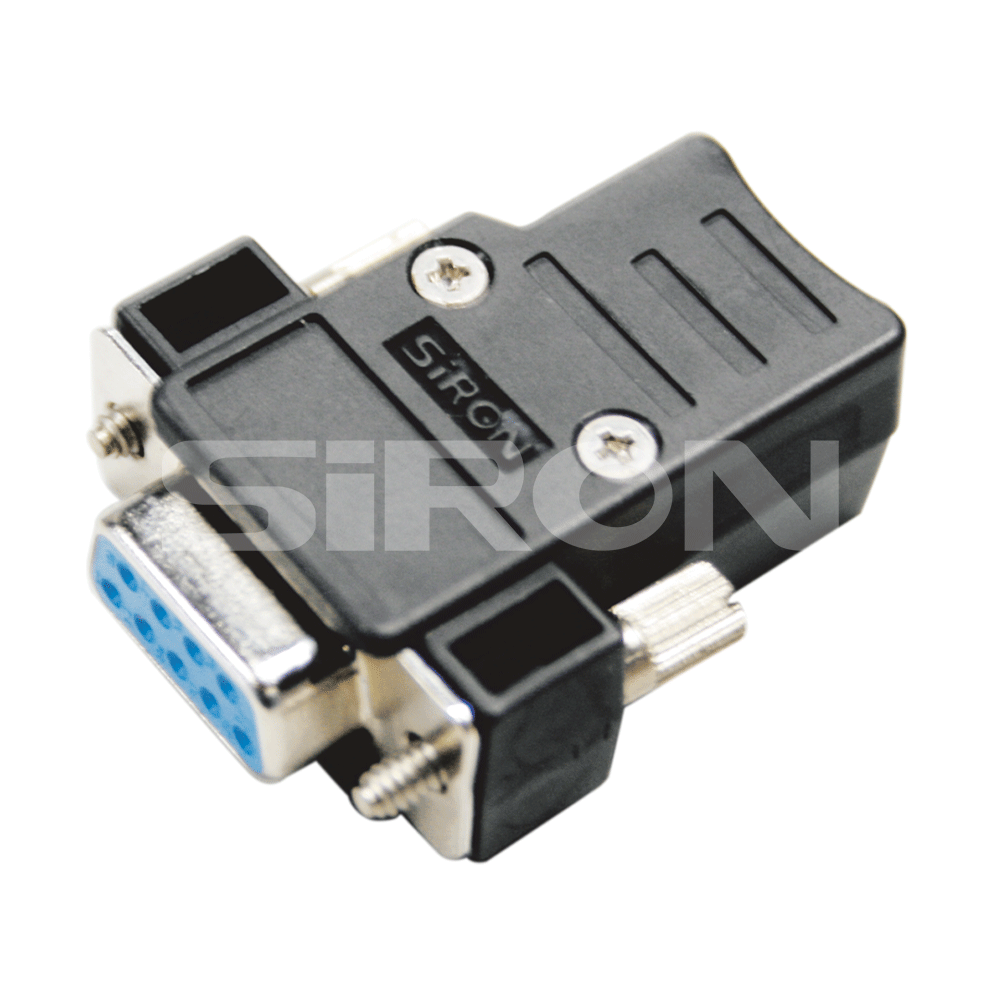

SiRON X820 Series M2 Nut D-sub Connector

Name: SiRON X820 Series M2 Nut D-sub Connector
Brand: SiRON
Rating: 5.0 (78 reviews)

Features

D-sub Connector corresponding to EMl;
The side contact surface of the pin is designed for concave transverse processing
The Environmental Protection Class meets European and US standards;Fireproofing Grade:UL94V-0;
Plug shell as a standard accessory, with overall harmonious and beautiful color;
Side coil out, with lower spatial requirement in respect of height.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X820
Brand:
SiRON
Code:
8538900000

X820 Protecting Cover Plug EMI Connector Fireproofing Connector Cover S45c surface nickel plated connector

Product Description

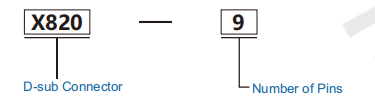

Order

X820

Product Attributes

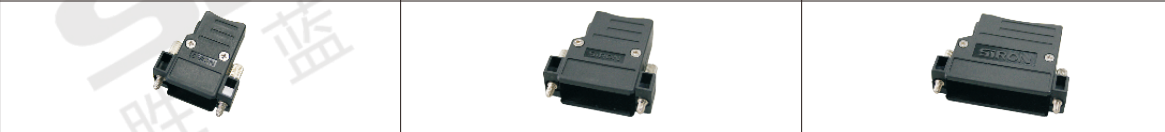

Model	X820
Name	Protecting Cover
Pins	9		15		25
Appearance
Material&Color	PA66、UL94HB Black
Inlammability	UL94V-0
Fixing Malerial	S45c surface nickel plated
Fixing Screw	M2.8
Screw for Prctecing Cover	Flatnead M2x15
Fixing Nu	M2 Nut

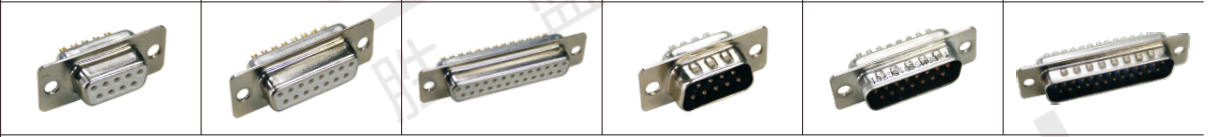

Model	X821			X822
Name	Jack Head (machining Terminal Type)			Jack Head(machining TerminalType)
Pns	9	15	25	9	15	25
Appearance
Raing Voltage	500AC
Rating Current	5A
Contact Resistance	30mΩ min
Insulation Resistance	500mΩ
With standing Vollage	500VAC
Temperature range	-50℃~105℃

The various parts of connectors are sold separately. Please order them separately according to the model; The sizes and features vary depending on the manufacturer. Please confirm the sizes and features
