SiRON X810 Series Protecting Cover Plug FCN Connector

Name: SiRON X810 Series Protecting Cover Plug FCN Connector
Brand: SiRON
Rating: 5.0 (50 reviews)

Features

40P FCN connector, black plastic housing, space-saving design;
Side outlet mode, which requires less space on height;
The cover is fixed with M2 screws to ensure the pressure relay of the cable;
The connection between the plug and the socket is fixed by screws, which can ensure the tightconnection and no loosening even in the vibration place.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X810
Brand:
SiRON
Code:
8538900000

X810 Protecting Cover Plug FCN Connector Black Glass Filled Polyester Connector 40P FCN connector

Product Description

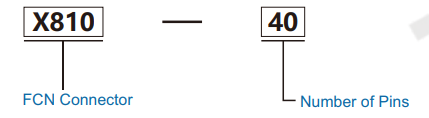

Order

重载3

Product Attributes

Model	X810	X811
Name	Protecting cover	Plug
Pins	40	40
Appearance
Malerial	PA66、UL94HB	Black Glass Filled Polyesler
lnflammability	UL94V-0	UL94V-0
Fixing Malerial	S45c surface nickel plated	一
Fxing Screw&Nut	M2.6/M2 Nut	一
Screw for Protecting Cover	M2×6	一
ContactArea Eleciroplated	一	0 . 76μm tin
Contact RBistance	一	15mQmin
Connection Method	一	Welded
Rating Cument	一	2ADC
Insulation Resistance	一	5000MΩ
With stancing Voltage	一	500VAC1min
Raing Temperature	一	- 55℃~+85℃
Suitable Cable	一	AWG24~28

The various parts of connectors are sold separately. Please order them separately according to the model; The sizes and features vary depending on the manufacturer. Please confirm the sizes and features
