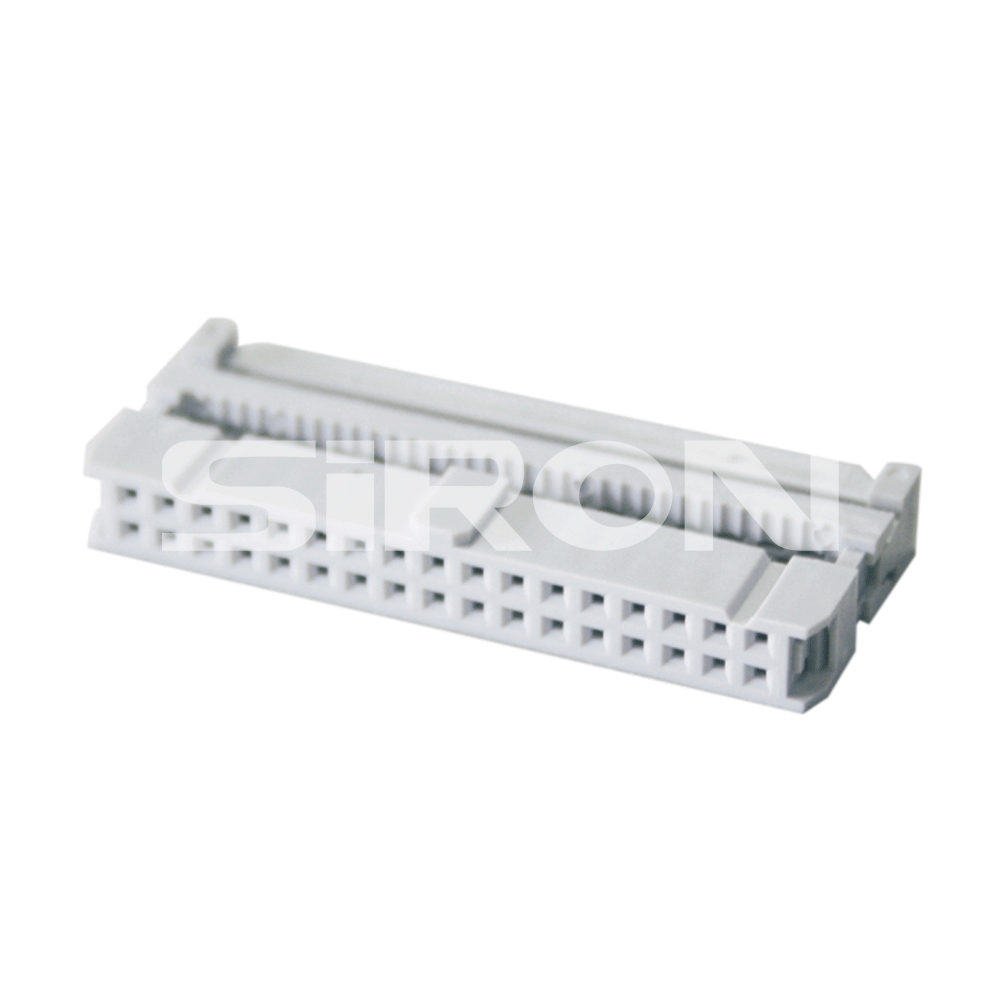

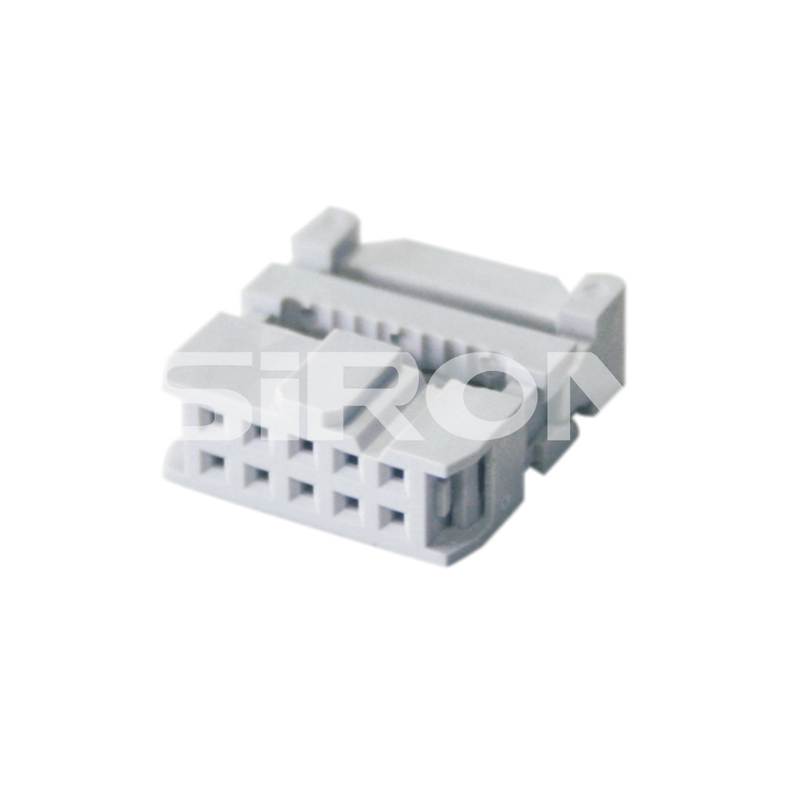

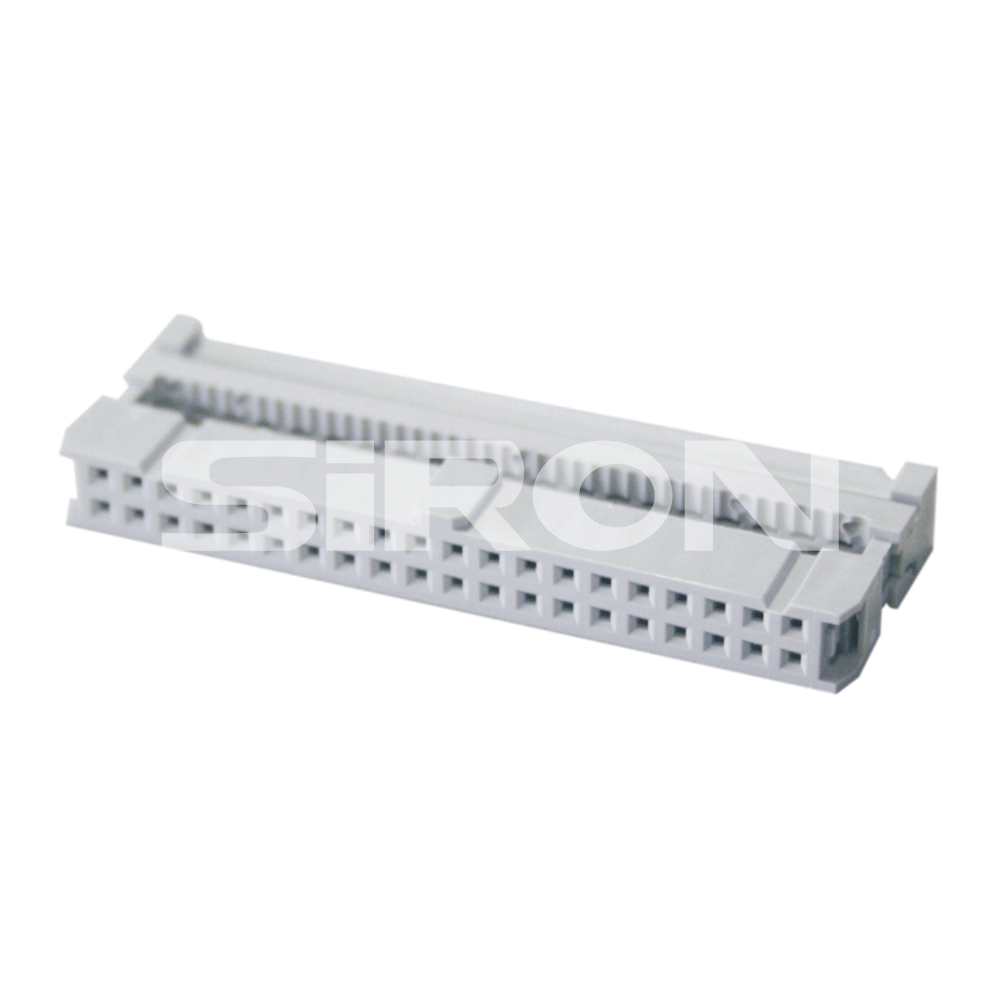

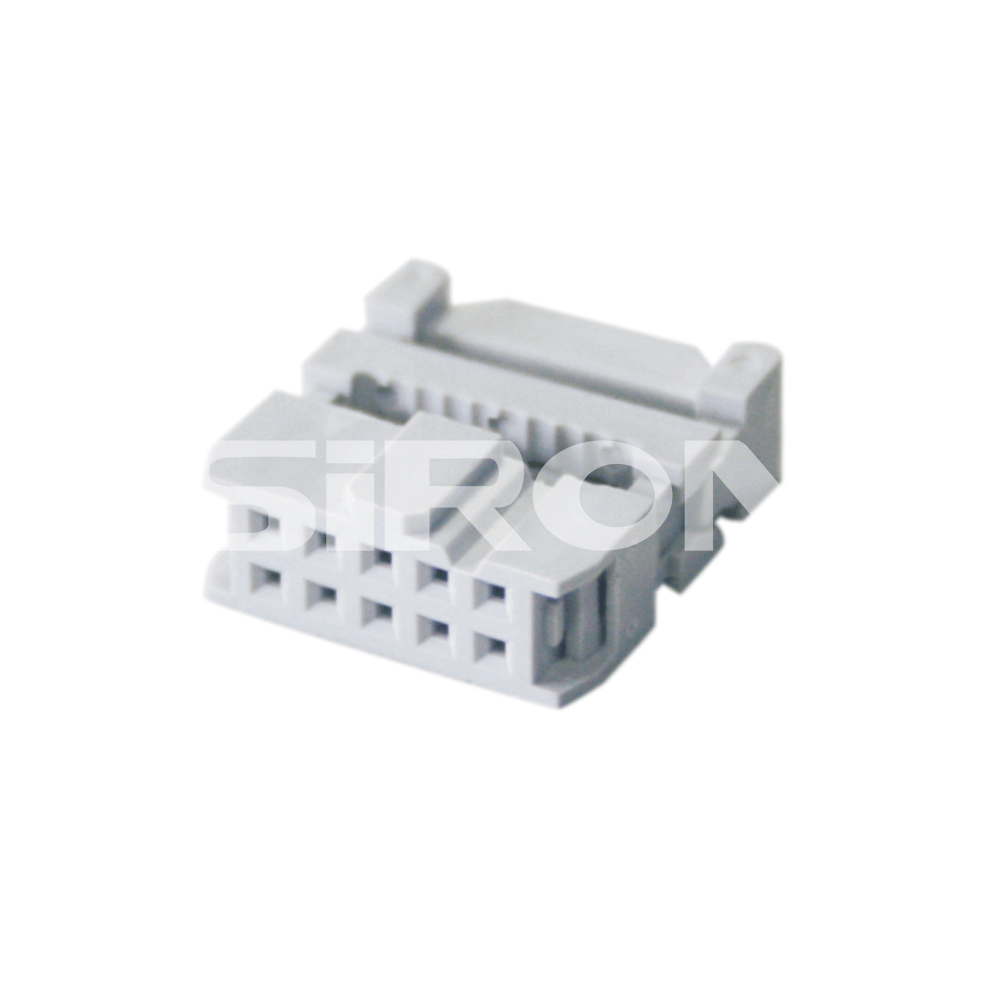

SiRON X805 Series 10P/20P/34P/40P IDC Connector

Name: SiRON X805 Series 10P/20P/34P/40P IDC Connector
Brand: SiRON
Rating: 5.0 (5 reviews)

Features

Impact and vibration resistance, high sturdiness and durability;
10P, 20P, 34P and 40P IDC plugs for selection;
The IDC plugs with the corresponding number of pins can be used withthe sockets for MIL connectors;
Crimping using winding displacement is more convenient andfaster.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X805
Brand:
SiRON
Code:
8538900000

X805 Protecting IDC Connector 10P/20P/34P/40P Connector Black Glass Filled Polyester Connector

Product Description

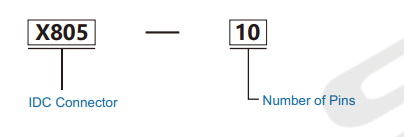

Order

重载2

Product Attributes

Model	X805
Name	IDC Connector
Pins	10	20	34	40
Material	Black Glass Filed Polyester
Inflammability	UL 94V-0
Contact Material	Copper Aloy
Contact Resistance	15mΩmin
Connection Method	Compression type
Suitable Cable	AWG20~28
Contact Area Electroplated	0.76μm tin
Rating Current	2ADC
Rating Voltage	AC500V
With standing Voltage	500VAC 1min
Rating Temperature	- 55℃ 50 ~+85℃

The various parts of connectors are sold separately. Please order them separately according to the model; The sizes and features vary depending on the manufacturer. Please confirm the sizes and features
