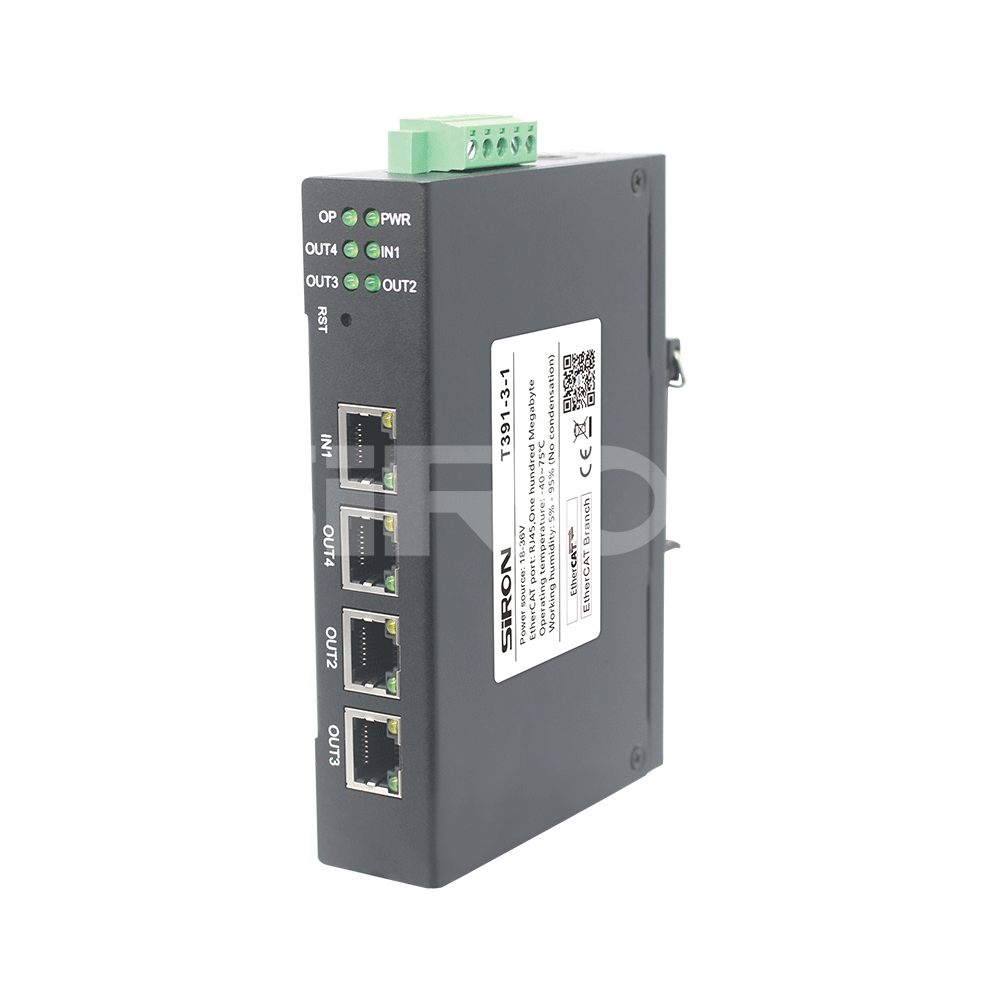

SiRON T391-3-1 EtherCAT branch

Name: SiRON T391-3-1 EtherCAT branch
Brand: SiRON
Rating: 5.0 (55 reviews)

Features

* 4 EtherCAT network ports, one in three out, Rj45;

* Data frame processing sequence IN→OUT4→OUT2→OUT3;* Support a variety of topologies, including line, star, tree, etc.
* Support 64-bit distributed clock, support DC synchronization;* DC24V power supply.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T391-3-1
Brand:
SiRON
Code:
8517621900

ETtherCAT branch 4 port 100M IP40 industrial switch

Product Description

Specification

Model number	T391-3-1
Power source	18-36V(typical value 24V/70mA),with overvoltage and overcurrent protection
EtherCAT port	RJ45,100M
Operating temperature	-30~75℃
Working humidity	5%to 95%no condensation
Installation mode	DIN-rail mounting
