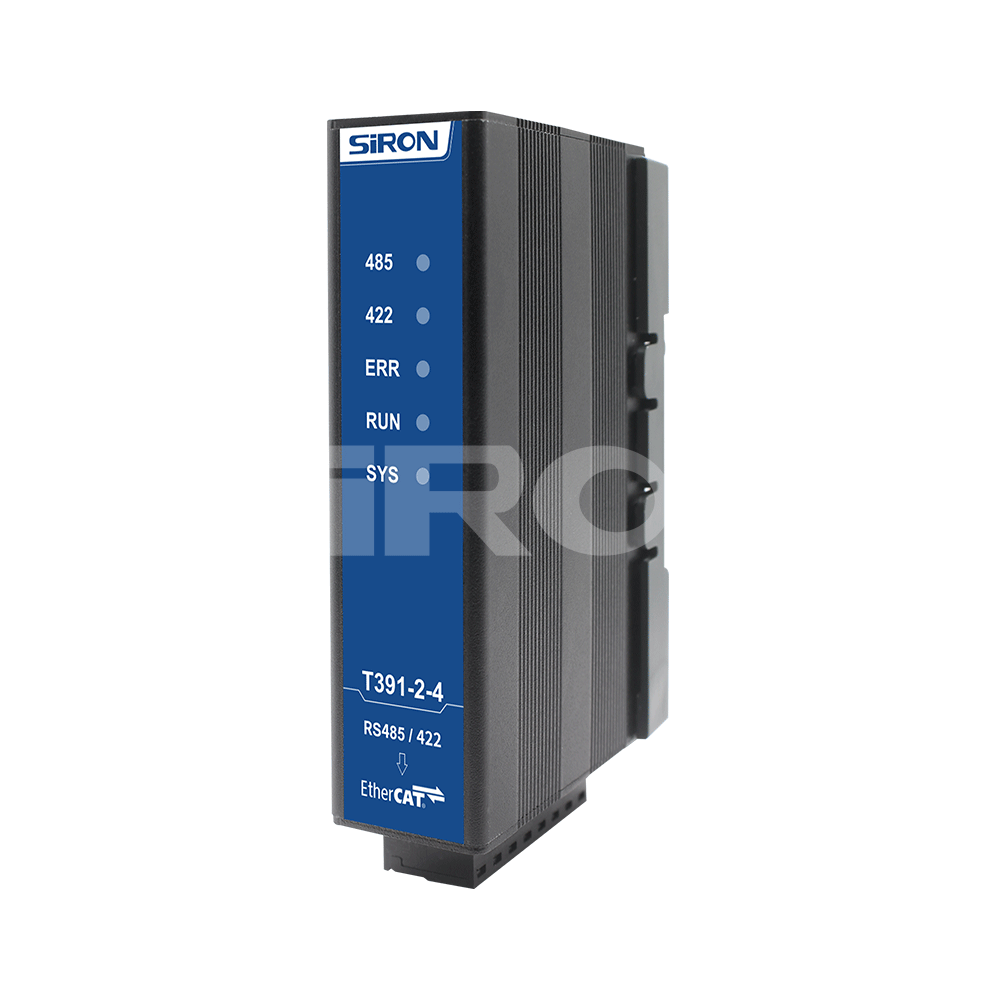

SiRON T391-2-4 RS485/RS422 Switch to the ETtherCAT gateway

Name: SiRON T391-2-4 RS485/RS422 Switch to the ETtherCAT gateway
Brand: SiRON
Rating: 5.0 (40 reviews)

Features

* The gateway is RS485/RS422 and EtherCAT protocol conversion, economic stability, easy installation, strong applicability of the product;
* Support RS485 or RS422 transparent transmission function;
* The module baud rate, data format, and related information of the slave station can be set by EtherCAT host computer;
* The relevant user information can be stored permanently, and can be used when powered on.

* The installation method is in accordance with DIN 35MM standard rail, which is easy to install;
* The power circuit adopts anti-reverse design and is widely used in signal acquisition and control of industrial field equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T391-2-4
Brand:
SiRON
Code:
8517621900

ETtherCAT gateway RS485 or RS422 port IP40 industrial switch

Product Description

Specification

Model		T391-2-4
Operating voltage		DC 24V;With reverse connection protection
Power dissipation		2W~4W
RS422	Interface type	RJ45
RS422	Communication protocol	EtherCAT
RS422 serial communication	Interface type	RS422(5.08mm pitch industrial-grade terminal blocks)
	Baud rate	1200~4.6875Mbps
	Communication format	Default 8-bit data,stop at 1 bit,no parity
	Transmission distance	When the baud rate is 100kb/s,the 422serial port communication can reach 1200meters,subject to actual conditions
Rs485 serial communication	Interface type	RS485(5.08mm pitch industrial-grade terminal blocks)
	Baud rate	1200~4.6875Mbps
	Communication format	Default 8-bit data,stop at 1 bit,no parity
	Transmission distance	When the baud rate is 9600, the 485 serial port communication can reach 1200 meters, subject to actual conditions
Operating temperature		20℃~70℃
Storage temperature		-40℃~85℃
Working size		83x60x25mm(size without clips)
Installation mode		DIN-rail mounting
