| Rj45 port | 10/100 BASE-T(X)adaptive RJ45,full-duplex/half-duplex mode adaptive,
MDI/MDI-Xautomatic detection |
| Standards and protocols |
10Base-T,in accordance with IEEE802.3;100Base-TX,in compliance with IEEE 802.3
Flow control,in accordance with IEEE 802.3x;VLAN follows IEEE 802.1Q |
| Dip switch | 1-loop detection、2-Storm suppression、3-VLAN、4-fluid control |
| Input terminal | adopts 4-digit 5.08mm pitch terminal blocks and supports reverse connection preventi |
Switch
properties | Transmission mode | store and forward |
| Switching delay | <10μs |
| MAC address | 2K |
| Backplane bandwidth | 1G |
| Power dissipation | Empty load:0.2W@12VDC;Full load:0.8W@12VDC |

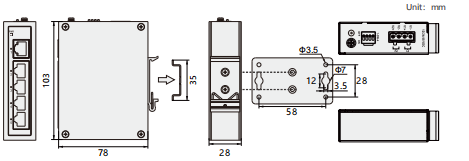

Machine
structure | Shell | IP40 protection grade,metal casing |
| Install | DIN rail mounting |
| Pilot lamp | Power indicator light,operation indicator light,interface indicator light |
| Operating temperature | -40~75℃ |
| Storage temperature | -40~85℃ |
| Relative humidity | 5%~95%(no condensation) |
| Mean time between failures | 300,000 hours |
| Industry standard | IEC61000-4-2(ESD,electrostatic discharge Immunity),Level 3
IEC61000-4-4(EFT,Electrical Fast Transient Pulse Immunity),Level3
IEC61000-4-5(Surge,wave impulse immunity),Level 3 Impact:
IEC60068-2-27Free fall:
IEC60068-2-32 Vibration:
IEC60068-2-6 |
