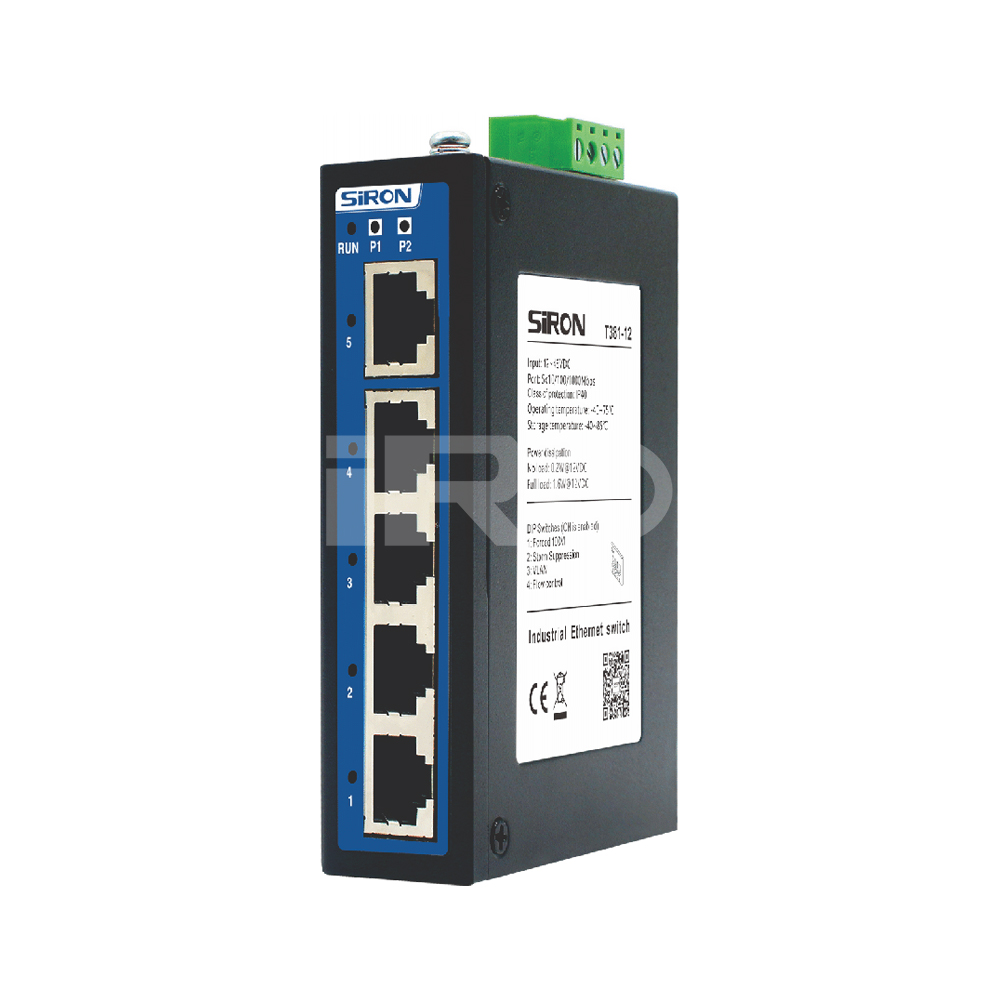

SiRON T381-12 Unmanaged 5 ports High-precision Industrial Switch

SiRON T381-12 Unmanaged 5 ports High-precision Industrial Switch

Name: SiRON T381-12 Unmanaged 5 ports High-precision Industrial Switch
Brand: SiRON
Rating: 5.0 (30 reviews)

Features

* Provide 5 x 10/100/1000Mbps electrical por ts;
* Support wide temperature design, -40°C~75°C, meet the requirements of har sh environment applications;
* Support storm suppression, flow control, one-click VL AN, forced 100 megabit and other functions;
* Support dual power supply redundancy, fanless, low-power design;
* Support IP40 protection level, metal shell DIN rail mounting.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T381-12
Brand:
SiRON
Code:
8517621900

unmanaged industrial switch 1000M industrial switch IP40 industrial switch

Product Description

Selection reference

Model	T381-12
Electrical interface	5
Speed	1000M
Power source	12/24/48 VDC(9~60VDC)
Port description	5x10/100//1000Mbps RJ45 port

Specification

Rj45 port			10/100/1000 BASE-T(X)adaptive RJ45,full-duplex/half-duplex mode adaptive, MDI/MDI-Xautomatic detection
Standards and protocols			10Base-T,in accordance with IEEE802.3;100Base-TX,in compliance with IEEE 802.3 Flow control,in accordance with IEEE 802.3x;VLAN follows IEEE 802.1Q
Dip switch			1-loop detection、2-Storm suppression、3-VLAN、4-fluid control
Input terminal			t adopts 4-digit 5.08mm pitch terminal blocks and supports reverse connection preventi
Switch properties	Transmission mode		store and forward
	Switching delay		<10μs
	MAC address		2K
	Backplane bandwidth		14G
	Power dissipation		Empty load:0.2W@12VDC;Full load:0.8W@12VDC
Machine structure	Shell		TP40 protection grade,metal casing
	Install		DIN rail mounting
Pilot lamp			Power indicator light,operation indicator light,interface indicator light
Operating temperature			-40~75℃
Storage temperature			-40~85℃
Relative humidity			5%~95%(no condensation)
Mean time between failures			300,000 hours
Industry standard		IEC61000-4-2(ESD,electrostatic discharge Immunity),Level 3 IEC61000-4-4(EFT,Electrical Fast Transient Pulse Immunity),Level 3 IEC 61000-4-5(Surge,wave impulse immunity),Level 3Impact: IEC 60068-2-27Free fall: IEC 60068-2-32Vibration: IEC 60068-2-6
