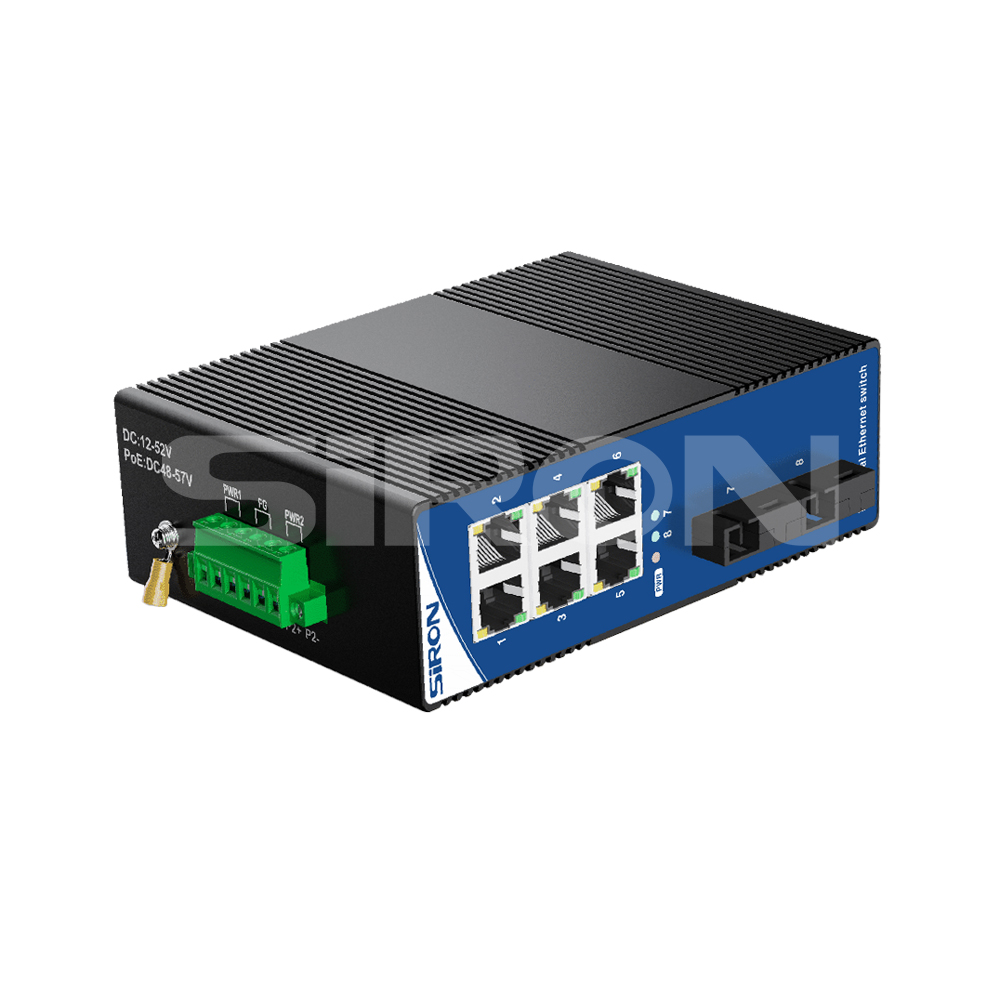

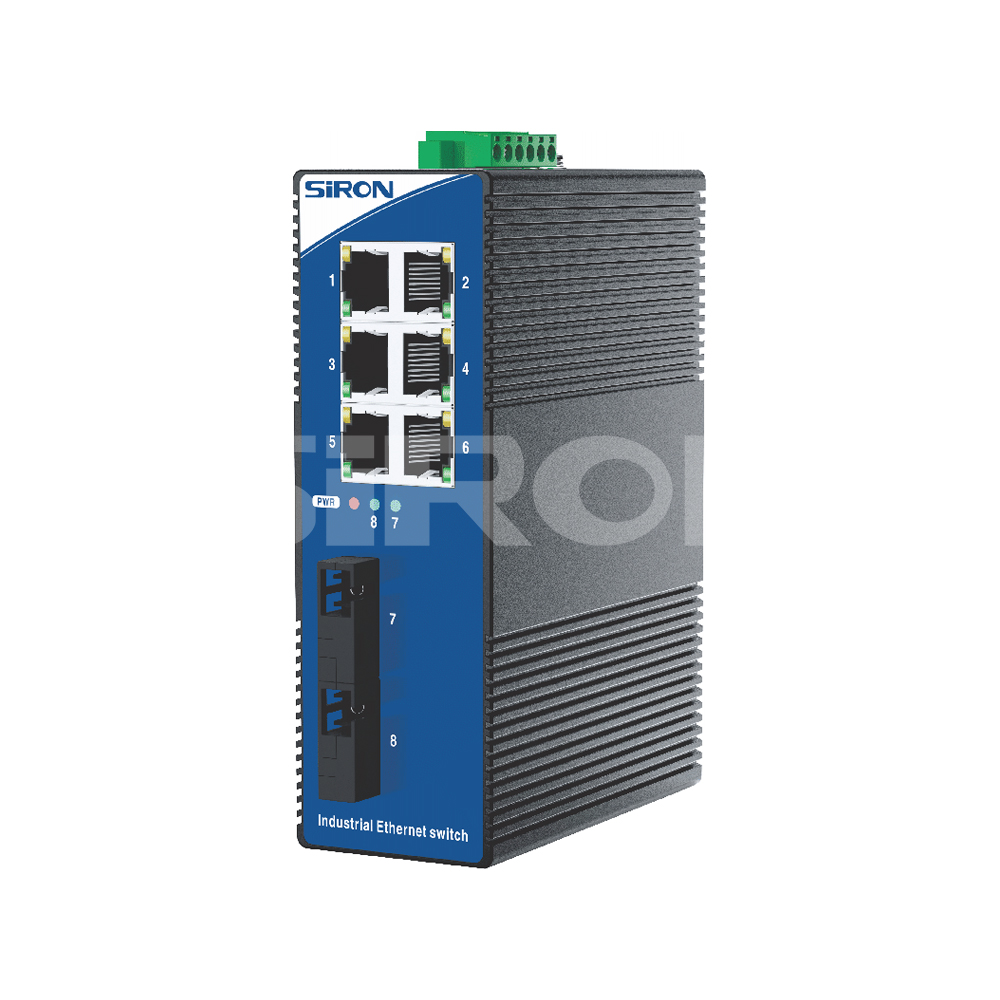

SiRON T380-7 Unmanaged 2 Optical 6 Power Industrial Switch

Name: SiRON T380-7 Unmanaged 2 Optical 6 Power Industrial Switch
Brand: SiRON
Rating: 5.0 (93 reviews)

Features

* Provides 6 10/100Mbps downlink electrical ports to 2 100Mbps optical fiber interfaces;
* SC/FC/ST optical fiber interface optional, can be extended IEEE802.3af(15.4W)/at(30W);
* Support wide temperature design -40℃~85℃ to meet harsh environment application requirements,
EMC industrial level 4 electromagnetic anti-interference;

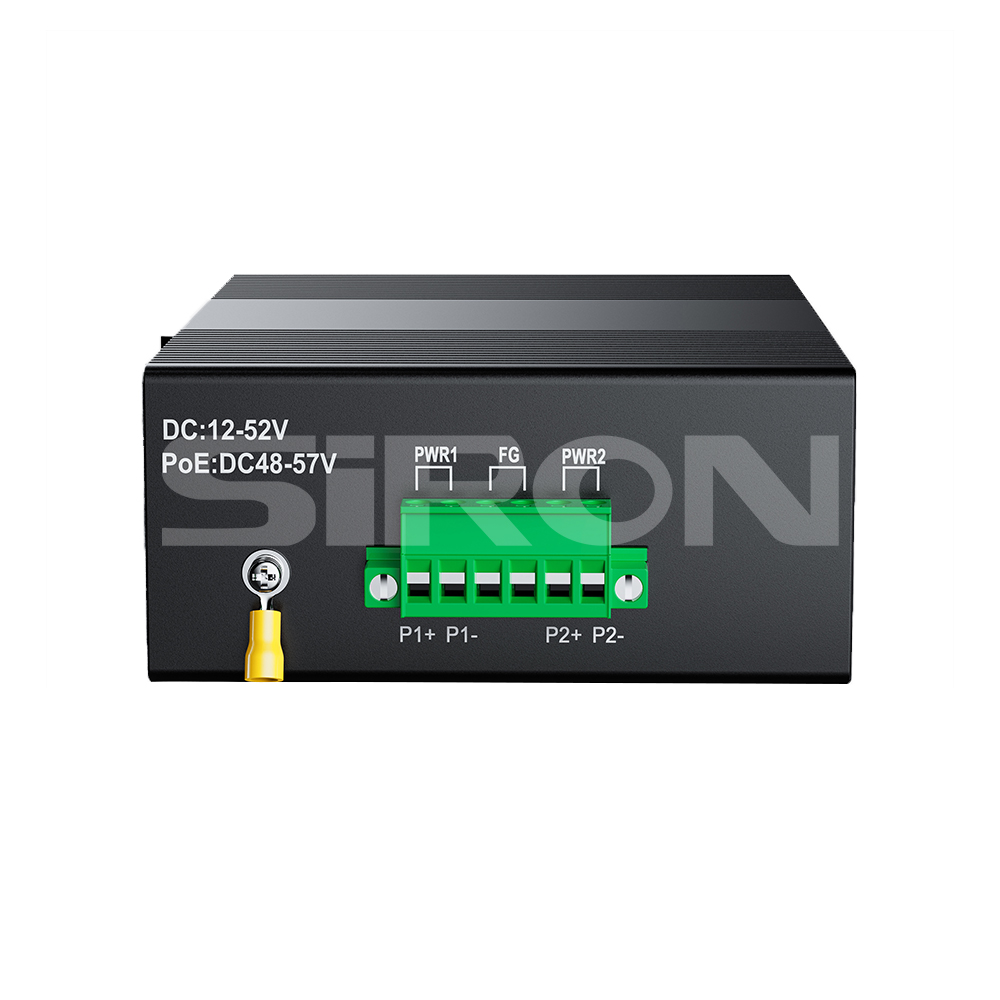

* Support dual power supply redundancy backup, built-in overcurrent 4.0A protection, connected to reverse protection input power supply;* Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T380-7
Brand:
SiRON
Code:
8517621900

unmanaged industrial switch 100 megabits industrial switch IP40 industrial switch

Product Description

Selection reference

Model	T380-7AB	T380-7E-AB
Electrical interface	6
Opticalport	2
Speed	100M
Power source	DC12-52V	DC48-52V
Port description	4x10/100Mbps RJ45 port,2x100Mbps sC optical interface(BIDI,20KM,TX1310/RX1550nm)	4x10/100Mbps RJ45 POE port,2x100Mbps 0nm) SC optical interface(BIDI,20KM,TX1310/RX1550nm)

Specification

Rj45 port		10/100BaseT (X)automatic detection;Full/half-duplex MDI/MDI-X adaptive
Network protocol		IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T; IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control;
PoE(optional)		PoE standard:Complies with IEEE802.3af/IEEE802.3at; Maximum single port:15.4W(IEEE 802.3af);Maximum single port:30W(IEEE 802.3at); PoE compatibility :IEEE 802.3af/at adaptive PoE port output voltage:DC48-52V; PoE power supply core:1/2+,3/6-

Access terminal		Phoneix
Mean time between failures		300,000 hour
Switch properties	Backplane bandwidth	1.6Gbps	Mechanical characteristic	Shell	IP40 protection grade,metal casing
	Application level	Two layers		Install	DIN rail mounting,wall-mounted installation
	Paktfowardng naledftewhcleslem	1.1904Mpps		Heat dissipation mode	Natural cooling,fanless
	MACtable	1K	Working environment	Operating temperature	-40~85℃(-40~185°F)
	Packet buffer	448K		Storage temperature	-40~85℃(-40~185°F)
	Delay time	<3μs		Relative humidity	5%~95%(without condensation)
	Switching mode	Store-forward	LED index	Power indicator light	PWR
	Overall powe consumption	<3W(Non POE)		Interface indicator	Electrical port,optical port(Link/ACT)

Industry standard

EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
IEC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT):PowerPort:±4kV;Data Port:±2kV
IEC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI):30V cont.300V,1s
IEC 60068-2-27(Shock)/IEC 60068-2-32(Freefall)/IEC 60068-2-6(Vibration)

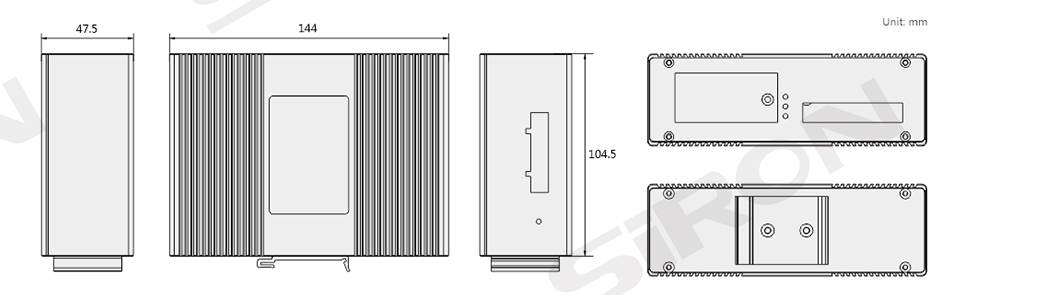

Dimensions
