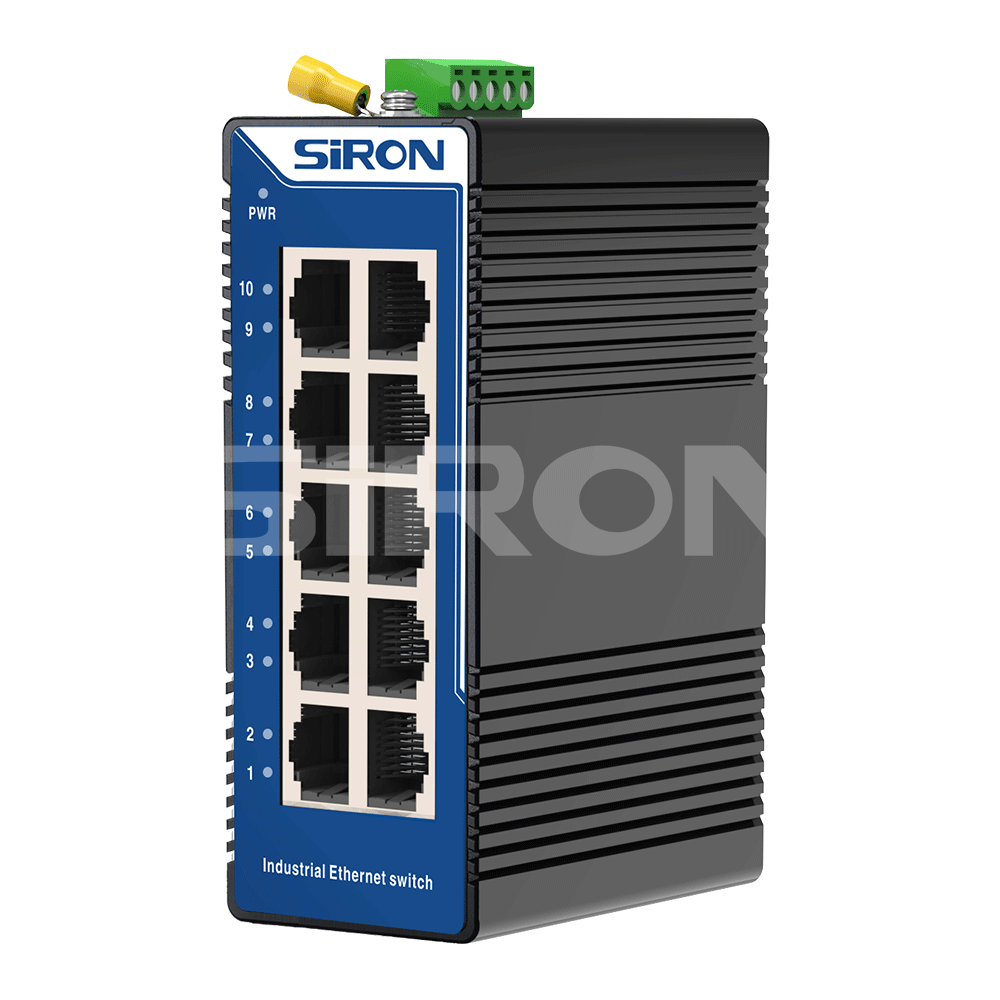

T380-19
SiRON
8517621900
Selection reference
| Model | T380-19 |
| Electrical interface | 24 |
| Speed | Gigabit |
| Powersource | DC12~52V |
| Portdescripfion | 10x10/100/1000Mbps RJ45 port |
Specification
| R45port | 10/100/1000BaseT (X) automatic detection; Full/half-duplex MDI/MDI-X adaptive | ||||
| Network protoool | IEEE802.310BASE-T;IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X;IEEE802.3x; | ||||
| Access terminal | 5P terminal block | ||||

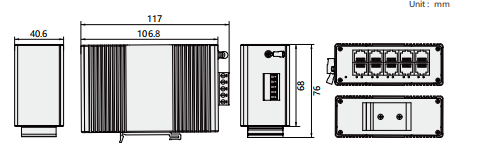

| Mean fime between falures | 300,000 hours | Mechanical characteristid | Shell | IP40 protection grademetal c | |
| Switch properties | Backplane bandwidth | 20Gbps | Install | DIN rail mounting,wall-moun | |
| Application level | 2 layers | Working ennironment | Operating temperaturd | -40~75℃(-40~167°F) | |
| Packet forwarding rate of the whole system | 14.88Mpps | Storage temperature | -40~85°℃(-40~185°F) | ||
| MAC address | 2K | Relative humidity | 5%~95%(without condensat | ||
| Delay time | <3μs | LED index | Power indicator light | PWR red power supply indicat | |
| Power wastage | <3W | Interfaoe indicator ligh | Green is the data indicator lig | ||
| Industry standard | EMI:FCC Part 15 Subpart B Class A,EN 55032 Class A EMS :IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±8kV indirect discharge,±15kV air discharge IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):Power cord :±4kV Data cable :±2kV IEC(EN)61000-4-5(Surge):power cable:±4kV CM/±2kV DM;data cable:±4kV CM/±2kV DM; IEC(EN)61000-4 -6(CS):3V(10kHz~150kHz),10V(150kHz~80MHz) IEC(EN)61000-4-16(common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 Shock:IEC 60068-2-27 Freefall:IEC 60068-2-32 Vibration:IEC 60068-2-6 |
