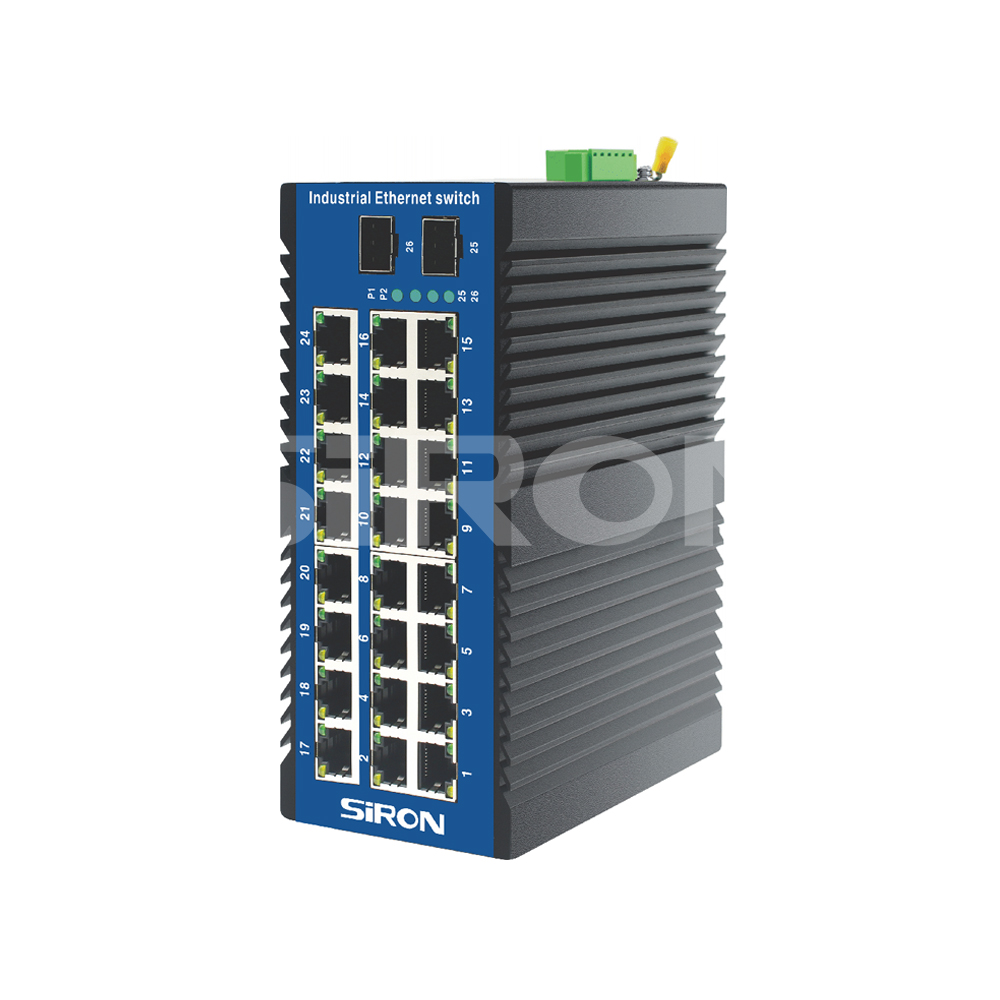

SiRON T380-15 Unmanaged 2 optical 24 power Industrial Switch

Name: SiRON T380-15 Unmanaged 2 optical 24 power Industrial Switch
Brand: SiRON
Rating: 5.0 (56 reviews)

Features

* Provides 24 10/100/1000Mbps down electrical ports to 2 1000Mbps SFP up optical ports;
* 10/100/1000Mbps rate adaptive, MDI/MDI-X adaptive, full/half duplex adaptive;
* Support wide temperature design -40℃~85℃ to meet harsh environment application requirements;
* EMC industrial level 4 electromagnetic anti-interference;
* Support dual power supply redundancy backup, built-in overcurrent 4.0A protection, connected to reverse protection input power supply;

* Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T380-15
Brand:
SiRON
Code:
8517621900

unmanaged industrial switch gigabit industrial switch IP 40 industrial switch

Product Description

Selection reference

Model	T380-15
Elecricalinterface	24
Opfical port	2
Speed	Gigabit
Powersource	DC12-52V
Port description	24x10/100/1000Mbps RJ45 port, 2x1000Mbps SFP optical port

Specification

Rj45 port		10/100BaseT (X)automatic detection; Full/half-duplex MDI/MDI-X adaptive
Network protocol		IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T; IEEE802.3u-100Base-TX/FX; IEEE802.3x-flow control; IEEE802.3z - 1000Base-X；IEEE802.3ab - 1000Base-T；
Access terminal		Phoneix
Mean time between failures		300,000 hour
Switch properties	Backplane bandwidth	48Gbps	Mechanical characteristic	Shell	IP40 protection grade,metal casing
	Application level	Two layers		Install	DIN rail mounting,wall-mounted installation
	Paktfowardng naledftewhcleslem	38.68Mpps		Heat dissipation mode	Natural cooling,fanless
	MACtable	16K	Working environment	Operating temperature	-40~85℃(-40~185°F)
	Packet buffer	2M		Storage temperature	-40~85℃(-40~185°F)
	Delay time	<3μs		Relative humidity	5%~95%(without condensation)
	Switching mode	Store-forward	LED index	Power indicator light	P1-P2(Green)
	Overall powe consumption	<10W(Non POE)	LED index	Interface indicator	1-24 Link/ACT(Green)

Industry standard

EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
IEC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT):PowerPort:±4kV;Data Port:±2kV
IEC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI):30V cont.300V,1s
IEC 60068-2-27(Shock)/IEC 60068-2-32(Freefall)/IEC 60068-2-6(Vibration)

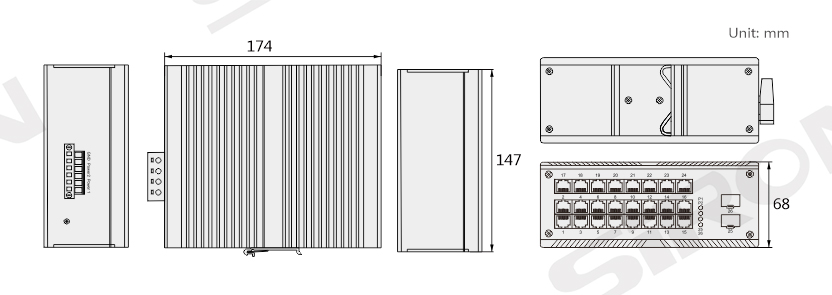

Dimensions
