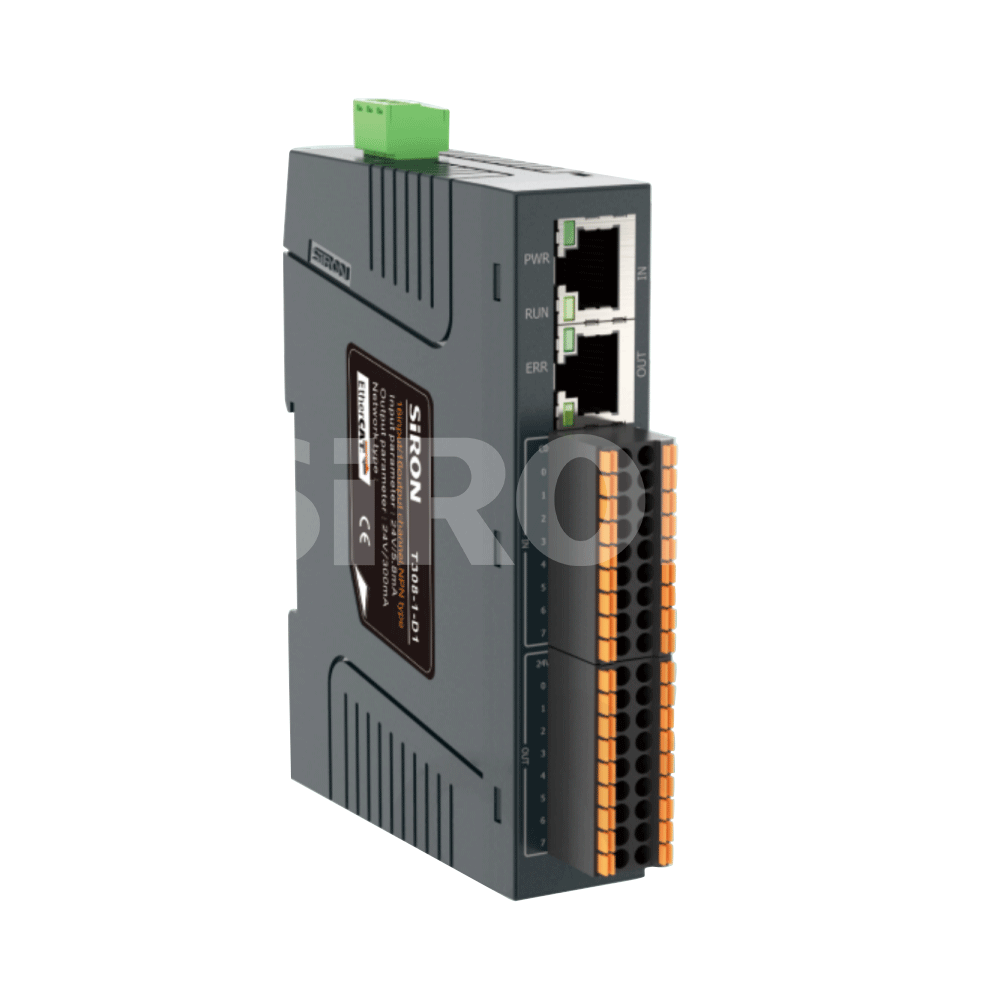

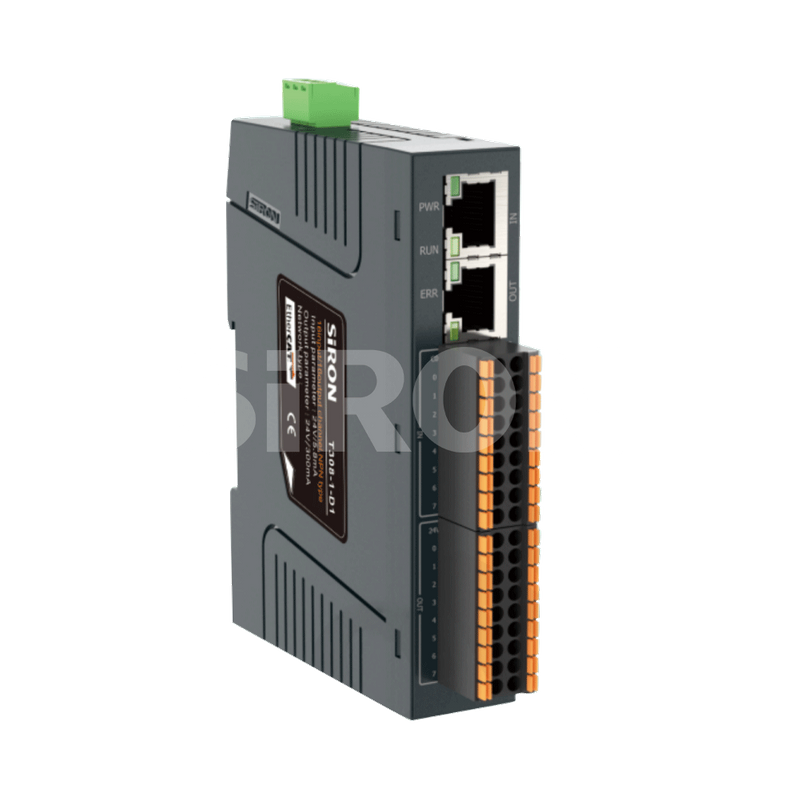

SiRON T308-1 IP20 EtherCAT Coupler

Name: SiRON T308-1 IP20 EtherCAT Coupler
Brand: SiRON
Rating: 5.0 (45 reviews)

Features

* Supports EtherCAT protocol access;
* Rail-mounted installation;
* IP20 protection rating;
* Uses plug-in spring terminals: I/O ports come with power supply or common terminals, facilitating wiring of sensors, solenoid valves, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T308-1
Brand:
SiRON
Code:
8517799000

IP20 EtherCAT DIN rail EtherCAT DC 24V EtherCAT

Product Description

About selection

企业微信截图_17798485884258

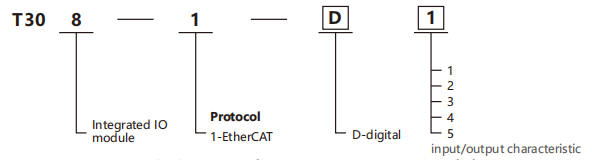

Selection example: T308-1-D1 represents the integrated IO module series, with the protocol being EtherCAT. It features 16-channel digital input and 16-channel digital (transistor) output (NPN).

input/output characteristic (digital )

Code	inputput	Output
1	16 channels digital input	16 channel digital (transistor)output(NPN)
2*	16 channels digital input	16 channel digital (transistor)output(PNP)
3	32 channels digital input	0 channel digital output
4	0 channels digital input	32 channel digital (transistor)output(NPN)
5*	0 channels digital input	32 channel digital (transistor)output(PNP)

Note: Belt * is under development, not on the marke

Specifications

Powersource	Nominal:24V,allowable range:18-30V,Max:150mA
Transmit	It is subject to the protocol
Wiring	Cold-pressed wire length of 0.3mm²(22AWG)to 1mm²(17AWG):10mm
External connection	Plug-in spring terminal
Installation mode	35mm din rail
Weight	≈136g

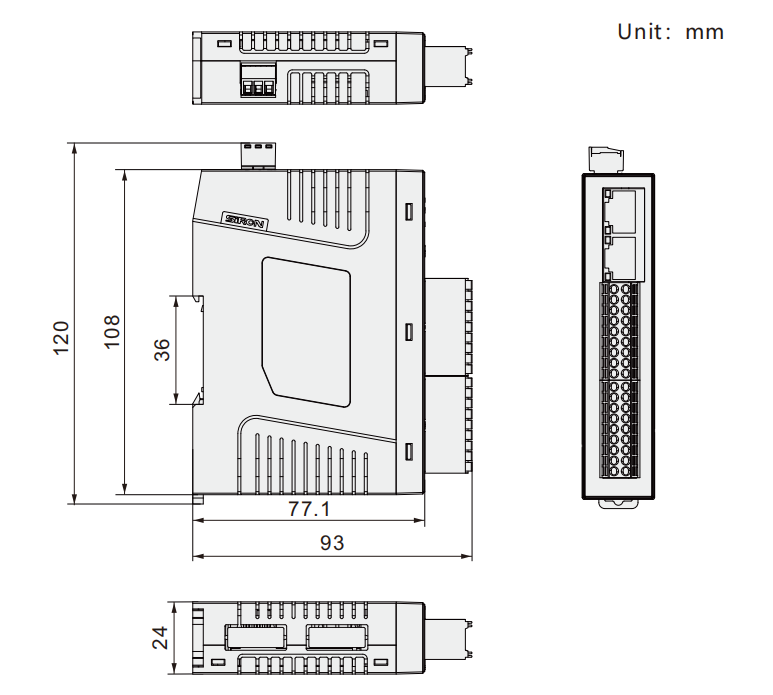

Dimension	120×24×93 mm
Operating temperature	-10～+55℃
Storage temperature	-25～+70℃
Relative humidity	5%～95%non-condensing
Class of protection	IP20
Use occasion	Avoid dust,oil mist and corrosive gases

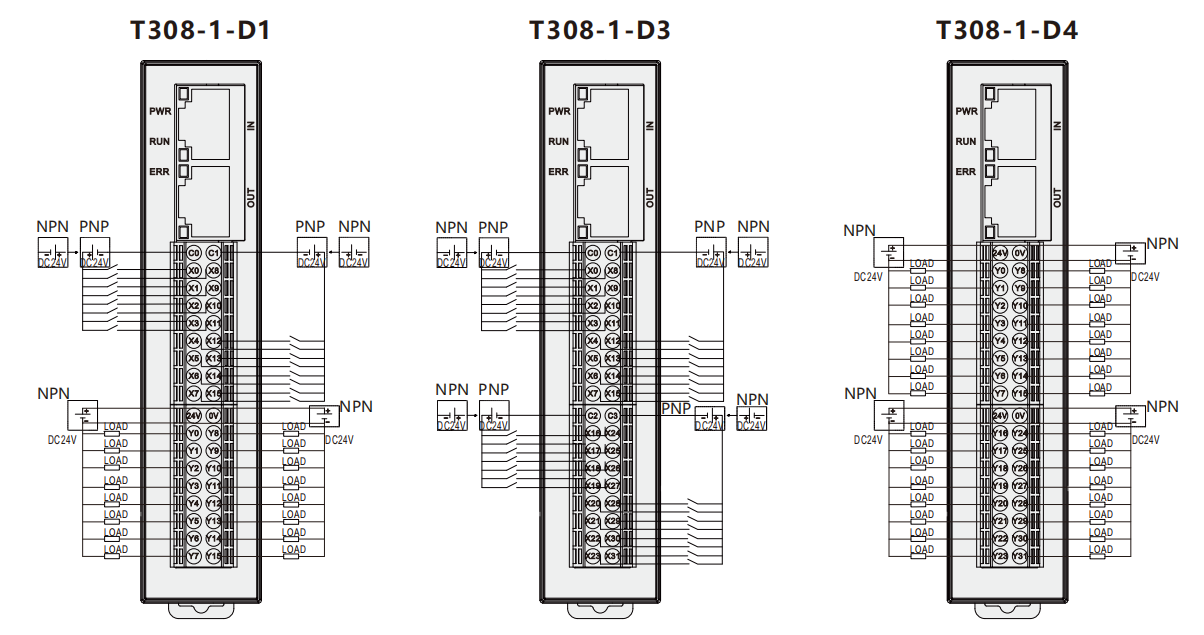

Digital input/output

Model number	T308-1-D1	T308-1-D3
Type	Optocoupler input NPN is compatible with PNP output NPN	Optocoupler input NPN is compatible with PNP
Current consumption	128mA	100mA
Isolate	IO to internal bus:optocoupler isolation 500V
"0"signal voltage	NPN:12～30V;PNP:0～5V
"1"signal voltage	NPN:0～5V;PNP:12～30V
ON/OF response time	Input:30us/10us;Output:12us/40us	Input:30us/10us
Load capacity	Nominal:300mA,single channel:up to 500mA, continuous 8-channel:up to 2A	/
Load type	Resistive load,inductive load,lamp load
Diagnosis andalarm	support

Digital output

Model number	T308-1-D4
Type	output NPN
Current consumption	156mA
Isolate	IO to internal bus:optocoupler isolation 500V
ON/OF response time	Output:12us/40us
Load capacity	Nominal:300mA,single channel:maximum:500mA,continuous 8-channel:maximum:2A
Load type	Resistive load,inductive load,lamp load
Diagnosis and alarm	support
