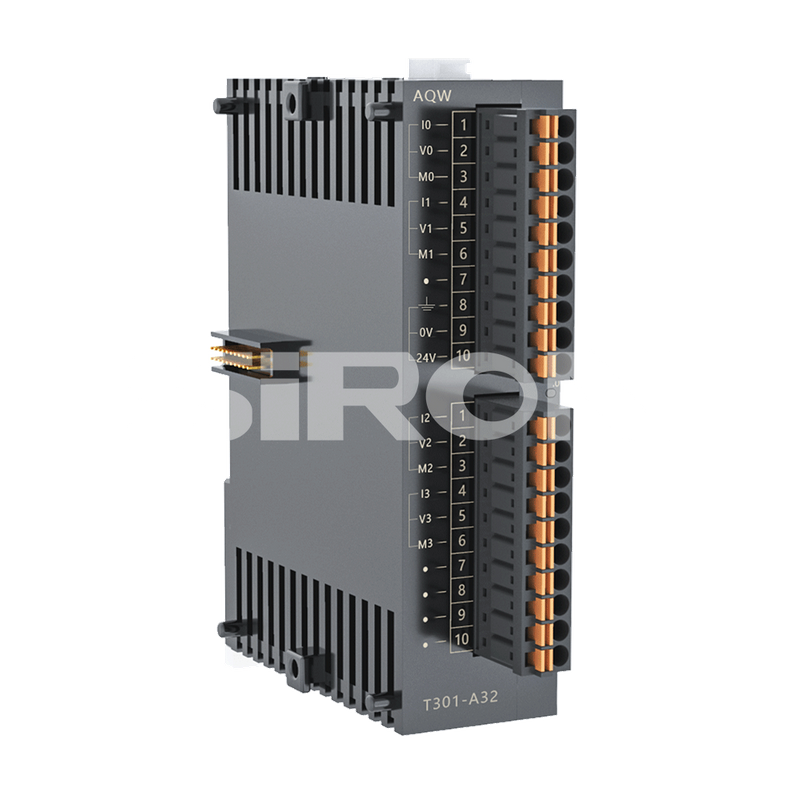

SiRON T301-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module

Name: SiRON T301-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module
Brand: SiRON
Rating: 5.0 (54 reviews)

Features

* Thin design, smaller volume；
* Parallel interface, fast speed;
* Pin bus extension interface, plug and play, no additional wiring;
* Visual channel indicator design, debugging, maintenance at a glance

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T301-A
Brand:
SiRON
Code:
8517799000

IP20 Expansion Analog Module RJ45 Expansion Analog DC 24V Expansion Analog

Product Description

About selection

企业微信截图_17560927462720

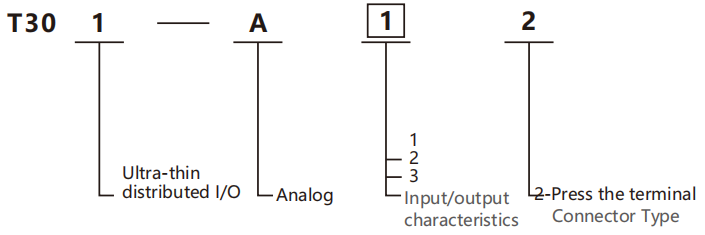

Selection example: T301-A12 represents the ultra-thin distributed I/O series, analog Input/output characteristics: 4-channel analog input, 0-channel analog output, interface form: press terminal.

Input/output characteristics

Code	Input	Output

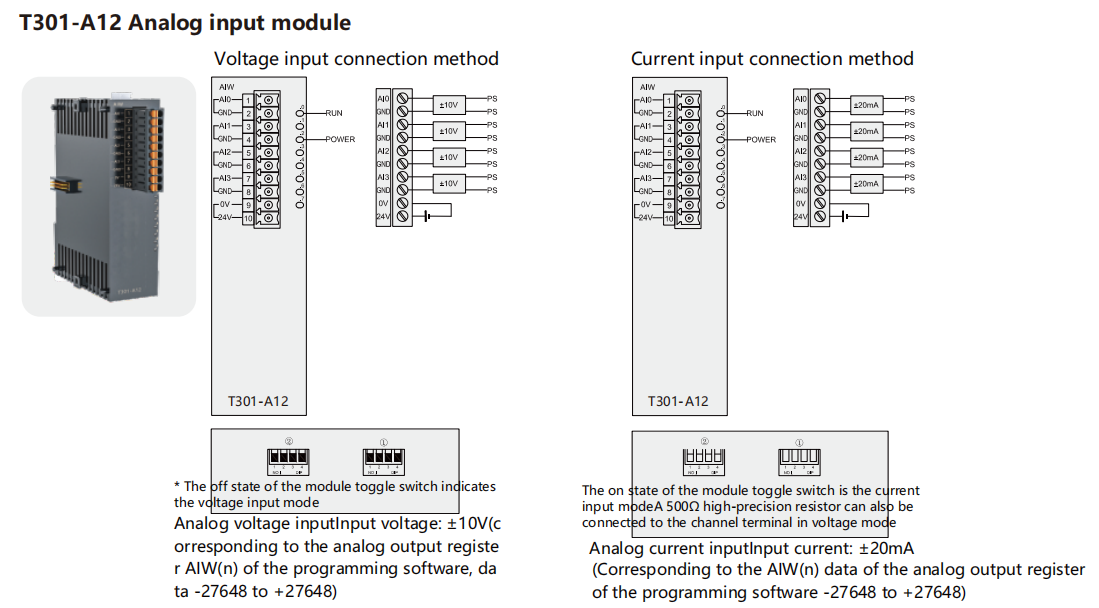

1	4 channels analog input	0 channels analog output

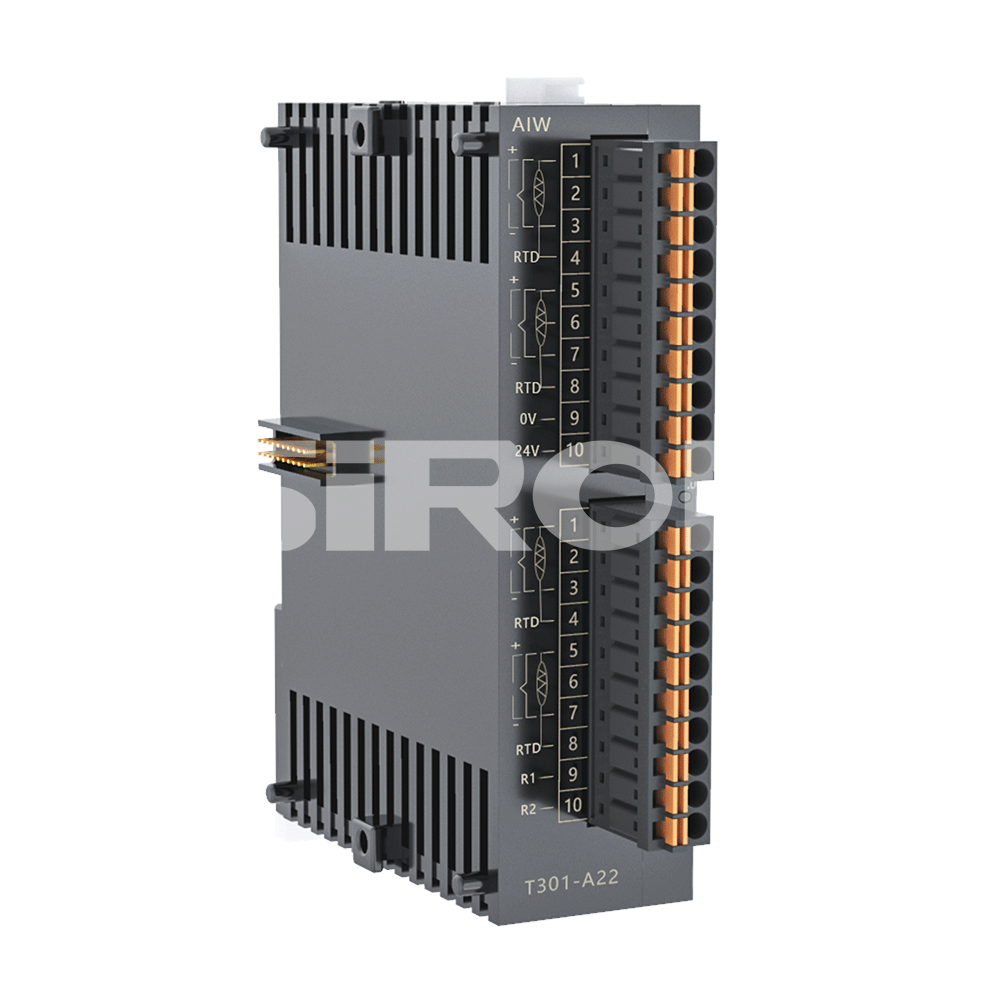

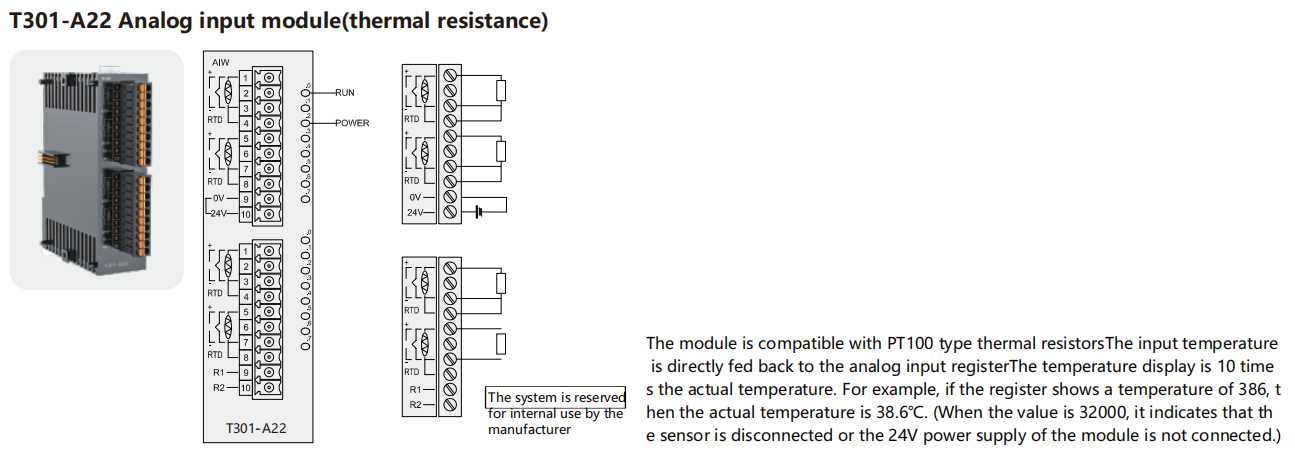

2	4 channels thermal resistance input(RTD)	0 channels analog output

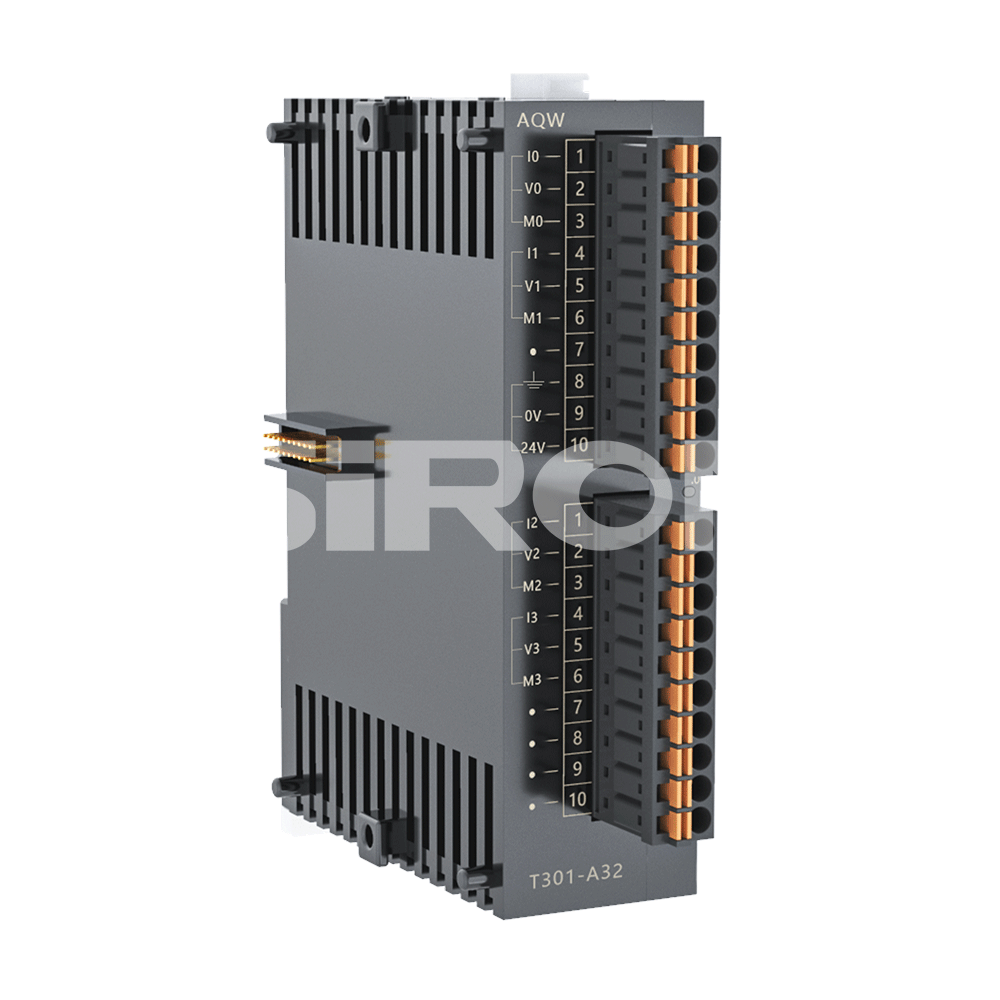

3	0 channels analog input	4 channels analog output(0～10V,0～20mA)with synchronous voltage and current output

Specification

Input/output
Input signal(voltage type)	-10～+10V DC
Input signal(current type)	0~20mA
Output signal (voltage type)	-10～+10V DC
Output signal (current type)	0~20mA
Resolution	15Bit
Indicator light	Green LED
Range/code value comparison
Current pattern	0~20mA/0~27648
Voltage pattern	-10~+10V DC/-27648～+27648
