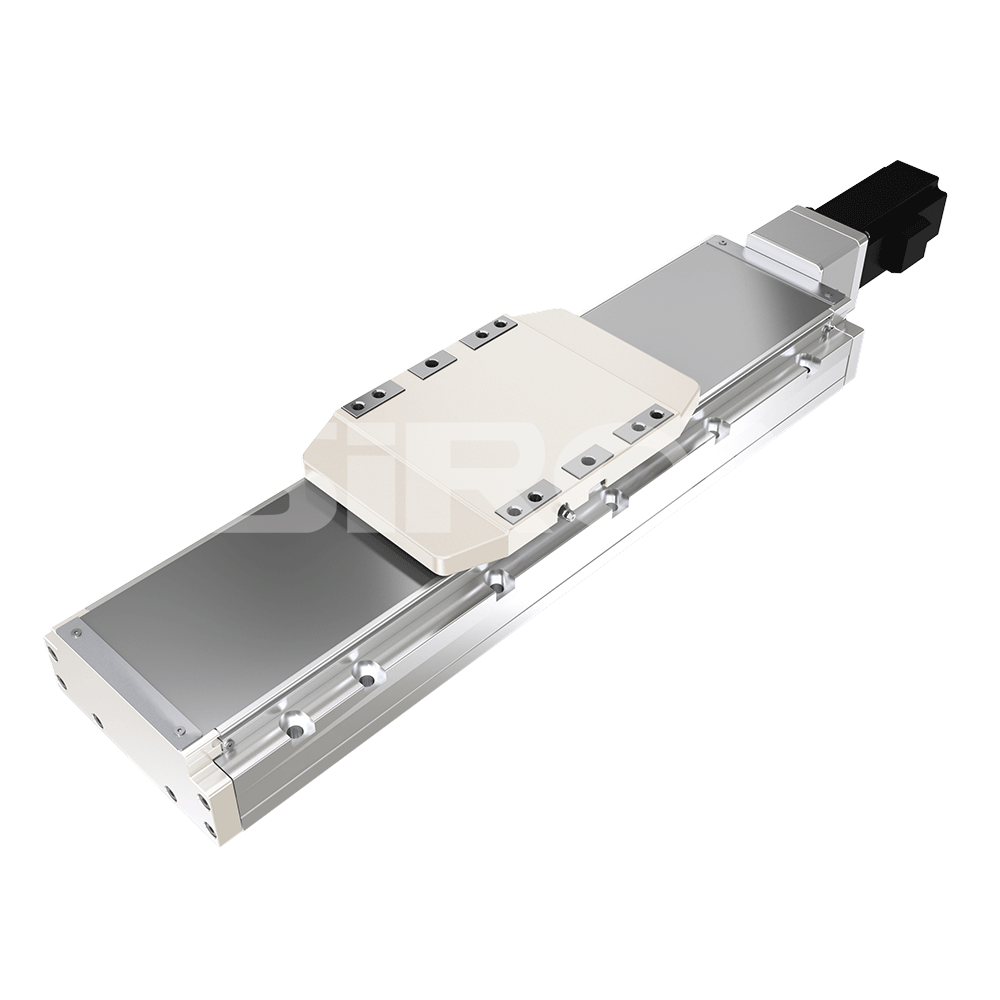

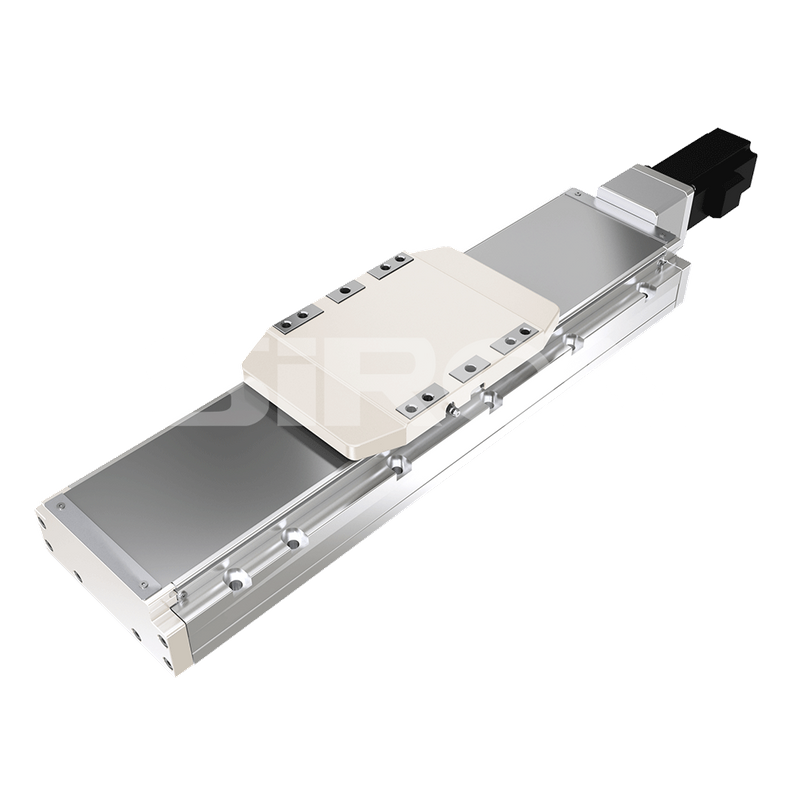

SiRON M305 Embedded Ball Screw Module

Name: SiRON M305 Embedded Ball Screw Module
Brand: SiRON
Rating: 5.0 (81 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M305
Brand:
SiRON
Code:
9001909090

1250mm Maximum stroke 2000mm/s Maximum speed Φ20mm Ball bearing screw

Product Description

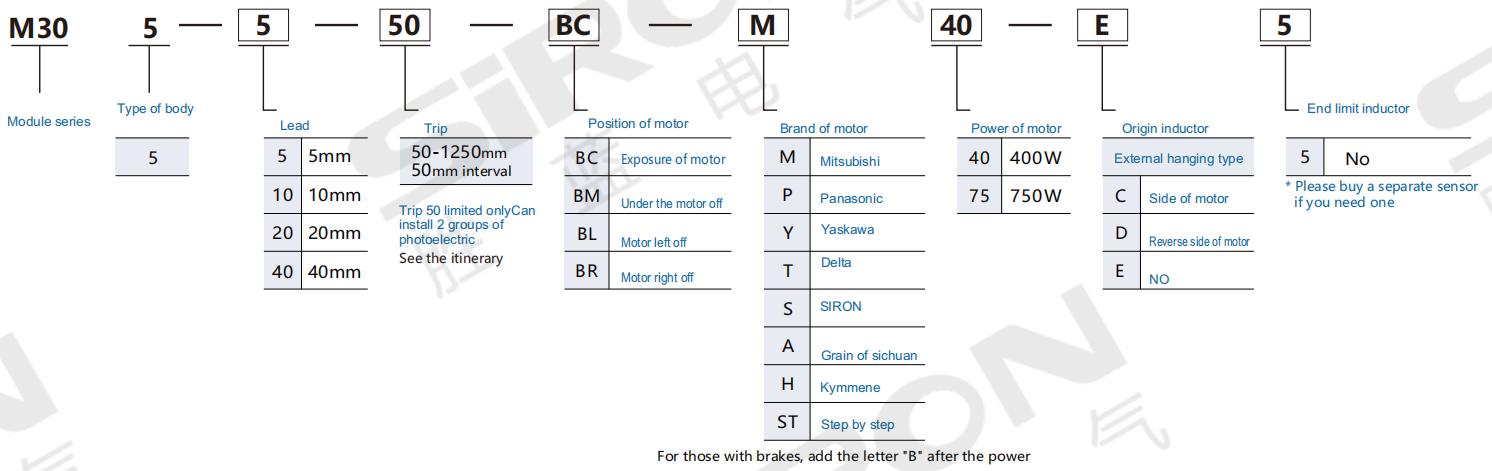

About selection

Selection example: M305-5-50-BC-M40B-E5 is M305 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 400W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staﬀ.Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on diﬀerent sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specifications	The motor power		400W/750W
	Repeatability(mm)		±0.01
	Ball screw lead(mm)		5	10	20	40
	Maximum speed(mm/s)		250	500	1000	2000
	Maximum payload(kg)	Horizontal	120/120	110/120	75/83	22/43
		Vertical	40/50	30/40	14/25	7/12
	Rated thrust(n)		1388/2563	694/1281	374/640	174/320
	Stroke pitch(mm)		100-1250mm/50 interval
Sarts	AC Servo motoroutput(w)		400W/750W
	Can be equipped with stepping motor		86
	Ball screw(mm)		C7φ20
	Coupling(mm)		12×14/12×19
	Home sensor	Outside	K017-A6

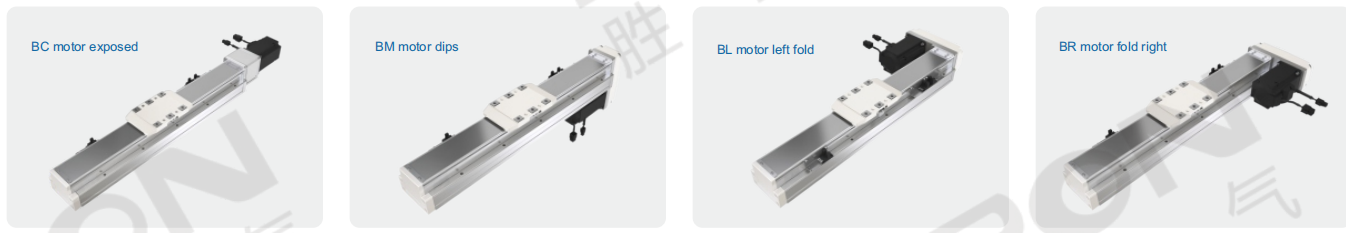

Installation method

企业微信截图_17742339916213

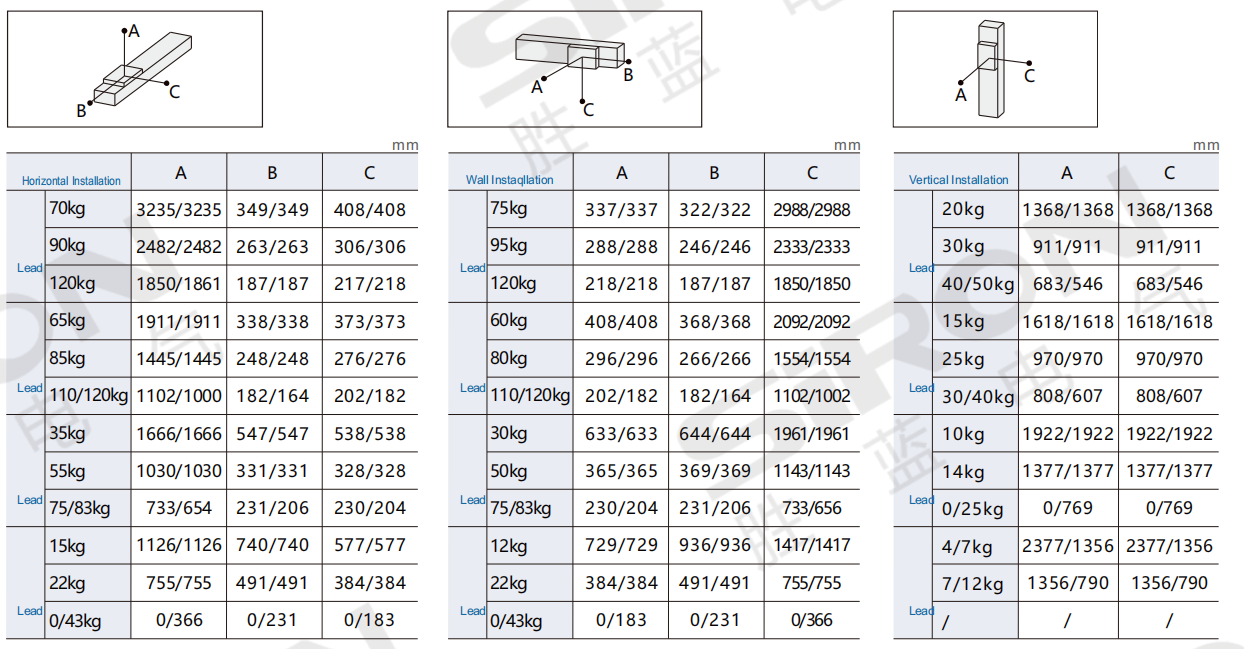

Allowable overhang

企业微信截图_17742340966305

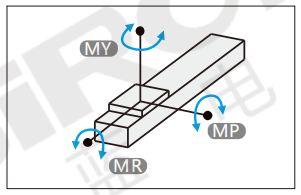

Static loading moment

企业微信截图_17742342914095

MY	1032/1032
MP	1034/1034
MR	908/908

The data indicated in the torque table represents the center of gravity Under normal usage conditions that comply with catalog violations, the guaranteed lifespan is 10,000 kilometers The standard specifications cannot be followed when using the inverted hoist. If you have any needs, please consult our sales staff

Suitable motor brand

Brand	The motor mark	Whether the brakes	Motor capacity	voltage	Motor model	voltage
Mitsubishi	M	No brakes (horizontal style)	400/750	220	HG-KR43/HG-KR73	MR-J4-40A MR-J4-70A
Mitsubishi	M	With brake(vertical style)	400/750	220	HG-KR43B/HG-KR73B	MR-J4-40A MR-J4-70A
Panasonic	P	No brakes (horizontal style)	400/750	220	MHMD042G1U/MHMD082G1U	MBDHT2510 MCDHT3520
Panasonic	P	With brake(vertical style)	400/750	220	MHMD042G1V/MHMD082G1V	MBDHT2510 MCDHT3520
Delta	T	No brakes(horizontal style)	400/750	220	ECMA-C20604ES/ECMA-C20807ES	ASD-B20421-B ASD-B20721-B
Delta	T	With brake(vertical style)	400/750	220	ECMA-C20604FS/ECMA-C20807FS	ASD-B20421-B ASD-B20721-B

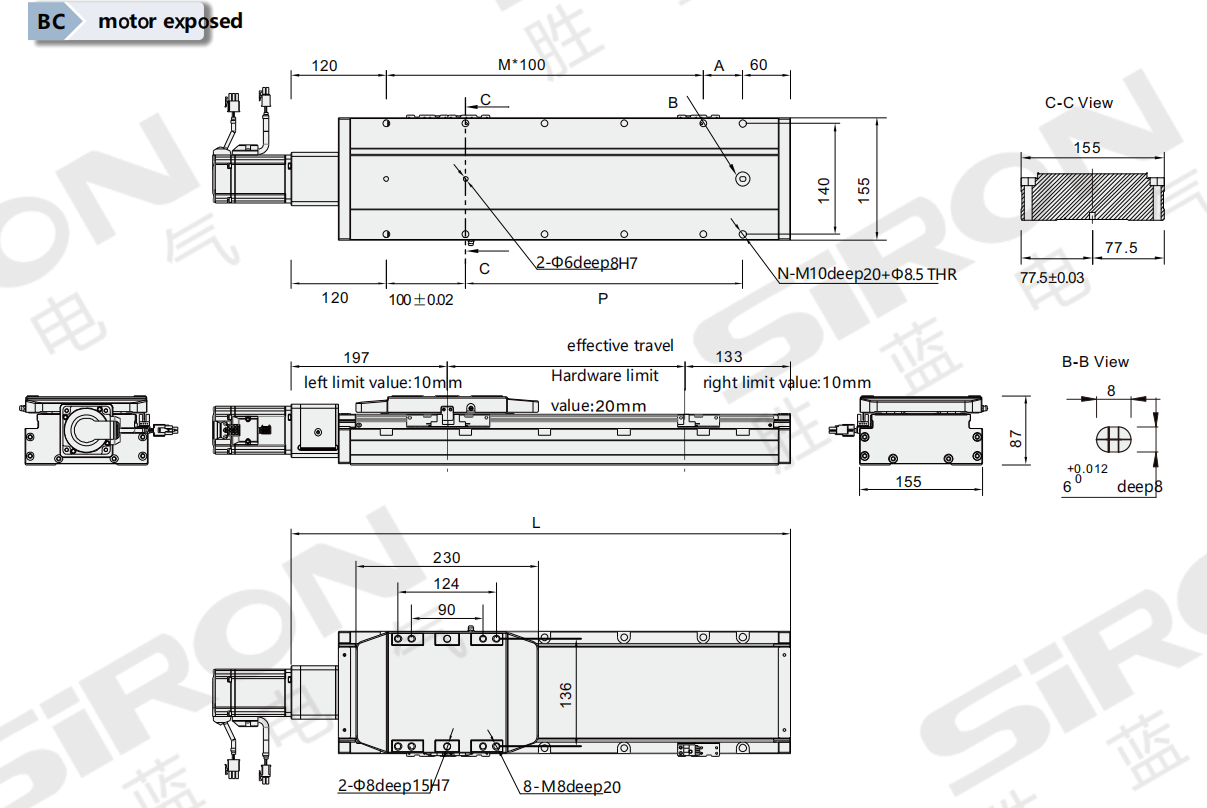

General dimension drawing

企业微信截图_17742345007949

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body.

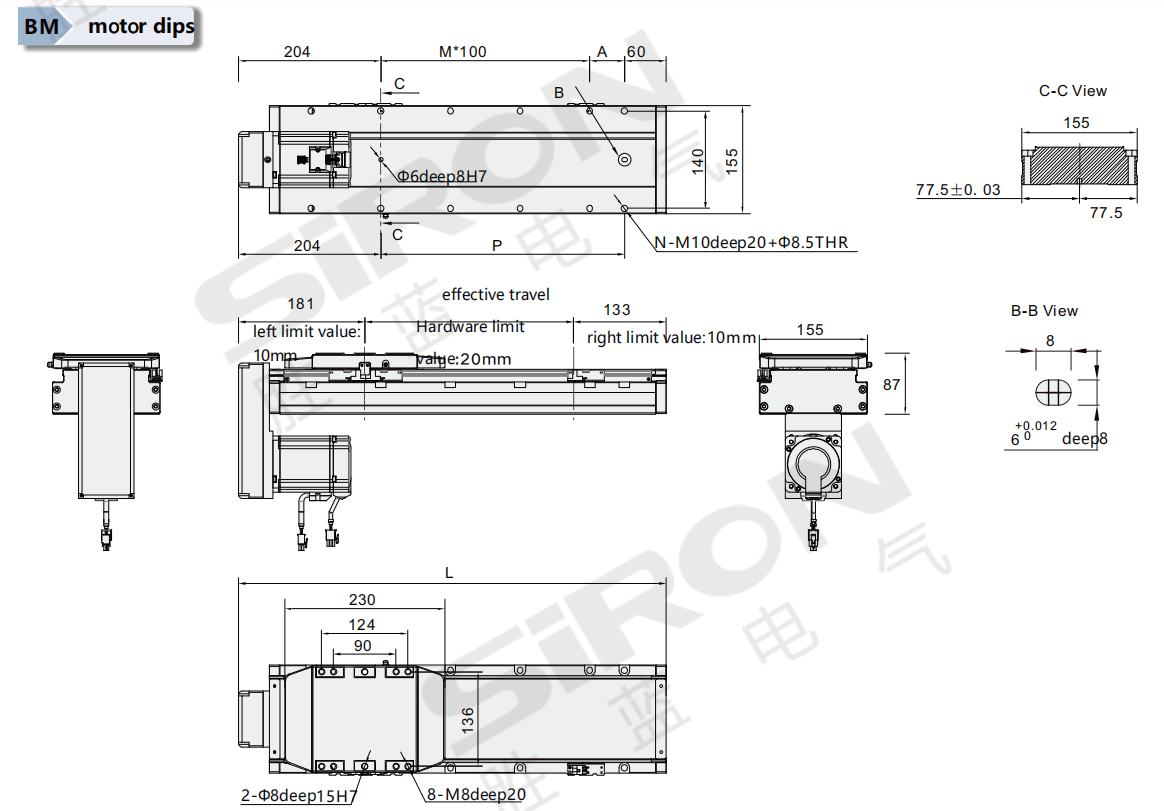

企业微信截图_17742355663350

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body

Stroke	50	100	150		200		250		300		350		400		450		500		550	600	650
L	364	414	464		514		564		614		664		714		764		814		864	914	964
A	100	50	100		50		100		50		100		50		100		50		100	50	100
M	0	1	1		2		2		3		3		4		4		5		5	6	6
N	4	6	6		8		8		10		10		12		12		14		14	16	16
P	100	150	200		250		300		350		400		450		500		550		600	650	700
weight(kg)	11.9	12.4	12.9		13.4		13.9		14.4		14.9		15.4		15.9		16.4		16.9	17.4	17.9

Stroke	700	750		800		850		900		950		1000		1050		1100		1150		1200	1250
L	1014	1064		1114		1164		1214		1264		1314		1364		1414		1464		1514	1564
A	50	100		50		100		50		100		50		100		50		100		50	100
M	7	7		8		8		9		9		10		10		11		11		12	12
N	18	18		20		20		22		22		24		24		26		26		28	28
P	750	800		850		900		950		1000		1050		1100		1150		1200		1250	1300
weight(kg)	18.4	18.9		19.4		19.9		20.4		20.9		21.4		21.9		22.4		22.9		23.4	23.9

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff.

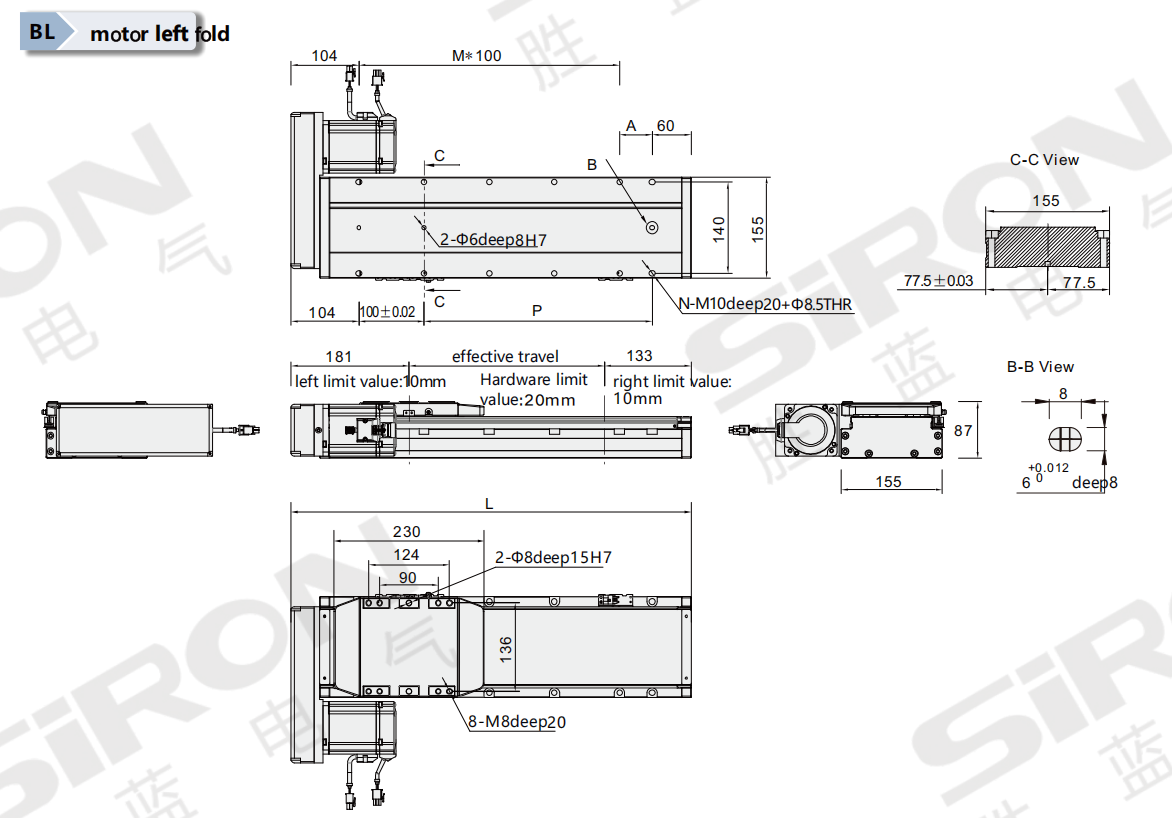

企业微信截图_17742361445560

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body

Stroke	50	100	150		200		250		300		350		400		450		500		550	600	650
L	364	414	464		514		564		614		664		714		764		814		864	914	964
A	100	50	100		50		100		50		100		50		100		50		100	50	100
M	1	2	2		3		3		4		4		5		5		6		6	7	7
N	6	8	8		10		10		12		12		14		14		16		16	18	18
P	100	150	200		250		300		350		400		450		500		550		600	650	700
weight(kg)	11.9	12.4	12.9		13.4		13.9		14.4		14.9		15.4		15.9		16.4		16.9	17.4	17.9

Stroke	700	750		800		850		900		950		1000		1050		1100		1150		1200	1250
L	1014	1064		1114		1164		1214		1264		1314		1364		1414		1464		1514	1564
A	50	100		50		100		50		100		50		100		50		100		50	100
M	8	8		9		9		10		10		11		11		12		12		13	13
N	20	20		22		22		24		24		26		26		28		28		30	30
P	750	800		850		900		950		1000		1050		1100		1150		1200		1250	1300
weight(kg)	18.4	18.9		19.4		19.9		20.4		20.9		21.4		21.9		22.4		22.9		23.4	23.9

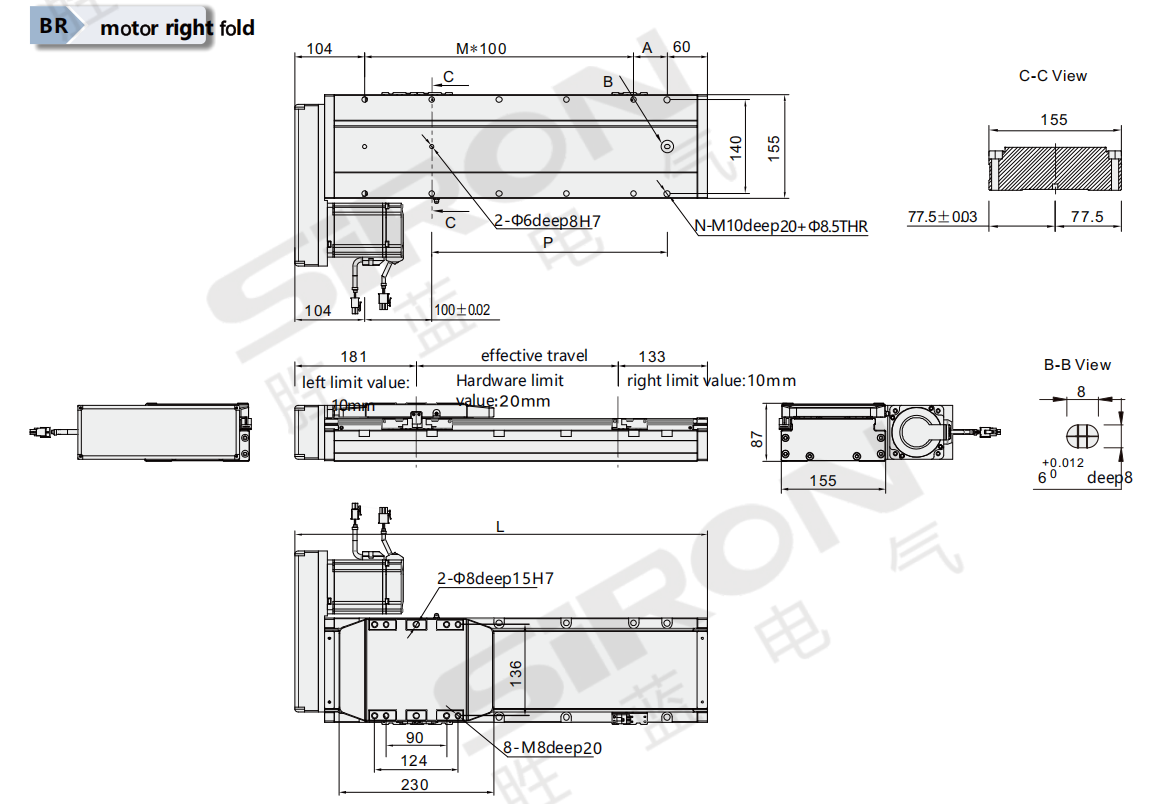

企业微信截图_17742362574639

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body.

Stroke	50	100	150		200		250		300		350		400		450		500		550	600	650
L	364	414	464		514		564		614		664		714		764		814		864	914	964
A	100	50	100		50		100		50		100		50		100		50		100	50	100
M	1	2	2		3		3		4		4		5		5		6		6	7	7
N	6	8	8		10		10		12		12		14		14		16		16	18	18
P	100	150	200		250		300		350		400		450		500		550		600	650	700
weight(kg)	11.9	12.4	12.9		13.4		13.9		14.4		14.9		15.4		15.9		16.4		16.9	17.4	17.9

Stroke	700	750		800		850		900		950		1000		1050		1100		1150		1200	1250
L	1014	1064		1114		1164		1214		1264		1314		1364		1414		1464		1514	1564
A	50	100		50		100		50		100		50		100		50		100		50	100
M	8	8		9		9		10		10		11		11		12		12		13	13
N	20	20		22		22		24		24		26		26		28		28		30	30
P	750	800		850		900		950		1000		1050		1100		1150		1200		1250	1300
weight(kg)	18.4	18.9		19.4		19.9		20.4		20.9		21.4		21.9		22.4		22.9		23.4	23.9

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff
