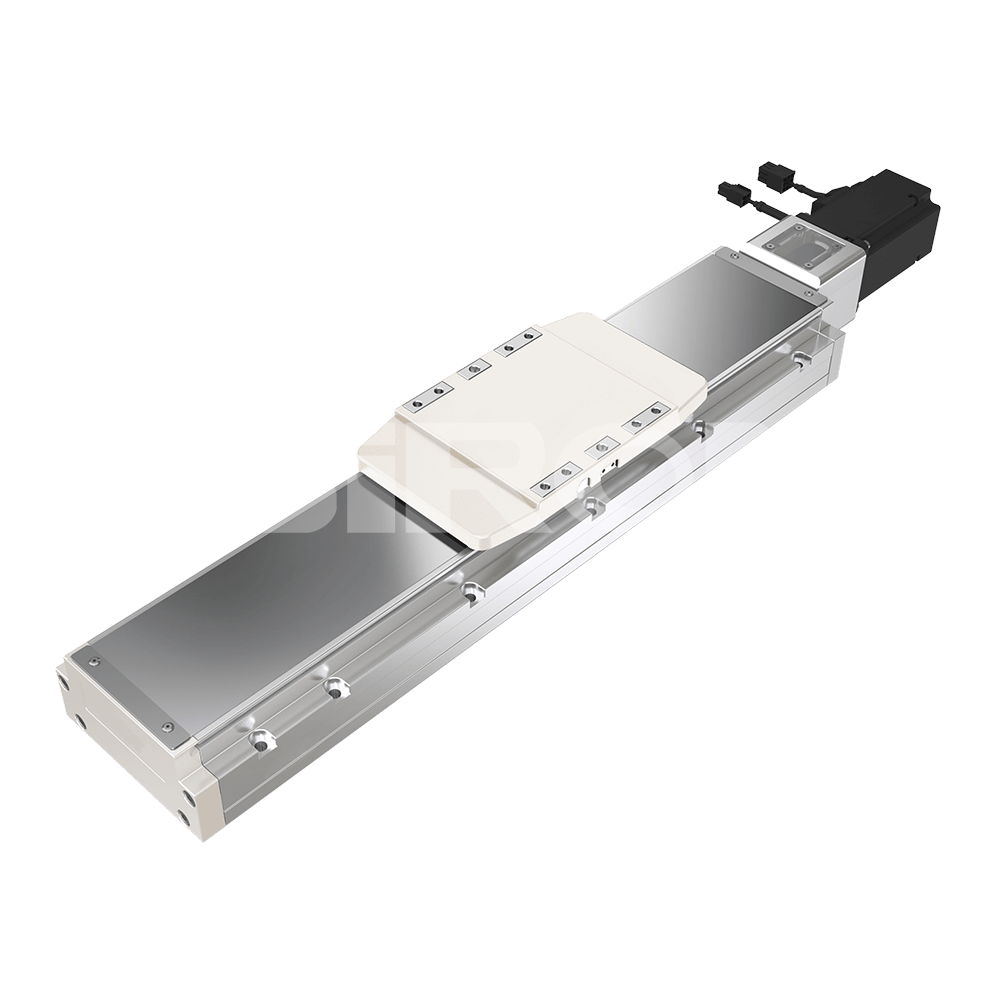

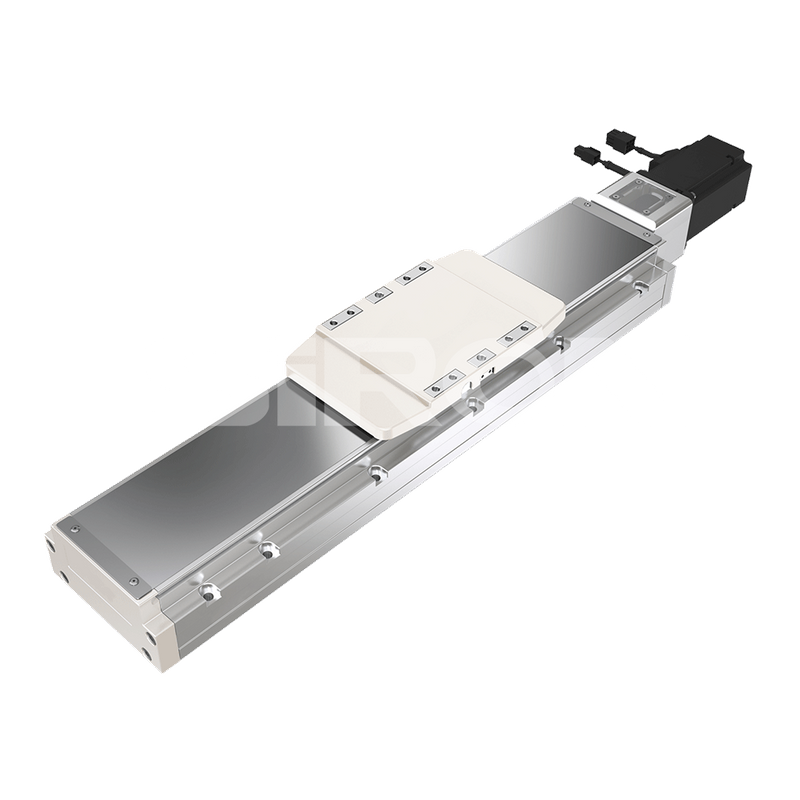

SiRON M304 Embedded Ball Screw Module

Name: SiRON M304 Embedded Ball Screw Module
Brand: SiRON
Rating: 5.0 (22 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M304
Brand:
SiRON
Code:
9001909090

1250mm Maximum stroke 1600mm/s Maximum speed Φ16mm Ball bearing screw

Product Description

About selection

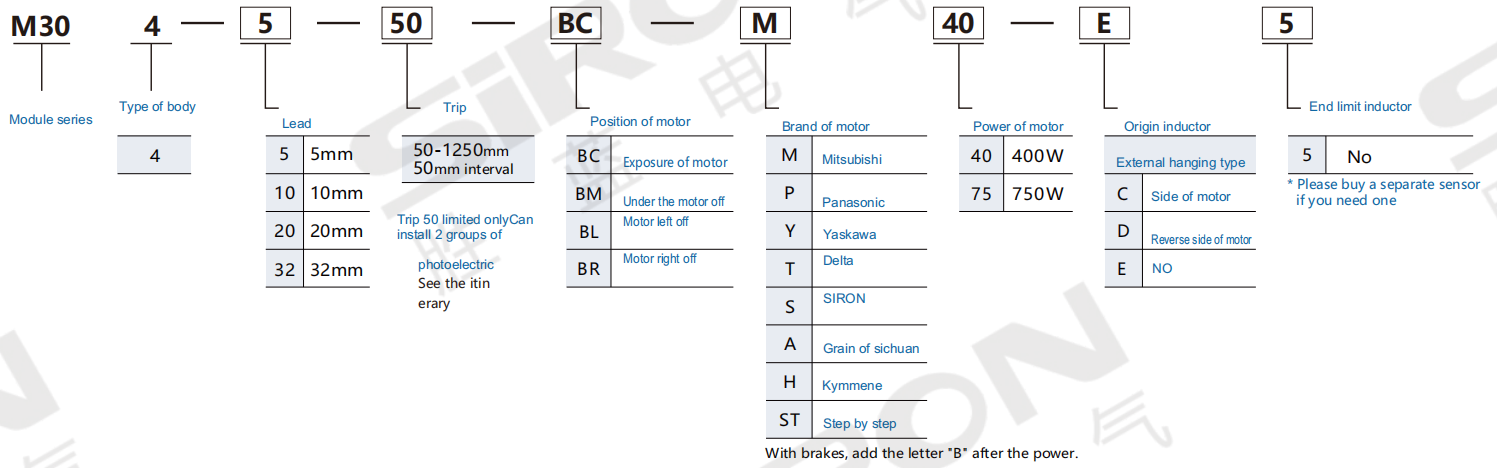

Selection example: M304-5-50-BC-M40B-E5 is M304 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 400W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.01
	Ball screw lead(mm)		5	10	20	32
	Maximum speed(mm/s)		250	500	1000	1600
	Maximum payload(kg)	Horizontal	110	88	40	30
		Vertical	33	22	10	8
	Rated thrust(n)		1388	694	347	218
	Stroke pitch(mm)		50-1250mm/50 interval
Sarts	AC Servo motor output(w)		400
	Can be equipped with stepping motor		86
	Ballscrew(mm)		C 7Φ1 6
	Coupling(mm)		10×14
	Home sensor	Outside	K017-A6
