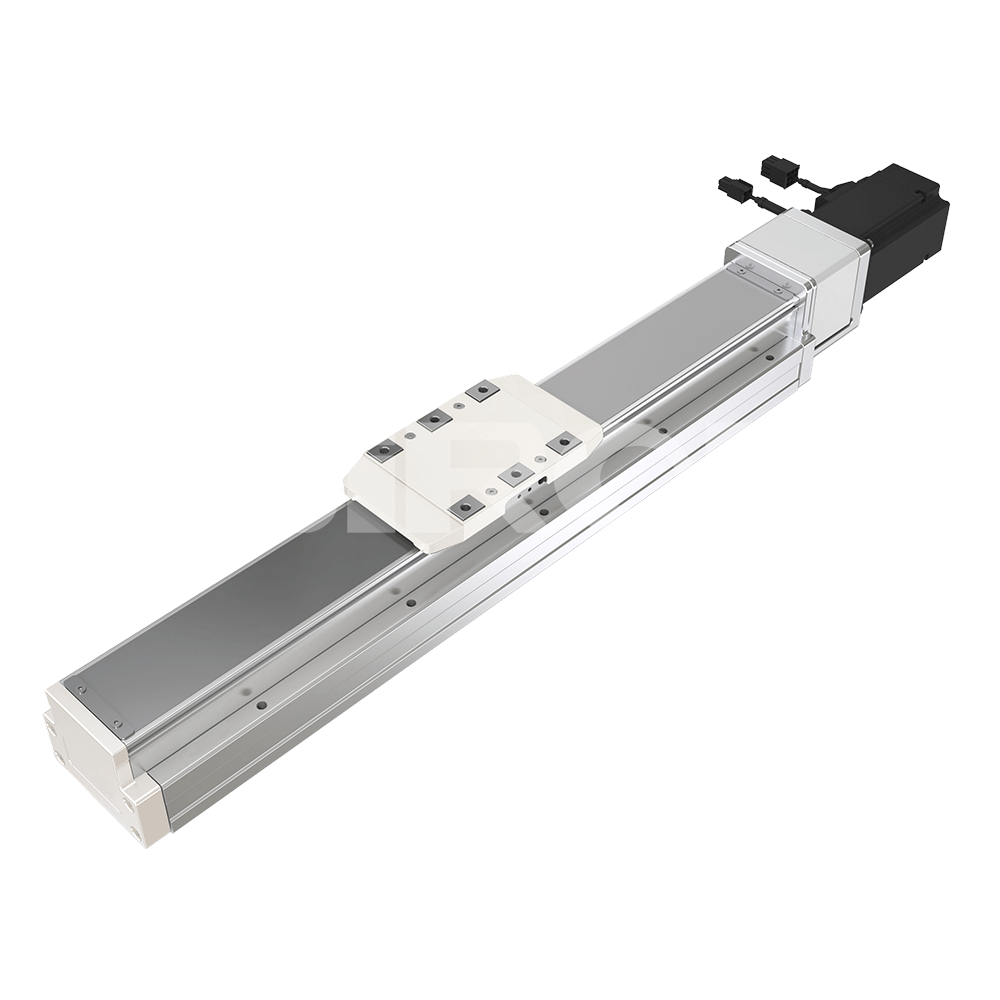

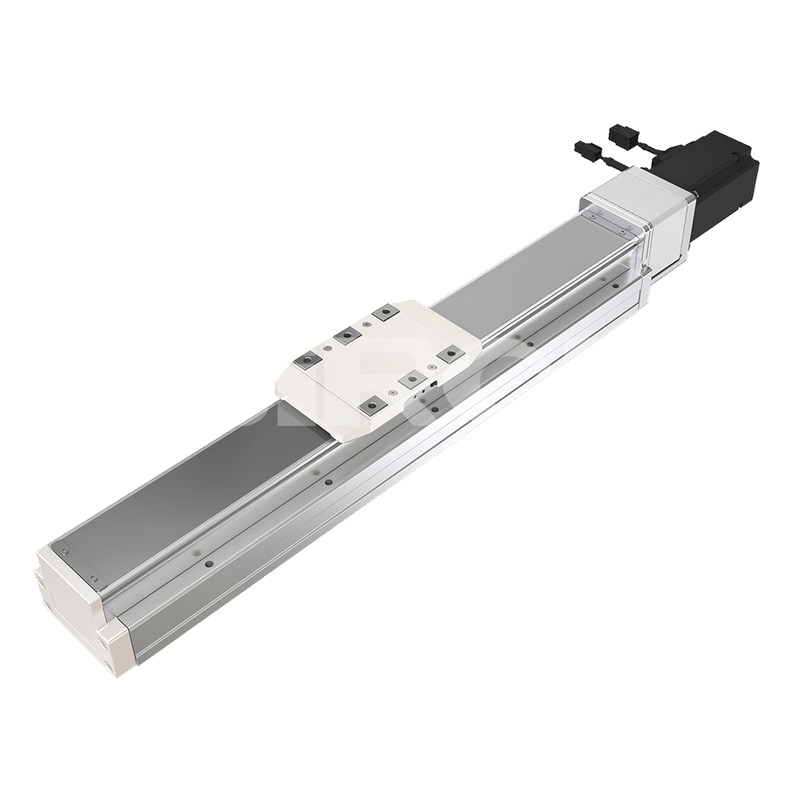

SiRON M303 Embedded Ball Screw Module

Name: SiRON M303 Embedded Ball Screw Module
Brand: SiRON
Rating: 5.0 (29 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M303
Brand:
SiRON
Code:
9001909090

1050mm Maximum stroke 1000mm/s Maximum speed Φ16mm Ball bearing screw

Product Description

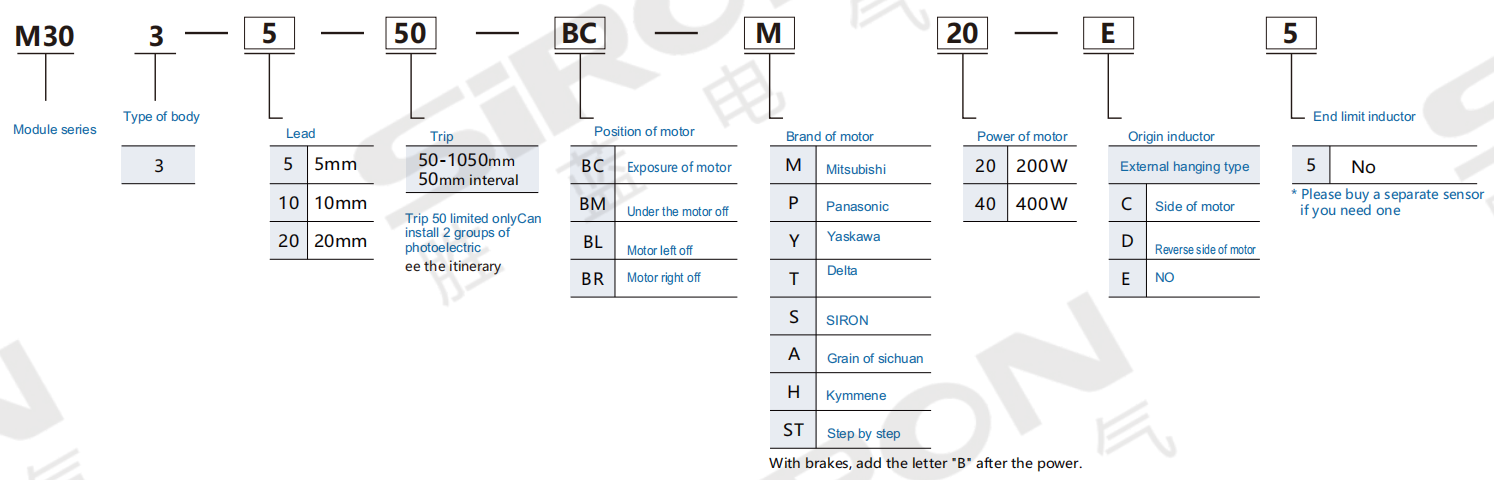

About selection

Selection example: M303-5-50-BC-M20B-E5 is M303 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 200W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staff.

Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Speciicatins	Motor power		200W/400W
	Repeatability(mm)		±0.01
	Ball screw lead(mm)		5	10	20
	Maximum speed(mm/s)		250	500	1000
	Maximum payload(kg)	Horizontal	50	30	18
		Vertical	15	8	3
	Rated thrust(n)		683/1388	341/694	174/347
	Stroke pitch(mm)		5 0 - 1 0 5 0 m m / 5 0 interval
Sarts	AC Servo motoroutput(w)		200/400
	Can beequippedwith stepping motor		57/60
	Ball screw(mm)		C7 φ16
	Coupling(mm)		10×11(14)/10×14
	Home sensor	Outside	K017-A6

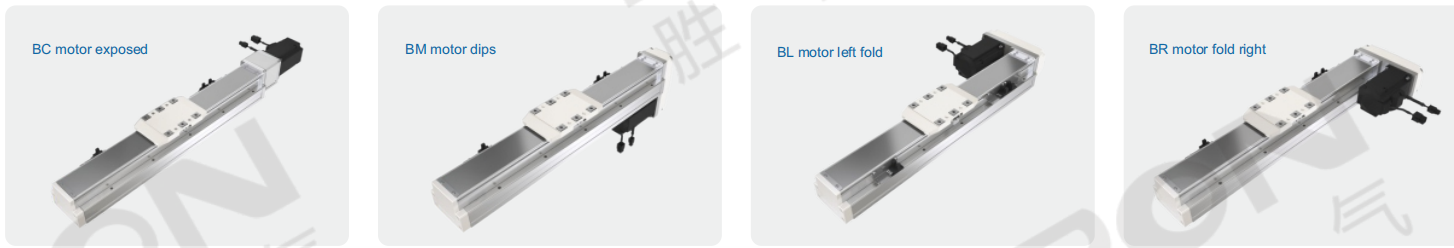

Installation method

企业微信截图_1774075248924

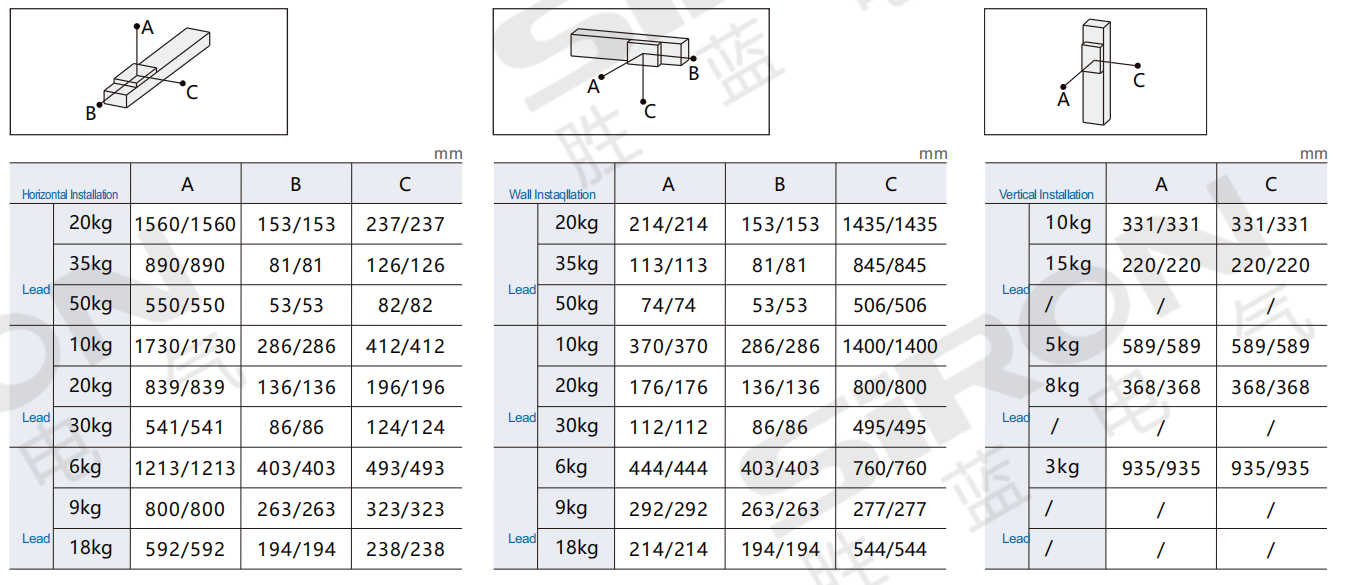

Allowable overhang

企业微信截图_17740766192077

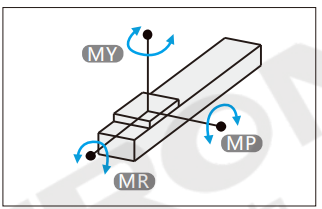

Static loading moment

企业微信截图_17740753898391

The data indicated in the torque table represents the center of gravity

Under normal usage conditions that comply with catalog violations, the guaranteed lifespan is 10,000 kilometers

The standard specifications cannot be followed when using the inverted hoist. If you have any needs, please consult our sales staff

MY	103
MP	103
MR	144

Suitable motor brand

Brand	The motor mark	Whether the brakes	Motor capacity	voltage	Motor model	voltage
Mitsubishi	M	No brakes(horizontal style)	200/400	220	HG-KR23/HG-KR43	MR-J4-20A MR-J4-40A
Mitsubishi	M	With brake (vertical style)	200/400	220	HG-KR23B/HG-KR43B	MR-J4-20A MR-J4-40A
Panasonic	P	No brakes(horizontal style)	200/400	220	MSMD022G1U/MSMD042G1U	MADHT1507 MADHT2510
Panasonic	P	With brake (vertical style)	200/400	220	MSMD022G1V/MSMD042G1V	MADHT1507 MADHT2510
Delta	T	No brakes(horizontal style)	200/400	220	ECMA-C20602ES/ECMA-C20604ES	ASD-B20221-B ASD-B20421-B
Delta	T	With brake(vertical style)	200/400	220	ECMA-C20602FS/ECMA-C20604FS	ASD-B20221-B ASD-B20421-B

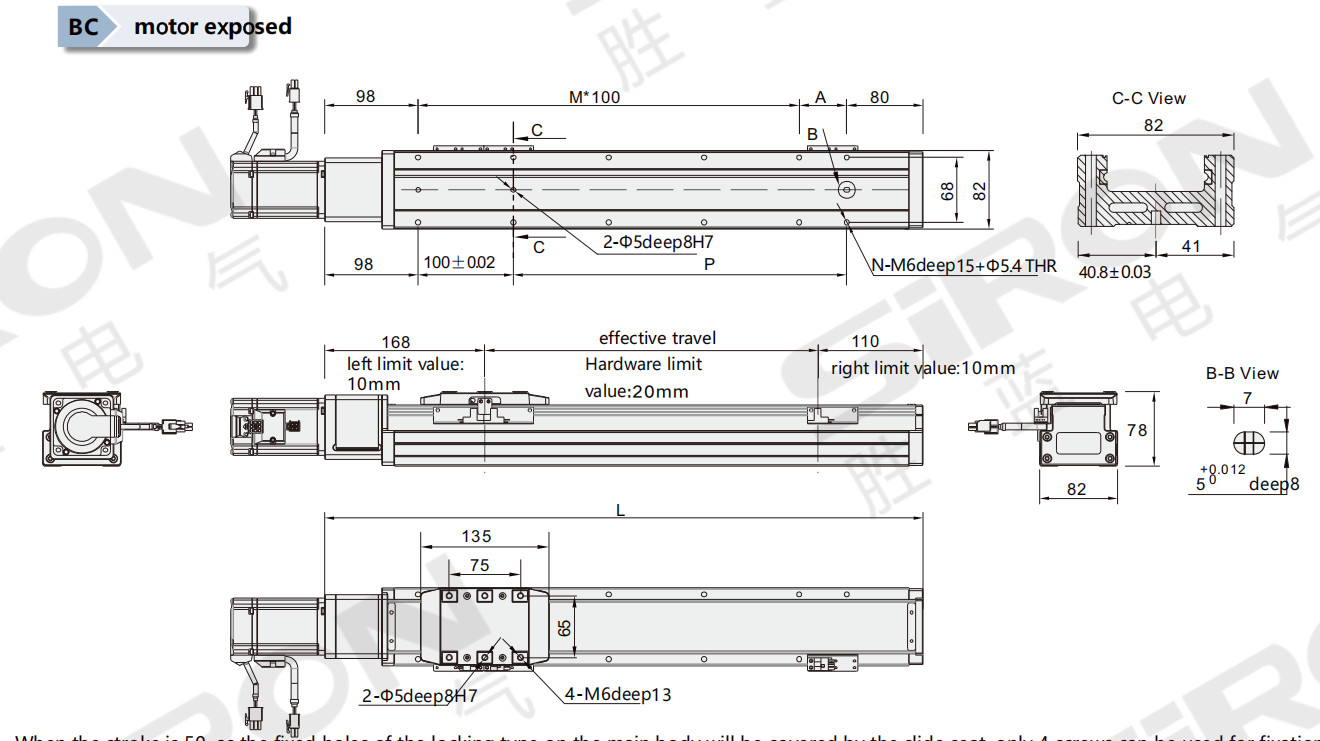

General dimension drawing

企业微信截图_17740799293328

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	328	378	428	478	528	578	628	678	728	778	828	878	928	978	1028	1078	1128	1178	1228	1278	1328
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	3.95	4.3	4.65	5	5.35	5.7	6.05	6.4	6.75	7.1	7.45	7.8	8.15	8.5	8.85	9.2	9.55	9.9	10.25	10.6	10.95

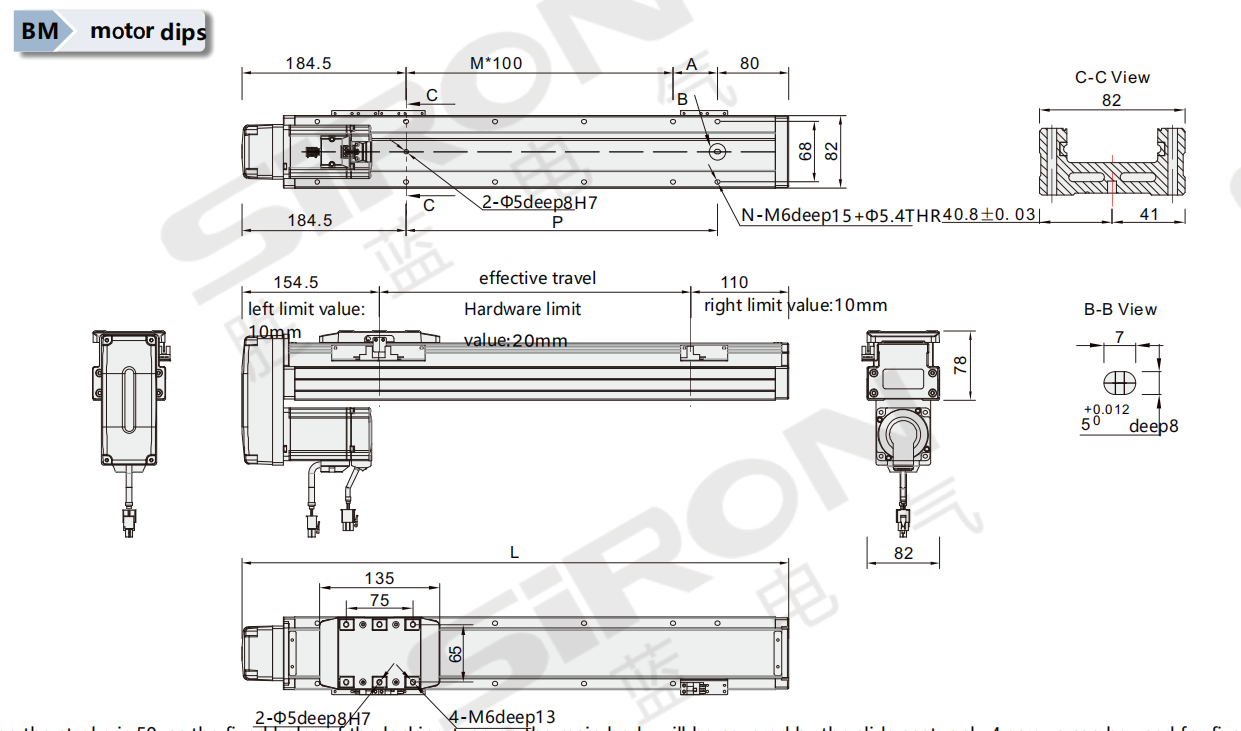

企业微信截图_17740800773733

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	0	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10
N	4	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	4.15	4.5	4.85	5.2	5.55	5.9	6.25	6.6	6.95	7.3	7.65	8	8.35	8.7	9.05	9.4	9.75	10.1	10.45	10.8	11.15

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff

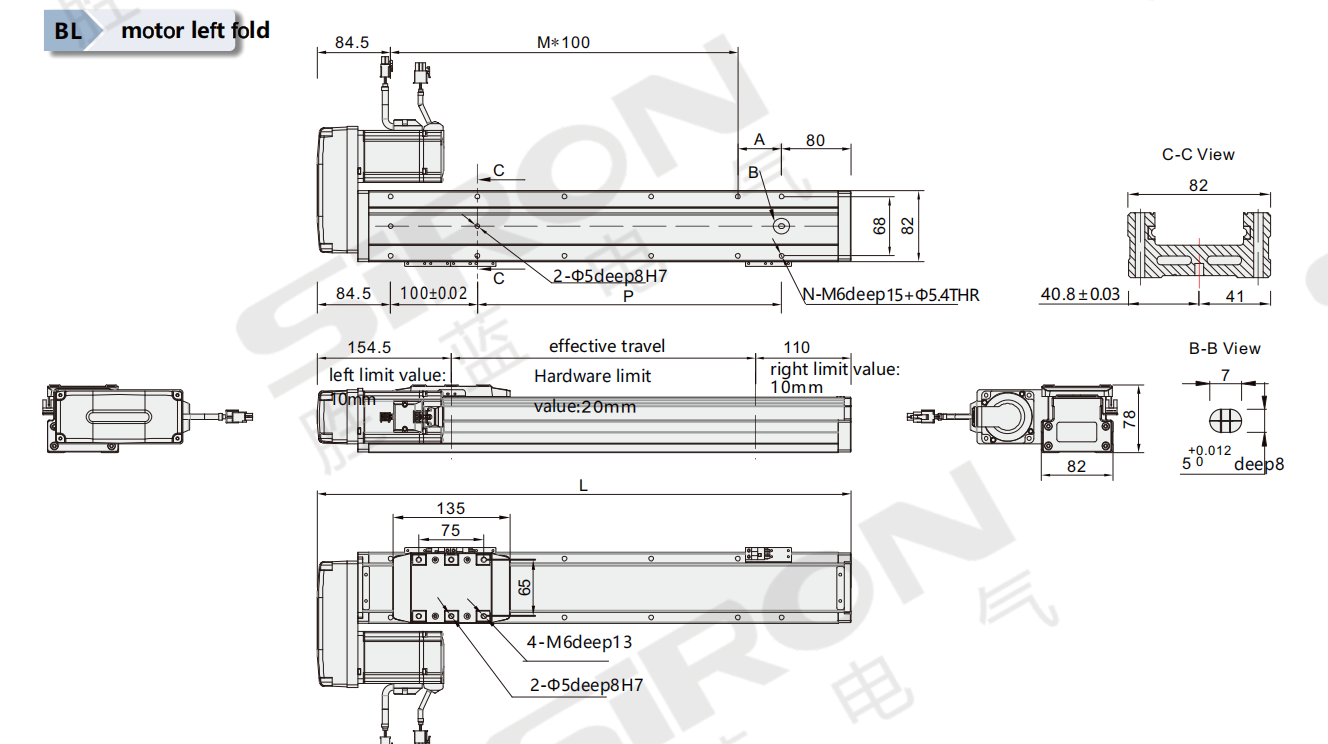

企业微信截图_17740802522604

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation . It is recommended that the customer use the bottom-locking type fixed holes to lock the main body

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	4.15	4.5	4.85	5.2	5.55	5.9	6.25	6.6	6.95	7.3	7.65	8	8.35	8.7	9.05	9.4	9.75	10.1	10.45	10.8	11.15

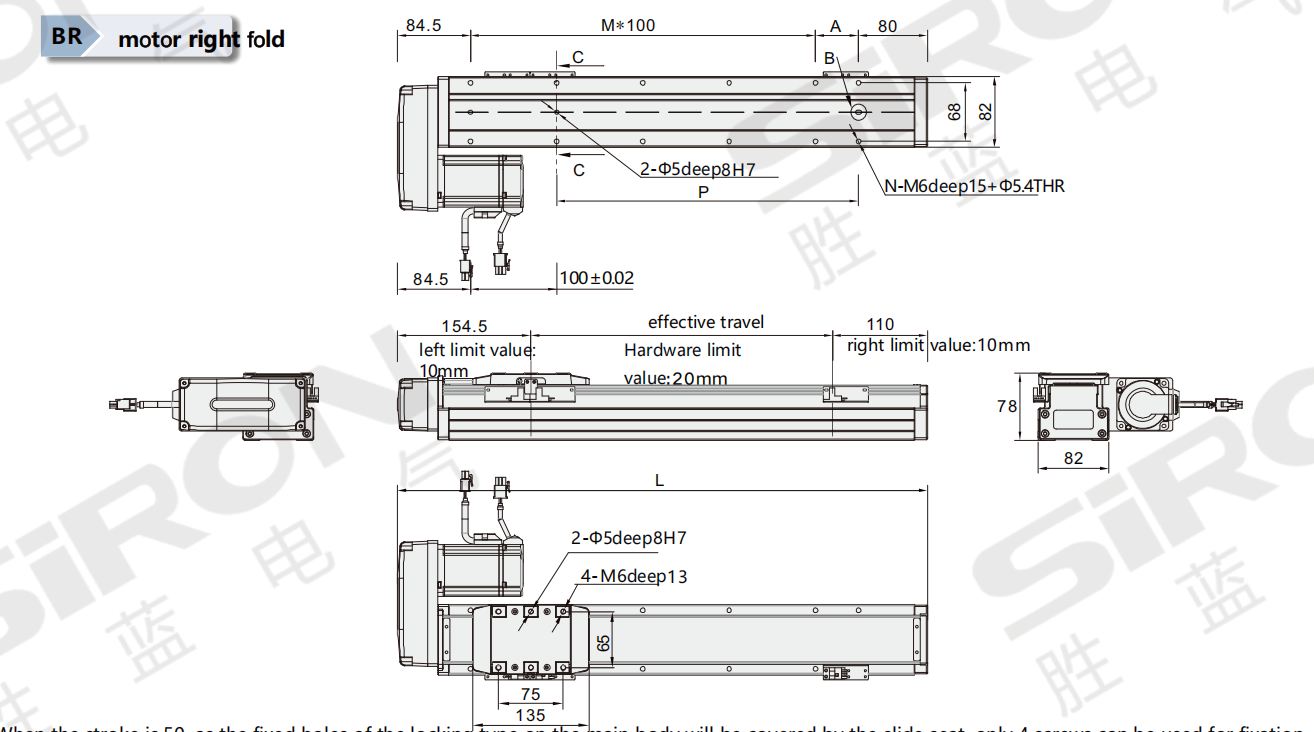

企业微信截图_17740804162240

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes to lock the main body.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	264.5	1314.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	4.15	4.5	4.85	5.2	5.55	5.9	6.25	6.6	6.95	7.3	7.65	8	8.35	8.7	9.05	9.4	9.75	10.1	10.45	10.8	11.15

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff.
