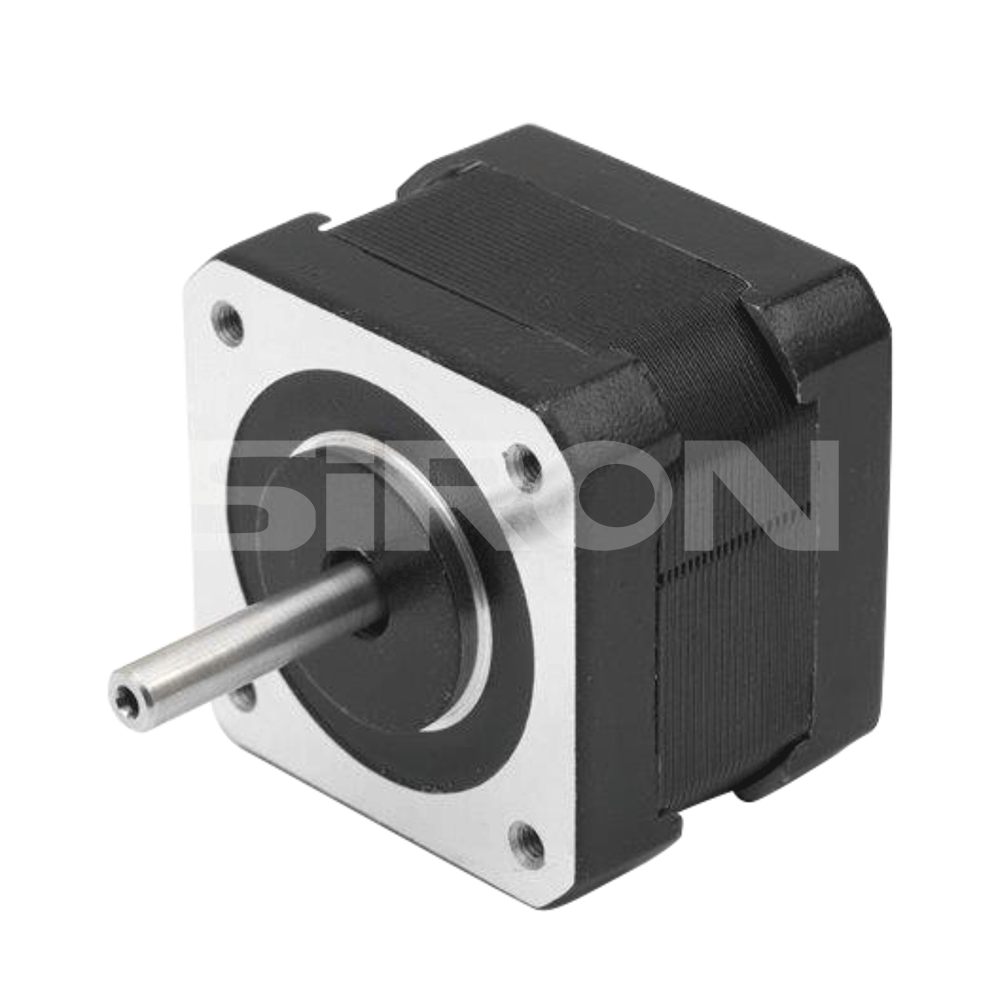

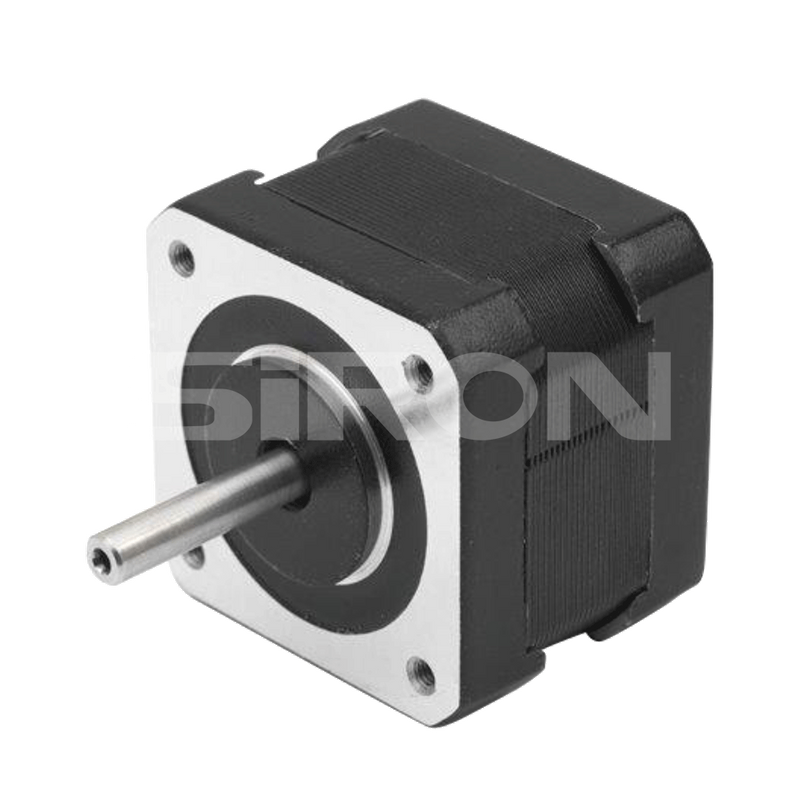

SiRON M270-42 Series Two-phase Stepper Motor

Name: SiRON M270-42 Series Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (47 reviews)

Features

* 0.9° step angle;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M270-42
Brand:
SiRON
Code:
8501109990

0.9° step angle 42mm frame size 0.158N.m holding torque

Product Description

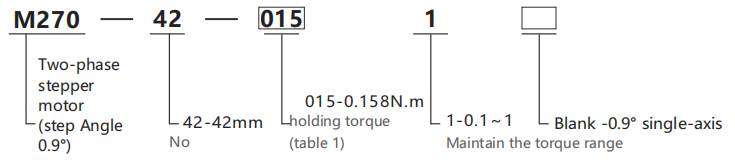

About selection

Selection example: M270-42-0151 represents the M270 series two-phase stepping motor, with a frame size of 42mm, a holding torque of 0.158N.m, and a 0.9° single-axis.

Table 1

Code	015	022	025	033	031	040
Holding torque	0.158N.m	0.22N.m	0.259N.m	0.33N.m	0.317N.m	0.4N.m

Specification

Model	M270-42 Series
Radial Play	0.02mm@450g	Step Angle	0.9°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

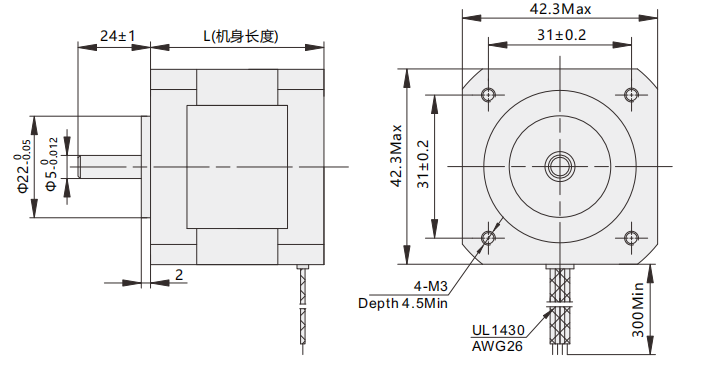

Dimensions

企业微信截图_17684616071565

Electrical properties

Model	M270-42-0151	M270-42-0221	M270-42-0251	M270-42-0331	M270-42-0311	M270-42-0401
Adapter drive	M280-430	M280-430	M280-430	M280-430	M280-430	M280-430
Current per phase	0.95	1.33	1.2	1.68	1.2	1.68
Holding torque	0.158	0.22	0.259	0.33	0.317	0.4
Positioning torque	0.02	0.02	0.022	0.022	0.025	0.025
Each resistance	4.2	2.1	3.5	1.8	3.3	1.8
Each inductance	4	5.1	4.1	4.1	4.9	5.5

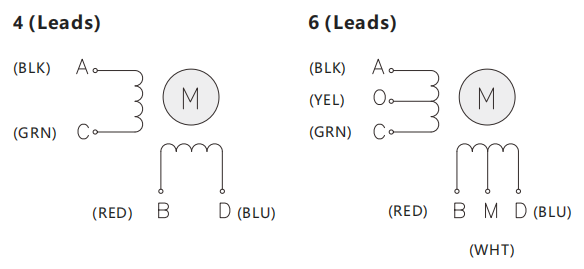

Number oflead wires	6	4	6	4	6	4
Moment of inertia	35	35	54	54	68	68
weight	0.22	0.22	0.28	0.28	0.35	0.35
Body length	33.5	33.5	39.5	39.5	47.5	47.5
