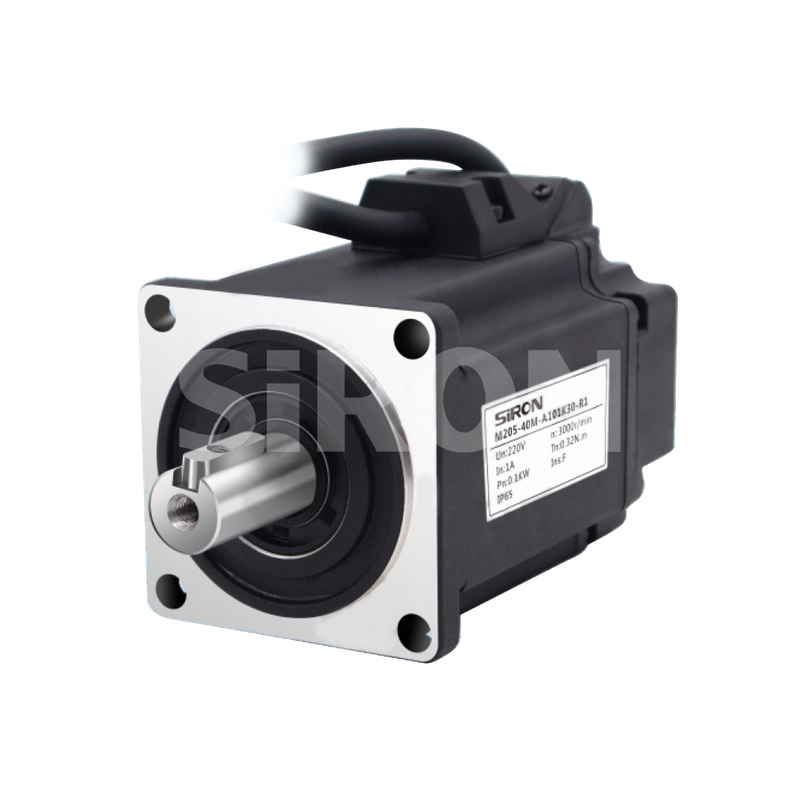

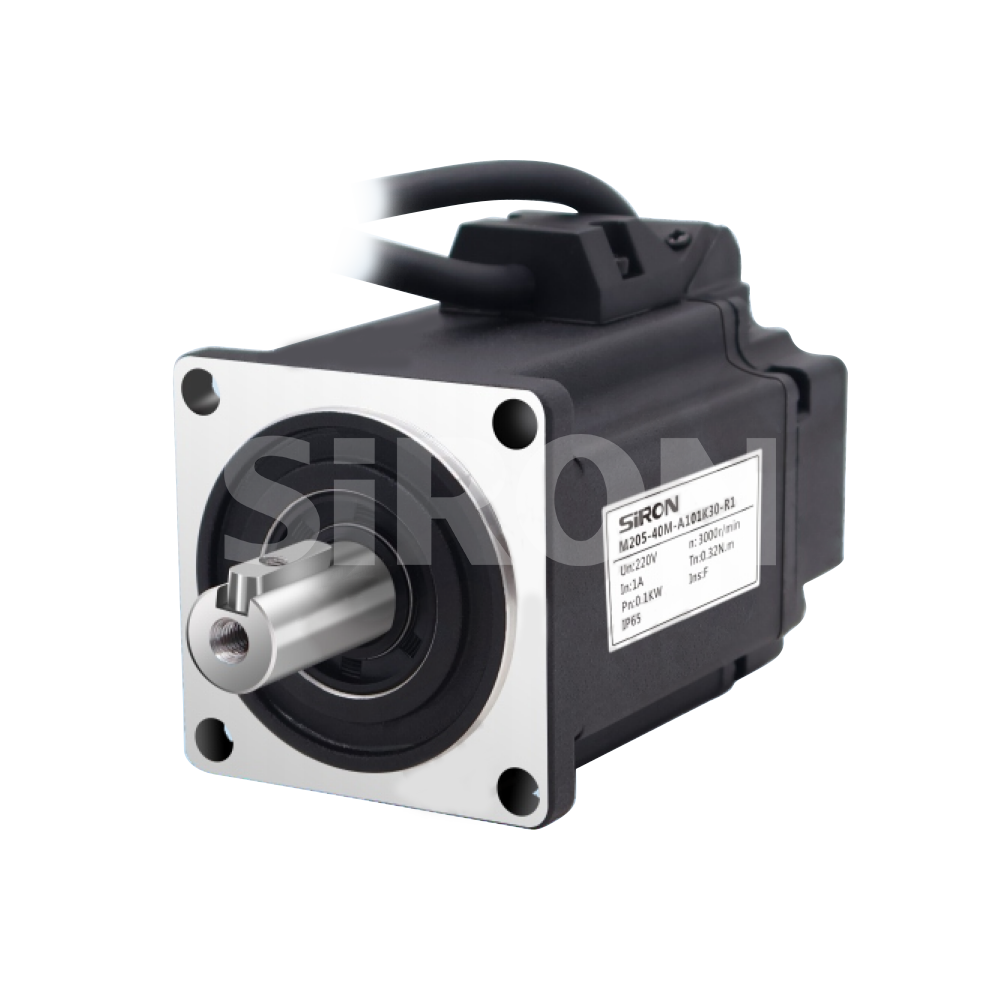

SiRON M205 AC 220V 380V 40 60 80 130 180 Flange Servo Motor

Name: SiRON M205 AC 220V 380V 40 60 80 130 180 Flange Servo Motor
Brand: SiRON
Rating: 5.0 (5 reviews)

Feature

* Multiple encoder types to choose from
* Adopt new technology, compact structure, short body and small volume;
* Used in joint robots, reclaiming robots, high-end electronic equipment and CNC engraving and milling

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M205
Brand:
SiRON
Code:
8503009090

AC220V Servo Motor 40 Flange Servo Motor 60 Flange Servo Motor 80 Flange Servo Motor 130 Flange Servo Motor 180 Flange Servo Motor AC380V Servo Motor

Product Description

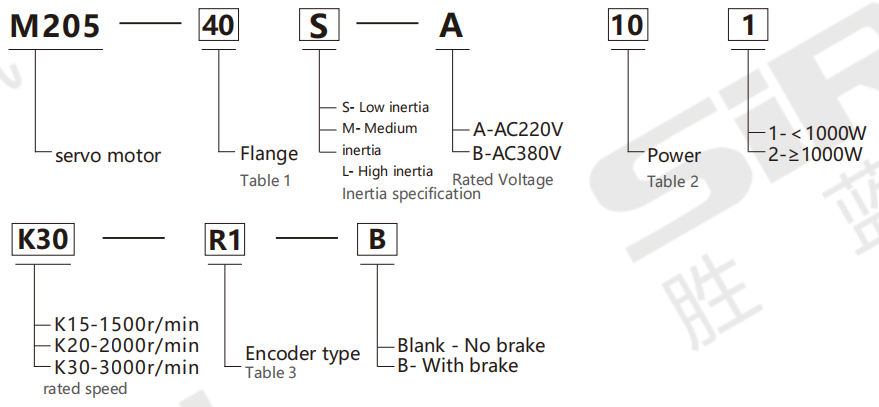

About selection

企业微信截图_17582787793587

selection exemple: M205-40S-A101K30-R1-B represents the M205 series servo motor, with a flange size of 40mm, an inertia specification of low inertia, a rated voltage of AC220V, a power of 100W, a rated speed of 3000r/min, an incremental 17-bit type, and a brake.

Table 1: Flanges

Code	40	60	80	130	180
Flange size	40mm	60mm	80mm	130mm	180mm

Table 2:Power

100w～850w

Code	10		20		40		75		85
Power	100W		200W		400W		750W		850W

1.0kw~1.5kw

Code	10	13	15	18	20	29	30	44	55	75
Power	1.0kW	1.3kW	1.5kW	1.8kW	2.0kW	2.9kW	3.0kW	4.4kW	5.5kW	7.5kW

Table 3:Encoder Types

Code	R1	D11*	D10
Encoder type	17-bit absolute value	17-bit absolute value	23-bit absolute value

Specification

Ⅰ、40 flanges (220V )

Flange series	4 0 Flange series
Motor model	M205-40M-A101K30-R1	M205-40M-A101K30-D10
Rated power	0.10
Rated/Maximum torque	0.32/0.96
Rated/Maximum speed	3000/6000
Rated/Maximum current	1/3.1
Torque constant	0.32
Line Back EMF Constant	19
Number of pole pairs	5
Insulation class	ClassF
Rotor inertia(without brake)	0.053×10⁴ without brake: 0.05×10⁴
Lwithout /with brake	79.5/112.5
Inertia type	Medium Inertia

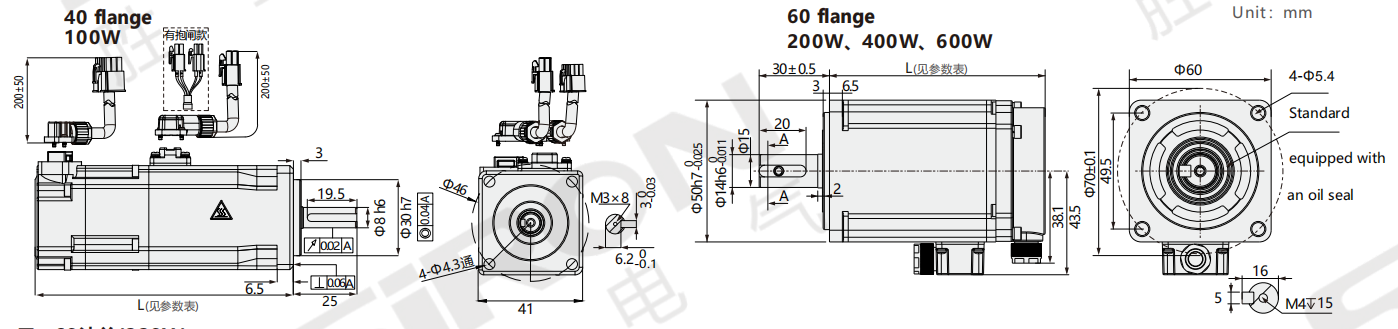

Dimension

Ⅱ、60 Flange(220V )

Flange series	60 flanges series
Motor model	M202-60-A201K30-D12	M202-60-A201K30-D11	M202-60-A401K30-D12	M202-60-A401K30-D11	M202-60-A601K30-D12	M202-60-A601K30-D11
Rated power	0.20		0.40		0.60
Rated current	1.7		2.5		4.1
Rated speed	3000		3000		3000
Rated torque/Peak torque	0.64/1.91		1.27/3.81		1.9/5.7
Back electromotive force	33		31		32.5
Torque coefficient	0.38		0.51		0.46
Rotor inertia(without brake)	0.38×10⁻⁴		0.52×10⁻ ⁴		0.75×10⁻⁴
Wire Resistance	4.5		3.24		2.55
Inductance between leads	4.3		5.8		3.9
Electrical constant	4.74		1.79		1.53
Polar logarithm	5
Motor insulation level/Protection level	Class F/IP65
Encoder motor winding	PE U v w
Encoder wiring	E- E+ SD- 0V SD+ +5V PE 2 3 4 5 6 7 1
Operating environment	Ambient temperature:-20℃to+40℃ Ambient humidity:Relative humidity<90%(under non-frosting conditions)
Lwithout/with brake	76/106		92/122		110/140

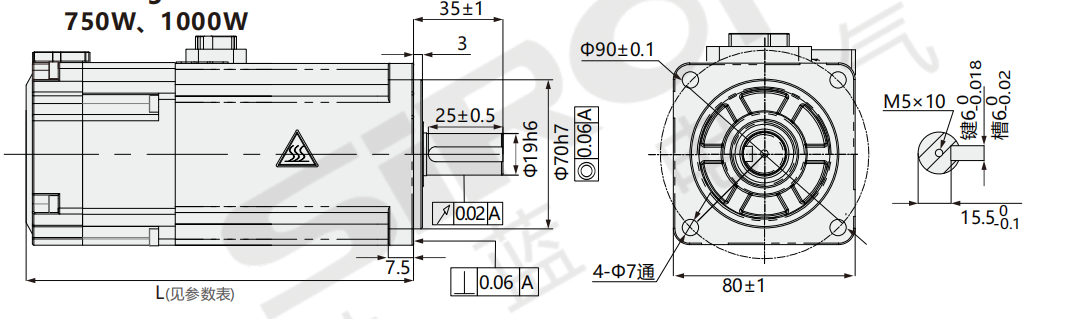

Ⅲ、80 Flange(220V )

Flange series	80 flanges series
Motor model	M202-80-A751K30-D12	M202-80-A751K30-D11	M202-80-A102K25-D12 M202-80-A102K25-D11	M202-80-A102K30-D12	M202-80-A102K30-D11
Rated power	0.75		1.0	1.0
Rated current	4.4/13.8		4.6/13.8	4.8/14.4
Rated speed	3000		2500	3000
Rated torque/Peak torque	2.39/7.17		3.82/11.64	3.2/9.6
Back electromotive force	34		54	42
Torque coefficient	0.54		0.83	0.7
Rotor inertia(without brake)	1.48×10⁻⁴		2.27×10⁻ ⁴	2.4×10⁻ ⁴
Wire Resistance	1.08		2.4	1.4
Inductance between leads	4.2		9.5	7.2
Polar logarithm	3.89		3.7	/
Motor insulation level/Protection level	5
Encoder motor winding	Class F/IP65
Encoder wiring	PE U V W
Encoder wiring	E-E+SD-0V SD++5V PE 234 5 6 7 1
Operating environment	Ambient temperature:-20℃to+40℃ Ambient humidity:Relative humidity<90%(under non-frosting conditions)
Lwithout /with brake	98.5/134		113/147	120/154
