SiRON K692~K693 Series Long Object Distance Telecentric Lens

Name: SiRON K692~K693 Series Long Object Distance Telecentric Lens
Brand: SiRON
Rating: 5.0 (69 reviews)

Features:

* Low distortion telecentric optical path design ;
* Maximum support 1inch CCD；
* Large depth of field, high definition;
* Used for high-precision detection and measurement.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K692~K693 Series
Brand:
SiRON
Code:
9031809090

Lens Long Object Distance Telecentric Lens Telecentric optical path design Lofty Vision and Open-mindedness high definition high-precision

Product Description

Selection reference

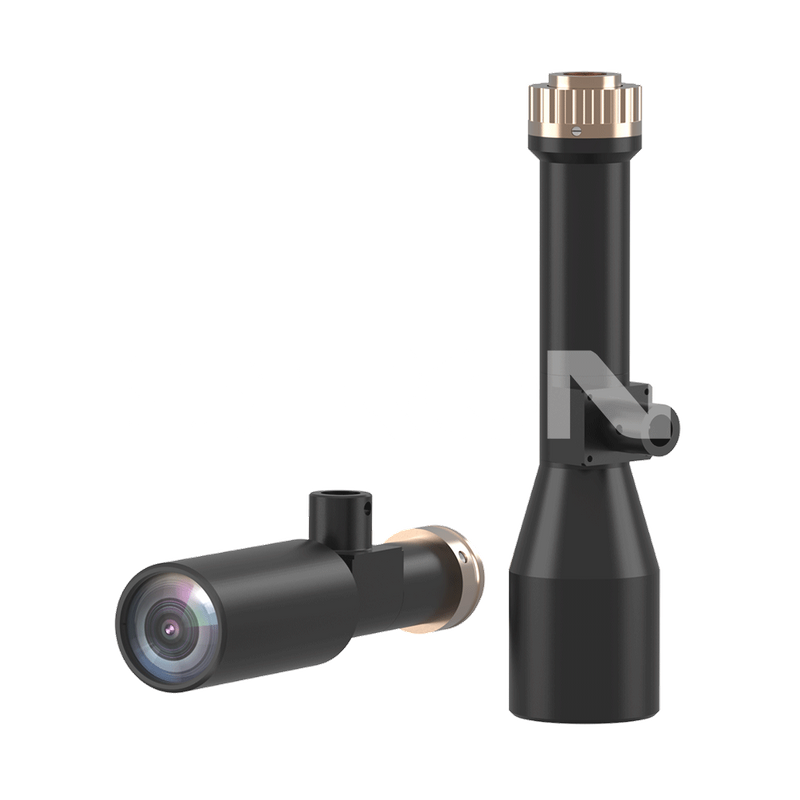

	K692 series
	The C interface of the ultra-long object distance telecentric lens supports a maximum 1-inch CC

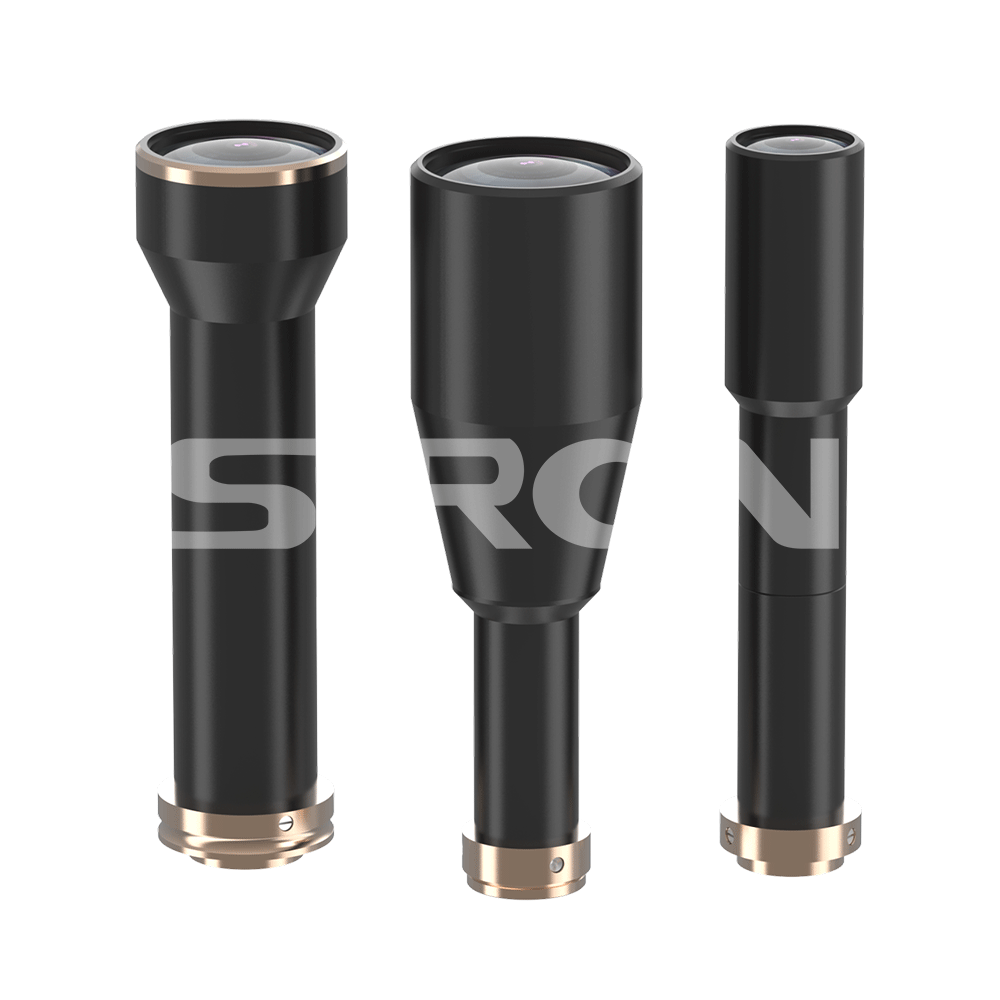

	K693 series
	The C interface of the ultra-long object distance telecentric lens supports a maximum 1-inch CCD

Specification parameters

Model	K692-200-0.3T50
Object distance	200
Gain	0.3x
Depth of field	7.4
Camera interface	C interface
Telecentric degree	＜0.1
Optical distortion	＜0.1

Model	K693-160-0.2F50
Object distance	160
Gain	0.2x
Depth of field	6.8
Camera interface	C interface
Telecentric degree	＜0.1
Optical distortion	＜0.1
