K670~K674 Series
SiRON
9031809090
Selection reference

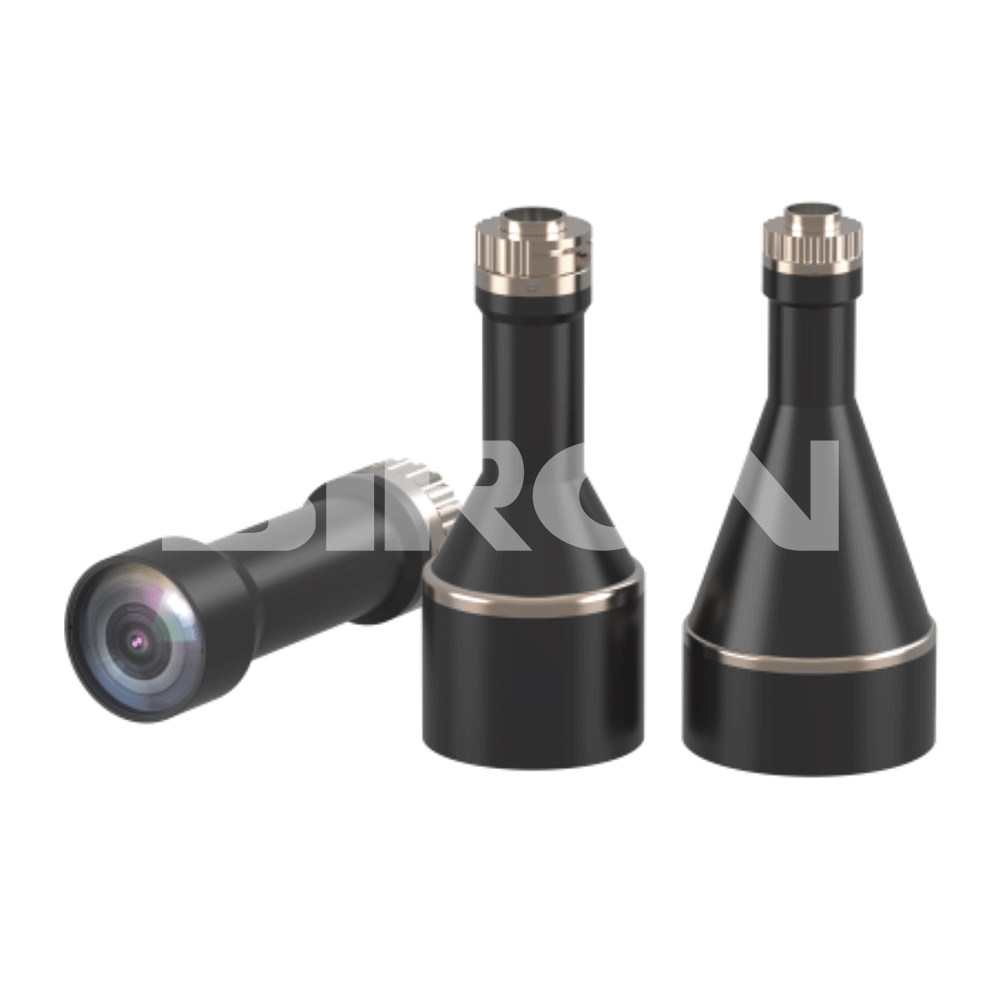

  | K670 series |
| Non-coaxial - 1.1-inch telecentric lens C interface supports a maximum of 1 '1-inch CCD | |

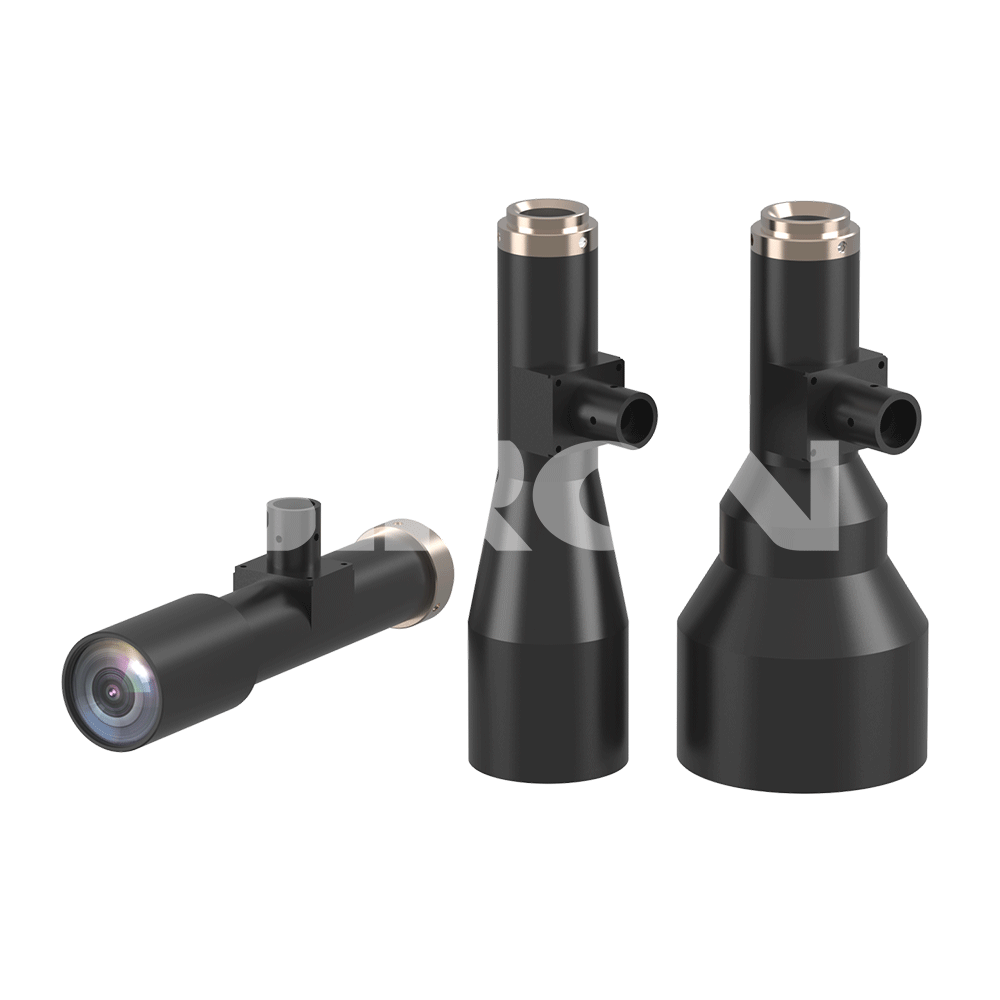

 | K671 series |
The coaxial-1.1-inch telecentric lens C interface supports a maximum of 1 '1-inch CCD | |

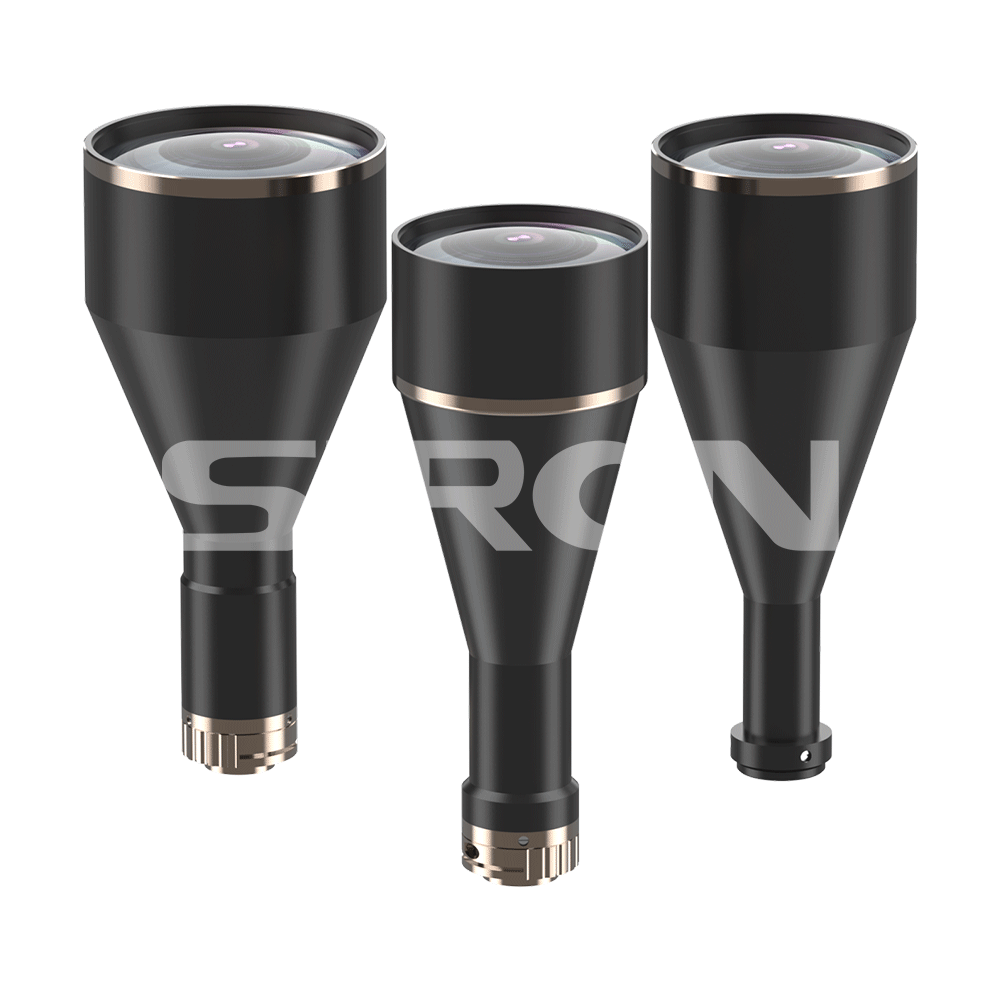

 | K672 series |
Non-coaxial - 1.1-inch ultra-long-range telecentric lens with C interface supports up to 1 '1-inch CCD | |

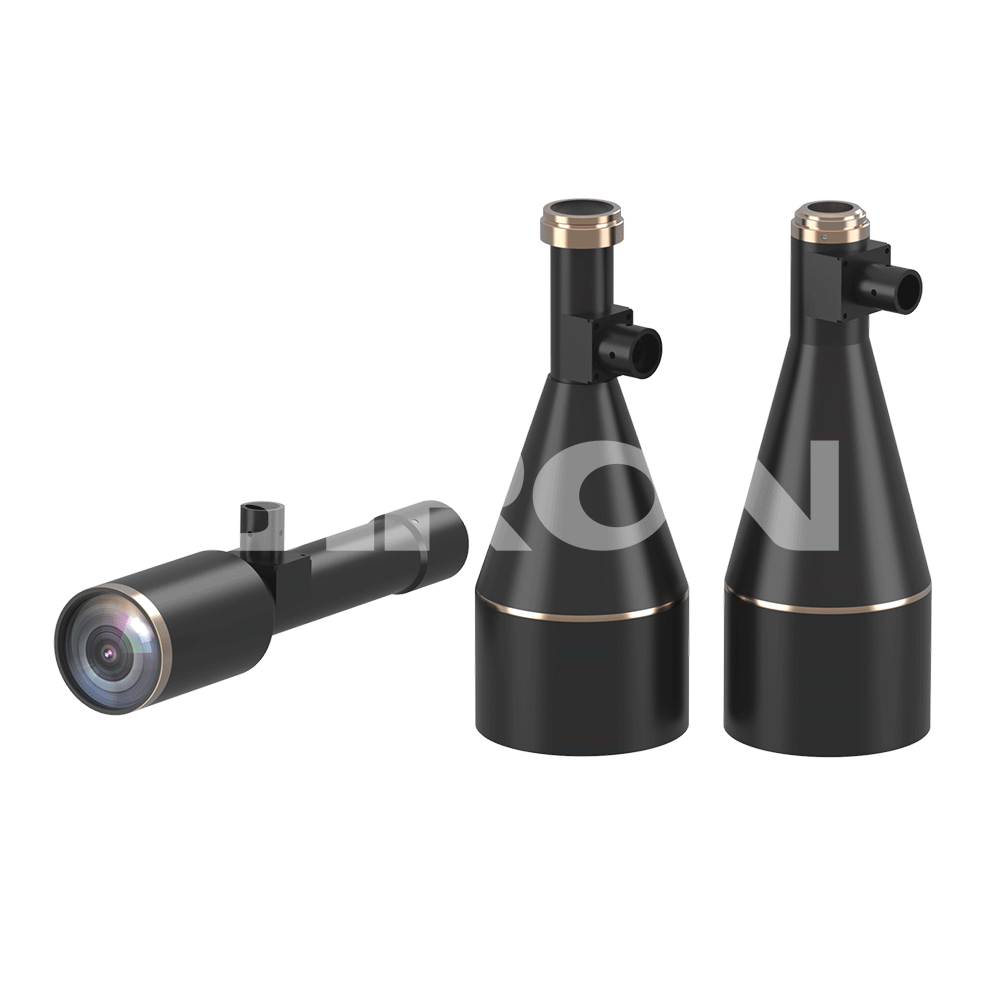

 | K673 series |
The coaxial-1.1-inch ultra-long-range telecentric lens C interface supports a maximum of 1 '1-inch CCD | |

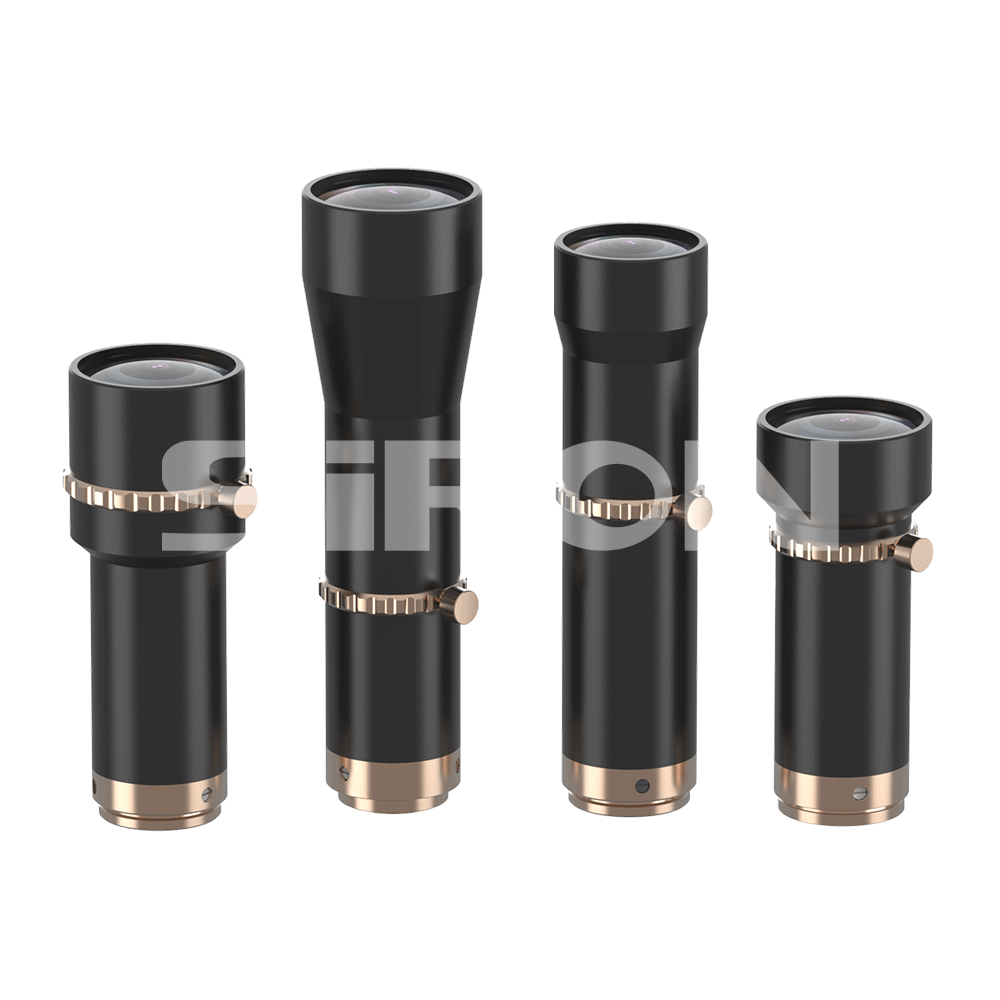

 | K674 series |
The C interface of the aperture telecentric lens supports a maximum CCD of 1 '1 inch |
Specification parameters
| Model | K670-28-1.0X10 |
| Object distance | 28 |
| Gain | 1.0x |
| Depth of field | 1.6 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K671-65-0.28T23 |
| Object distance | 65 |
| Gain | 0.28x |
| Depth of field | 2.8 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K672-200-0.14X23 |
| Object distance | 200 |
| Gain | 0.14x |
| Depth of field | 5 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K673-200-0.22T23 |
| Object distance | 200 |
| Gain | 0.22x |
| Depth of field | 13.8 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K674-90-0.4X23G |
| Object distance | 90 |
| Gain | 0.4x |
| Depth of field | C |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | adjustable |
| MTF＞0.3(LP/MM) | ＞140 |
