K650-656 Series
SiRON
9031809090
Selection reference
  | K650 series |
| 4 '3-inch dual telecentric lens F/M58 interface Supports a maximum CCD of 23mm | |

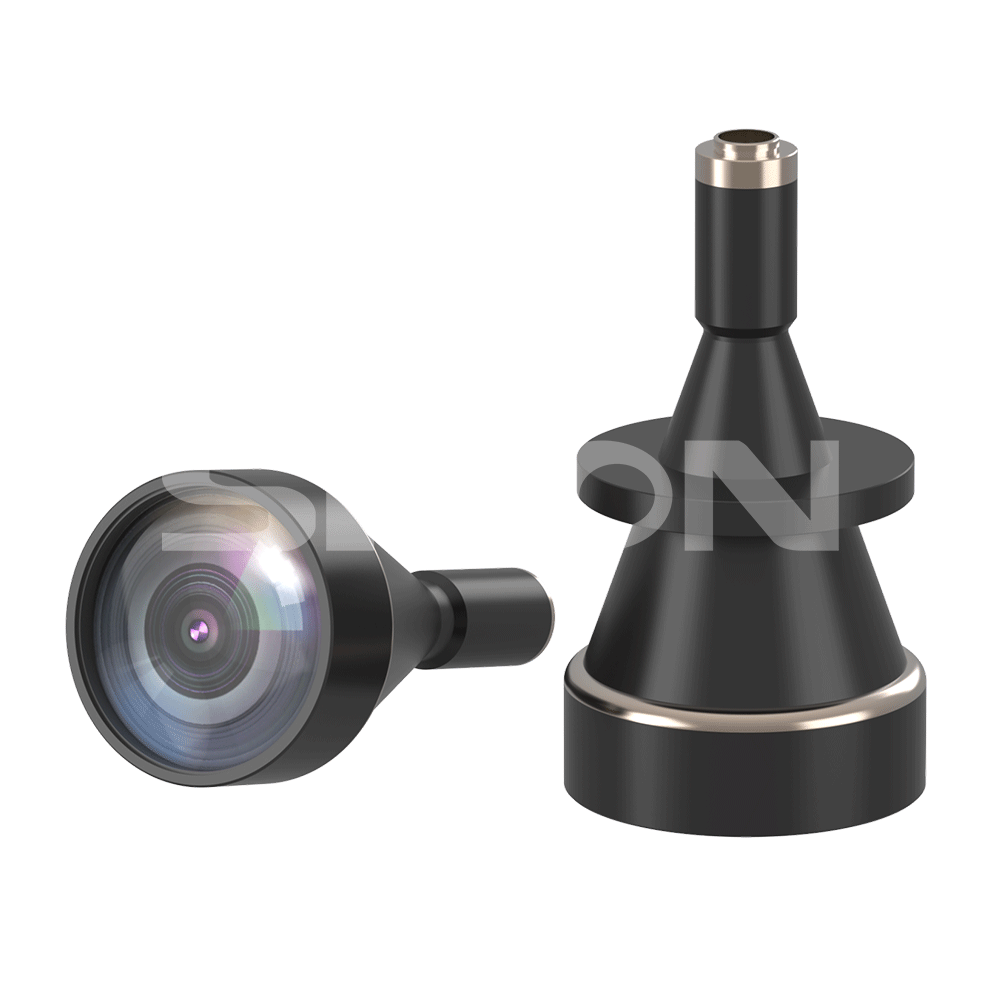

 | K651 series |
| 1.1-inch dual telecentric lens C interface Supports up to 19mm CCD | |

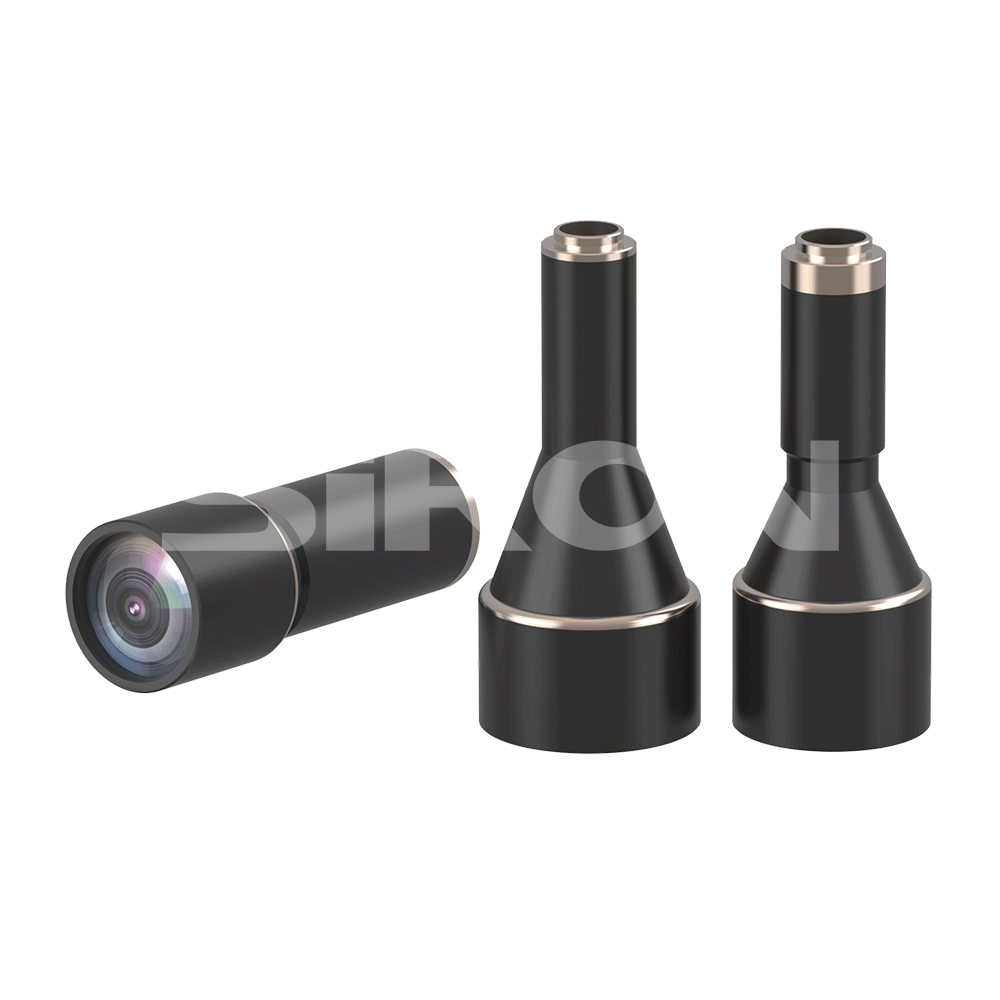

 | K652 series |
| 1-inch dual telecentric lens C interface Supports up to 16mm CCD | |

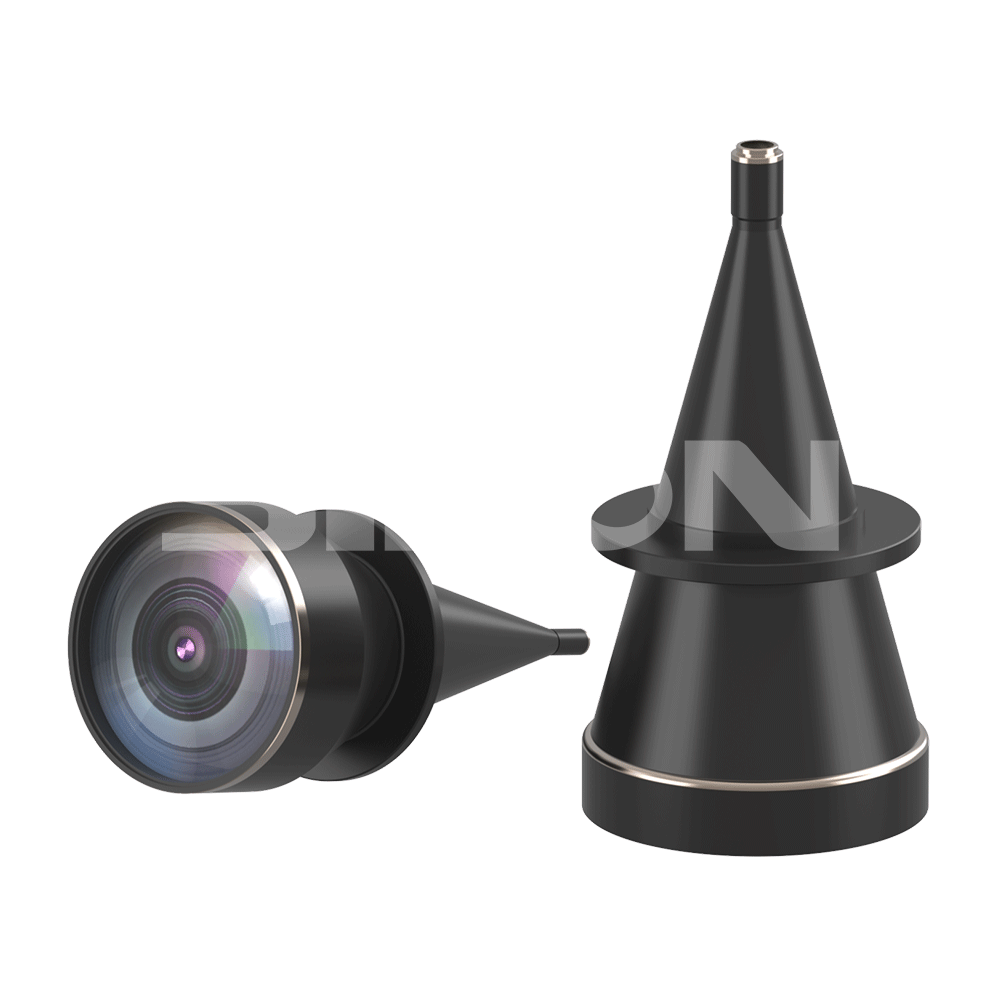

 | K653 series |
| 2/3-inch dual telecentric lens C interface Supports up to 11mm CCD | |

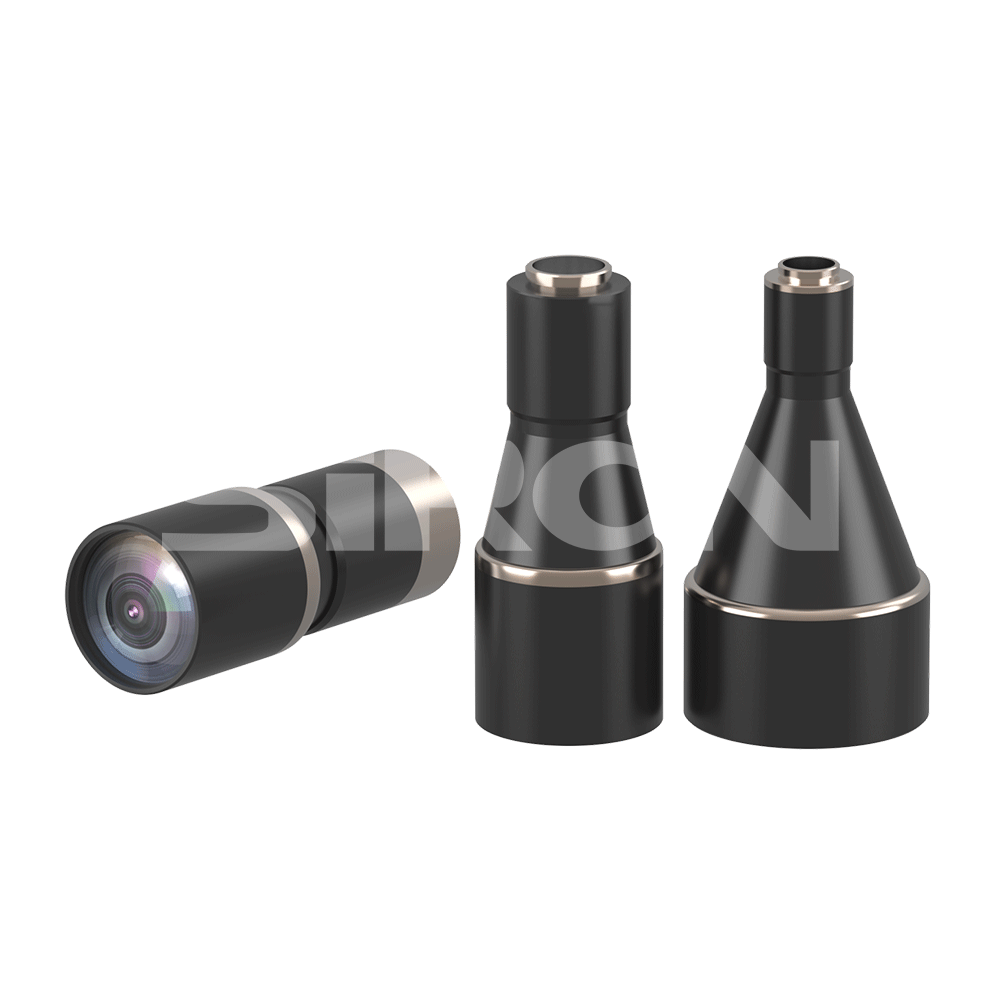

 | K654 series |
| 1/1.8-inch dual telecentric lens C interface Supports up to 9mm CCD | |

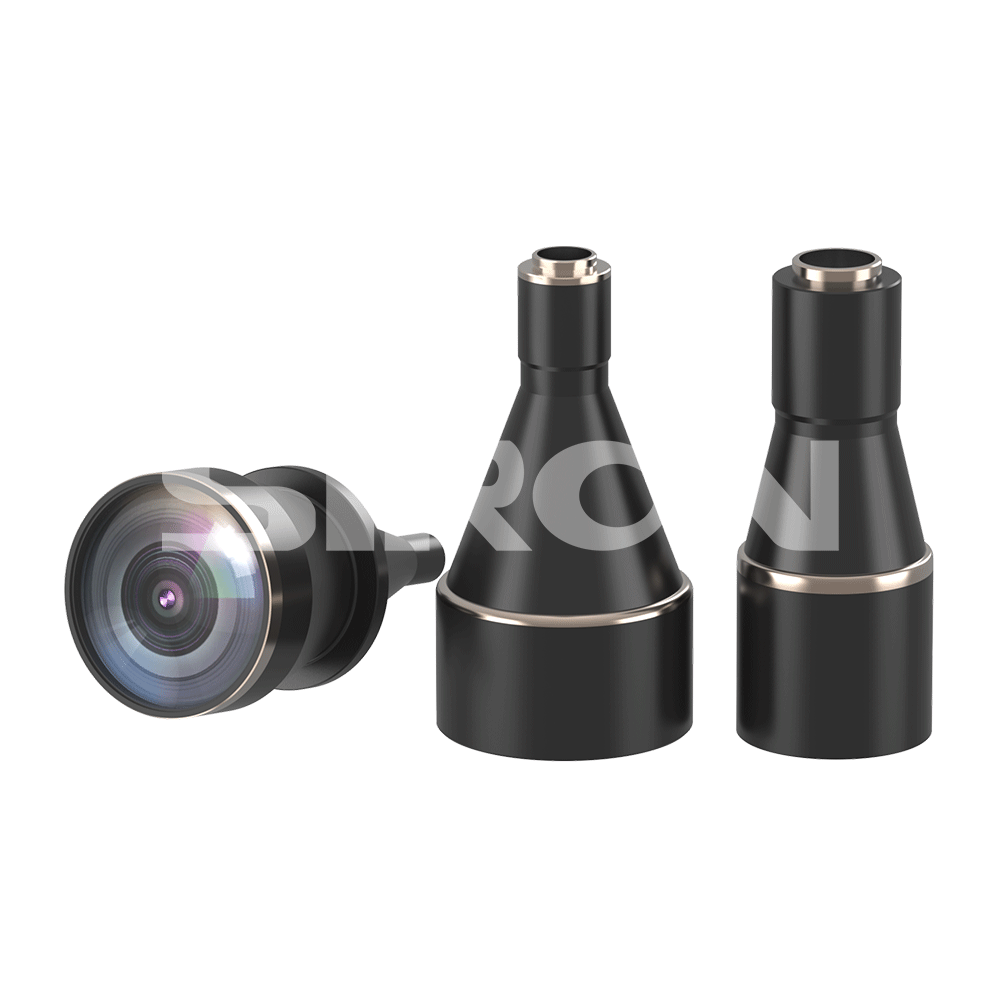

 | K655 series |
| 1/2-inch dual telecentric lens C interface Supports up to 8mm CCD | |
 | K656 series |
| 1/2-inch dual telecentric lens C interface Supports up to 8mm CCD |
Specification parameters
| Model | K650-40-1.1FF |
| Object distance | 40 |
| Gain | 1.1x |
| Depth of field | 1.5 |
| Camera interface | F/M58 |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K651-52-0.8F20 |
| Object distance | 52 |
| Gain | 0.8x |
| Depth of field | 1.7 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K652-62-0.71F10 |
| Object distance | 62 |
| Gain | 0.71x |
| Depth of field | 1.9 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞160 |
| Model | K653-45-0.48F23 |
| Object distance | 45 |
| Gain | 0.8x |
| Depth of field | 1.9 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F8 |
| MTF＞0.3(LP/MM) | ＞150 |
| Model | K654-60-0.41F18 |
| Object distance | 60 |
| Gain | 0.41x |
| Depth of field | 3 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F10 |
| MTF＞0.3(LP/MM) | ＞150 |
| Model | K655-65-0.34F6 |
| Object distance | 65 |
| Gain | 0.34x |
| Depth of field | 3.2 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F10 |
| MTF＞0.3(LP/MM) | ＞150 |
| Model | K656-60-0.32F25 |
| Object distance | 60 |
| Gain | 0.32x |
| Depth of field | 5 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F9 |
| MTF＞0.3(LP/MM) | ＞150 |
