SiRON K640-643 Series
SiRON
9031809090
Selection reference

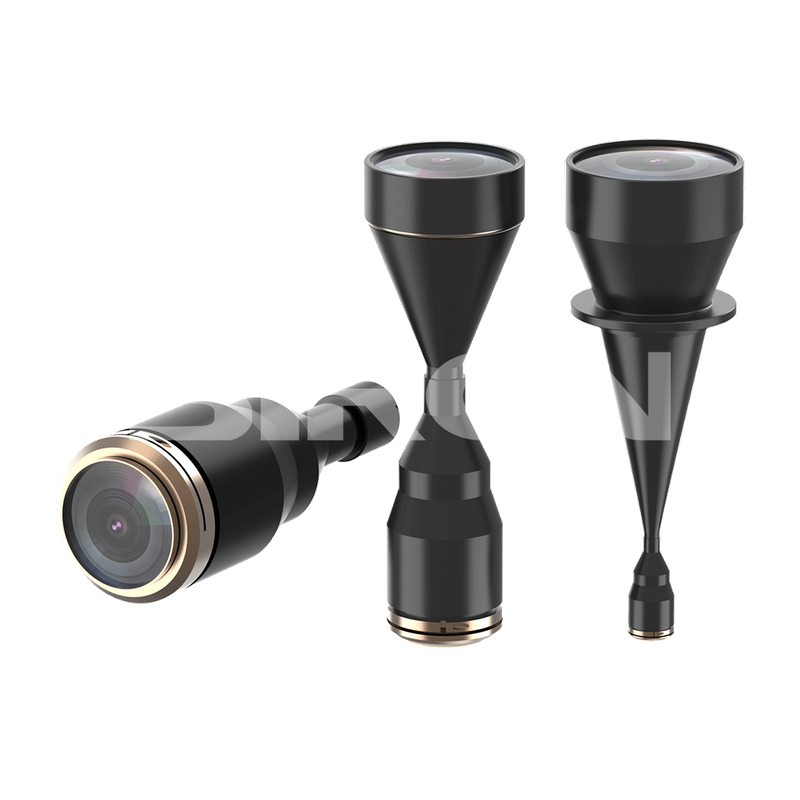

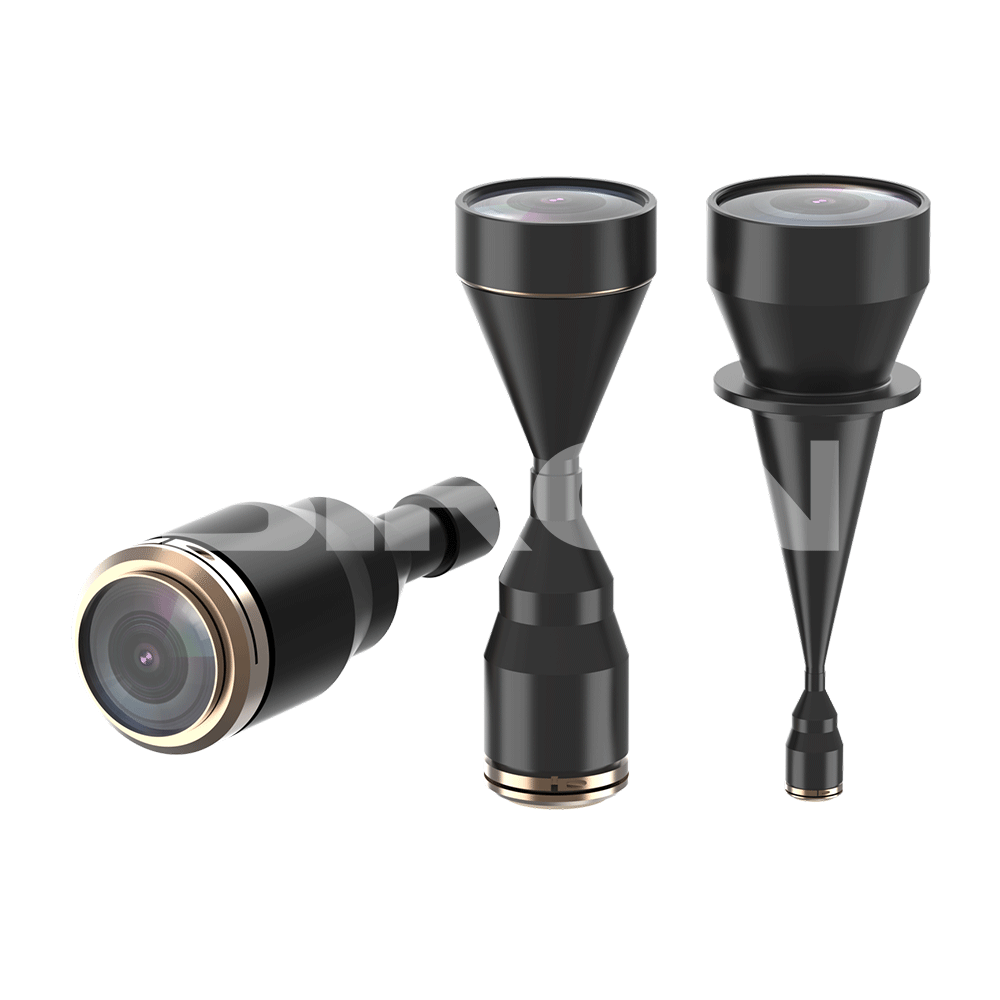

 | K640 series |
| The M72 interface of the 8K dual-side telecentric lens supports a maximum of 57.4mm CCD | |

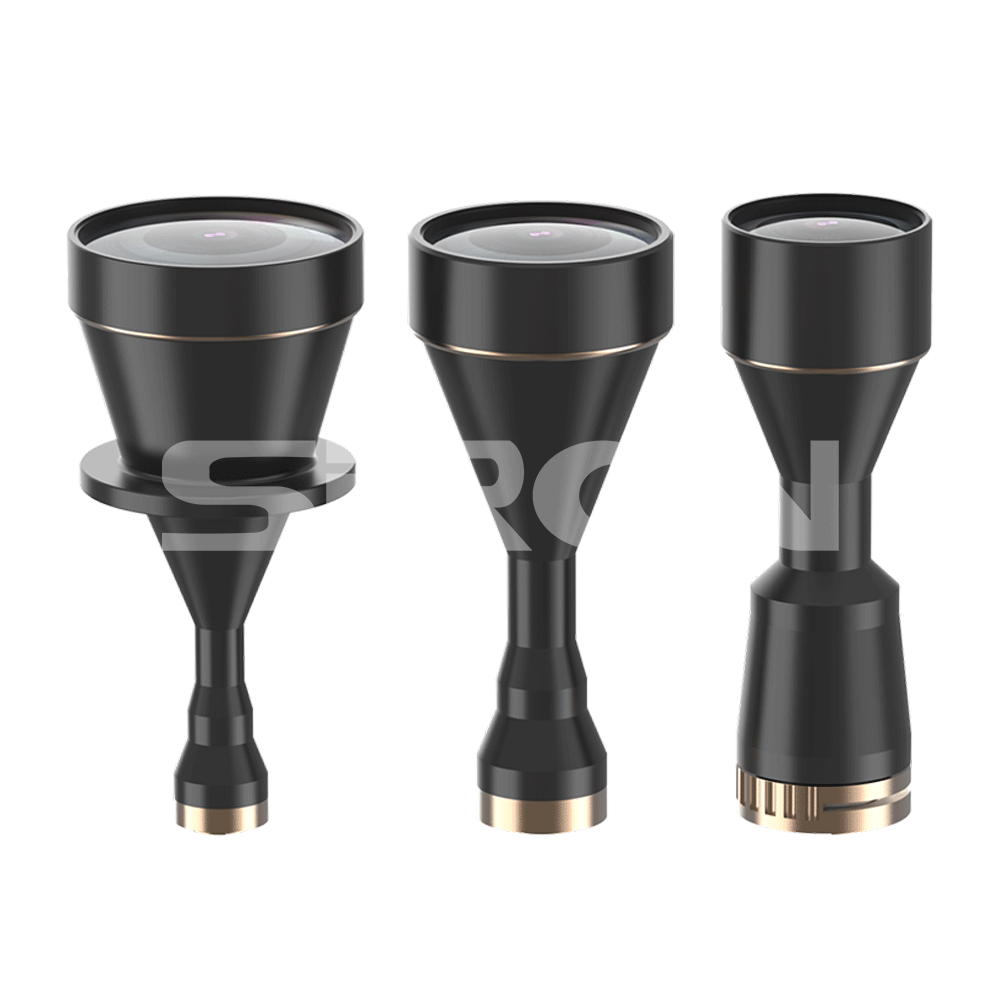

 | K641 series |
| The full-frame dual-side telecentric lens F/M58 interface supports a maximum 43mm CCD | |

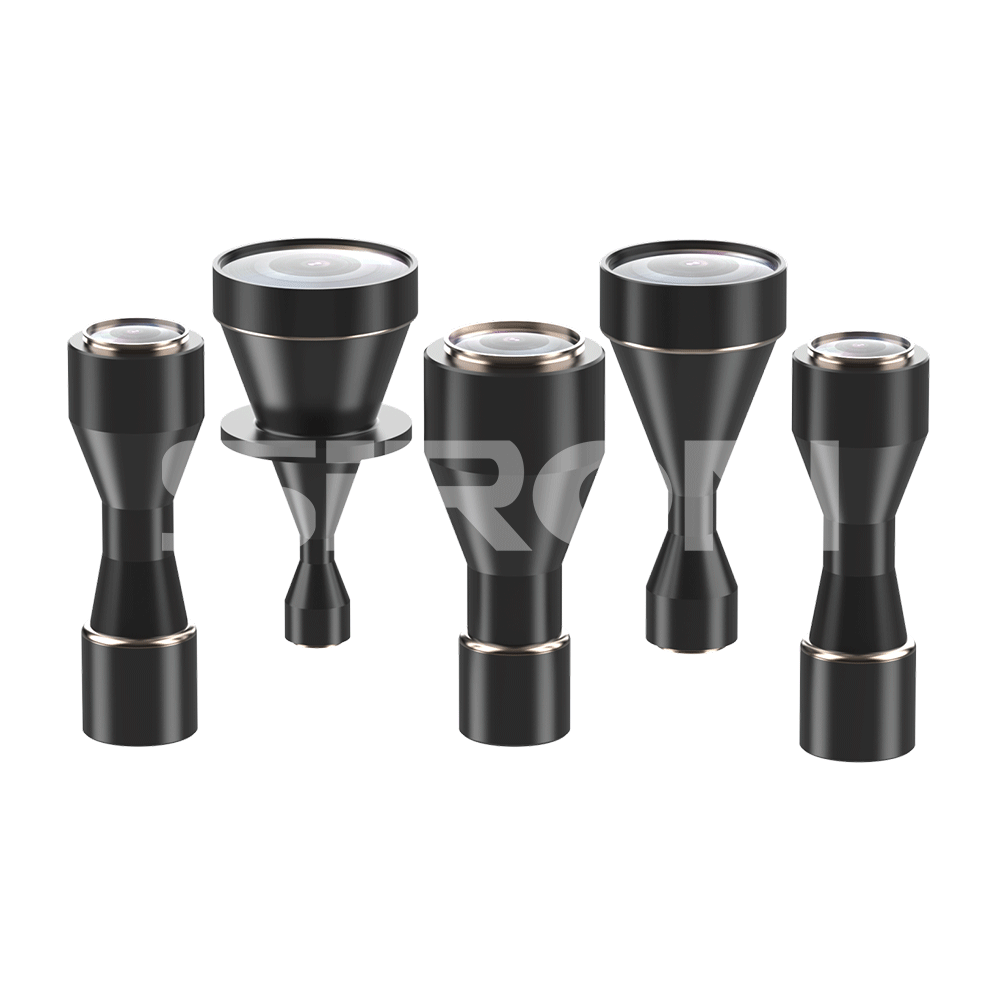

 | K642 series |
| The 2-inch dual-side telecentric lens F/M58 interface supports a maximum of 32mm CCD | |

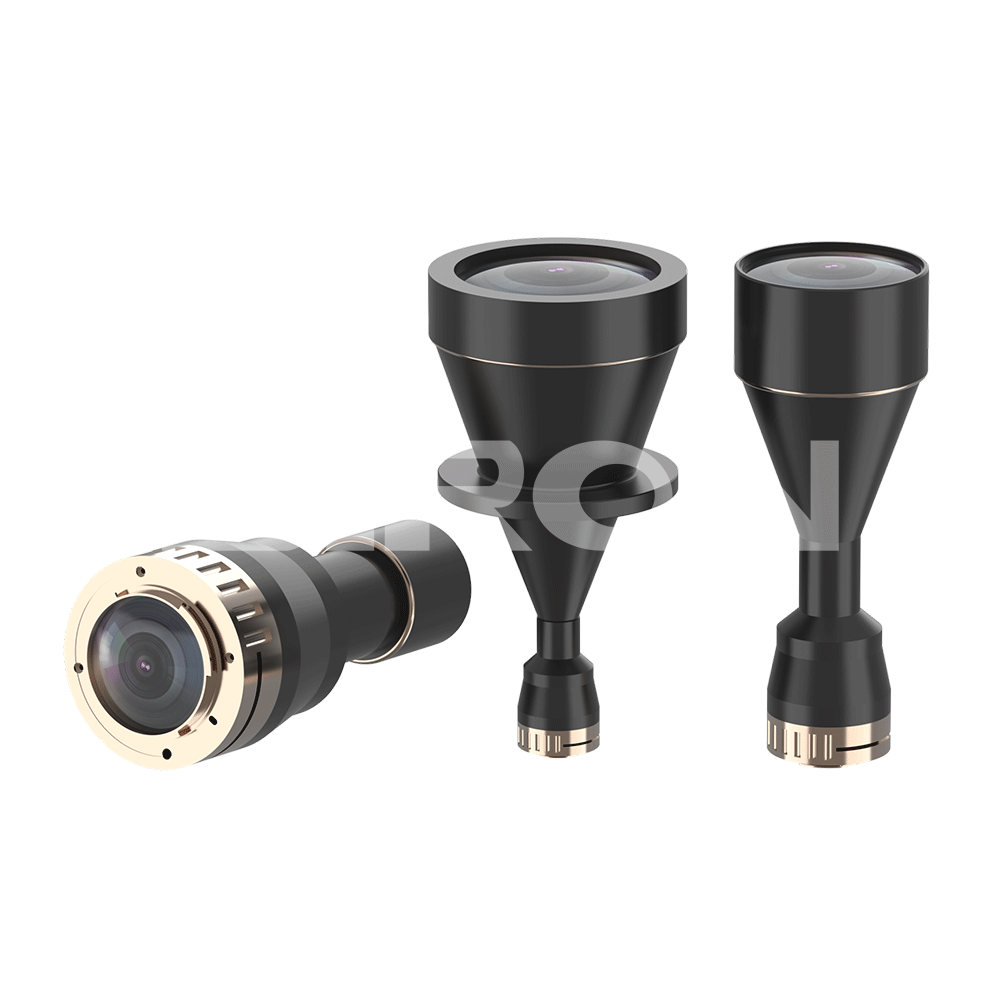

 | K643 series |
| The 28mm dual-side telecentric lens F/M58 interface supports a maximum 28mm CCD |
Specification parameters
| Model | K640-45-2.43F61 |
| Object distance | 45 |
| Gain | 2.43x |
| Depth of field | 0.8 |
| Camera interface | M72 |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | 16 |
| MTF＞0.3(LP/MM) | 75 |
| Model | K641-110-0.8F35 |
| Object distance | 110 |
| Gain | 0.8x |
| Depth of field | 1.1 |
| Camera interface | F/M58 |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | 16 |
| MTF＞0.3(LP/MM) | 75 |
| Model | K642-40-1.6F30 |
| Object distance | 40 |
| Gain | 1.6x |
| Depth of field | 0.3 |
| Camera interface | F/M58 |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | 15 |
| MTF＞0.3(LP/MM) | 75 |
| Model | K643-45-1.37F57 |
| Object distance | 45 |
| Gain | 1.37x |
| Depth of field | 0.3 |
| Camera interface | F/M58 |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | 16 |
| MTF＞0.3(LP/MM) | 120 |
