K660~K664 Series
SiRON
9031809090
Selection reference

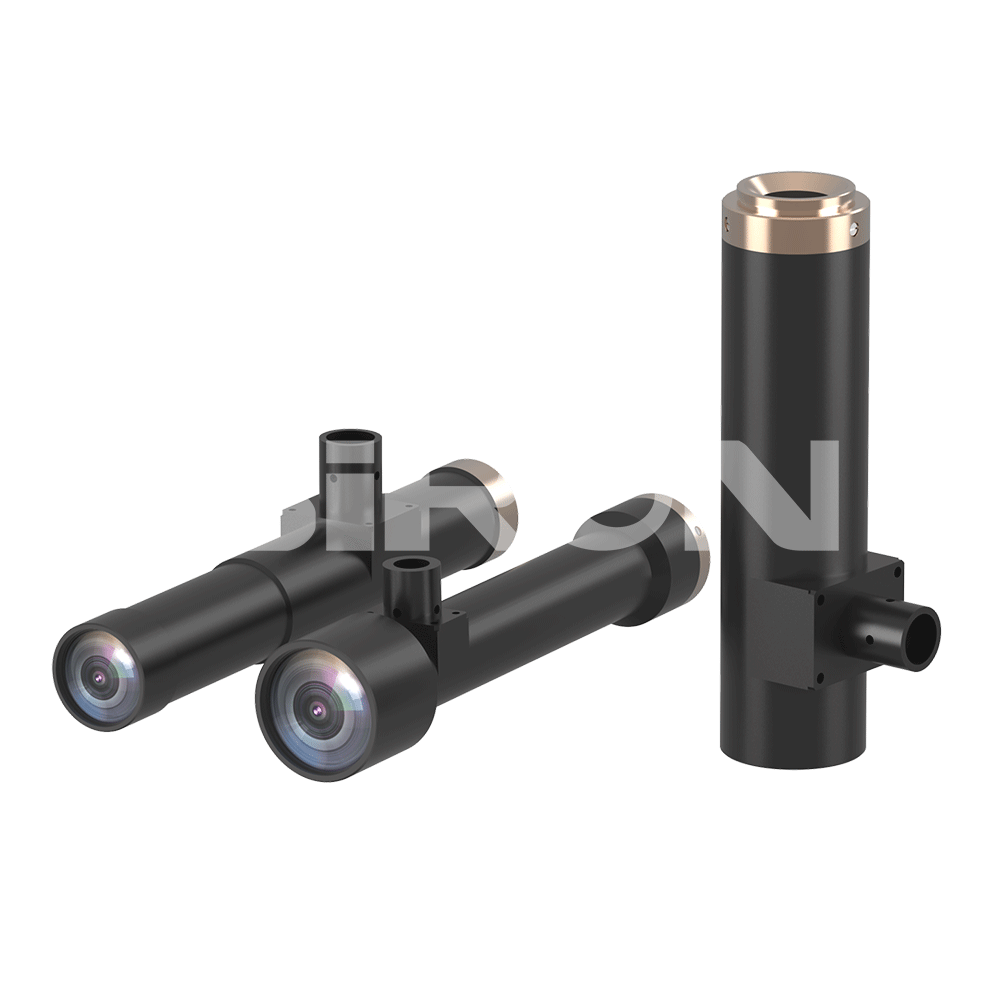

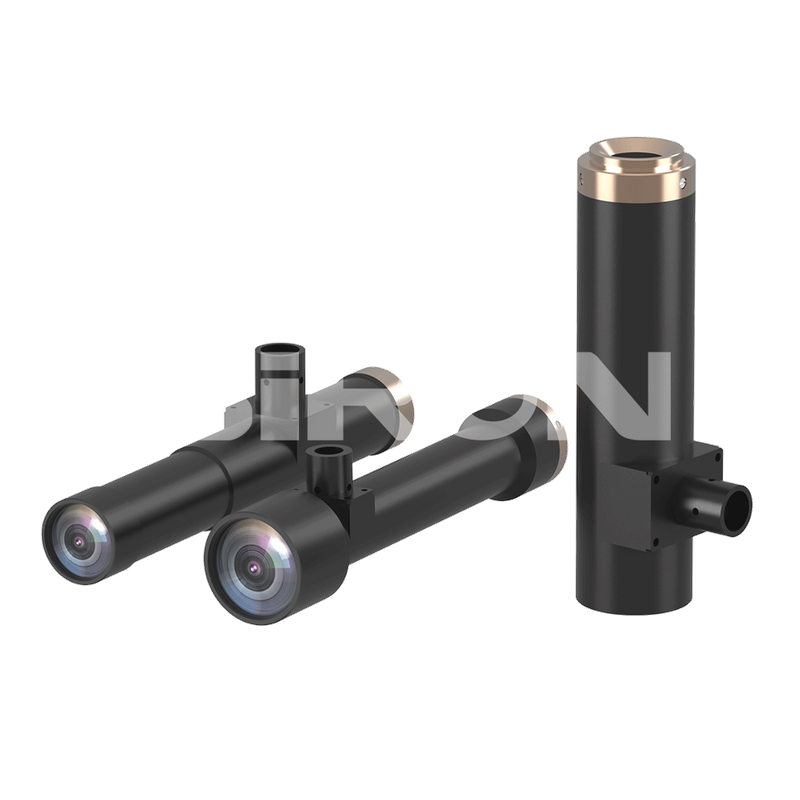

  | K660 series |
65mm 1.1-inch dual telecentric lens with a C interface supports a maximum 1.1-inch CCD | |

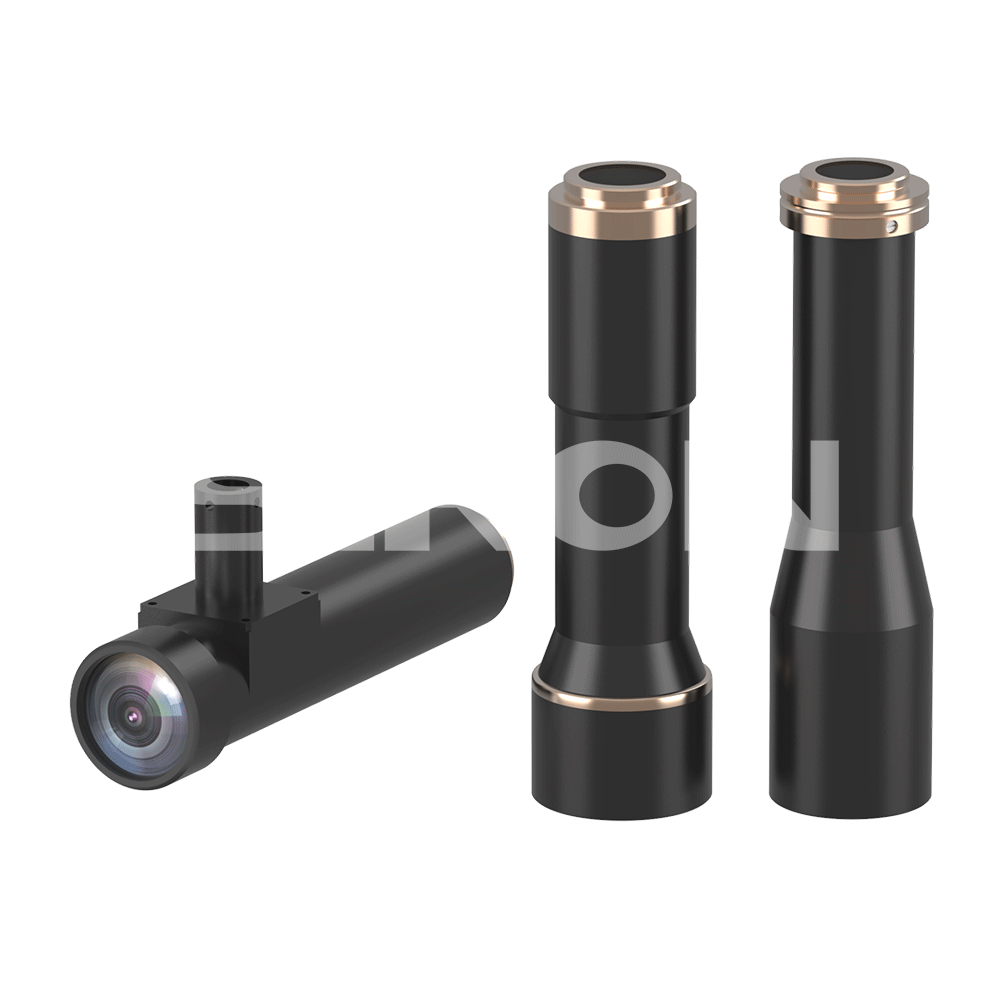

 | K661 series |
110mm 1.1-inch dual telecentric lens with a C interface supports a maximum 1.1-inch CCD | |

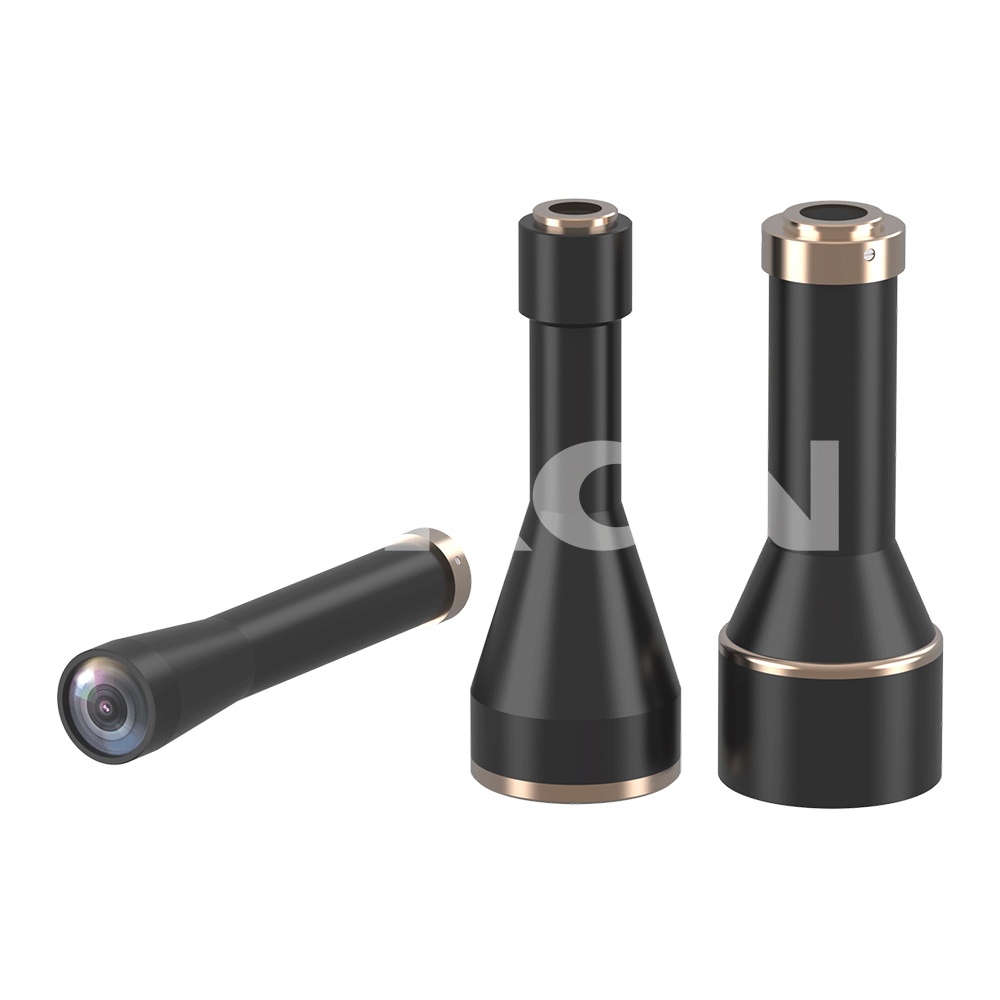

 | K662 series |
150mm 1.1-inch dual telecentric lens with a C interface supports a maximum 1.1-inch CCD | |

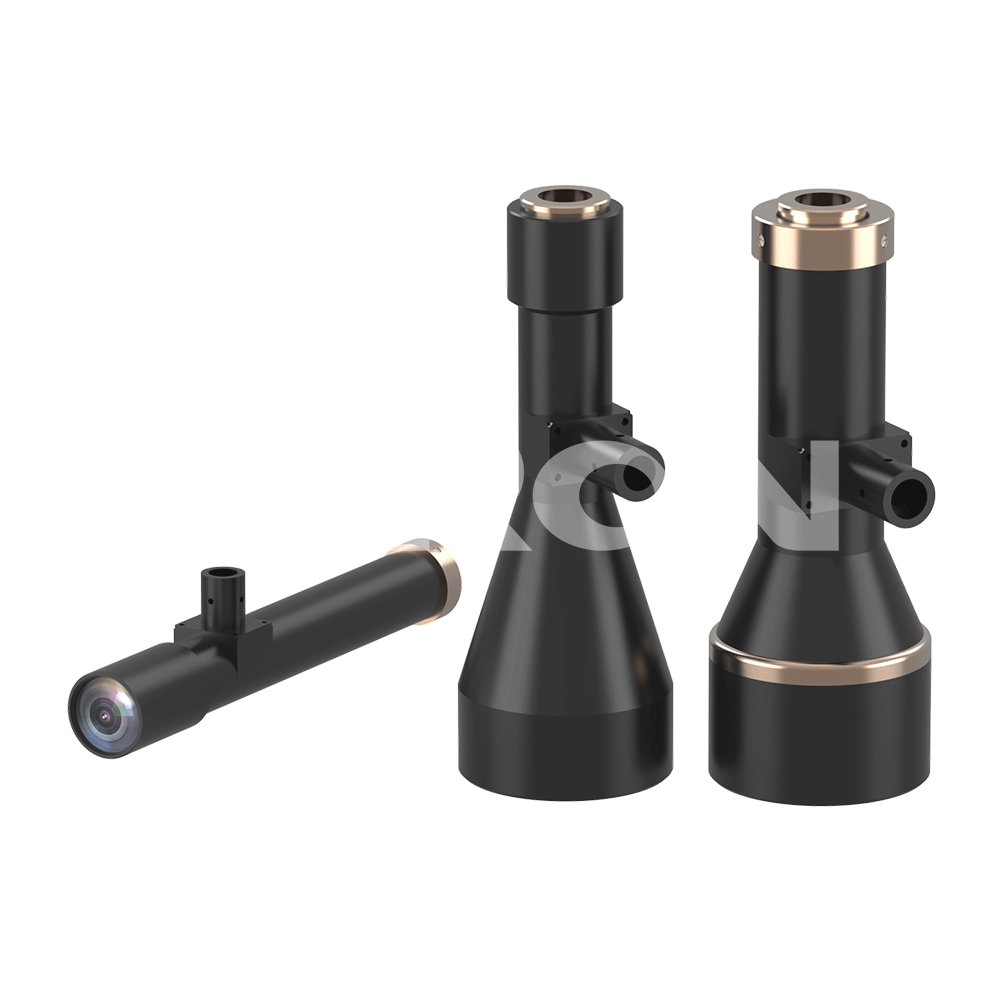

 | K663 series |
150mm 1.1-inch dual telecentric lens with a C interface supports a maximum 1.1-inch CCD | |

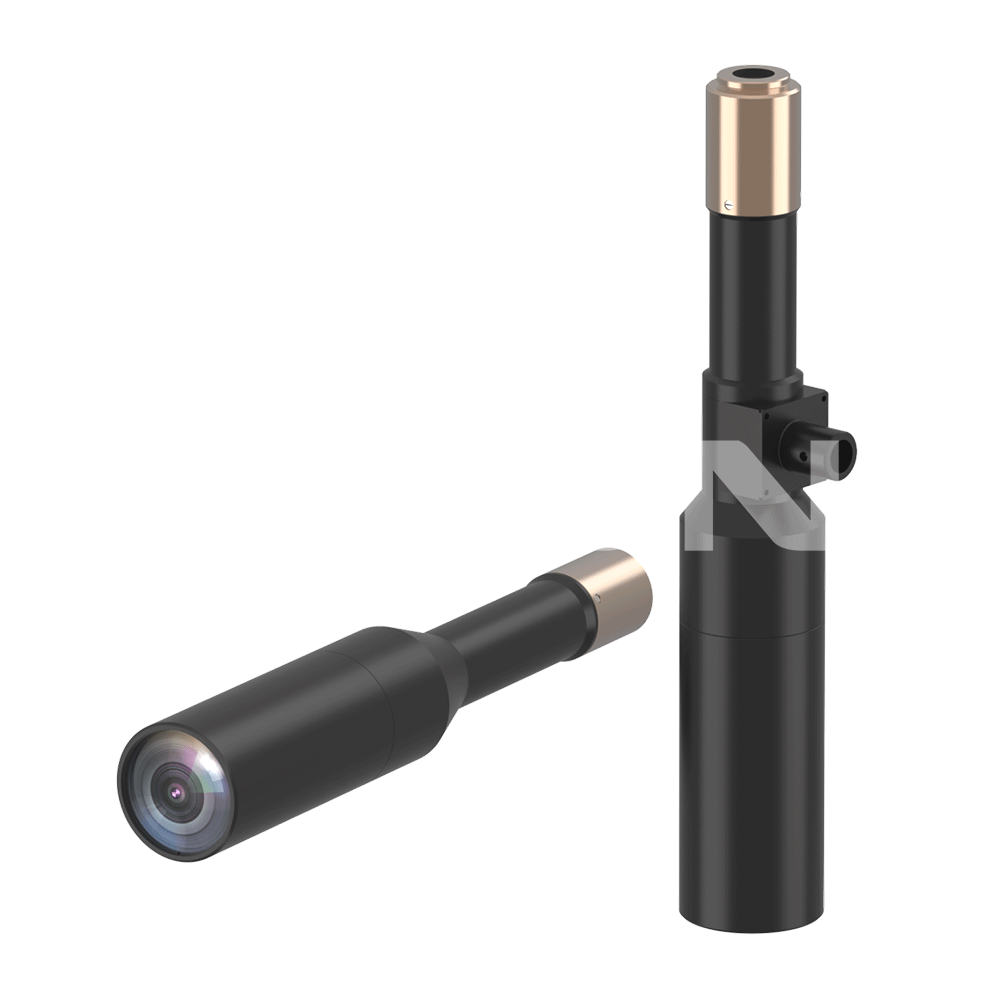

 | K664 series |
250mm 1.1-inch dual telecentric lens with a C interface supports a maximum 1.1-inch CCD |
Specification parameters
| Model | K660-60-0.4X23 |
| Object distance | 60 |
| Gain | 0.4x |
| Depth of field | 3.8 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K661-110-0.3X23 |
| Object distance | 110 |
| Gain | 0.3x |
| Depth of field | 4.5 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K662-150-0.3X20 |
| Object distance | 150 |
| Gain | 0.3x |
| Depth of field | 7.4 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K663-150-0.3T20 |
| Object distance | 150 |
| Gain | 0.3x |
| Depth of field | 7.4 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
| Model | K664-250-0.8X20 |
| Object distance | 250 |
| Gain | 0.8x |
| Depth of field | 1 |
| Camera interface | C interface |
| Telecentric degree | ＜0.1 |
| Optical distortion | ＜0.1 |
| F.NO | F11 |
| MTF＞0.3(LP/MM) | ＞100 |
