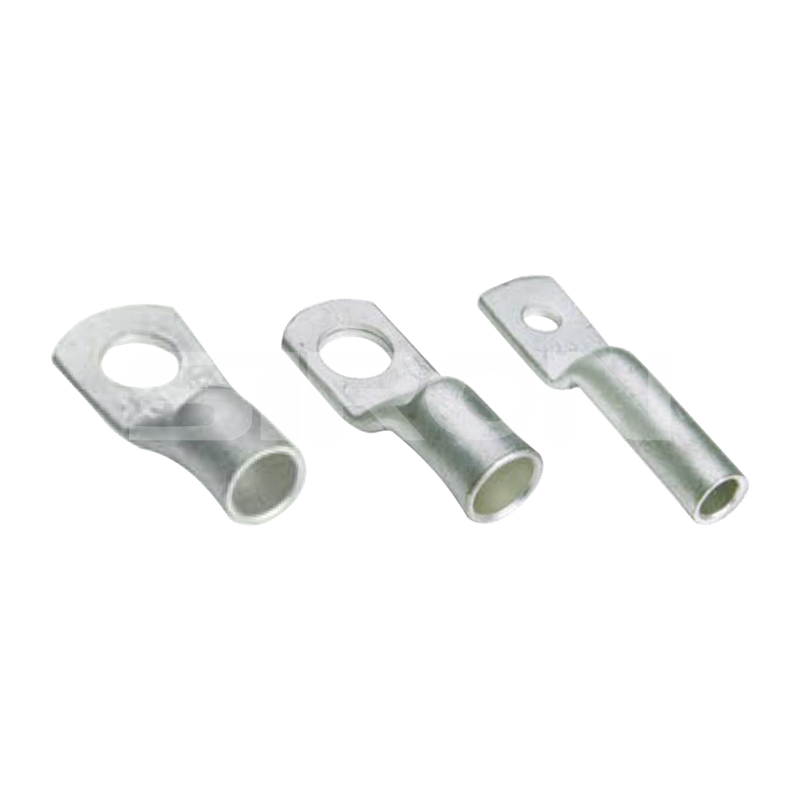

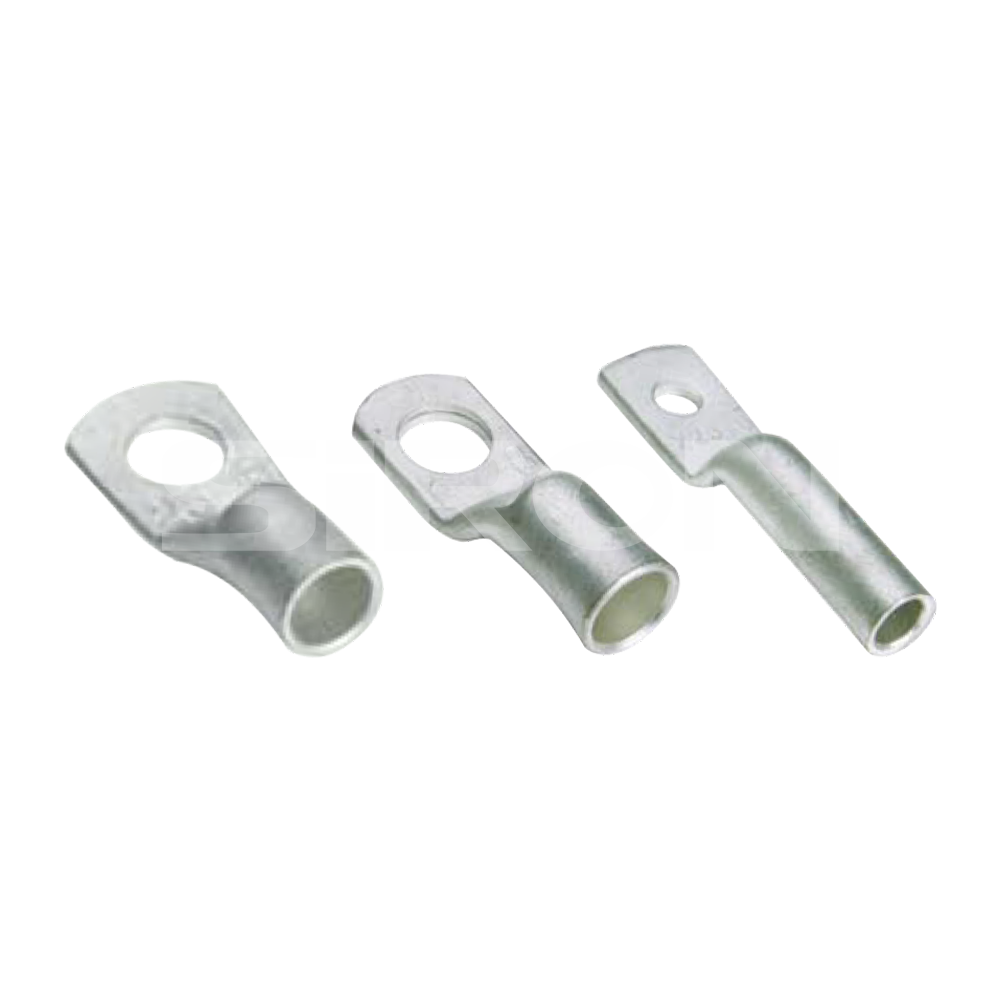

SiRON G130 Series Export Type/cable Copper Pipe Terminal

Features
  • Material: copper plated,silver plated.
  • Purified or tin plated ,improve wear resistance, finish, conductivity, and corrosion resistance.
  • Can be crimped or welded to wire and cable, widely used in new power electric vehicles, chargingpiles,electrical engineering,electrical equipment, etc.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • G130

  • SiRON

  • 8538900000

G130 Series Copper Pipe Terminal Export Type Terminal Cold-pressed Terminal
Product Description

About selection

Name Package Quantity Packing size
Export type/cable copperpipe terminal bag 1 0 0 pcs 180×120


Dimension Table

Model Dimensions(mm)
ΦA ΦB C D E F Φd G1 G2 H I
G130 6.0±0.1 4.2±0.1 9±1 - - 10±1 6.4±0.1 14±0.1 - 26±2
G131 6.0±0.1 4.2±0.1 9±1 7.5±1 - 12±1 8.4±0.2 - 1.5 26±2 -
G132 4.0±0.1 2.2+0.1 5.0±1 5.0±1 2.0 8.0±1 5.2+0.1 - 1.0 16.0±2 5
G134 4±0.1 2.2+0.1 10±1 5±1 5 8±1 5.3±0.1 - - 23±2 5
G135 5.8±0.1 4.2±0.1 9.0±1 6.0±1 3.0 10.0±1 5.2±0.1 - 0.8 23±2 7
G136 5.8±0.1 4.2±0.1 9.0±1 7.5±1 3.0 10.0±1 6.4±0.1 - 0.8 26±2 7
