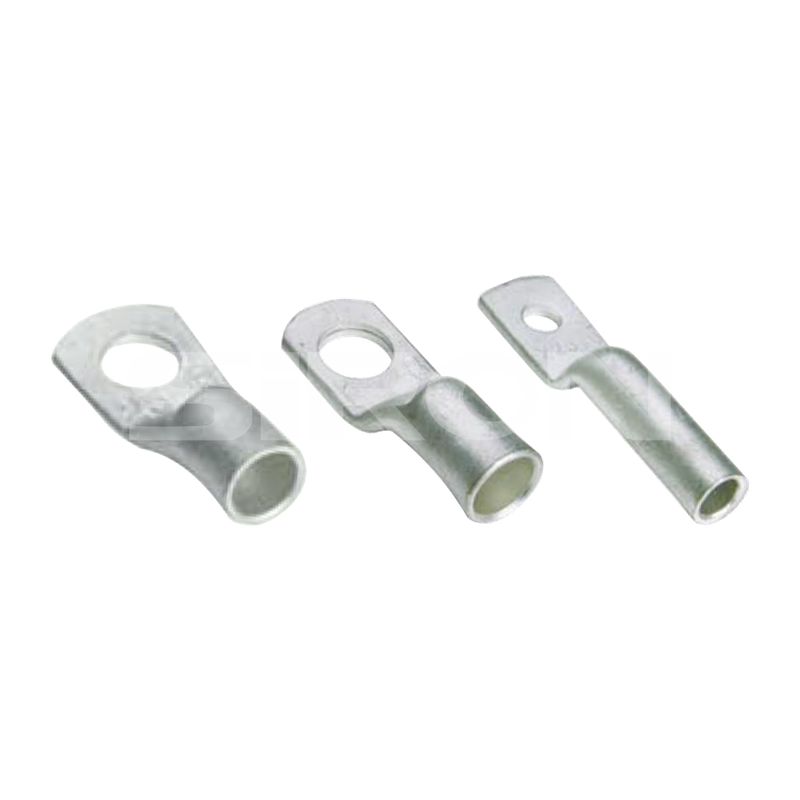

SiRON G130 Series Export Type/cable Copper Pipe Terminal

Mga tampok
  • Material: tanso tubog, pilak tubog.
  • Purified o tin plated, mapabuti ang wear resistance, finish, conductivity, at corrosion resistance.
  • Maaaring i-crimped o i-welded sa wire at cable, malawakang ginagamit sa mga bagong de-koryenteng sasakyan, chargingpiles, electrical engineering, electrical equipment, atbp.

Availability:
Dami:
Magtanong Idagdag sa Basket

Pag-export ng PDF
button sa pagbabahagi ng facebook
button sa pagbabahagi ng twitter
pindutan ng pagbabahagi ng linya
buton ng pagbabahagi ng wechat
button sa pagbabahagi ng linkedin
Pindutan ng pagbabahagi ng pinterest
button sa pagbabahagi ng whatsapp
ibahagi ang button na ito sa pagbabahagi

  • G130

  • SiRON

  • 8538900000

G130 Series Copper Pipe Terminal I-export ang Uri ng Terminal Cold-pressed Terminal
Paglalarawan ng Produkto

Tungkol sa pagpili

Pangalan Package Dami Laki ng packaging
I-export ang uri/cable copperpipe terminal bag 1 0 0 mga PC 180×120


Talahanayan ng Dimensyon

Modelo Mga Dimensyon(mm)
ΦA ΦB C D E F Φd G1 G2 H ako
G130 6.0±0.1 4.2±0.1 9±1 - - 10±1 6.4±0.1 14±0.1 - 26±2
G131 6.0±0.1 4.2±0.1 9±1 7.5±1 - 12±1 8.4±0.2 - 1.5 26±2 -
G132 4.0±0.1 2.2+0.1 5.0±1 5.0±1 2.0 8.0±1 5.2+0.1 - 1.0 16.0±2 5
G134 4±0.1 2.2+0.1 10±1 5±1 5 8±1 5.3±0.1 - - 23±2 5
G135 5.8±0.1 4.2±0.1 9.0±1 6.0±1 3.0 10.0±1 5.2±0.1 - 0.8 23±2 7
G136 5.8±0.1 4.2±0.1 9.0±1 7.5±1 3.0 10.0±1 6.4±0.1 - 0.8 26±2 7
