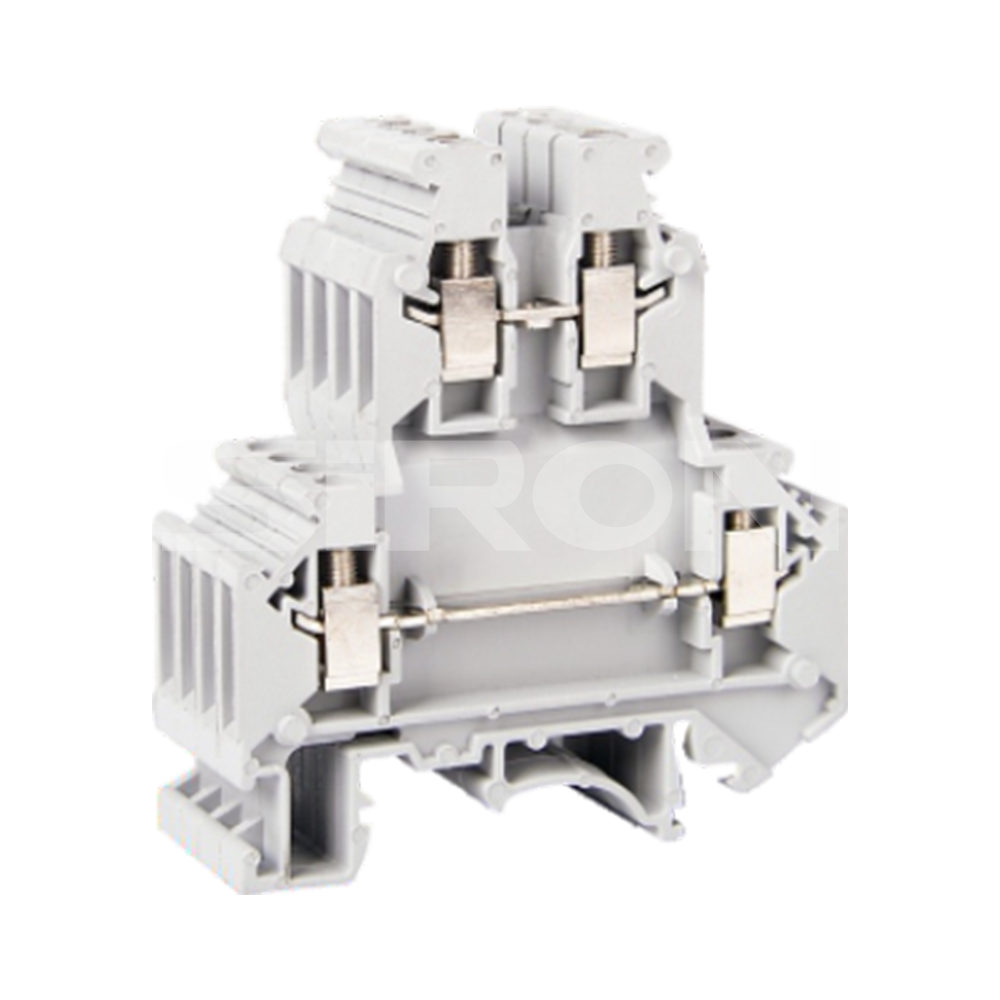

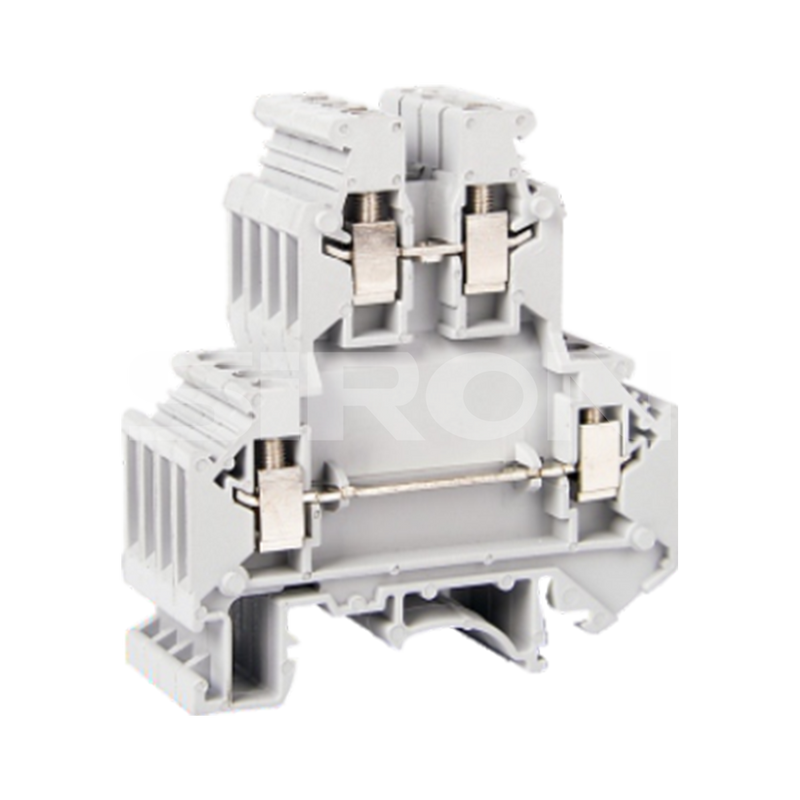

SiRON G340 Series Double terminal

Name: SiRON G340 Series Double terminal
Brand: SiRON
Rating: 5.0 (4 reviews)

Features

The four conductors of the double-layer terminal can be connected to one terminal at the same time,and the two circuits are independent and different. Viewed from the side, upper and lower layers
Stag ger the thickness of half the terminals.
The utility model not only facilitates the wiring operationof the user, but also can clearly observe the marks of the upper and lower layers.
There are two wiring positions on both sides of the double in and double out terminals, which canconnect four wires to one circuit at the same time.
Special shape design and wiring function,lt qreatlysaves space for wiring places.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

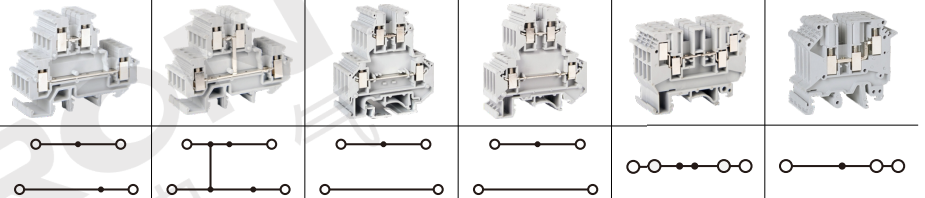

Type selection reference

Mode				G340-WMBKKB2.5	G340-WMBKKB2.5-L	G340-WUKK5	G340-WUKK3	G340-WUDK4	G340-WUK5-TWIN
Appearanoe
Wing dagram
SIze	Thickness			5.2	5.2	6.2	5.2	6.2	6.2
	Lengih			62.5	62.5	57	57	58.3	50.1
	Height			47	47	62	62	47	45.8
Maimum cectnical paramecher	LMax. (A)			24	24'	32	32	32'	32
	UMax. (V)			500	500	500	500	630	500
	Max. φ(mm²)			0.2-4	0.2-4	0.2-4	0.2-4	0.2-6	0.2-4
	AWG			24-12	24-12	24-12	24-12	24-10	24-12
	IEC 609 47-7-1 IEC	Faed vcitage		500	500	500	500	630	500
		Raed currencr550cion		24/2.5	24/2.5	32/4	24/2.5	32/4	32/4
		Raed cnnochoncapadlty		2.5	2.5	4	2.5	4	4
		Conneclion capacilty		24-12	24-12	24-12	24-12	24-10	24-12
	UL/CUL_	Pnedvitnge		300	300	600	600	600	300
		Raboed curennicros 5chion		20/-	20/-	30/-	20/-	30/-	20/-
		Conneclion capacity		30-12	30-12	26-10	28-12	30-10	30-10
Connection capacilty	Rlgd	Amirne		1.2-4	0.2-4	0.2-4	0.2-4	0.2-6
		TWD Dnducs (same model)		0.2-1.5	0.2-1.5	0.2-1.5	0.2-1	0.2-1
		Madimum 070555Bchcnotplug-nbrisge		2.5	2.5	4	2.5	2.5
	Flexble	Amire		0.2-2.5	0.2-2.5	0.2-4	0.2-2.5	0.2-4
		TWD onducbors (Same model)		0.2-1.5	0.2-1.5	0.2-1.5	0.2-1.5	0.2-1.5
		Maadmum OD55Sechon ofplug-n bridge		2.5	2.5	2.5	2.5	2.5
	Cad presing head	Betwth Paasng	A wire	0.25-2.5	0.25-2.5	0.25-4	0.25-2.5	0.25-4
		Betwth Paasng	TWo cduchrs (same model)	0.25-1.5	0.25-1.5	0.25-1.5	0.25-1.5	0.25-1.5
		Without Pastc Manenal casing	A wire	0.25-1.5	0.25-1.5	0.25-2.5	0.25-1.5	0.25-15
		Without Pastc Manenal casing	Two stcks are TWINcnd Fleodble onducormth ndenier	0.5-1	0.5-1	0.5-1.5	0.5-1	0.5-1
Genera parameter	Snplength of wre			7	7	8	8	8	8/-
	Type of Screw			M3	M3	M3	M3	M3/0.5-0.6	M3/0.6-0.8
	Tighbening tooque			0.5-0.6	0.5-0.6	0.6-0.8	0.5-0.6
	InsIanng materlad			PA	PA	PA	PA	PA	PA
	Flame retardant class, according to UL 94			Vo	Vo	Vo	Vo	Vo	Vo
