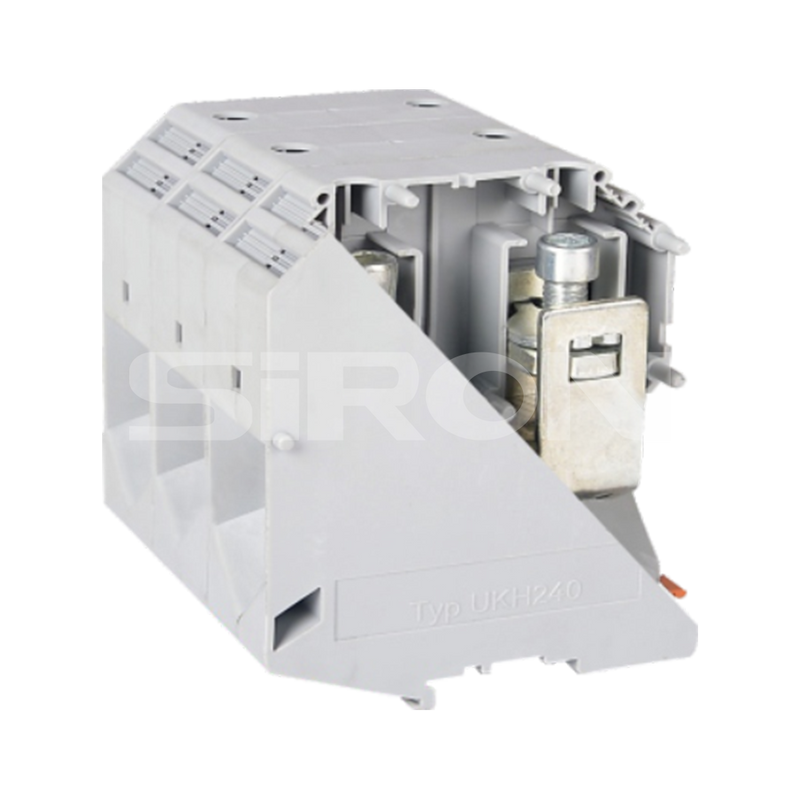

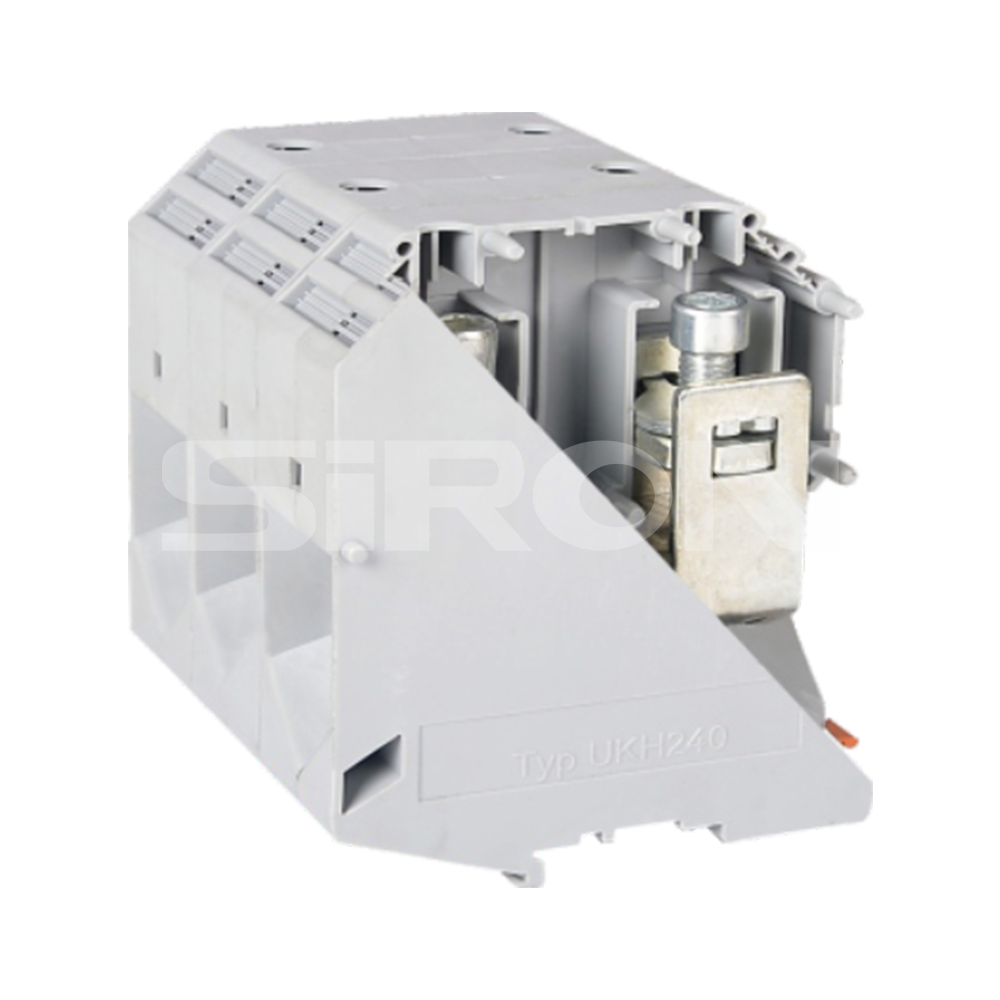

SiRON G340-WUK Series Wiring Terminal

Name: SiRON G340-WUK Series Wiring Terminal
Brand: SiRON
Rating: 5.0 (8 reviews)

Features

A terminal is a piece of metal sealed in insulating plastic, with holes at both ends for inserting wiresand screws for fastening;
Suitable for a large number of wire interconnection, in the power industry, there are special high andow voltage power distribution cabinet terminal block, terminal box, waterproof box;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
G340-WUK
Brand:
SiRON
Code:
8538900000

G340-WUK Series Wiring terminal Metal sealed terminal Fire prevention terminal Flame retardant terminal

Product Description

Type selection reference

Model				G340-WUK1.5N	G340-WUK2.5B	G340-WUK3N	G340-WUK5N	G340-WUK6N

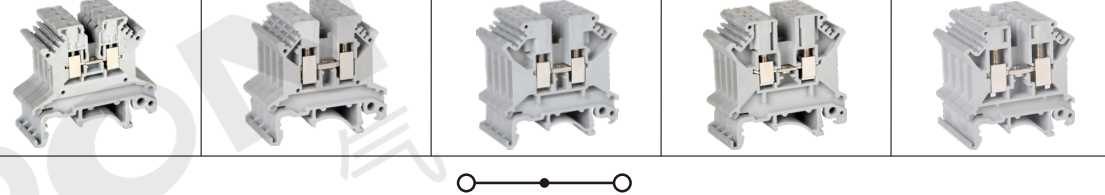

Appearance
Wiring diagram
Size	Thickness			4.2	6.2	5.2	6.2	8.2
	Length			42.5	42.5	42.5	42.5	42.5
	Height			40.8	40.80	46	46	46
Maximum electrical parameter	LMax. (A)			17.5	24	32	41	57
	UMax. (V)			500	800	800	800	800
	Max. Φ(mm²)			0.14-1.5	0.2-4	0.2-4	0.2-6	0.2-10
	AWG			26-16	24-12	24-12	24-10	24-8
Rated parameter	IEC 609 47-7-1 IEC	Rated voltage		500	800	800	800	800
		Rated current/cross section		17.5/1.5	24/2.5	24/2.5	32/4	41/6
		Rated connection capacity		1.5	2.5	2.5	4	6
		Connection capacity		26-16	24-12	24-12	24-10	24-8
	UL/CUL	Rated voltage		300	300	600	600	600
		Rated current/cross section		15/-	20/-	20/-	30/-	50/-
		Rated connection capacity		-	-	-	-	-
		Connection capacity		30-14	30-12	28-12	30-10	26-8
Connection capacity	Rigid	A wire		0.14-1.5	0.2-4	0.2-4	0.2-6	0.2-10
		Two conductors (same model)		0.14-0.75	0.2-1	0.2-1.5	0.2-105	0.2-2.5
		Maximum cross section of plug - in bridge			2.5	4	4	4
	Flexible	A wire		0.14-1.5	0.2-2.5	0.2-2.5	0.2-4	0.2-6
		Two conductors (same model)		0.14-0.75	0.25-1	0.2-1.5	0.2-1.5	0.2-2.5
		Maximum cross section of plug - in bridge			2.5	2.5	4	4
	Clod pressing head	Belt with plasticcasing	A wire	0.25-0.75	0.25-2.5	0.25-4	0.25-4	0.25-6
		Belt with plasticcasing	Two conductors (same model)	0.25-0.34	0.25-1	0.25-1.5	0.2-1.5	0.25-1.5
		Without plastic Material casing	A wire	0.25-0.75	0.25-1	0.25-2.5	0.25-2.5	0.25-6
		Without plastic Material casing	Two sticks are TWIN cold Flexible conductor with indenter	0.5-0.5	0.5-1.5	0.5-1.5	0.5-2.5	0.5-4
General parameter	Strip length of wire			7	7	8	8	10
	Type of screw			M2	M3	M3	M3	M4
	Tightening torque			0.22-0.25	0.6-0.8	0.6-0.8	0.6-0.8	1.5-1.8
	Insulating material			PA	PA	PA	PA	PA
	Flame retardant class, according to UL 94			Vo	V0	V0	V0	Vo
