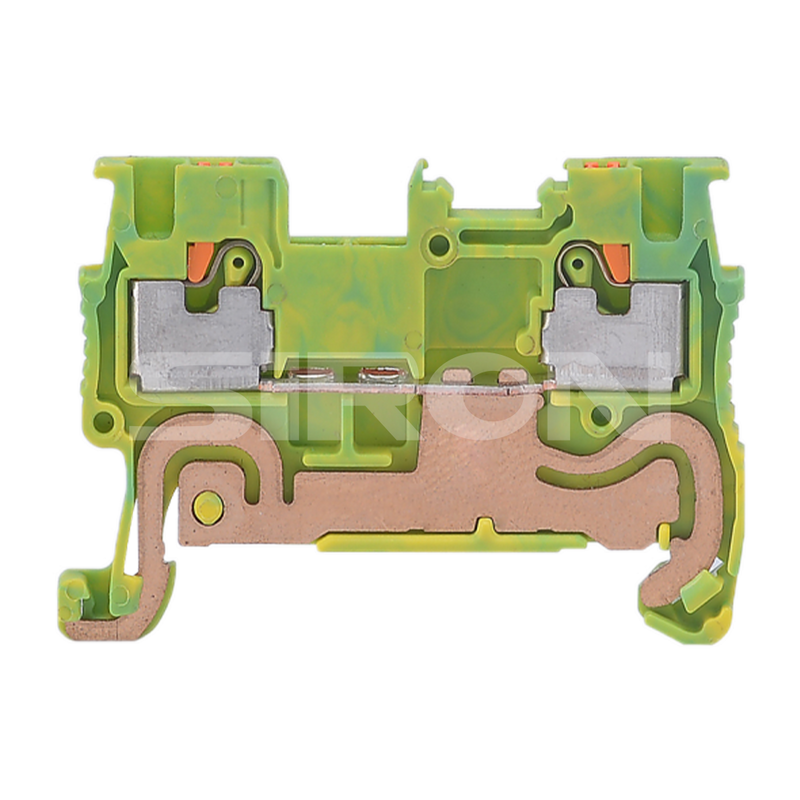

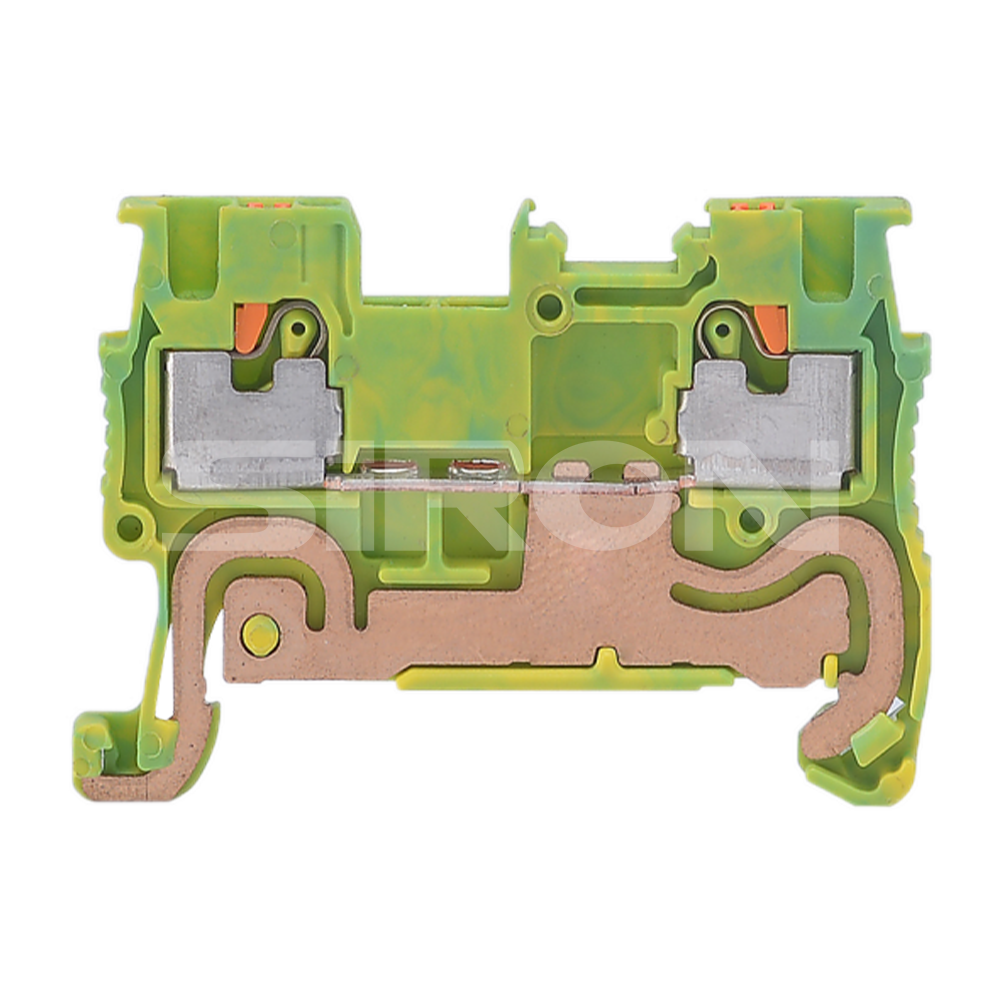

SiRON G342 Series Ground Terminal

Features
  • The product is used for AC 50HZ, 60HZ, rated voltage 660V Dc 440V circuit conductor area of 0.25-150mm
  • The connectionis also suitable for the connection of round copper ends without special processing or pressure nozzle.
  • Universal ground terminal adopts the international common frame screw wiring technology, the wiring pressure is large,
  • so that the wire and terminal more firm not easyLoose.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • G342-PT-2.5-PE

  • SiRON

  • 8538900000

G342 Series Terminal Ground terminal Screw wiring Terminal
Product Description

Type selection reference

Model G342-PT-2.5-PE G342-PT2.5-TWIN-PE G342-PT2.5-QUATTRO-PE G342-PTTB2.5-PE

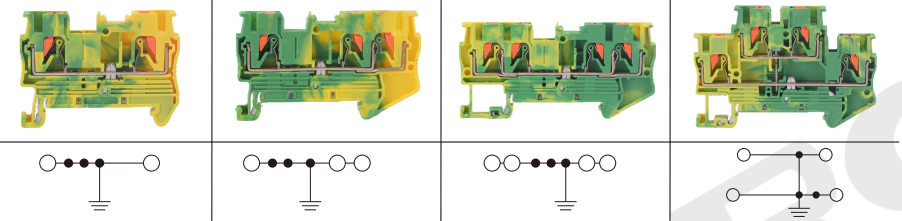

Appearance

2e62fcae-c684-4262-8b13-305c1c78059b
Wiring diagram
Size Thickness 5.2 5.2 5.2 5.2
Breadth 48.8 60.7 72.7 68.3
Height 35.4 35.5 35.5 45.8
Rated section 2.5 2.5 2.5 2.5
(mm)
 Strip length		 8-10 8-10 8-10 8-10
Number of packages 100 100 100 100

Annex		 Baffle plate G342-D-PT2.5 G342-D-PT2.5-TWIN G342-D-PT2.5-QURTTRO G342-D-PTTB2.5
Marking strip G340 - ZB5 series
Fastener G340-CLIPFIX     35
