SiRON G340 Series Segment cantilever terminals

Name: SiRON G340 Series Segment cantilever terminals
Brand: SiRON
Rating: 5.0 (13 reviews)

Features

The segmented cantilever can be opened upwards and fixed on the termination position.
Two types of fuse can be installed in the segmented cantilever with luminous and non luminous The model with light will send out a display signal when the fuse is blown.
Precautions: It should be selected according to the maximum power consumption (self heating) of the fuse, and carefully checked according to the use and installation method
The heating of fuse terminal will bring extra load to fuse when it is used at high ambient temperature.
In this case Consider adjusting the rated working current accordingly.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Type selection reference

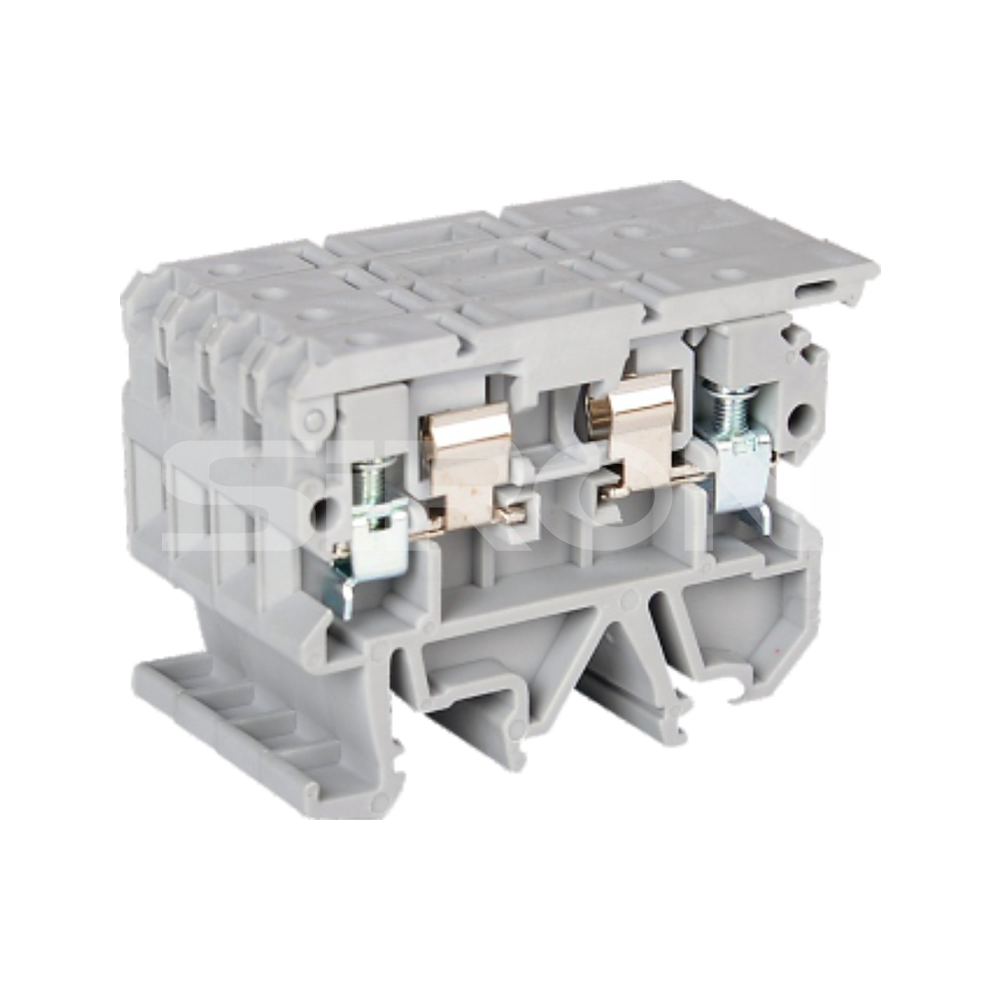

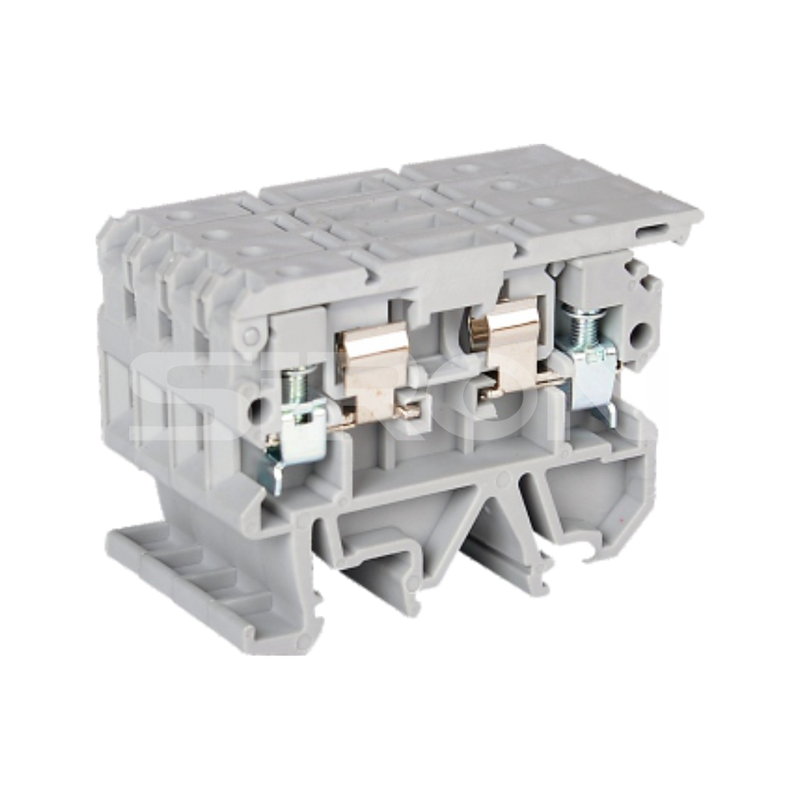

Model				G340-WUK5-HESI	G340-WUK5-HESI-LED	G340-WUK10-DREHS	G340-WASK1EN

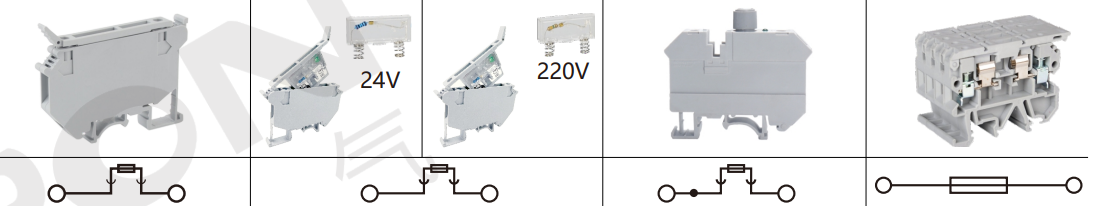

Appearanoe
Wrngdagam
Size	Ticiness			8.2	8.2	12	8
	Langn			72.9	72.9	57.8	58
	Haight			49.6	49.6	55.2	42.7
Maimum aloctrical parameter	LMax. (A)			6.3⊃2;	6.3⊃2;	10⊃2;	6.3⊃2;
	UMax. (V)			500⊃2;	500⊃2;	500⊃2;	500⊃2;
	Max. (mm²)			0.2-4	0.2-4	0.5-16	0.2-4
	AWG			24-12	24-12	20-6	24-12
Raie p	IEC 609 47-7-1 IEC	Raled volge		500⊃2;	500⊃2;	500⊃2;	500⊃2;
		Raled cumen555ecion		6.3⊃2;)/1	6.33)/1	10⊃2;)/1.5	6.33)/1
		Raledconnecdan capacity		4	4	16	4
		Connecdan capadly		24-12	24-12	20-6	24-12
	UL/CUL_	Raled voge		600	600	300	600
		Rated cumenlcnS55Bction		12/-	12/-	20/-	12/-
		Connecan capadty		26-10	26-10	24-16	26-10
Connechion Capacy	Fagid	Awne		0.2-4	0.2-4	0.5-16	0.2-4
		Two nduchors same model)		0.2-1.5	0.2-1.5	0.5-4	0.2-1.5
		Maimum cnS soction ofplug-n bndge		4	4	10	4
	Flenble	Awire		0.2-4	0.2-4	0.5-16	0.2-4
		TWo onducbos isame model		0.2-1.5	0.2-1.5	0.5-4	0.2-1.5
		MaimumC soclon ofplugcnbndoe		4	4	10	4
	Cod prssng had	BtN p2casng	A wire	0.25-4	0.25-4	0.5-10	0.25-4
			TWoDcnbuchoE Ime mdal	0.25-1.5	0.25-1.5	0.5-4	0.25-1.5
		Wthout PLstic Matenal Casing	Ae	0.25-4	0.25-4	0.5-10	0.25-4
			Two sicksangTINcoldFlanbie odcrmdarlr	0.5-1.5	0.5-1.5	0.5-10	0.5-1.5
General parameer	FSe tpelslze			G/5×20/5×25/5×30	G/5×20/5×25/5×30	G/5×20	G/5×20/5×25/5×
	Sinp length of wke			8	8	11	8
	Type of cnew			M3	M3	M4	M3
	ignlenng tonque			0.5-0.6	0.5-0.6	1.5-1.8	0.5-0.6
	Tulnng materlal			PA	PA	PA	PA
	Flame rdancd5,acondng toUL94			Vo	Vo	Vo	Vo
