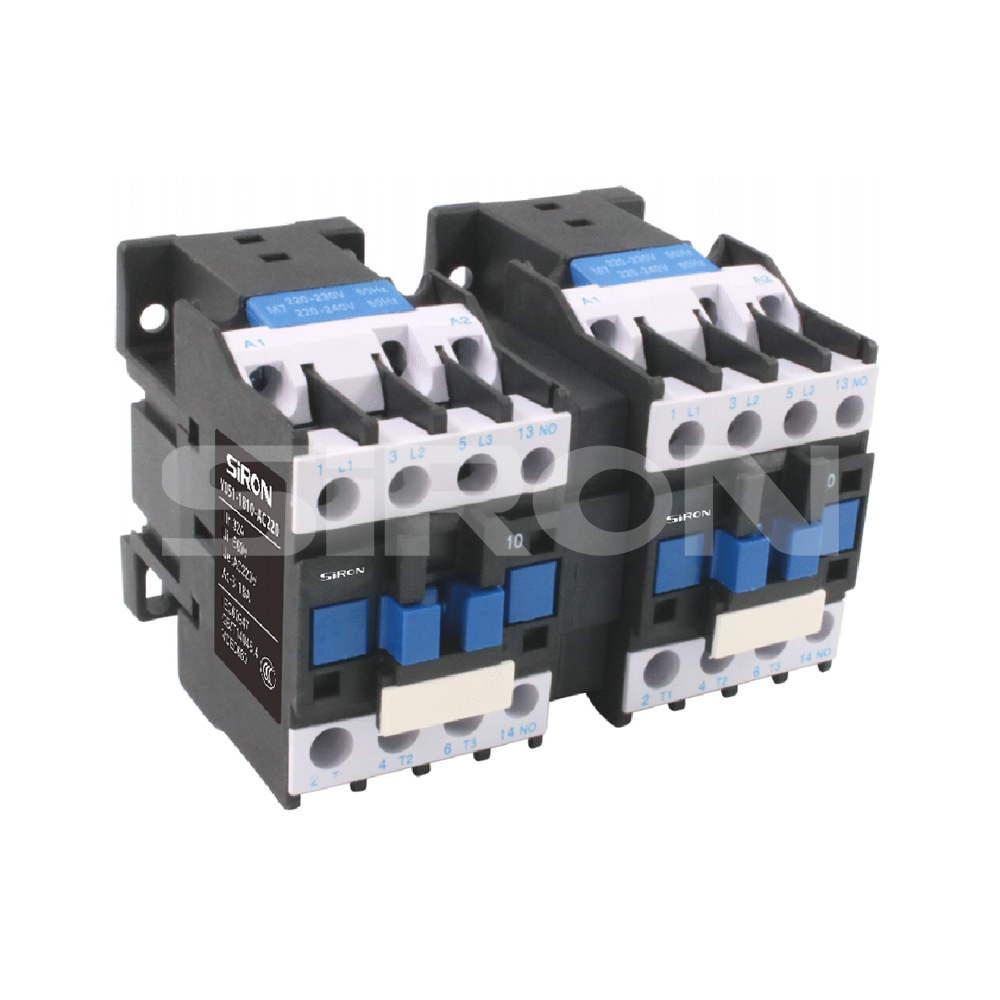

SiRON Y051 Series Mechanical Interlocking Contactor

Name: SiRON Y051 Series Mechanical Interlocking Contactor
Brand: SiRON
Rating: 5.0 (85 reviews)

Features

Suitable for AC 50/60Hz;Used for motor reversible control in circuits with current below 95AIts mechanical interlocking mechanism ensures the contact of two reversiblecontactors
The head conversion works reliably.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y051
Brand:
SiRON
Code:
8536901100

Interlocking Contactor Y051 Series AC 50/60Hz Mechanical Contactor current below 95A Contactor

Product Description

For Selection

Y051

Model selection example: Y051-0910-220 indicates: mechanical interlock contactor, rated working current 9A,1 normally open auxiliary contact coil working voltage AC 220V.

The working voltage of the coil for the Y050 series contactors is the same:

Specifications

Table 1

Main contact

09

12

18

25

32

40

50

65

80

95

Rated cumen

9A

12A

18A

25A

32A

40A

50A

65A

80A

95A

Table 2

Auxiliary
contact

Number of contacts

Terminal marking

Suitable for rated current

( N O )
Normally open

( N C )
Normaly closed

01

/

1Normally closed auxiliary contact

/

21

22

9A～32A

10

1Always open auxiliary contacts

/

13 14

/

11

1Always open auxiliary contacts

1Normally closed auxiliary contact

13 14

21

22

40A～95A

Specifications

Model		Y051series
Rated working current 440V		9	12	18	25	32	40	50	65	80	95
Control power (KW) Controlled power	220V	2.2	5.5	7.5	5.5	7.5	18.5	15	18.5	22	22
Control power (KW) Controlled power	380V	4	5.5	7.5	11	15	18.5	22	30	77	45
Number of auxiliary contacts		NO.NC					NO+NC
Way to install		Screw installation /35mm installation rail					Screw installation /75mm installation rail
