Y050
SiRON
8536901100

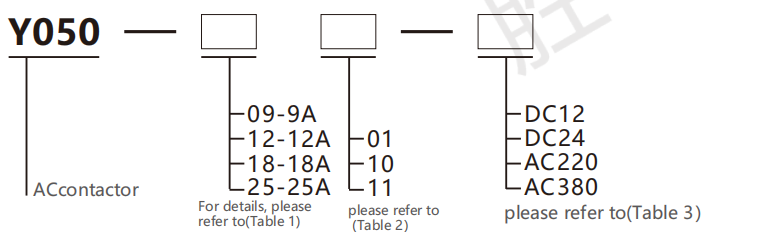

For Selection

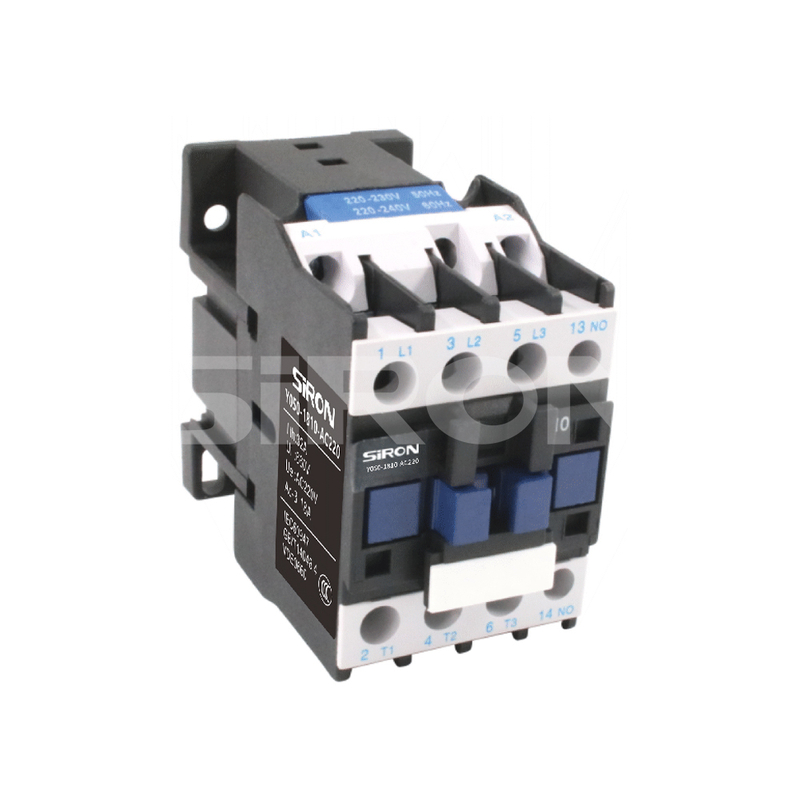

Selection example: Y050-0910-AC220 indicates an AC contactor with a rated working current of 9A,1 normally open auxiliary contact, and a coil working voltage of AC 220V
Y050-2510-DC24 indicates: AC contactor, rated working current 25A,1 normally open auxiliary contact, coil working voltage 24V DC.

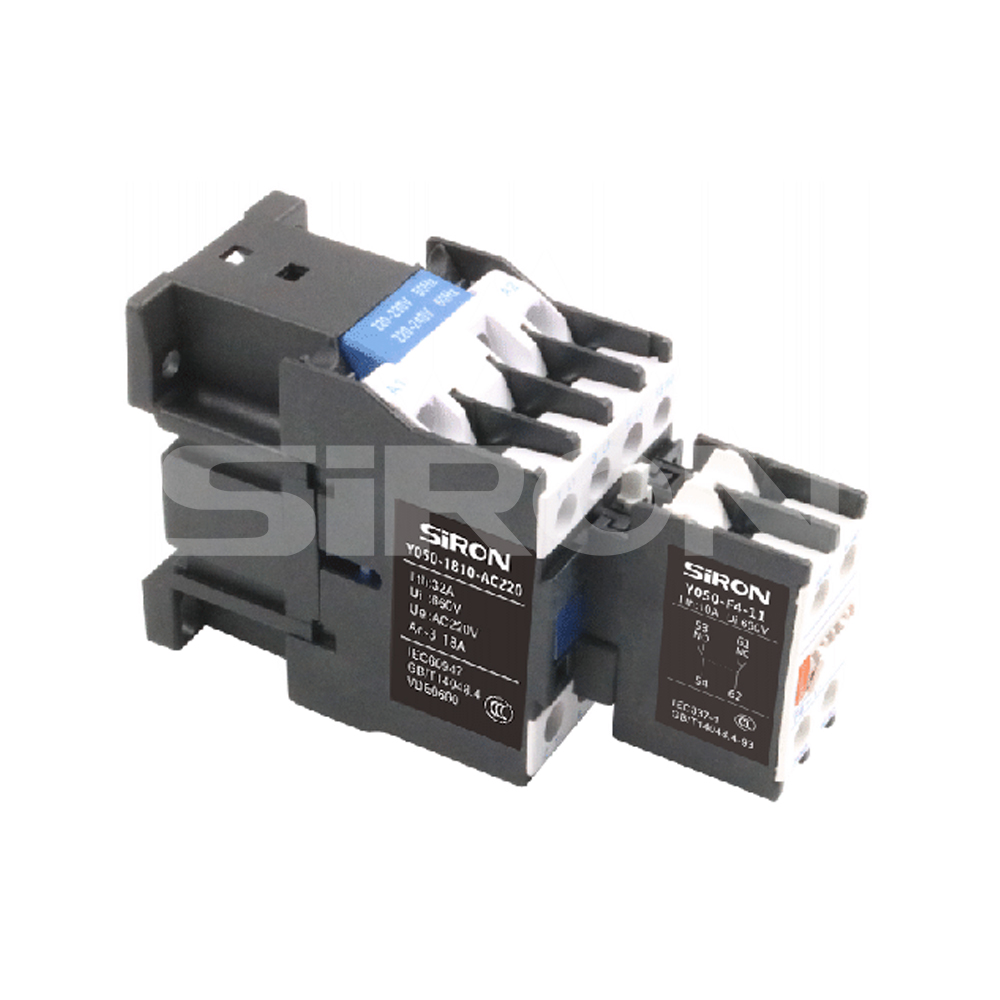

Example of auxiliary contact group accessory ordering: Y050-0910-AC220-F4-22

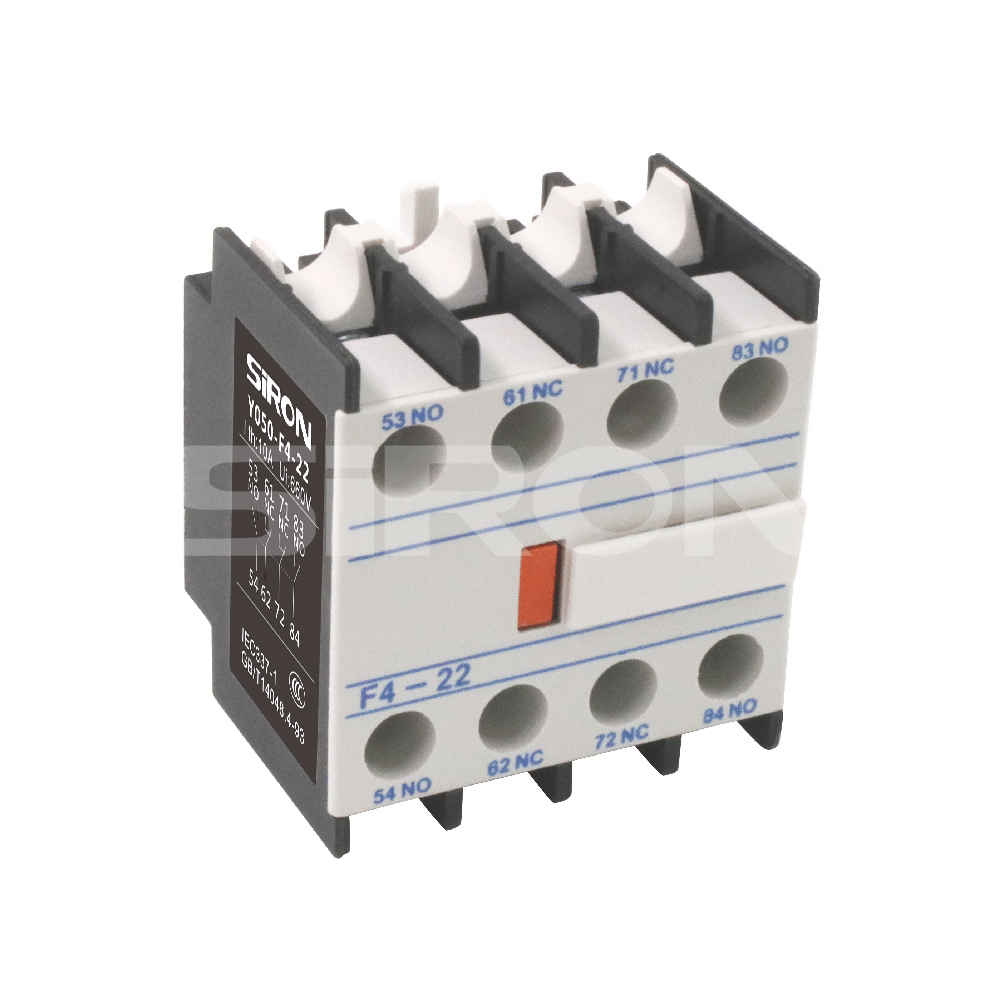

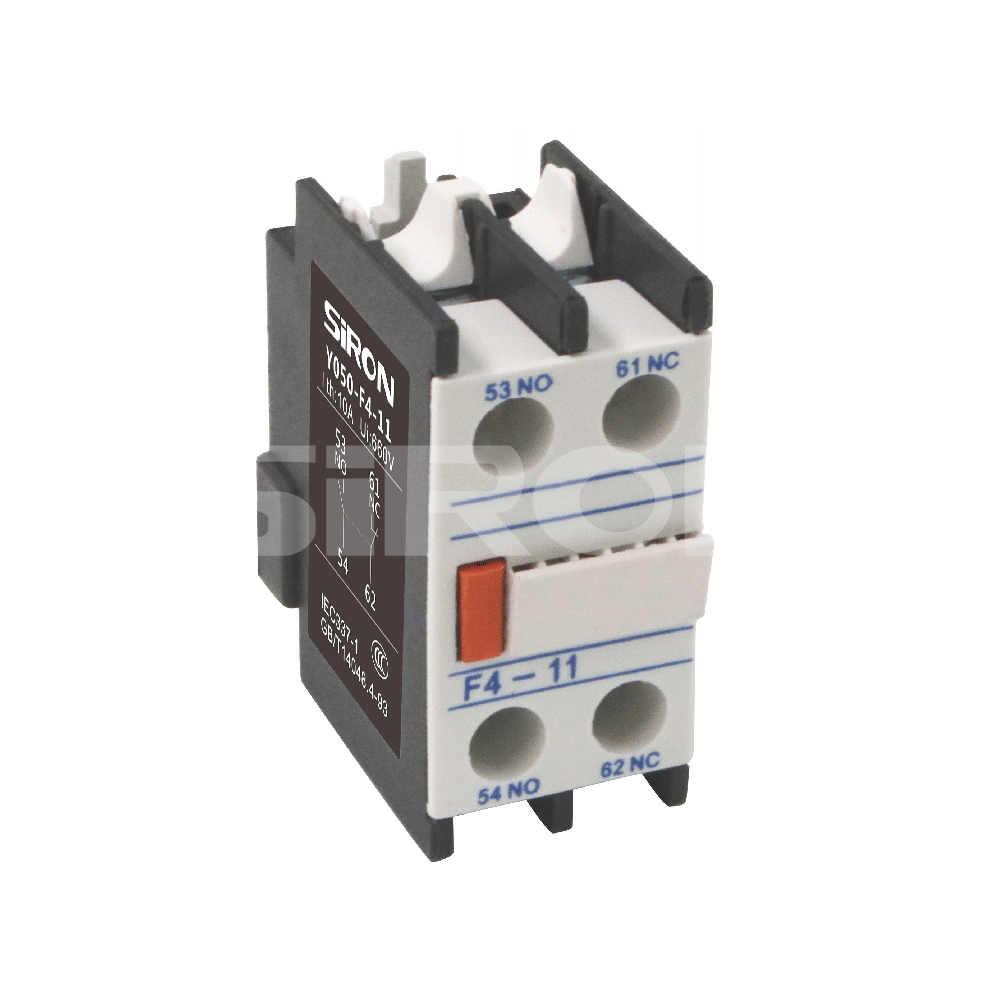

Examples of individual ordering of auxiliary contact groups: Y050-F4-11, Y050-F4-22
Specifications
| Table 1 | |||||||||||||||||||
| Main contact | 09 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | 115 | 150 | 170 | ||||||
| Rated cumen | 9A | 12A | 18A | 25A | 32A | 40A | 50A | 65A | 80A | 95A | 115A | 150A | 170A | ||||||
| Table 2 | |||||||||||||||||||
| Auxiliary contact | Number of contacts | Terminal marking | Suitable for rated current | ||||||||||||||||
| ( N O ) Normally open | ( N C ) Normaly closed | ||||||||||||||||||
| 01 | / | 1Normally closed auxiliary contact | / | 22 | 9A～32A | ||||||||||||||
| 10 | 1Always open auxiliary contacts | / | B4 | / | |||||||||||||||
| 11 | 1Always open auxiliary contacts | 1Normally closed auxiliary contact | 13 | 32 | 40A～95A | ||||||||||||||
| Note: The main contact current is within the range of 9-32A. If one normally open and one normally closed auxiliary contact are to be selected, the model selection of the auxiliary contact should be increased. For example, Y050-18-10 (main contact model)+Y050-F4-11 (auxiliary contact model), with a rated current of 115 to 170A but no auxiliary contacts. | |||||||||||||||||||
| Table 3: Coil Working Voltage | |||||||||||||||||||
| Rated curren | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | 115 | 150 | 170 | ||||||
| Coi working voltage | AC 220/380V | AC 36/110/127 /220/380V | |||||||||||||||||
| DC 12/24/36/63/127/220V | |||||||||||||||||||
