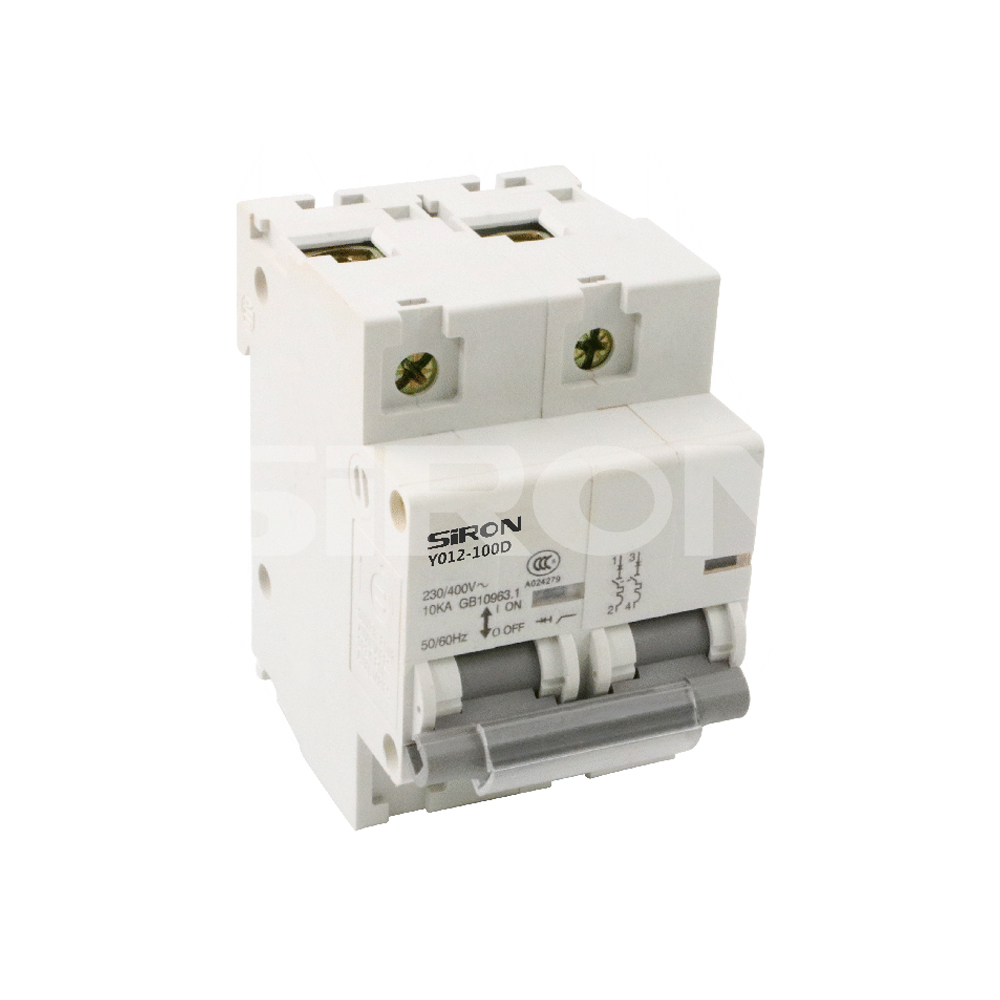

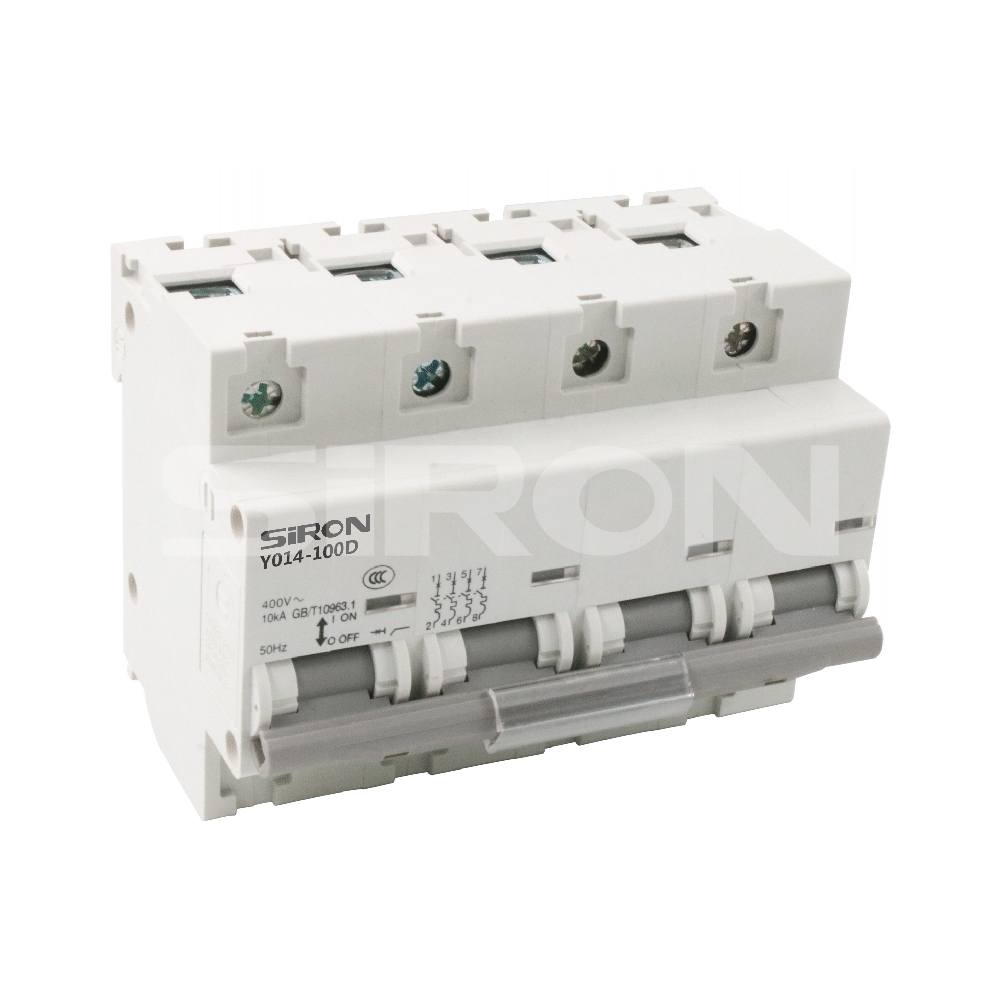

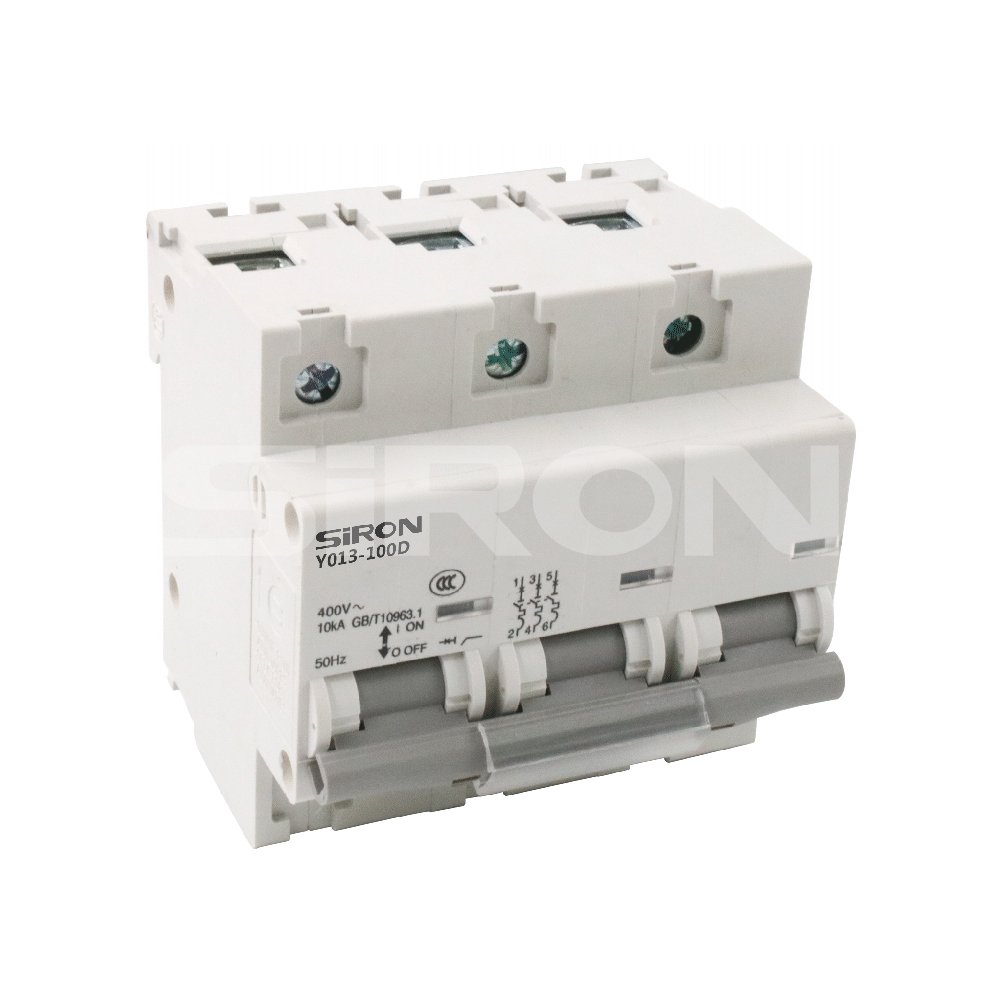

SiRON Y01 Series Power Protection Circuit Breaker

Name: SiRON Y01 Series Power Protection Circuit Breaker
Brand: SiRON
Rating: 5.0 (52 reviews)

Features

Mainly used for Ac 50 ~60Hz rated voltage 230~400V;
The shell is made of characteristic plastic with high flame retardant and high strength,
Strong impactresistance,light weight;
Power distribution system protection for commercial and industrial applications and high-riseresidential applications.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

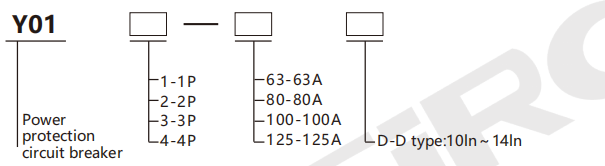

For Selection

Y01

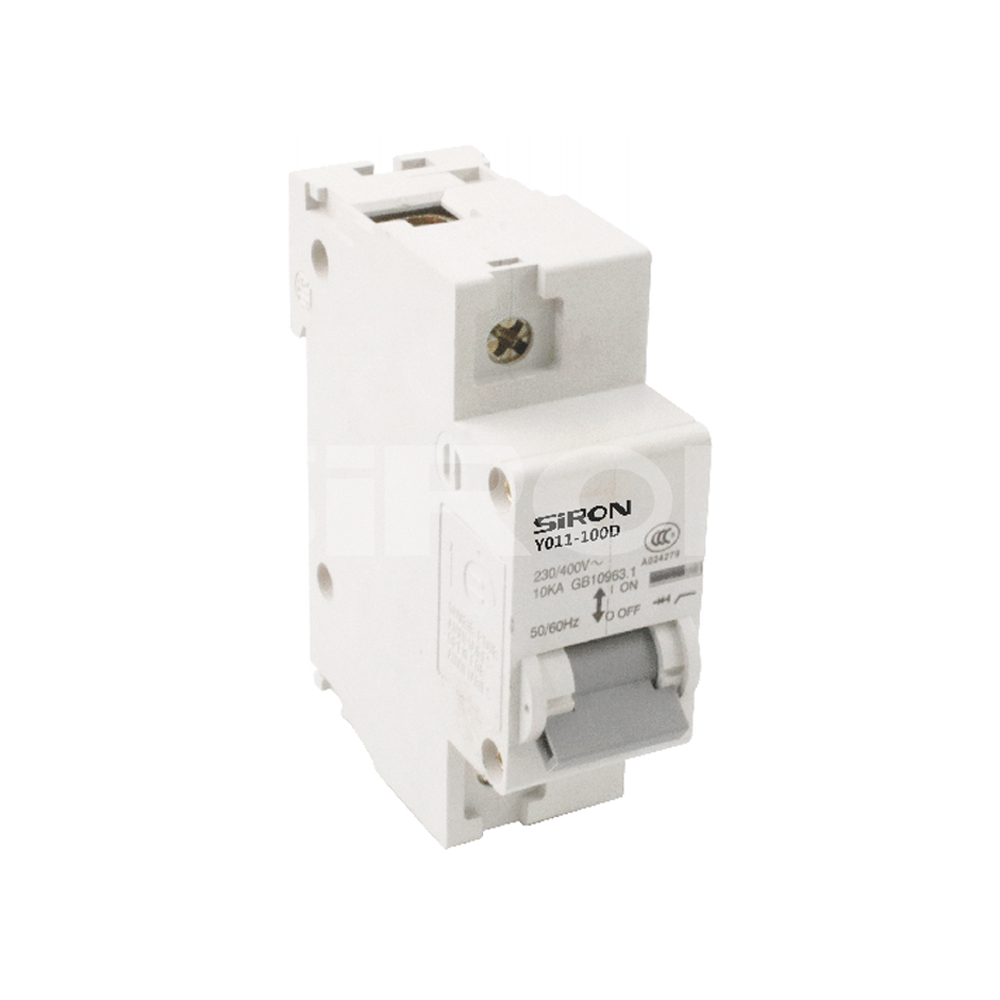

Selection example: Y011-100D indicates: Y01 series power protection circuit breaker, 1-pole, rated current 100A, trip curve D-type.

Type selection reference

Model	Y01Series
Number of poles	1P、2P、3P、4P
Tripping curves	Dtype(10~14)ln
Rated current	63A、80A、100A、125A
Nominal voltage	230～400V AC
Rated working voltage	130V	230V	400V
Breaking capacity	20000A	10000A	10000A
Mechanical life	No less than 10,000 times
Shock voltage	6KV
The isolation performance	Reliable
The wet and heat resistance	2Class (at a temperature of 55℃ and a relative humidity of 95%)
(mm²) Wiring	The use of terminal blocks with clamps can fix the cross-sectional area of the cable up to 50mm²
