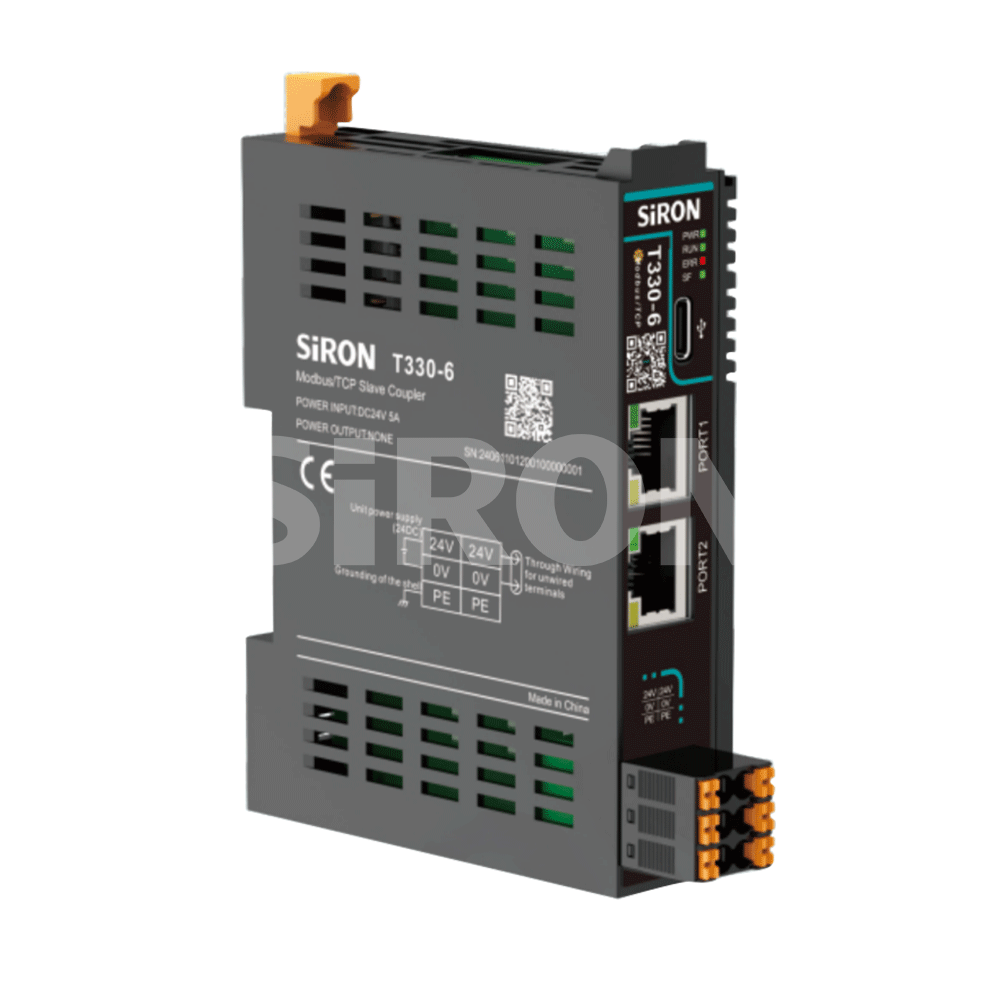

SiRON T330-6 IP20 Modbus/TCP Coupler

Name: SiRON T330-6 IP20 Modbus/TCP Coupler
Brand: SiRON
Rating: 5.0 (25 reviews)

Features

* The coupler supports Modbus/TCP protocol access;
* The coupler supports a maximum input/output of 10,000 bytes;
* Up to 32 expansion IO modules can be supported.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T330-6
Brand:
SiRON
Code:
8517799000

IP20 Modbus/TCP DIN rail Modbus/TCP DC 24V Modbus/TCP

Product Description

About selection

企业微信截图_1778220731870

Model Selection Example: T330-6 represents the blade-type I/O module series with Modbus/TCP coupler protocol.

Specification

Power parameters
Terminal input power supply rated voltage	24V DC(20.4VDC~28.8V DC)
Terminal input power supply rated current	5A(Typical value at 24V Dc)
Usys backplane output power supply rated voltage	5V DC(4.75VDC~5.25VDC)
Usys backplane output power supply rated current	2A(Typical value at 5V Dc)
Uin backplane output power supply rated voltage	24V DC(20.4VDC~28.8V DC)
Uin backplane output power supply rated current	4A(Typical value at 24V Dc)

Function parameters
Communication protocol	Modbus/TCP
Communication rate	10/100Mbps,adaptive,full-duplex
Address mapping	100 m
Diagnosis	Standard and Enhanced Diagnosis
lsolation method	Electrically isolated from site field circuit
Transmission medium	Cat5 Twisted Pair
IPaddress allocation method	Static IP allocation (configured by software through web pages and hardware dip switches) Support resetting to the default address(192.168.1254)
Minimum cycle time	502(Modbus TCP standard port)
Connection technology:Communication/Feeback Bus	Configure parameters through the web page
Connection technology	support 7
Connection type	Max 10000 Bytes
Winding area of the wire	01/02/03/04/05/06/15/16_
Striplength	BootLoader mode upgrade,UART serial port interface,YMODEM protocol
Installation method	Modbus/TCP IO:2xRJ-45
Shell material	PUSH-IN terminal block
Connecion type	System/On-site power supply/input
Winding area ofthe wire	26~16AWG/0.2~1.5mm²
sripping length	10mm
Installation method	DIN-35
Shell material	PC plastic

Environmental conditions
Alowable ambient temperature(during operation)	-40~75℃
Alowable ambient temperature (for storage)	-40~85℃
Protection type	IP20
Pollution grade	2
Operating altitude	0~2000m
Relative humidity(without condensation)	5~95%RH
