SiRON T306-6 Blade-type I/O module IP20 Modbus TCP

Name: SiRON T306-6 Blade-type I/O module IP20 Modbus TCP
Brand: SiRON
Rating: 5.0 (39 reviews)

Features

* Support EtherNet/IP protocol access;
* Rail installation or screw hole installation;

* Ip20 protection grade;
* Plug-in shrapnel terminal: I/O port with power or common end, convenient sensor, solenoid valve and other wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

About selection

企业微信截图_1764557587507

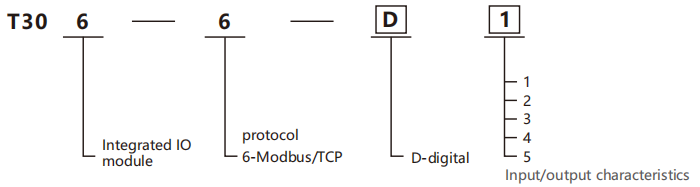

Selection example: T306-6-D1 represents the integrated IO module series, with the protocol being Modbus/ TCP.

It features 16-channel digital input and 16-channel digital (transistor) output (NPN).

Input/output characteristics (digital)

Code	Input	Output
1	16 channels digital input	16 channels digital (transistor)output(NPN)
2*	16 channels digital input	16 channels digital (transistor)output(PNP)
3	32 channels digital input	0 channels digital output
4	0 channels digital input	32 channels digital (transistor)output(NPN)
5*	0 channels digital input	32 channels digital (transistor)output(PNP)

Specification

Power source	Nominal:24V,allowable range:18-30V,Max:150mA
Transmit	It is subject to the protocol
Wiring	Cold-pressed wire length of 0.3mm 2(22AWG)to 1mm 2(17AWG):10mm
Exlemalconnection	Plug-in spring terminal
Installation mode	35mm DIN-rail mounting
Weight	≈136g

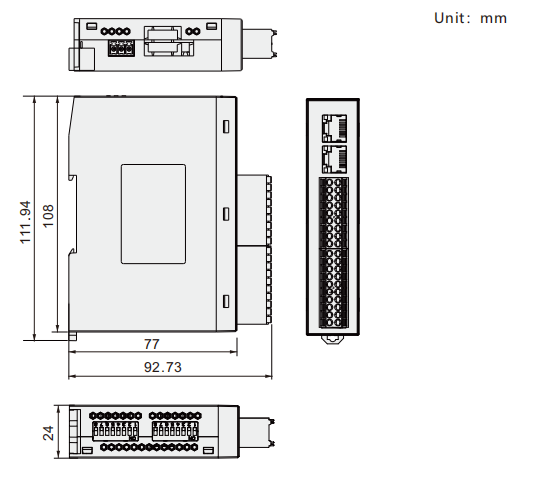

Dimension	108×24×77mm
Operating temperature	-10~+55℃
Sorage temperature	-25～+85℃
Relafive humidity	5%to 95%no condensation
Class of protection	IP20
Use occasion	Avoid dust,oilmist and corrosive gases

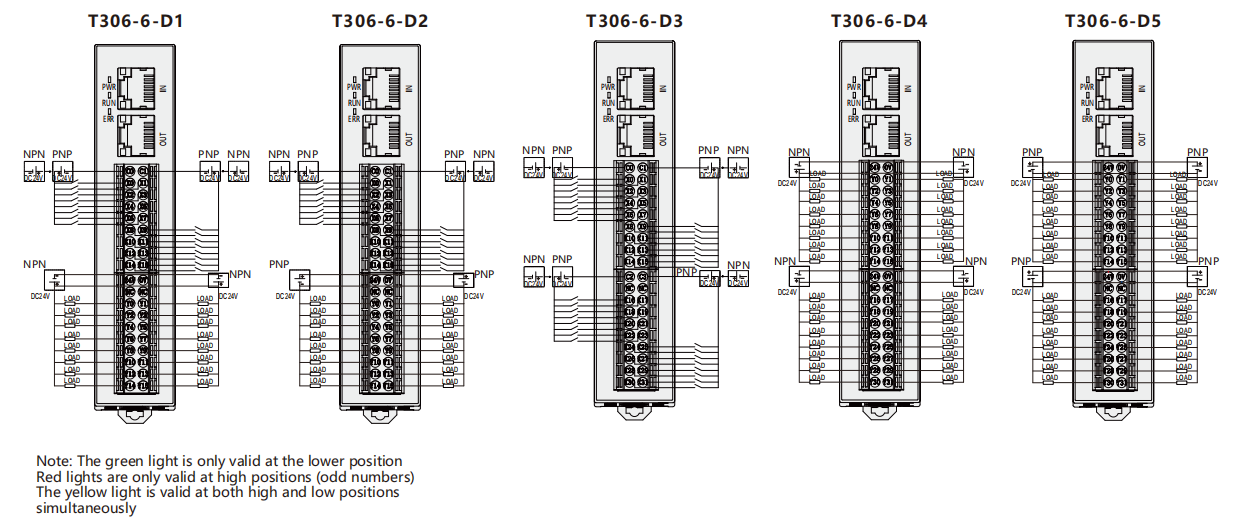

Digital input/output

Model number	T306-6-D1	T306-6-D2	T306-6-D3
Type	Optocoupler input NPN is compatible with PNP output NPN	Optocoupler input NPN is compatible with PNP output PNP	Optocoupler input NPN is compatible with PNP
Current consumption	128mA		100mA
lsolate	IO to internal bus:500V optocoupler isolation
0"signal voltage	NPN:12～30V;PNP:0～5V
"1"signal voltage	NPN:0～5V;PNP:12～30V
ON/OF response time	Input:30us/10us;Output:12us/40us		Input:30us/10us
Loadcapacity	Nominal :300mA,single channel:up to 500mA, continuous 8-channel:up to 2A		/
Loadtype	Resistive load,inductive load,lamp load
Diagnosis and alarm	support

Digital output

Model number	T306-6-D4	T306-6-D5
Type	output NPN	output PNP
Current consumption	156mA
lsolate	IO to internal bus:500V optocoupler isolation
ON/OF response time	Output:12us/40us
Load capacity	Nominal:300mA,single channel:maximum:500mA,continuous 8-channel:maximum:2A
Load type	Resistive load,inductive load,lamp load
Diagnosis and alam	support
