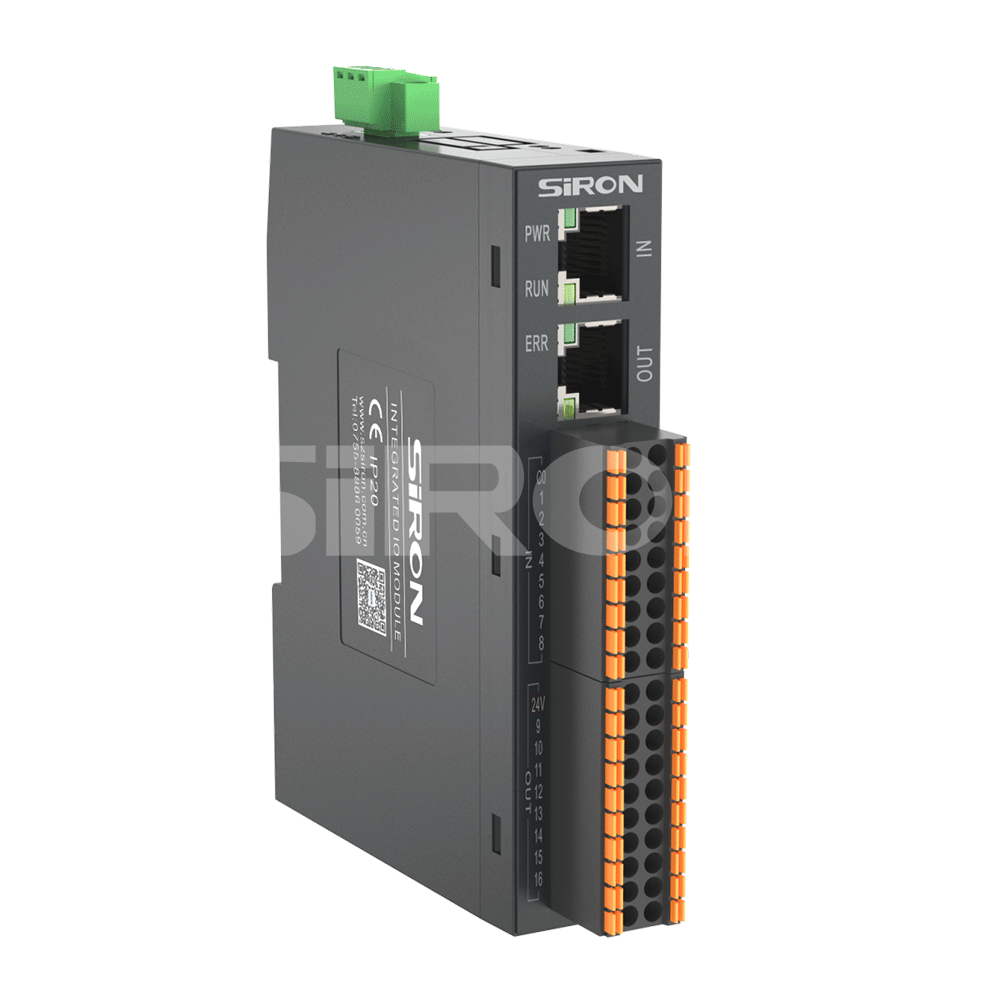

SiRON T306-2 Blade-type I/O module IP20 PROFINET

Name: SiRON T306-2 Blade-type I/O module IP20 PROFINET
Brand: SiRON
Rating: 5.0 (42 reviews)

Features

* Support PROFINETprotocol access;
* Rail installation or screw hole installation;

* Ip20 protection grade;
* Plug-in shrapnel terminal: I/O port with power or common end, convenient sensor, solenoid valve and other wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T306-2
Brand:
SiRON
Code:
8517799000

IP20 Profinet DIN rail Profinet DC 24V Profinet

Product Description

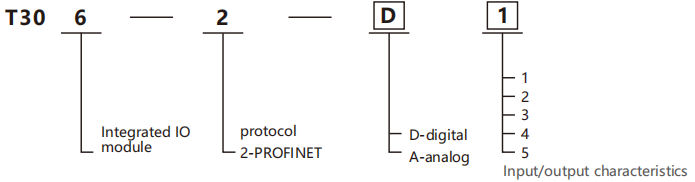

About selection

企业微信截图_17562034308715

Selection example: T306-2-D1 represents the integrated IO module series, with the protocol being PROFINET.It features 16-channel digital input and 16-channel digital (transistor) output (NPN).

Input/output characteristics (digital)

Code	Input	Output
1	16 channels digital input	16 channels digital (transistor)output(NPN)
2*	16 channels digital input	16 channels digital (transistor)output(PNP)
3	32 channels digital input	0 channels digital output
4	0 channels digital input	32 channels digital (transistor)output(NPN)
5*	0 channels digital input	32 channels digital (transistor)output(PNP)

Input/output characteristics (analog)

Code	Input	Output
1	8 channels analog input(0-5V,0-10V)	0 channels analog output
2	0 channels analog input	8 channels analog output(0-5V,0-10V)
3	8 channels analog input(0-20mA,4-20mA)	0 channels analog output
4	0 channels analog input	8 channels analog output(0-20mA,4-20mA)

Specification

Power source	Nominal:24V,allowable range:18-30V,Max:150mA
Transmit	It is subject to the protocol
Wiring	Cold-pressed wire length of 0.3mm 2(22AWG)to 1mm 2(17AWG):10mm
Exlemalconnection	Plug-in spring terminal
Installation mode	35mm DIN-rail mounting
Weight	≈136g

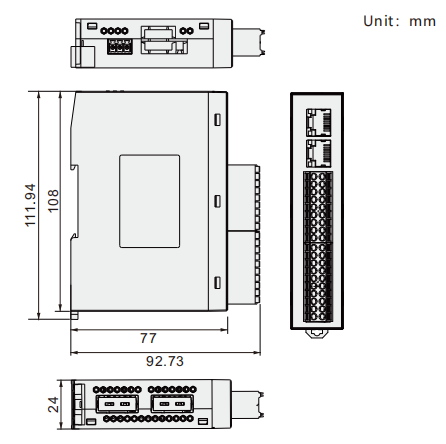

Dimension	108×24×77mm
Operating temperature	-10~+55℃
Sorage temperature	-25～+85℃
Relafive humidity	5%to 95%no condensation
Class of protection	IP20
Use occasion	Avoid dust,oilmist and corrosive gases

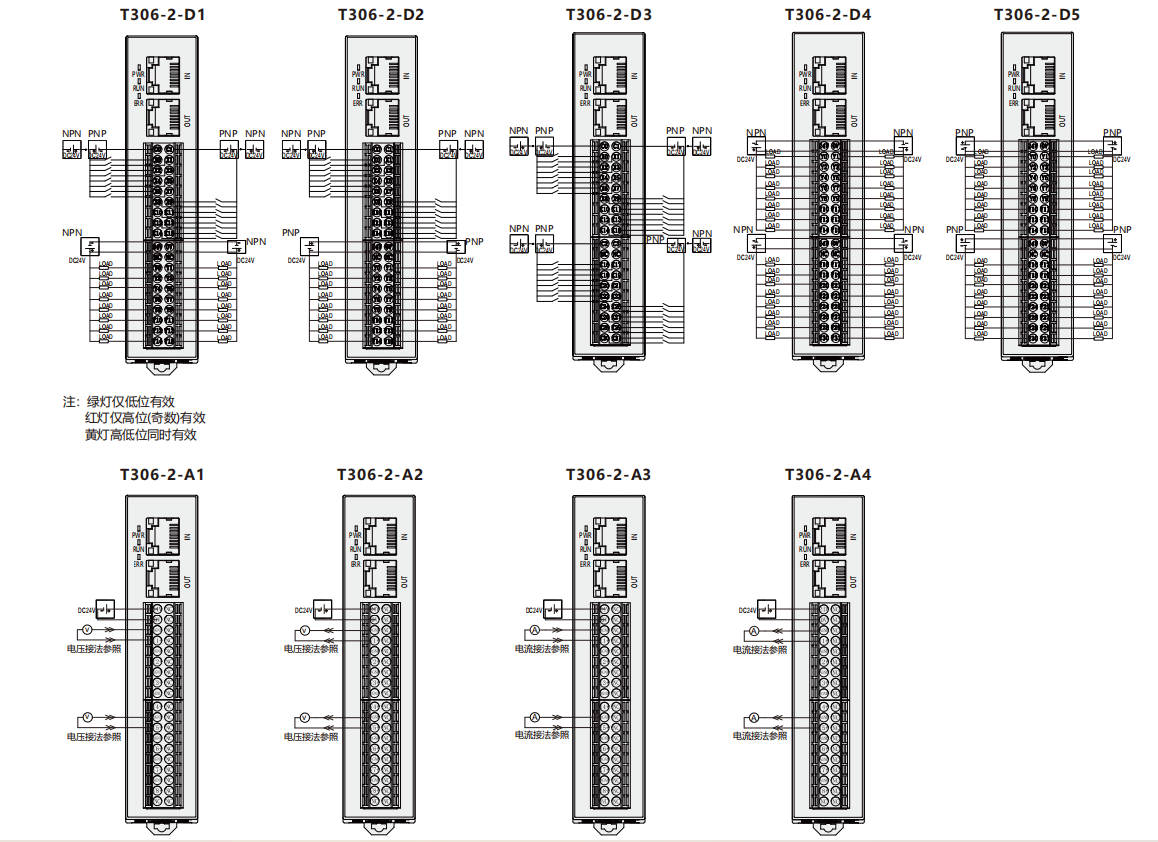

Digital input/output

Model number	T306-2-D1	T306-2-D2	T306-2-D3
Type	Optocoupler input NPN is compatible with PNP and outputs NPN	Optocoupler input NPN is compatible with PNP and outputs PNP	Optocoupler input NPN is compatible with PNP
Current consumption	128mA		100mA
lsolate	IO to internal bus:500V optocoupler isolation
”0signal voltage	NPN:12～30V;PNP:0～5V
"1"signal voltage	NPN:0~5V;PNP:12～30V
ON/OF response time	Input:30us/10us;Output:12us/40us		Input:30us/10us
Loadcapacity	Nominal :300mA,single channel:up to 500mA, continuous 8-channel:up to 2A		/
Loadtype	Resistive load,inductive load,lamp load
Diagnosis and alarm	Support
