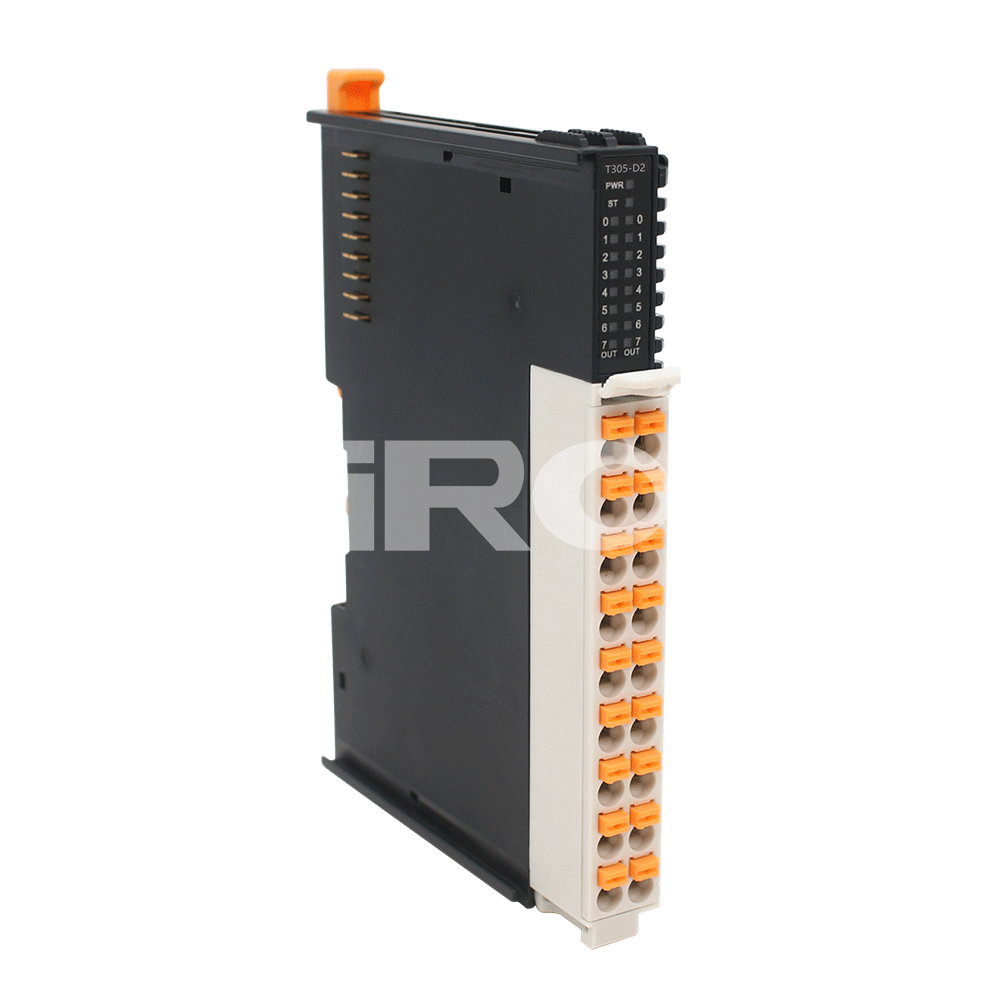

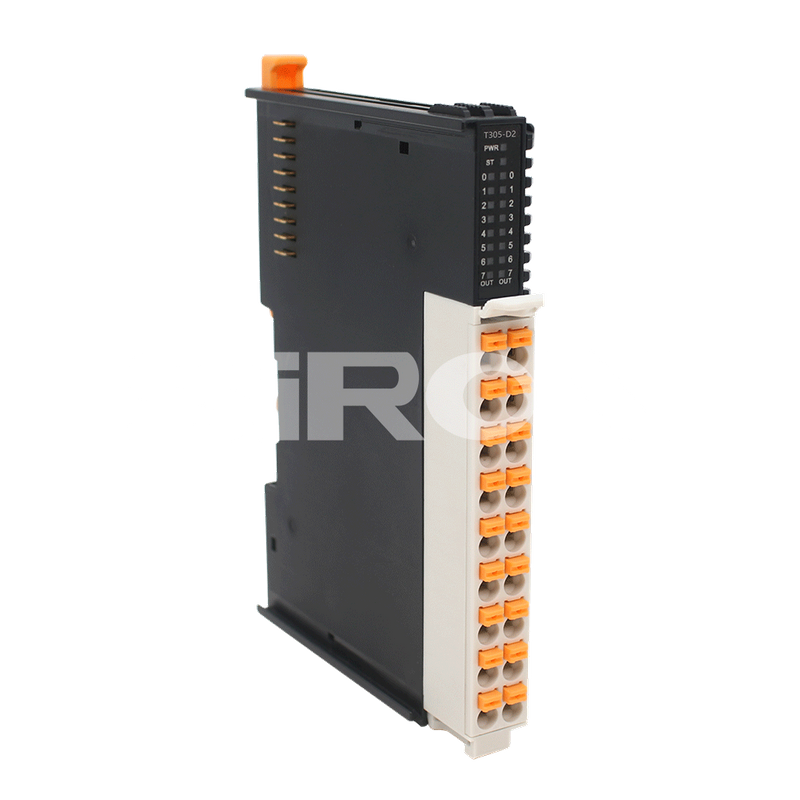

SiRON T305-D Ultra-thin card-type I/O IP20 Expansion Digital Module

Name: SiRON T305-D Ultra-thin card-type I/O IP20 Expansion Digital Module
Brand: SiRON
Rating: 5.0 (31 reviews)

Features

* Blade shape design, smaller volume, more convenient installation;

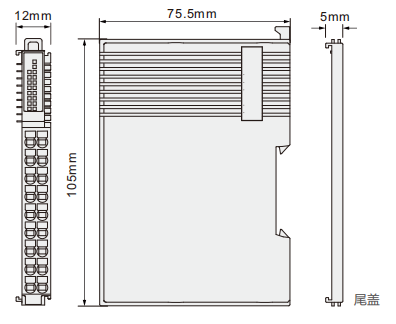

* The width is as thin as 12mm, saving 60% of the installation space than the traditional module with the same function;
* Detachable, push-down terminal design saves 50% man-hours for installation and wiring

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T305-D
Brand:
SiRON
Code:
8517799000

IP20 Expansion Digital 0.5A Expansion Digital DC 24V Expansion Digital

Product Description

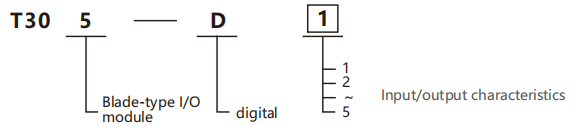

About selection

企业微信截图_17561923992185

Selection example: T305-D1 represents the bladed I/O module series, with digital, input/output characteristics: 16-channel digital input, 0-channel digital output.

Input/output characteristics

Code	Input	Output
1	16 channels digital input(NPN&PNP)	0 channels digital output
2	0 channels digital input	16 channels digital (transistor)output(NPN)
3	0 channels digital input	16 channels digital(transistor)output(PNP)
4	8 channels digital input(NPN)	8 channels digital (transistor)output(NPN)
5*	8 channels digital input(NPN)	8 channels digital (transistor)output(PNP)

Specification

input signal

Signal type	NPN/PNP	Input fitering	1～50ms
Rated voltage	24VDC(±20%)	Input current	5mA
“0”Indicates that the signal type is NPN	-5~+5V DC	Isolation mode	opto-isolator
"1"Indicates the signal type NPN	+19~+30V DC	solatian voltage	500V
"0"signal type PNP	-5~+5V DC	Indicator light	green LED
"1"signal type PNP	+19~+30V DC	Common teminal connectian	Eight points form a common end

output signal

Output type	NPN/PNP	Isolaion mode	opto-isolator
Output volage	24VDC/OVDC	Isolatian voltage	500V
Output aurent	0.7A	Port prolaction	Overvoltage and overcurrent protection
Switching delay	100μs	Piot lamp	green LED
Load type	Inductive load,resistive load	Common frminal connection	Eight points form a common end
