SiRON T305-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module

Name: SiRON T305-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module
Brand: SiRON
Rating: 5.0 (61 reviews)

Features

* Blade shape design, smaller volume, more convenient installation;
* The width is as thin as 12mm, saving 60% of the installation space than the traditional module with the same function;
* Detachable, push-down terminal design saves 50% man-hours for installation and wiring

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T305-A
Brand:
SiRON
Code:
8517799000

IP20 Expansion Analog Module 0.5A Expansion Analog DC 24V Expansion Analog

Product Description

About selection

企业微信截图_17561919633983

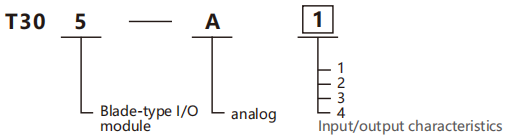

Selection example: T305-A1 represents the blade-type I/O module series. Analog, input/output characteristics: 4-channel analog input (-10 to +10V,0 to 20mA), 0-channel analog output.

Input/output characteristics

Code	Input	Output
1	4 channels analog input(-10~+10V,0~20mA)	0 channels analog output
2	0 channels analog input	4 channels analog output(0~10V,0~20mA)
3	4 channels thermocouple input(TC)	0 channels analog output
4	4 channels thermal resistance input(RTD)	0 channels analog output

Specification

input signal

Input signal wolagetype	-10V~+10V DC
Input signal aurrent type	0~20mA
Resolution	16Bit
Sampling rate	1~10ms
Predision	0.5%
Input impedance	100KQ
Piotlamp	green LED
Range	0~20mA/0~27648;-10V~+10V/-27648~+27648

output signal

Voltage type outputsignal	0~10V DC
Currenttype outputsignal	0~20mA
Resolution	15Bit
Reacfion time	1~10ms
Precision	0.5%
Load impedance volage type	10KΩ min
Load impedance current type	10 min
Piotlamp	green LED
Range	0~20mA/0~27648;0~10V/0～27648
