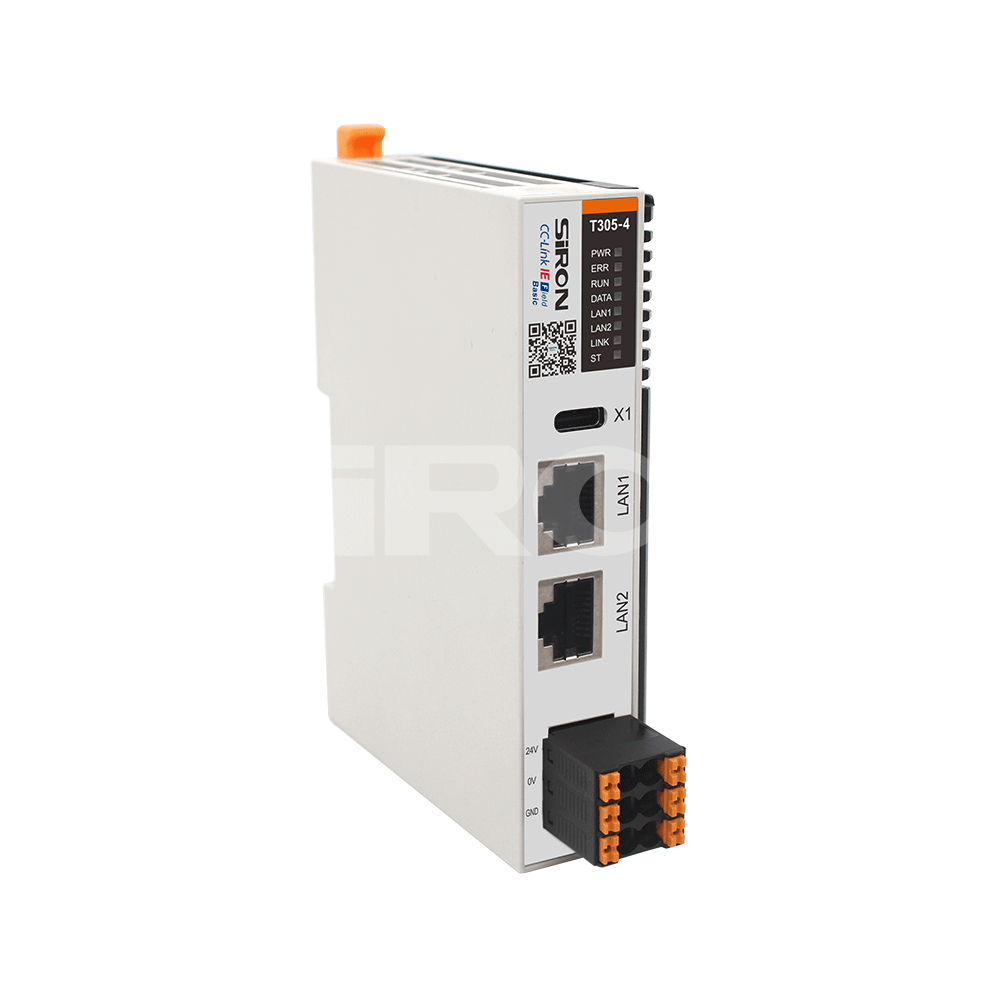

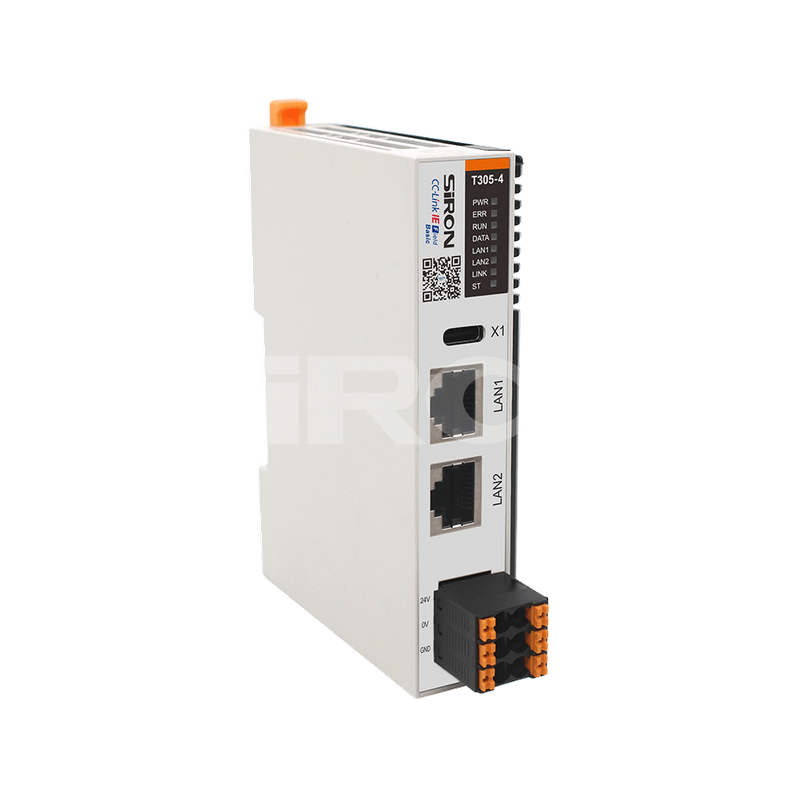

SiRON T305-4 Blade-type I/O module IP20 CC-Link IE Field Basic Coupler

Name: SiRON T305-4 Blade-type I/O module IP20 CC-Link IE Field Basic Coupler
Brand: SiRON
Rating: 5.0 (1 reviews)

Features

* Coupler supports CC-Link IE Field Basic protocol access; Industrial network bus adopts 100 megabit network design;
* The backplane bus uses a synchronous clock to synchronize the data of a variety of functional modules into a microsecond response;
* Can expand up to 8 modules, full switching: maximum 64DI/64DO.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T305-4
Brand:
SiRON
Code:
8517799000

IP20 CC-Link IE Coupler 0.5A CC-Link IE Coupler DC 24V CC-Link IE Coupler

Product Description

About selection

企业微信截图_1756191561328

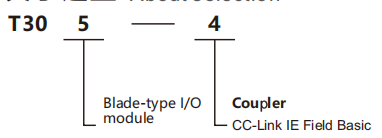

Selection example: T305-4 represents the blade I/O module series, and the coupler protocol is CC-Link IE Field Basic.

Specification

Bus protoool	CC-Link IE Field Basic
Supply voltage	DC24V
Supply current	0.5A
Operating temperature	-20~+55℃
Working humidity	10%to 90%RH,condensation
Use ervironment	In situations where there are no corrosive substances, flammable gases, or conductive dust (dust) is not severe
Sbrage mperature	-40~+70℃
Altitude	≤2000m
Pollution level	2
Immunity to interference	power cable 2kV
Overvlage class	I
EMC ant-interference level	Zone B
Vibration resistance	5-8.4Hz,3.5mm,8.4-150Hz,1g,X/Y/Z three axes,10 cycles per axis
Impact resistance	150m/s 2,11ms,±XN/Z six directions,3 times per direction,for a total of 18 times
Class of protection	IP20
Dimension	75.5×110×22mm
Weight	≈100g

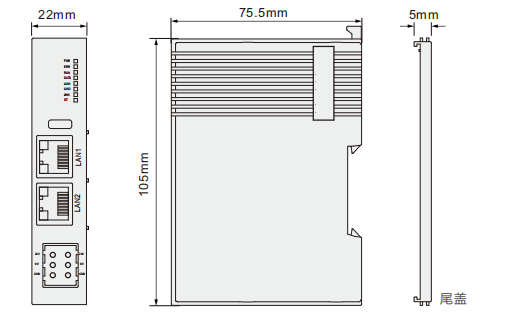

Dimensions

企业微信截图_17678427381932

Status indicator description

Name	Description	Instructions
PWR	power light	The DC24V power connection usually shows a green light
ERR	red light	A slowflash once upon startup is a hardware self-check. Constant light - indicates a failed hardware self-check 1. Flashing (0.5-second cycle)- The number or type of modules does not match the configuration software; 2. Flashing (1-second cycle)- Module data reception error 3. Flashing (2s cycle)- Module data transmission error

RUN	green light	A slowflash once upon startup is a hardware self-check. No light - No PROFINET network 1. Flickering (1-second cycle)- PROFINET network available but normal communication has not been established; 2. Flashing (0.5-second cycle)- The flashing light is controlled by the configuration software 3. Always on -PROFINET network is in normal communication

DATA	green light	1.No light -The module network card is not receiving any data 2. Flashing - The module network card has received data but has not established normal communication with the module 3. Always on - The module network card is communicatingwith the module

LAN1/LAN2	green light	1. Always-off - Network port 1/2 is disconnected. 2. Always on - Network port 1/2 is connected; 3. Flash - In communication at network Port 1/2
Link	green light	1. A flash upon startup indicates a self-check of the module link. 2. No light - The module link is not connected.3. Always on - The module link is normal; 4. Flash - The module communicates normally

ST	Backplane bus detection indicator light	When an expansion module is detected, it flashes rapidly; when no module is detected or the communication is abnormal, it flashes slowly
