SiRON T303-P1 Ultra-thin All-in-one I/O IP20 Expansion Power Module

Name: SiRON T303-P1 Ultra-thin All-in-one I/O IP20 Expansion Power Module
Brand: SiRON
Rating: 5.0 (96 reviews)

Features

* Remote I/O expansion, 24V power module;
* The power module does not participate in bus data interaction, and the model is not displayed on each PLC configuration and programming software interface when combined with other functional modules.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T303-P1
Brand:
SiRON
Code:
8517799000

IP20 Expansion Power RJ45 Expansion Power DC 24V Expansion Power

Product Description

About selection

企业微信截图_17561905027307

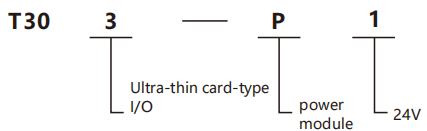

Selection example: T303-P1 represents the ultra-thin card-type I/O series, power module, 24V.

Note: When the expansion module exceeds 8 pieces, it is recommended to add a power module.

Specification

Model number	T303-P1

nput supply voltage	Nomina:24V±5%
Output system voltage	5V±5%(Module bus usage)
Output system voltage	24±5%(Power supply for the expansion module)
Output system current	<2000mA

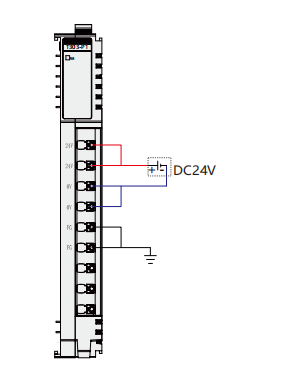

Powerinput	Nominal:24V supports reverse connection protection
Instructions for use	When the number of T303 expansion modules is 8or more,it is recommended to add this module
Weight	140g
Class of protection	IP20
Operating temperature	-10～55℃
Storage temperature	-25～85℃
Relative humidity	5%to 95%no condensation
Wiring	0.3mm²(22AWG)~1mm²(17AWG)
Installation mode	35mm DIN-rail mounting

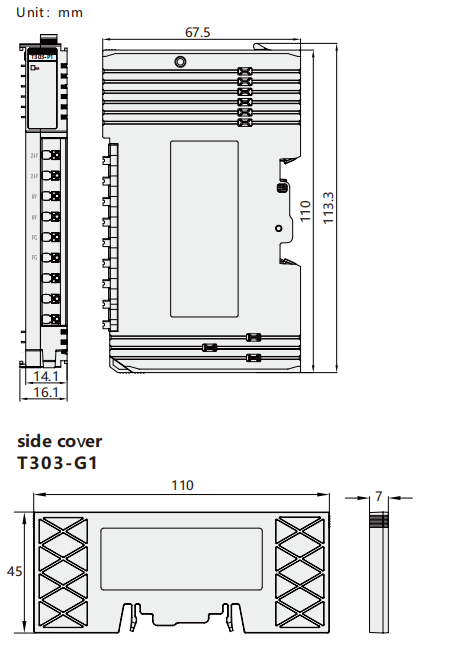

Dimension	113.3×16.1×67.5mm
