SiRON T303-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module

Name: SiRON T303-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module
Brand: SiRON
Rating: 5.0 (42 reviews)

Features

* Thin design, smaller volume；
* Parallel interface, fast speed;
* Pin bus extension interface, plug and play, no additional wiring;
* Visual channel indicator design, debugging, maintenance at a glance

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T303-A
Brand:
SiRON
Code:
8517799000

IP20 Expansion Analog Module RJ45 Expansion Analog DC 24V Expansion Analog

Product Description

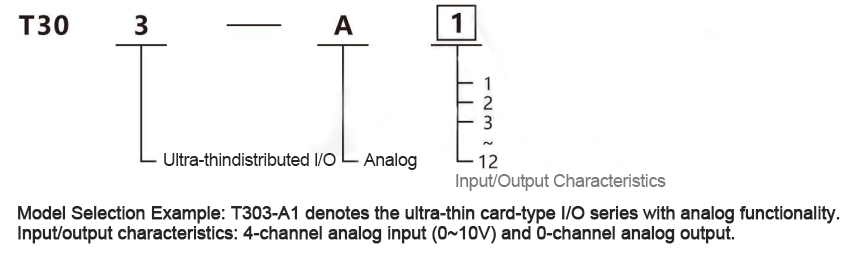

About selection

企业微信截图_17663655095106

Selection example: T301-A12 represents the ultra-thin distributed I/O series, analog Input/output characteristics: 4-channel analog input, 0-channel analog output, interface form: press terminal.

Input/output characteristics

Code	Input	Output
1	4 channels analog input(0～10V)	0 channels analog output
*2	4 channels analog input(-10～10V)	0 channels analog output
3	4 channels analog input(0~20mA)	0 channels analog output
4	8 channels analog input(0～10V)	0 channels analog output
*5	8 channels analog input(-10～10V)	0 channels analog output
6	0 channels analog input	4 channels analog output(0～10V)
*7	0 channels analog input	4 channels analog output(-10～10V)
8	0 channels analog input	4 channels analog output(0~20mA)
9	0 channels analog input	8 channels analog output(0～10V)
*10	0 channels analog input	8 channels analog output(-10~10V)
11	8 channels analog input(0~20mA)	0 channels analog output
12	0 channels analog input	8 channels analog output(0~20mA)

Specification

Model number	T303-A1	T303-A2	T303-A3	T303-A4	T303-A5	T303-A11

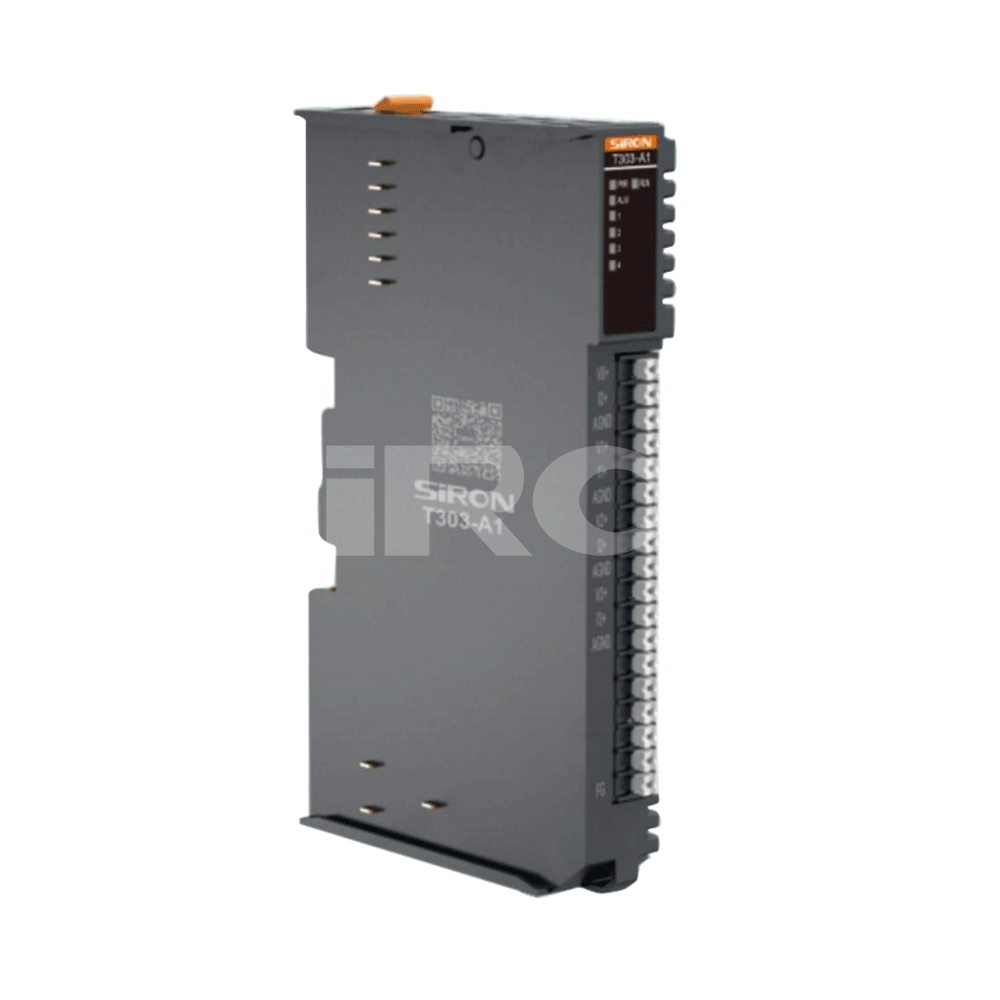

Appearance
Number of channels	4	4	4	8	8	8
Type	voltage input	voltage input	current input	voltage input	voltage input	current input
Inputrange	0~10V	-10～10V	0~20mA	0～10V	-10～10V	0～20mA
Current consumption	140mA	140mA	140mA	140mA	140mA	140mA
Weight	140g
Cable length	Max:300m
Resolution	16bit
Precision	±0.2%25℃
Digital-analog omespondence	0～65535
Hardware filtering	0.5ms
Sampling speed(bus)	1MS/channel
lsolate	Optocoupler Isolation 500V
Power source	24V
Classof protection	IP20
Operating temperature	-10～55℃
Storage temperature	-25～85℃
Relativehumidity	5%～95%No Condensation
Wining	0.3mm²(22AWG)~1mm²(17AWG)
Installation mode	35mm din mount

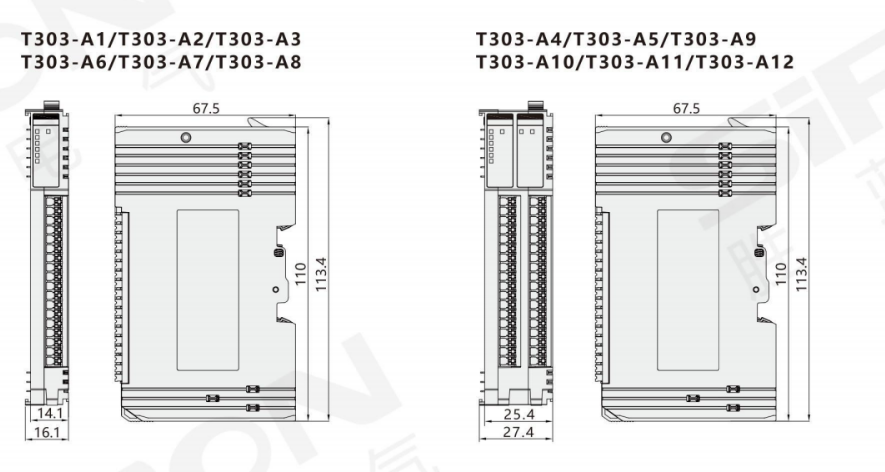

Dimension	113.4×16.1×67.5mm

Modelnumber	T303-A6	T303-A7	T303-A8	T303-A9	T303-A10	T303-A12

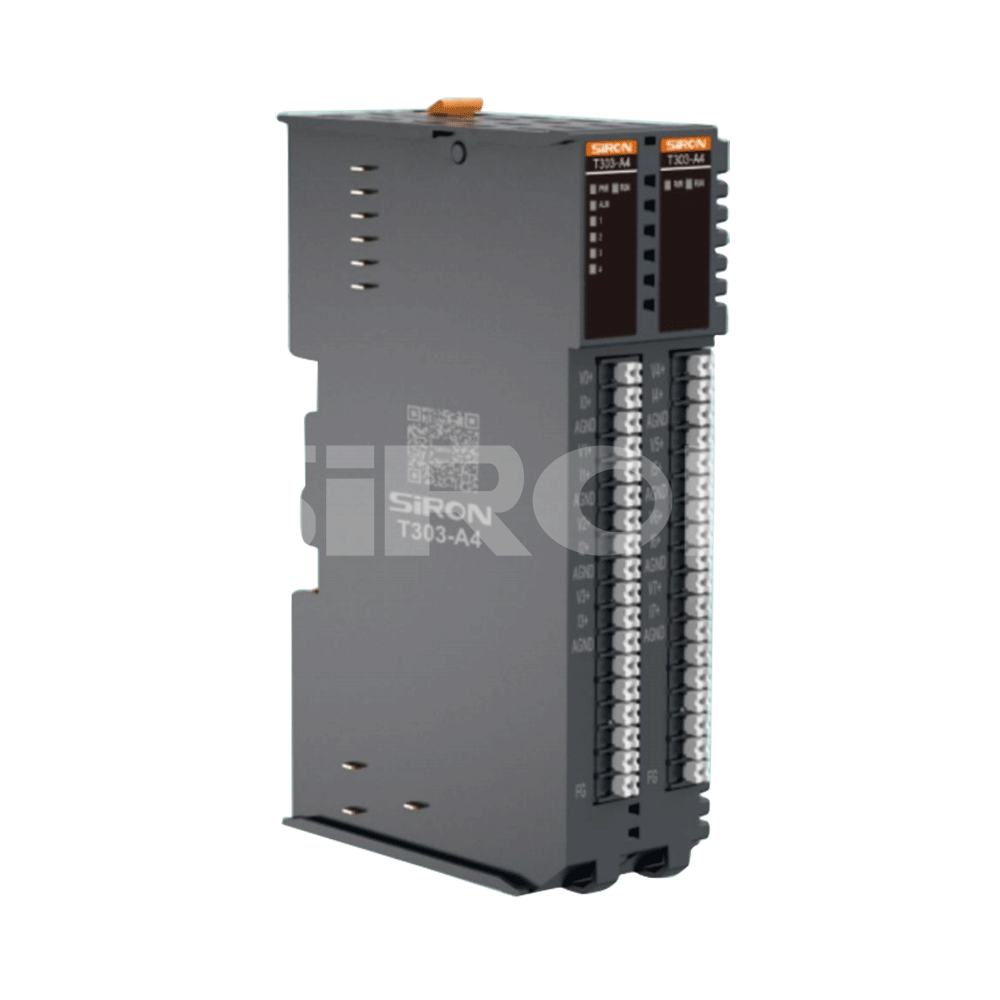

Appearance
Number of channels	4	4	4	8	8	8
Type	voltage output	voltage output	current output	voltage output	voltage output	current output
Output range	0~10V	-10～10V	0~20mA	0~10V	-10～10V	0~20mA
Curent consumpfion	140mA	140mA	140mA	140mA	140mA	140mA
Weight	140g
Cable length	Max:300m
Resolution	16bit
Precision	±0.02%25℃
Digital-analog corespondence	0~65535
Hardware fitering	0.5ms
Sampling sped (bus)	1MS per channel
Isolate	Optocoupler isolation500V
Powersource	24V
Class ofprotection	IP20
Operating temperature	-10~55℃
Storage temperature	-25~85℃
Relative humidity	5%~95%non-condensing
Wining	0.3mm²(22AWG)~1mm²(17AWG)
Installation mode	35mm DIN-rail mounting
Dimension	113.4×16.1×67.5mm
