SiRON T303-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module

Name: SiRON T303-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module
Brand: SiRON
Rating: 5.0 (32 reviews)

Features

* Thin design, smaller volume；
* Parallel interface, fast speed;
* Pin bus extension interface, plug and play, no additional wiring;
* Visual channel indicator design, debugging, maintenance at a glance

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T303-A
Brand:
SiRON
Code:
8517799000

IP20 Expansion Analog Module RJ45 Expansion Analog DC 24V Expansion Analog

Product Description

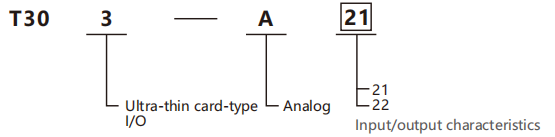

About selection

企业微信截图_17636164559076

Selection example: T303-A21 represents the ultra-thin card-type I/O series, analog quantity, input/output characteristics: 8-channel temperature module K-type thermocouple input, 0-channel temperature module output.

Input/output characteristics

Code	Input	Output
21	8 channels temperature module K-type thermocouple input	0 channel temperature module output
22	4-channel temperature module PT100 thermal resistor input	0 channel temperature module output

Specification

Model number	T303-A21	T303-A22

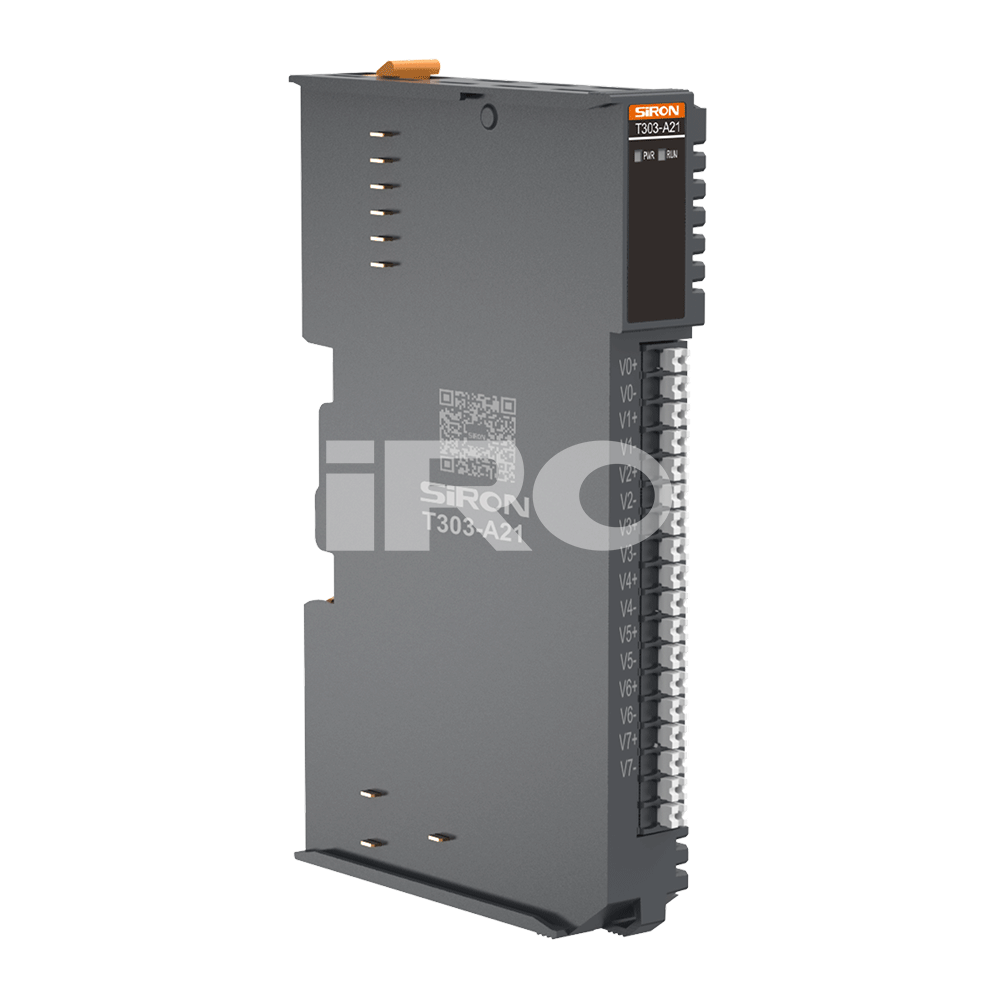

Appearance
Numberof channels	8	4
Type	K type	PT100
Inpu range	-200～1370℃	-200～200℃
Digital-analog correspondence	-2000～13700	-2000~2000
Weight	140g
Cable length	Max:300m

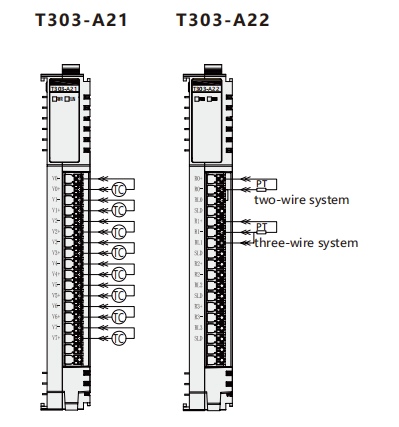

Connection mode	Two-wire system	Two-wire system or three-wire system
Precision	0.1℃
isolate	Optocoupler isolation 500V
Power source	24V
Class of proteclion	0.3mm²(22AWG)~1mm²(17AWG)
Operating temperature	-10~55℃
Storage temperature	-25～85℃
Relative humidity	5%to 95%no condensation
Wiring	IP20
Installation mode	35mm DIN-rail mounting

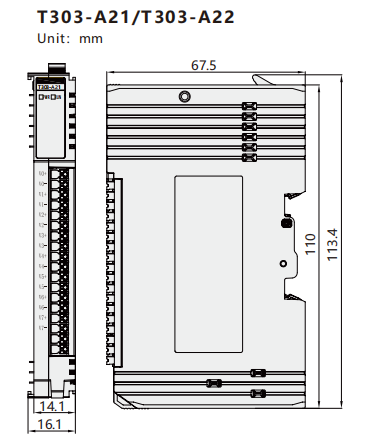

Dimension	113.4×16.1×67.5mm
