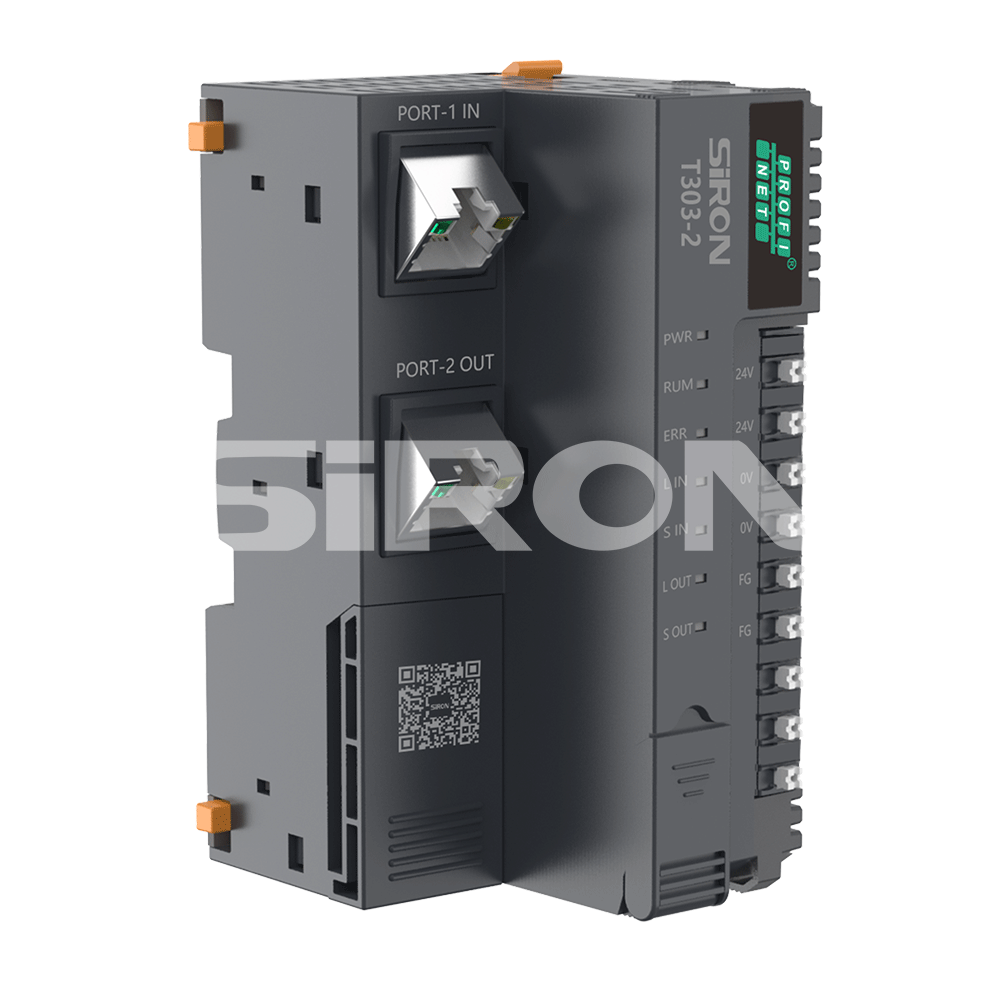

SiRON T303-2 Ultra-thin card-type I/O IP20 PROFINET Coupler

Name: SiRON T303-2 Ultra-thin card-type I/O IP20 PROFINET Coupler
Brand: SiRON
Rating: 5.0 (27 reviews)

Features

* Coupler supports PROFINET protocol access;
* Coupler supports maximum input 1024 bytes, maximum output 1024 bytes;
* Supports up to 16 extended IO modules.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T303-2
Brand:
SiRON
Code:
8517799000

IP20 Profinet Coupler RJ45 Profinet Coupler DC 24V Profinet Coupler

Product Description

About selection

企业微信截图_17561104383420

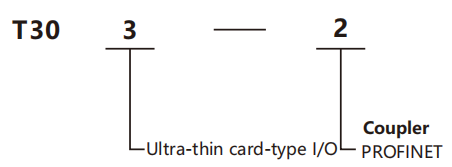

Selection example: T303-2 represents the ultra-thin card-type I/O series, with the coupler protocol being PROFINET

Specification

Model number	T303-2
Bus protocol	PROFINET	Expand the number of l/O slices	16
Address setting	According to the main site	Extended specification	It is recommended to add a power module if there are more than 8 pieces
Maximum transmission distance	100m(Station distance)	Maximum IO count	512 points
Communication cable	Category 5 twisted pair cable	Input/output maximum bytes	1024 bytes
Bus rate	100Mbps	Class of protection	IP20
Diagnosis and warning	support	Operating temperature	-10～+55℃

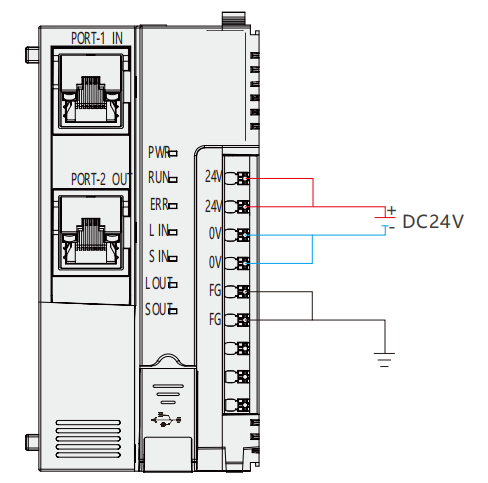

System power supply	24V(18～36V)	Storage temperature	-25～+85℃
Supply current	Maximum 2A	Relative humidity	5% to 95% nocondensation
Current consumption	70mA	Wiring	0.3mm²(22AWG)-1mm²(17AWG)
lsolate	System power to IO	Installation mode	35mm rail installation

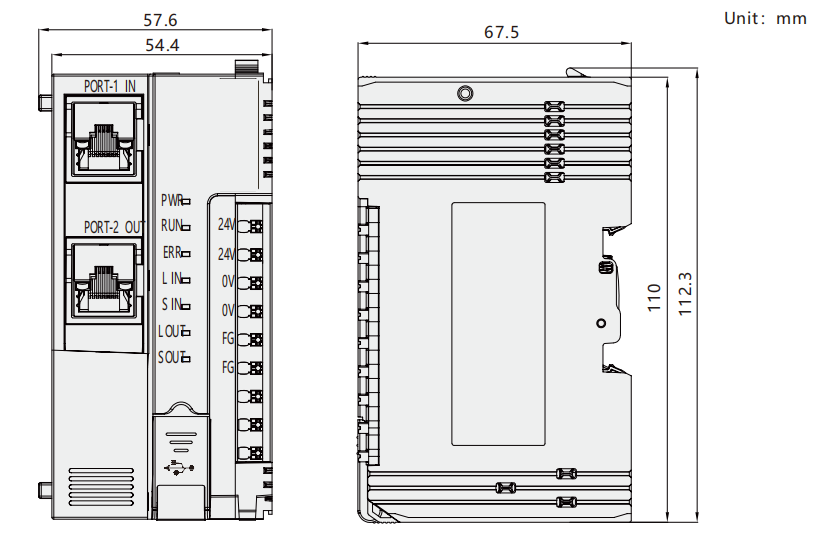

Network interface	2*RJ45	Dimension	112.3×57.6×67.5mm
Pilotlamp	PWR power supply,RUN operating status,ERR fault indication
