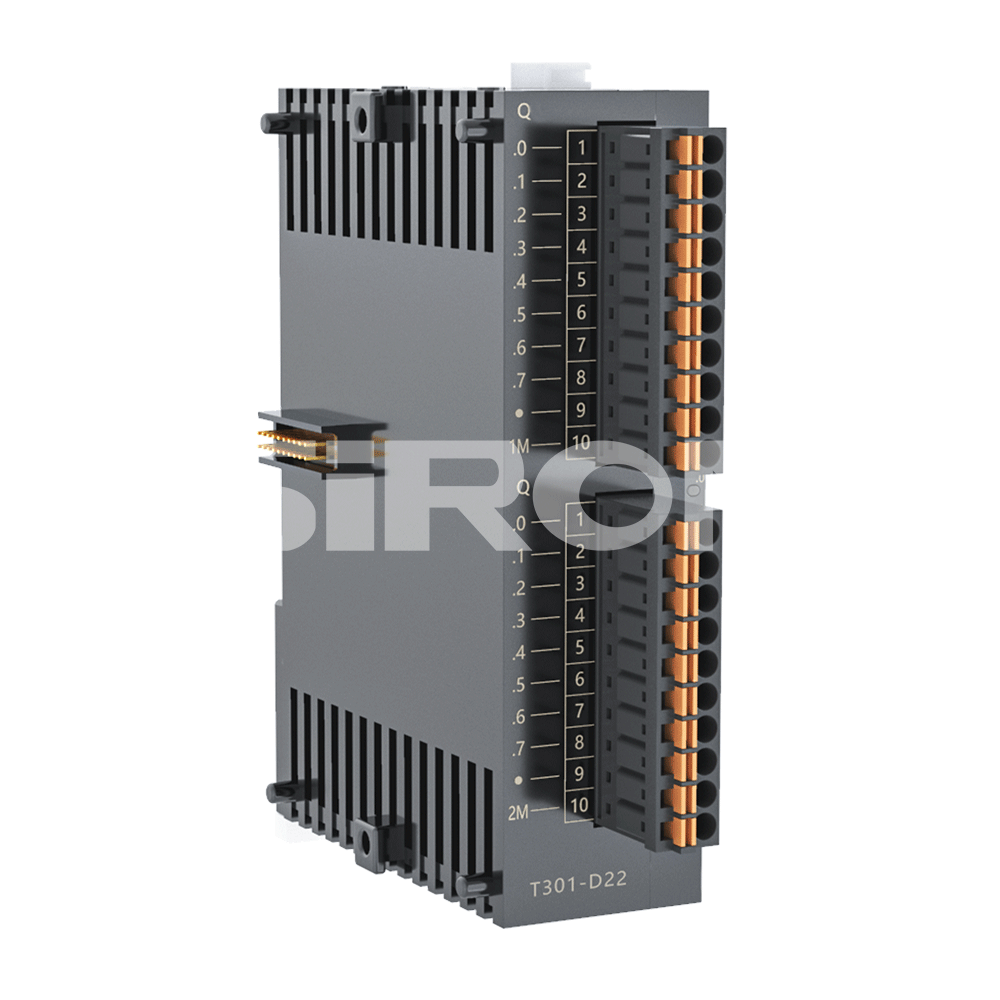

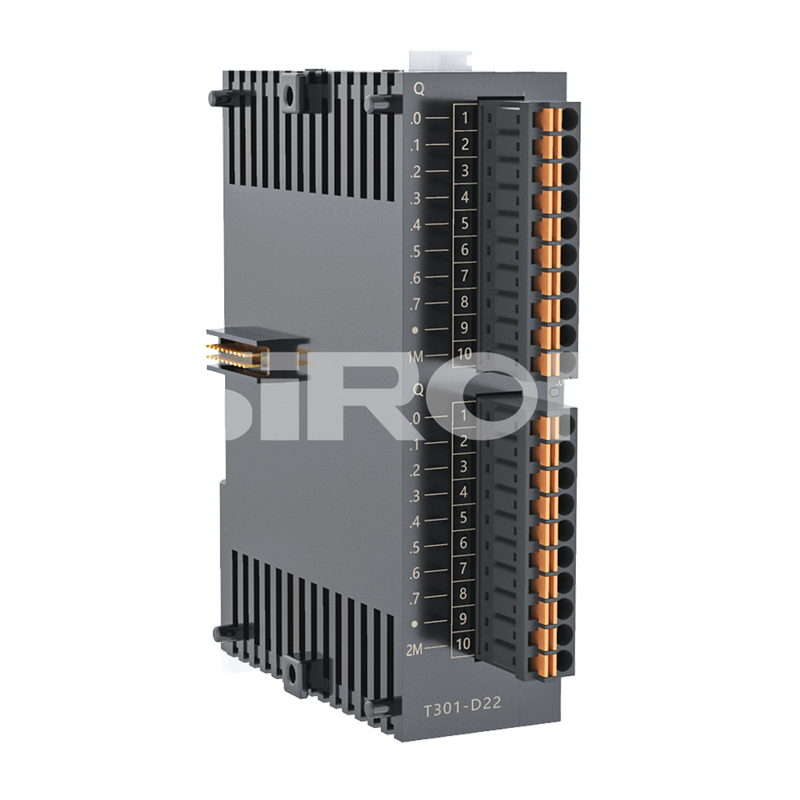

T301-D
SiRON
8517799000

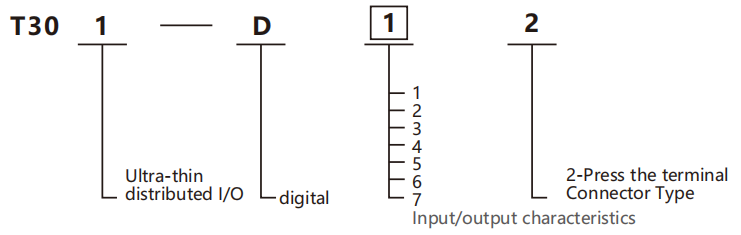

About selection
Selection example: T301-D12 represents the ultra-thin distributed I/O series. digital, input/output characteristics: 16-channel digital input.0-channel digital output, interface form: Press terminal.
Input/output characteristics
| Code | Input | Output |
| 1 | 16 channels digital input | 0 channels digital output |
| 2 | 0 channels digital input | 16 channels digital (transistor)output(NPN) |
| 3 | 0 channels digital input | 16 channels digital (transistor)output(PNP) |
| 4 | 0 channels digital input | 16 channels digital (relay)output |
| 5 | 8 channels digital input | 8 channels digital (transistor)output(NPN) |
| 6 | 8 channels digital input | 8 channels digital (transistor)output(PNP) |
| 7 | 8 channels digital input | 8 channels digital (relay)output |
Specification
input signal
| Signal type | NPN/PNP | Input filtering | 0.2～6.4ms |
| "0"Indicates that the signal type is NPN | 18～30V DC | Input current | 10mA |
| "1"Indicates the signal type NPN | -3～+3V DC | lsolation mode | Opto-couplers isolation |
| "0"signal type PNP | -3～+3V DC | lsolation voltage | 500V |
| "1"signal type PNP | 18～30V DC | Indicator light | Green LED |
output signal
| Signal type | NPN | PNP | relay |
| ”0"Indicates that the signal type is NPN | 24V DC | 24V DC | 24V DC,220VAC |
| "1"Indicates the signal type NPN | 1A | 1A | 2A,2A |
| "0"signal type PNP | 100μs | 100μs | 10ms |
| "1"signal type PNP | Inductive load,resistive load | ||
| Input filtering | Optocoupler isolation,relay isolation | ||
| Input current | 500V | ||
| Isolation mode | Overvoltage and overcurrent protection | ||
| Isolation voltage | Eight points form a common end | ||
| Indicator light | Green LED | ||

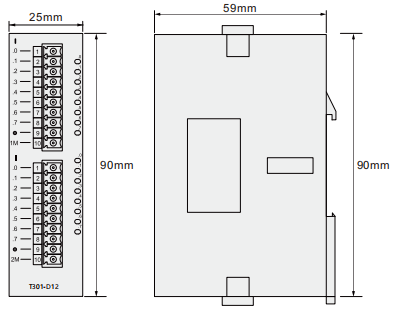

Dimension

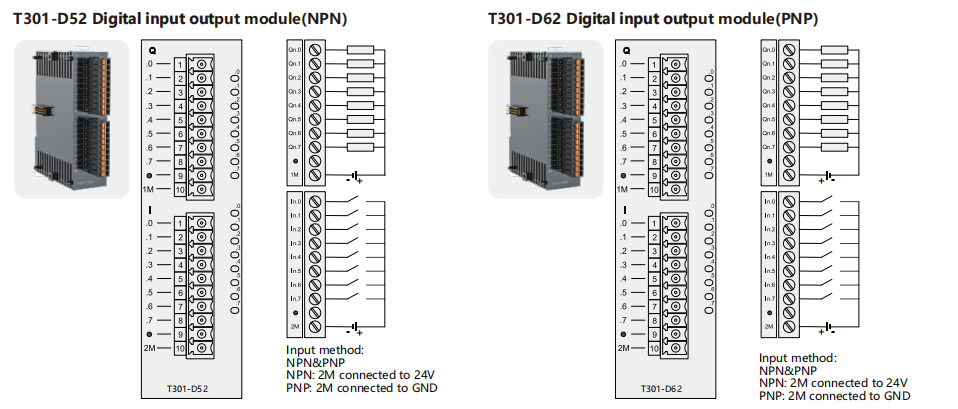

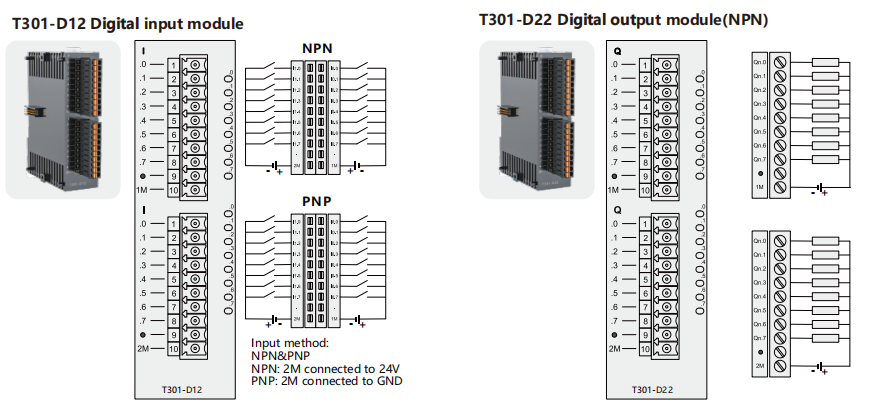

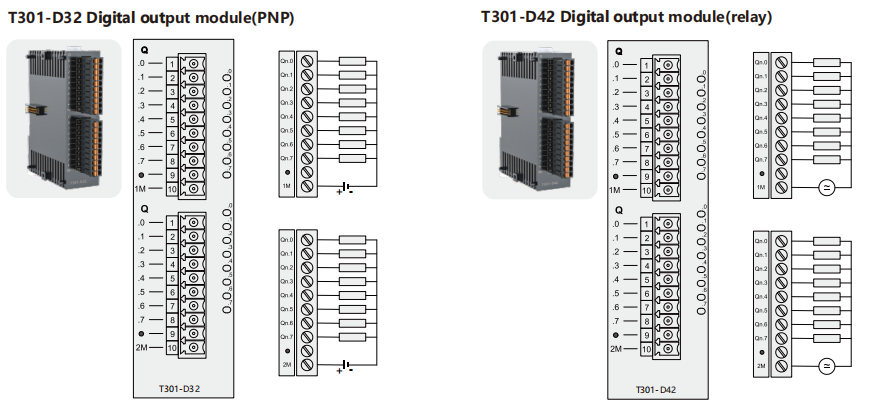

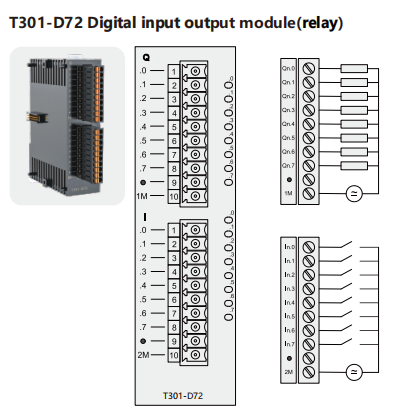

Wiring diagram
