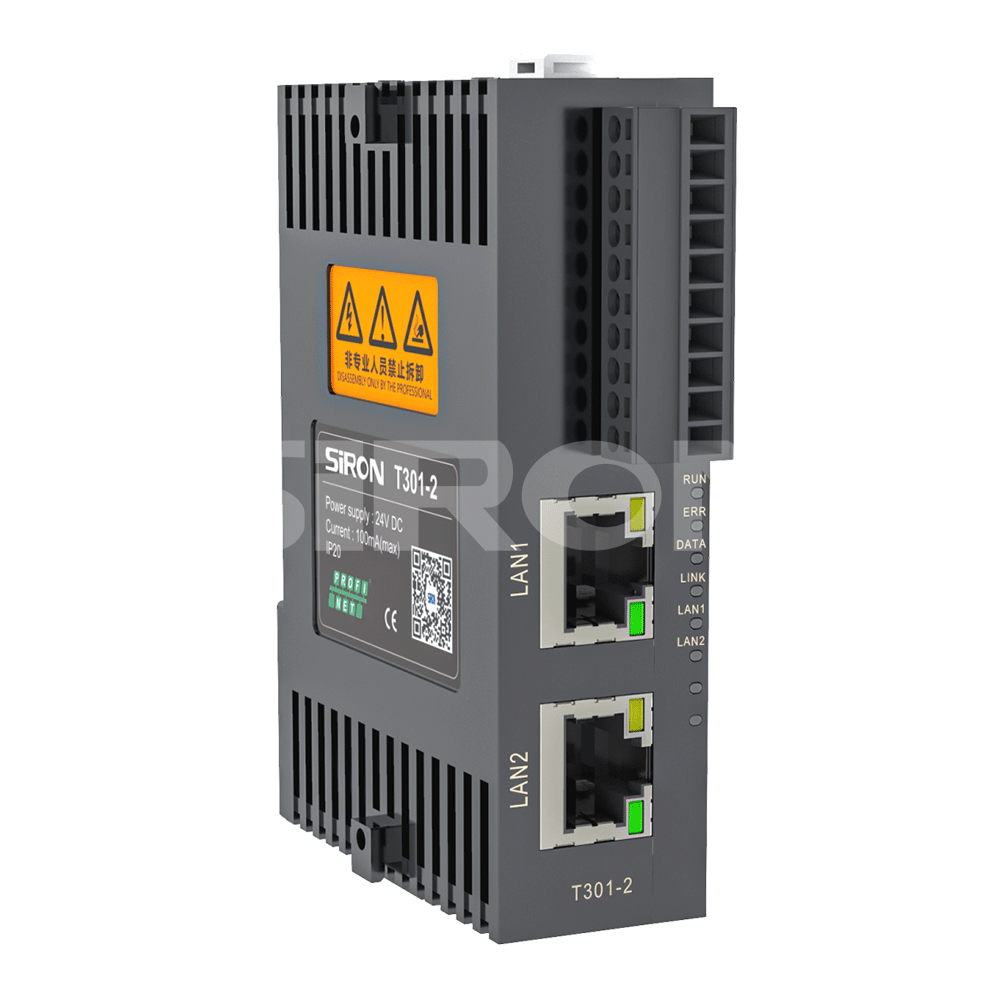

SiRON T301-2 Ultra-thin Distributed I/O IP20 PROFINET Module

Name: SiRON T301-2 Ultra-thin Distributed I/O IP20 PROFINET Module
Brand: SiRON
Rating: 5.0 (9 reviews)

Features

* 24VDC working power supply;
* Up to 7 modules can be expanded;
* Dual network port design, support switching function, more convenient networking;
* High performance communication chip, parallel interface, fast speed;
* Pin bus expansion interface, plug and play, no additional wiring required;
* Visual channel indicator design, debugging, maintenance at a glance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T301-2
Brand:
SiRON
Code:
8517799000

IP20 Profinet Module RJ45 Profinet Module CE Profinet Module

Product Description

About selection

企业微信截图_17560920026220

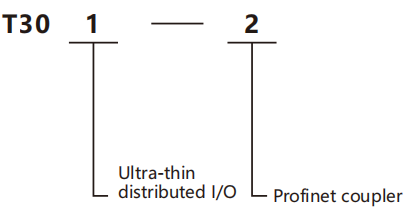

Selection example: T301-2 represents the ultra-thin distributed I/O series, Profinet coupler.

Specification

Bus protocol	PROFINET
IO quantity	According to the main station
Transmission medium	Ethernet/EtherCAT CAT5 cable
Transmission rate	100Mbps
Transmission distance	≤100m(Station distance)
Bus interface	2×RJ45
Configuration mode	Through the main station
Power supply	18～36V DC
Electrical isolation	500V

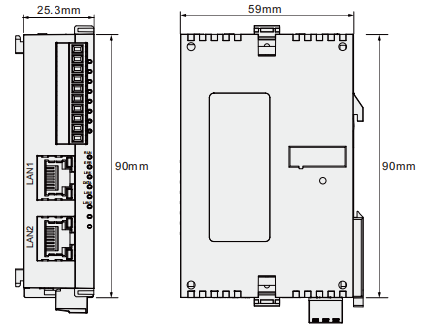

Dimension	50×90×60mm；90g
Installation mode	Operating temperature: -15 to 55℃ Storage temperature: -20 to 80℃
Operating temperature	95%, no condensation
Class of protection	IP20
