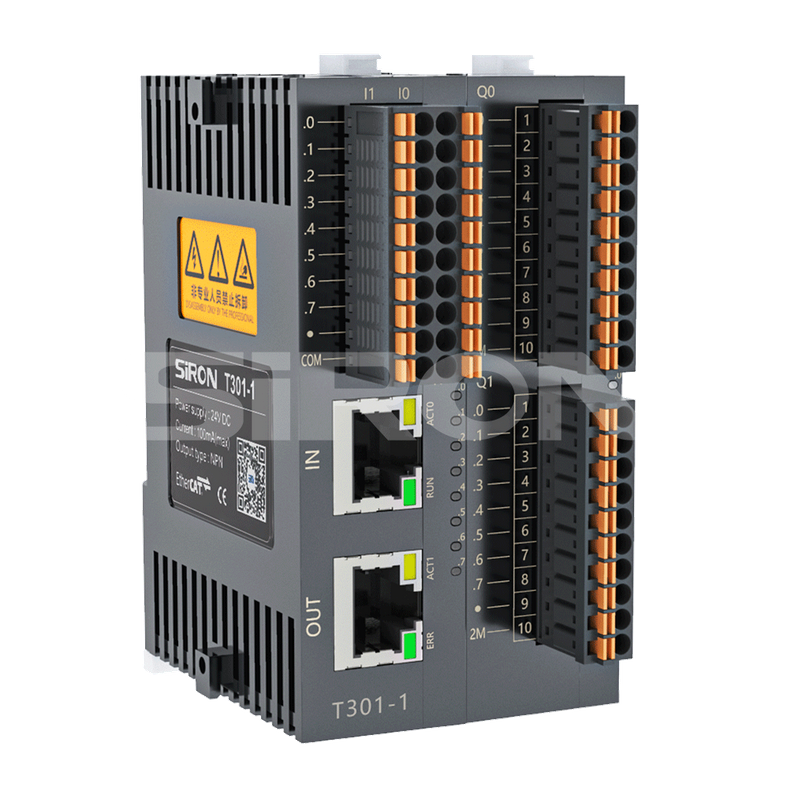

SiRON T301-1 Ultra-thin Distributed I/O IP20 Ethercat Module

Name: SiRON T301-1 Ultra-thin Distributed I/O IP20 Ethercat Module
Brand: SiRON
Rating: 5.0 (87 reviews)

Features

* It can be expanded to a maximum of 7 modules;
* Dual network port design, support switching function, more convenient networking;
* High-performance EtherCAT communication chip, parallel interface, fast speed;
* Pin bus extension interface, plug and play, no additional wiring;
* Visual channel indicator design, debugging, maintenance at a glance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T301-1
Brand:
SiRON
Code:
8517799000

IP20 EtherCAT Module RJ45 EtherCAT Module CE EtherCAT Module

Product Description

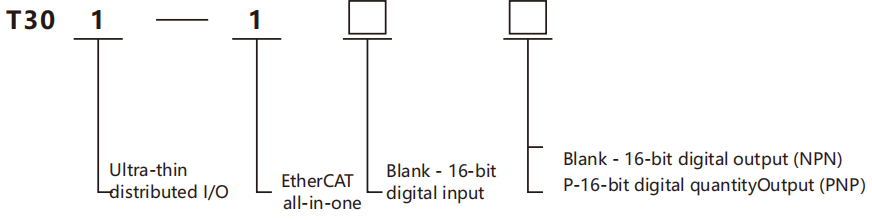

About selection

企业微信截图_17560917885909

Selection example: T301-1 represents the ultra-thin distributed I/O series, EtherCAT all-in-one machine, 16-bit digital input, 16-bit digital output (NPN).

Specification

protocol	EtherCAT
IO quantity	According to the main station
Transmission medium	Ethernet/EtherCAT CAT5 cable
Transmission rate	100Mbps
Transmission distance	≤100m(Station distance)
Bus interface	2×RJ45
Configuration mode	Through the main station
Power supply	18～36V DC
Electrical isolation	500V

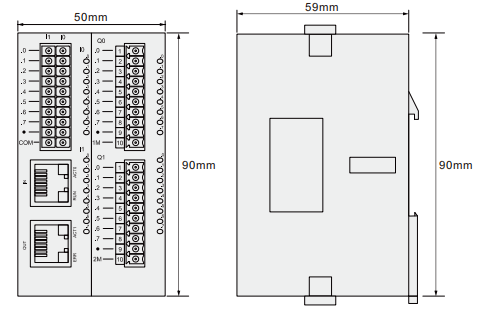

Dimension	50×90×60mm
Installation mode	DIN35mm DIN-rail mounting
Operating temperature	-10~50℃
Class of protection	IP20
