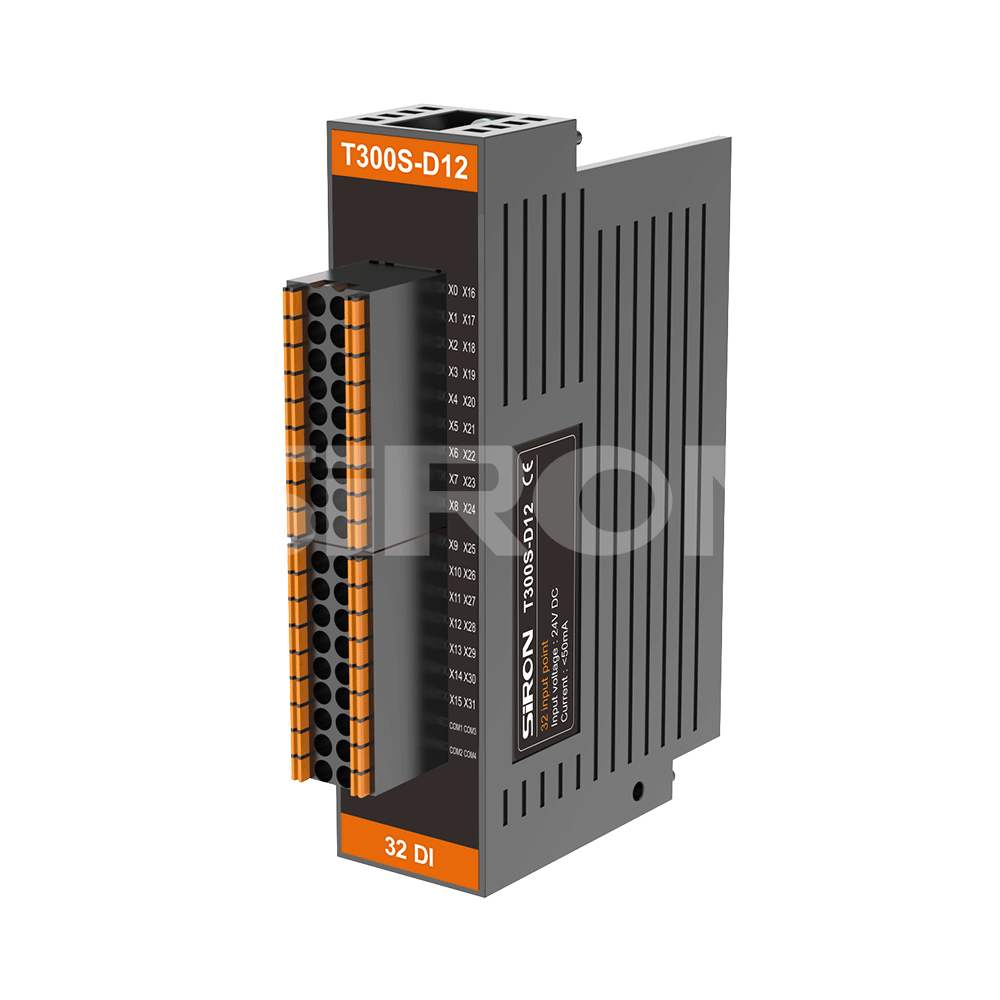

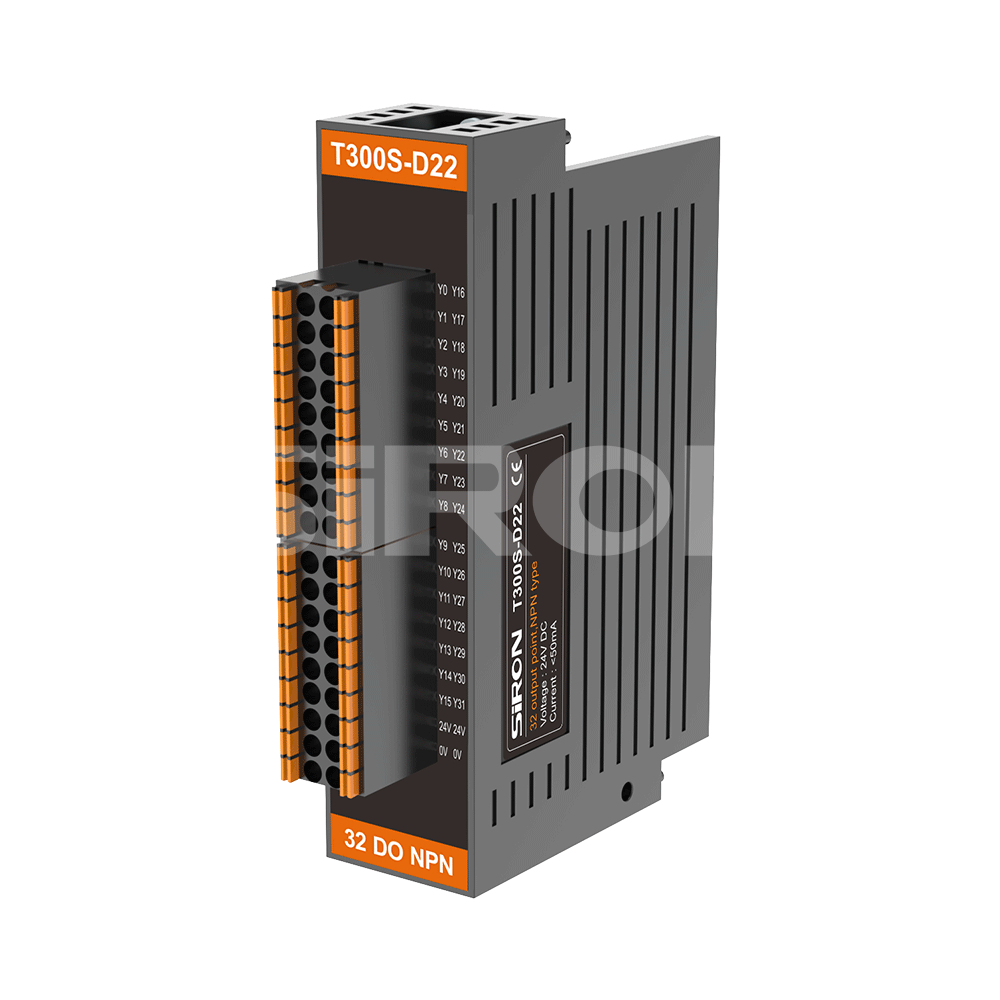

SiRON T300S-D Ultra-thin All-in-one I/O IP20 Expansion Digital Module

Name: SiRON T300S-D Ultra-thin All-in-one I/O IP20 Expansion Digital Module
Brand: SiRON
Rating: 5.0 (97 reviews)

Features

* Used with couplers;
* Standard DIN35 rail installation, easy installation;

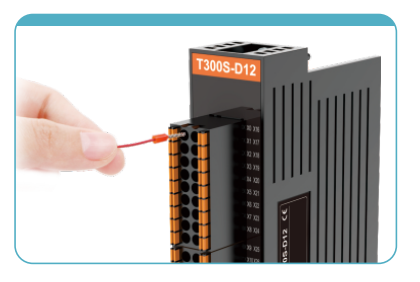

* Press type terminals, more convenient wiring

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T300S-D
Brand:
SiRON
Code:
8517799000

IP20 Expansion Digital Module RJ45 Expansion Digital DC 24V Expansion Digital

Product Description

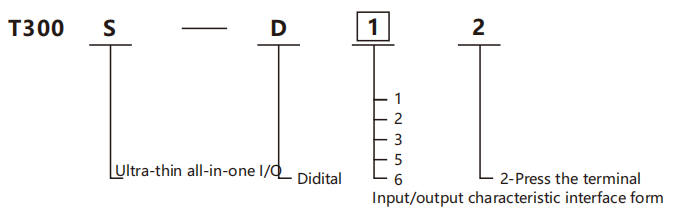

About selection

企业微信截图_17560906643448

Selection example:T300S-D12 represents the ultrathin integrated I/O series, with digital,input/output characteristics: 32-channel digital Input, 0-channel digital output, interface form: Press terminal.

Code	Input	Output
1	32 channels digital input	0 channels digita output
2	0 channels digital input	32 channels digital(transistor)output (NPN)
3	0 channels digital input	32 channels digital(transistor)output (PNP)
4*	0 channels digital input	16 channels digital(relay)output
5	16 channels digital input	16 channels digital (transistor)output (NPN)
6	16 channels digital input	16 channels digital (transistor)output (PNP)

Specification

Input
Rated woltage	DC 24V
0signal voltage(NPN)	OV
1Signal voltage(NPN)	24V
0signal voltage (PNP)	OV
1Signal voltage (PNP)	24V
Input current	<50mA
Electrical isolation	AC 250V
Rated voltage	DC 24V
Electrical isolation	AC 250V
Maxcimumload aument	2A/port

Output
Rated voltage	DC24V
Type ofload	Resistive load
Single channel maximum current	NPN:500mA; PNP:500mA
Maximum totaloutput power/current	2A
Electrical isolation	AC 250V
Operating temperature range	0～50℃
Storage temperature range	-20～125℃
